Labeling and Nesting Cell for Panel Furniture Automatic Production Line
- Brand : Blue Elephant
- Model : Intelligent Labeling and Nesting Cell
- Standard : CE, ISO9001
- Table size : 1220mm*2800mm
- Category : Nesting CNC Machine
- Supply Ability : 300+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
Labeling and nesting cell for panel furniture automatic production line is one of the intelligent nesting solutions in the automatic production line of panel furniture. It combines the labeling system, nesting CNC router, and various auxiliary equipment. So the nesting cell can minimize manpower and improve material yield, enabling massive and customized production.
This nesting cell consists of a high-speed automatic labeling machine, two automatic loading and unloading ATC nesting CNC machines, a power drum line, and a central control system. Operators only need to put the wooden boards on the lifting platform. Then the labeling machine will automatically label the board, and then the central control system will automatically assign it to the nesting center to for cutting.
Optional robot system can be selected for completing the work of palletizing, utilization of residual materials, and waste output.
Features
- The central control system has the function of optimizing cutting program, which saves time and reduces the waste of plates. At the same time, it supports to supply plates on-site without making files and importing data for one single plate. The processing volume reaches about 240 panels in 8 hours.
- With simple operation, common workers can operate the nesting cell. The operator just needs to copy the processing program into the central control system and start the machine without operating each machine.
- The processing of wooden boards placed under the same order is optimized and advanced quickly, improving efficiency and bringing considerable benefits.
- This nesting cell can be operated continuously among several shifts, which reduces the manual restrictions and standby time.
- It effectively reduces production errors and material damage caused by human operation.
- It is more convenient to monitor the whole production process.
Parameters
| Model | EK2-1828 ATC |
| X, Y, Z axis travel | 1850*2750*200mm |
| Worktable structure | Full-sheet vacuum table |
| Tool magazine | Linear tool changer under the gantry, with 16 tools |
| Voltage/frequency | 380V, 3PH, 60Hz |
| Control system | Syntec 60CB Bus control system |
| Spindle power and speed | JST 9kW ATC air cooling spindle, 24,000 rpm |
| Inverter | Fuling H1 series inverter–11kW |
| Motor and driver | Yaskawa 1.3kW servo motor |
| Reducer | Shimpo |
| Vacuum pump | Becker VTLF2.250, 6.6kW, 380V, 3Ph, 60Hz |
| Dust collector | 5.5kW dual-bag dust collector, 380V, 3Ph, 60Hz |
| Air compressor | 7.5kW screw air compressor, 380V, 3Ph, 60Hz |
| Guide rail | SHAC square linear guide rail: Y#30, X#25, Z#25 |
| Rack | PCRCH 2M helical rack |
| Positioning cylinder | X: 3, Y: 4 |
| Lubrication system | Automatic lubrication |
| Labeling machine | Servo: Leadshine 1.5kW + 0.75kW
Controller: Syntec 60PE Guide rail: Taiwan SHAC |
Nesting CNC Machine Optional Parts

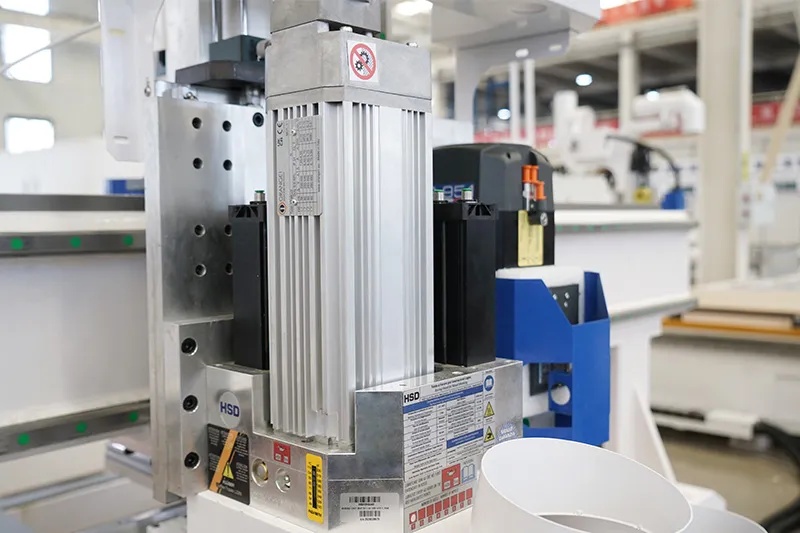

nesting-cnc-machine-drill

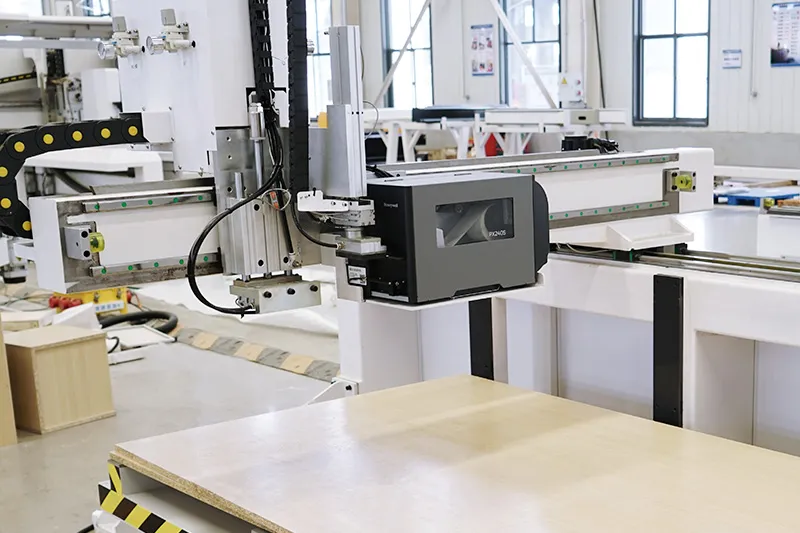

nesting-cnc-machine-independent-labeling-machine

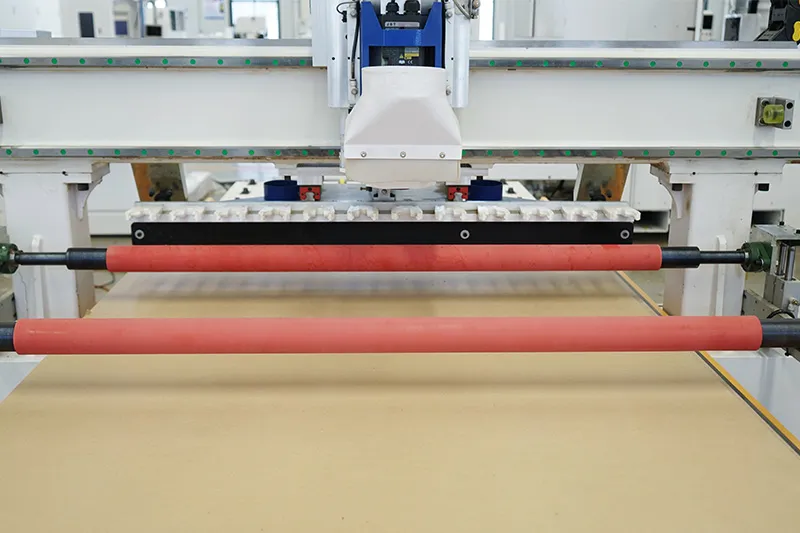

nesting-cnc-machine-pressure-roller

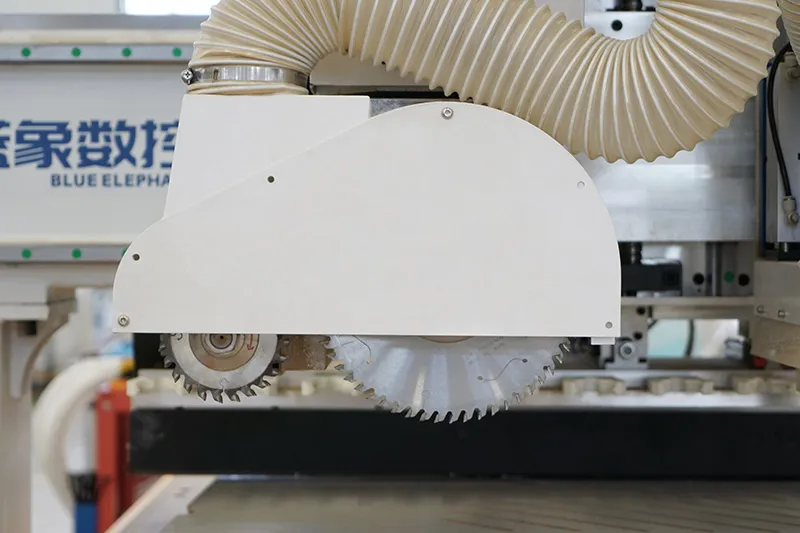

nesting-cnc-machine-saw-blade

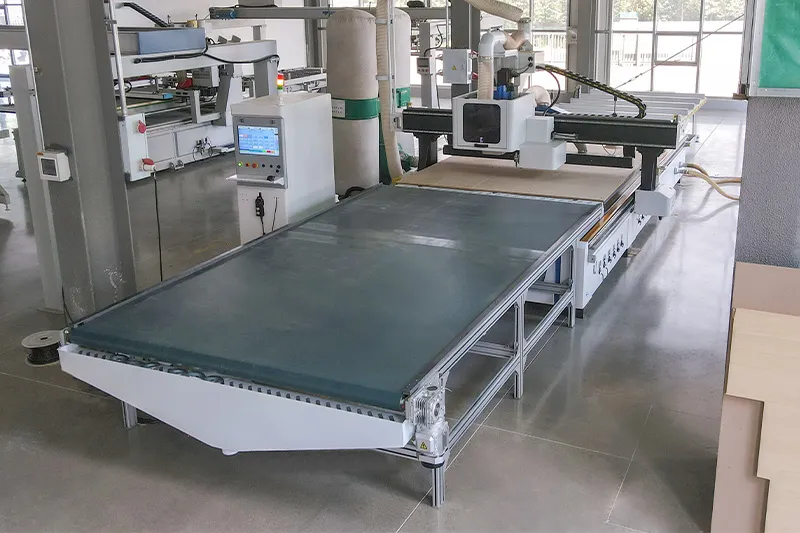

labeling-nesting-cnc-machine-loading-and-unloading
labeling-nesting-cnc-machine-software

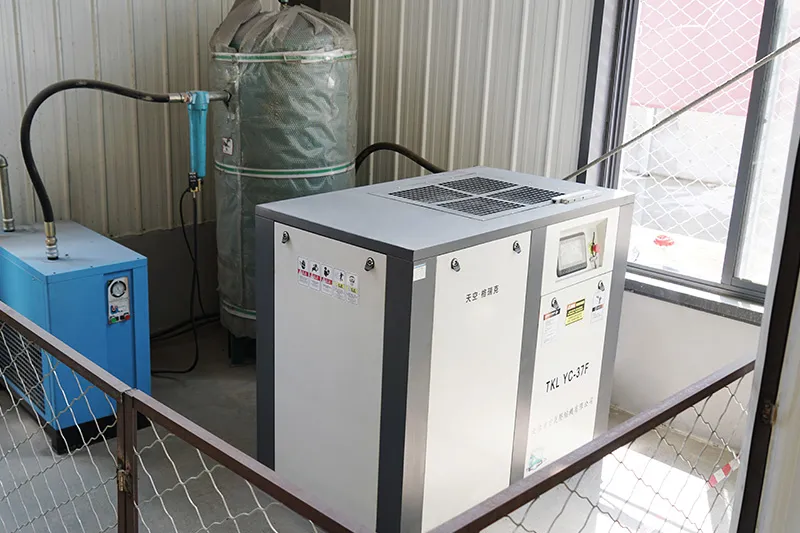

nesting-cnc-machine-air-compressor

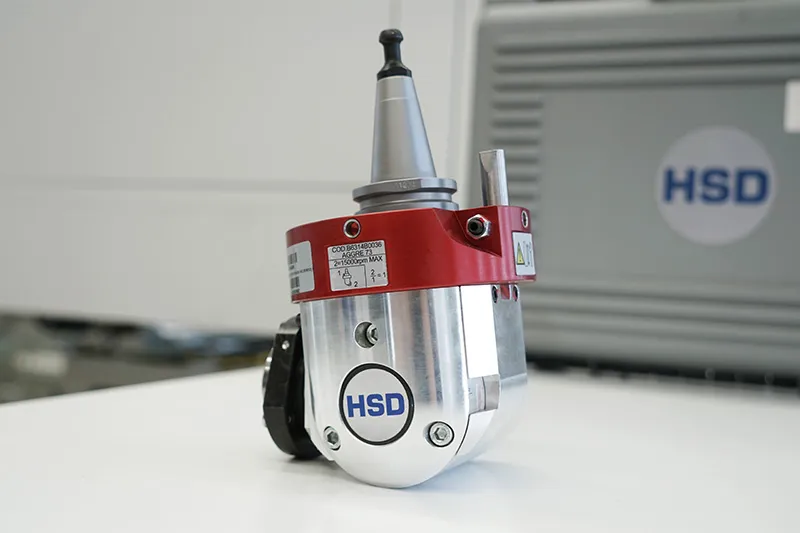

nesting-cnc-machine-c-axis-aggregate-head
Application
It is mainly used for the automatic production of various panel furniture. For example, cabinets, shelves, wardrobes, cupboards, kitchen cabinets, office furniture, doors, cabinet doors, signs, frames, etc.
nesting-cnc-machine-for-kitchen-cabinet-1
nesting-cnc-machine-for-locker
nesting-cnc-machine-for-office-furniture
nesting-cnc-machine-for-wardrobe
nesting-cnc-machine-for-bookshelf
nesting-cnc-machine-for-drawer
nesting-cnc-machine-for-hotel-furniture
nesting-cnc-machine-for-kitchen-cabinet
FAQ
Sure. You can customize not only the size of the machine but also many other configurations.
Of course. We can customize a nesting CNC cell according to your specific processing requirements. For example, the size of this cell, quantity and models of the nesting machines, etc.
We have a complete manual, and a professional after-sales technical team to support and provide 24-hour online service.
