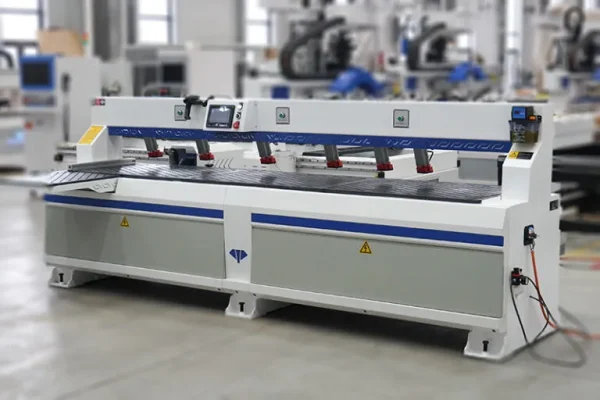

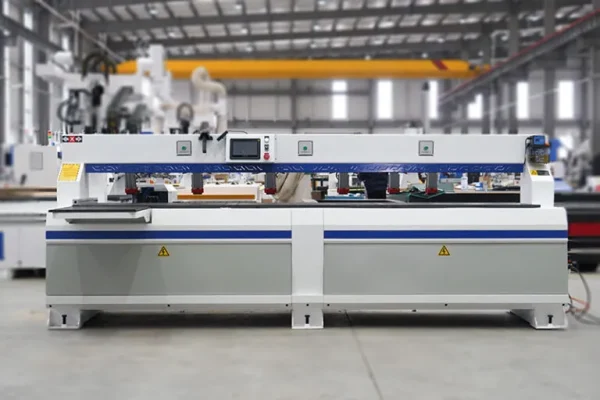

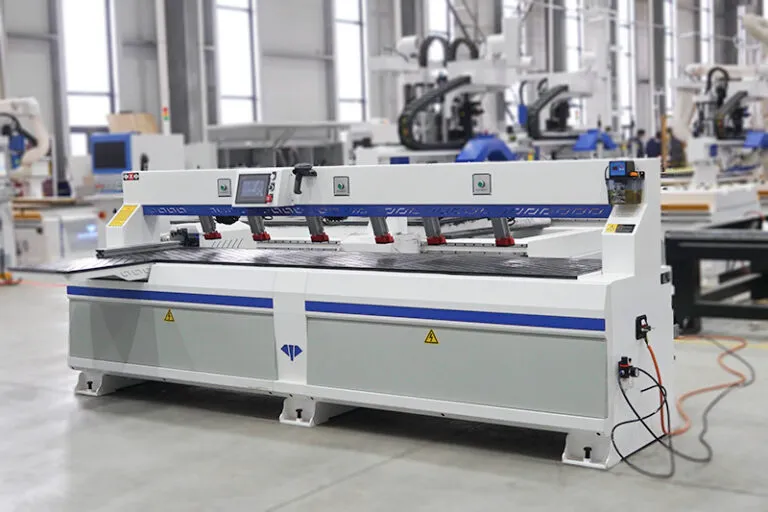

E100 Single Head Side Hole Drilling Machine

(5.0 based on 174 ratings and reviews)

$3,000 – $4,000

Brand : Blue Elephant
Model : ELECNC200
Power : 5.5Kw
Drilling heads : Double
Category : CNC Drilling Machine
Supply Ability : 450+ Units in Stock
After-sale Service : Free Lifetime Technical Support online, Overseas service.
Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

E100 Single Head Side Hole Drilling Machine mainly has the functions such as side holes, dowel holes, blind holes, as well as locating the slot, opening the slot, etc.

Features

Support various docking furniture design production software with opening worktable port.
Simple operation. Without any software, it can directly blind play truly intelligent production.
Zero-based staff are qualified for operation after only one hour of professional training, which saving labor costs.
Please notice that all the specifications can be customized according to your special requirements.

Parameters

Model	ELECNC100

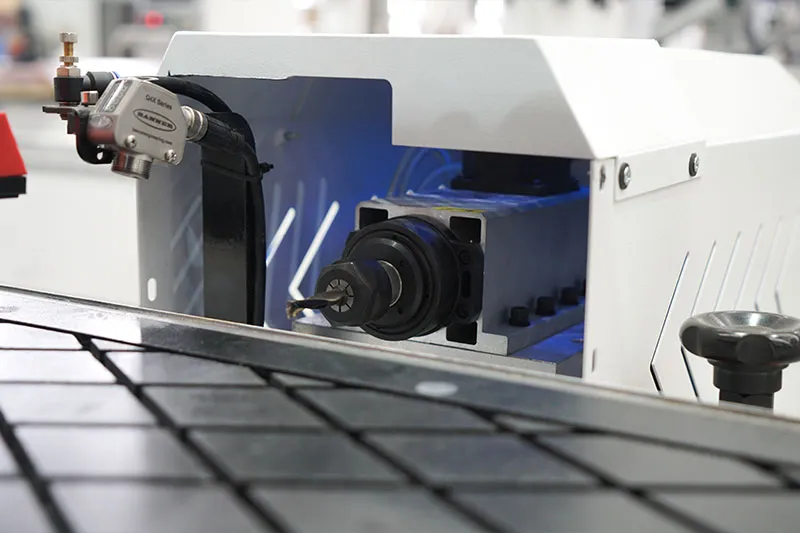

Spindle power	2.2kw
Spindle speed	0-18000RPM/MIN
Idling speed	100m/min
Working speed	80m/min
Working travel	2800mm
Height of table	750mm
Drive and motor	Dongling servo motor and drive
Sensor	BANNER

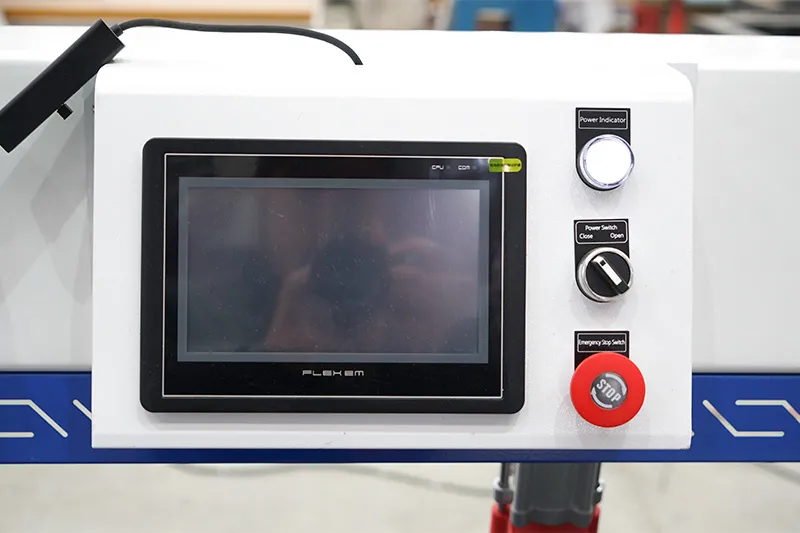

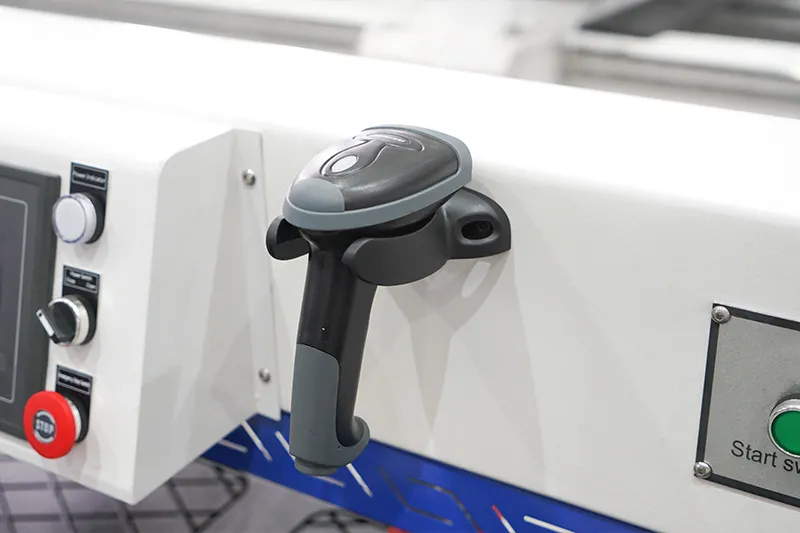

Controller	Luolunchi code scanning and laser scanning dual system
Guild	#20 square rail
Rack	Taiwan JUELI
Screw	TBI
Whole size	330012501300mm

Side Hole Drilling Machine Optional Parts

Application

Side drilling machines are mainly used to drill side holes or make slots or grooves on side surface of wooden panels. It is designed with simple structure and easy operation. We provide three major side drilling machine models for now. The major difference between them is the number of drill bits or saw blade that they have. All three models of side hole drilling machine have three work stations, which enables to process three panels at the same time. It greatly improves the side drilling efficiency.
