E400 Four Spindles Side Hole Drilling Machine
- Brand : Blue Elephant
- Model : ELE400
- Power : 5.5Kw
- Drilling heads : Double
- Category : CNC Drilling Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
E400 four spindles side hole drilling machine adopts the non-pulling handicraft and hidden piece process to provide more convenience and possibility for the cabinet and door manufacturing industry. It can help you realize various free handles drilling like horn handles, arc handles, single-angle handles, etc.
Features
- Non-pulling handicraft
The most notable feature of this machine is that it can help customers in the furniture industry to realize the handle-free design of cabinets and doors, which is more concise and beautiful. - Hidden piece process
The nob-pulling CNC drilling machine can also cut and make different invisible joints, such as mortise and tenon, Lamello, etc. - Dual scanning
Using the Lorenchi scanning system, it can realize plate scanning and code scanning. - Movable beam and positioning baffle

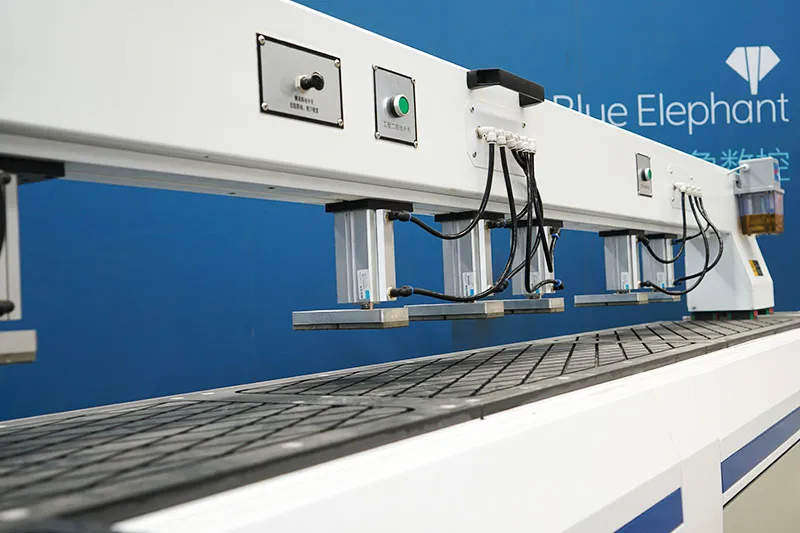

The machine beam and positioning baffle are both movable, which is very convenient to accurately process plates of different thicknesses and sizes. - Adjustable guiding rule
The adjustable guiding ruler is scalable and adjustable, and very flexible. It can be used in different processing and measuring scenarios. In addition, the scale marks are also very convenient for recording and reading the length value.
Parameters
| Working size | 3600*1300*1450mm |
| Left and right X-axis working stroke | 0-2800mm |
| Front and rear Y-axis working stroke | 0-50mm |
| Up and down Z axis working stroke | 0-50mm |
| Spindle motor speed | 18000RP m/min |
| Spindle motor power | T1/T2 spindle 2.2KW, T3/T4 spindle 3.5KW |
| Spindle motor brand | SCS/Huajiang/Changsheng/Oakmond |

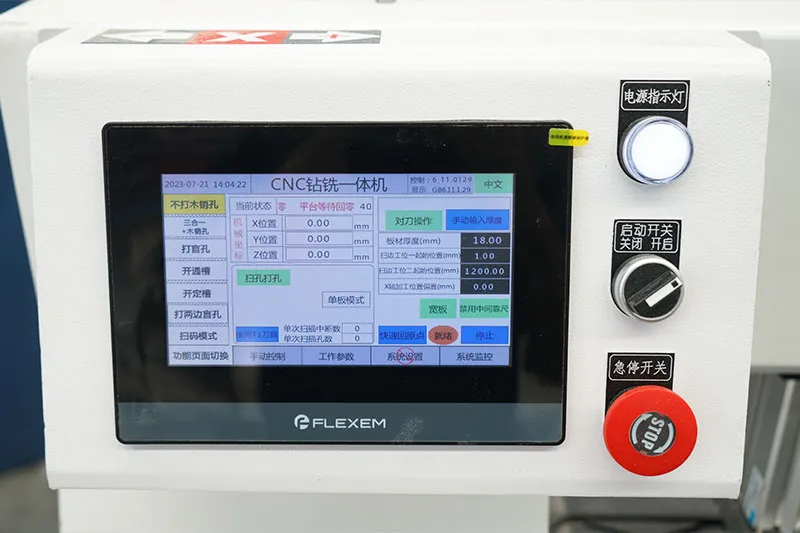

| Control system | Lorenchi dual scanning system |
| Laser sensor | American Banner laser head |
| Rails | #20 square rails |
| Reducer | Taiwan Planet |
| Inverter | Best 4KW |
| Software | Blue Elephant Custom System |
| Working voltage | 220v, 3ph, 60hz |

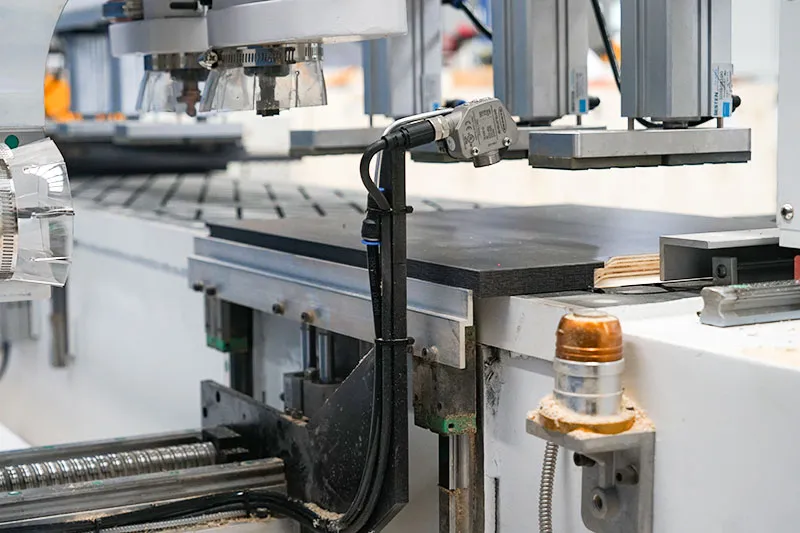

Side Hole Drilling Machine Optional Parts
Application
Side drilling machines are mainly used to drill side holes or make slots or grooves on side surface of wooden panels. It is designed with simple structure and easy operation. We provide three major side drilling machine models for now. The major difference between them is the number of drill bits or saw blade that they have. All three models of side hole drilling machine have three work stations, which enables to process three panels at the same time. It greatly improves the side drilling efficiency.
FAQ
This side drilling machine can drill multiple types of holes, such as minifix holes and Lamello holes and make slots on side surface of the wooden panels.
No. This machine can not make 45 degrees Lamello. But we can change the structure of one spindle to enable it to make 45 degrees Lamello according to your requirements.
A: ELE200 side drilling machine can complete all the work that the ELE100 machine can do, and ti can also make Lamello holes, which is an additional function.
