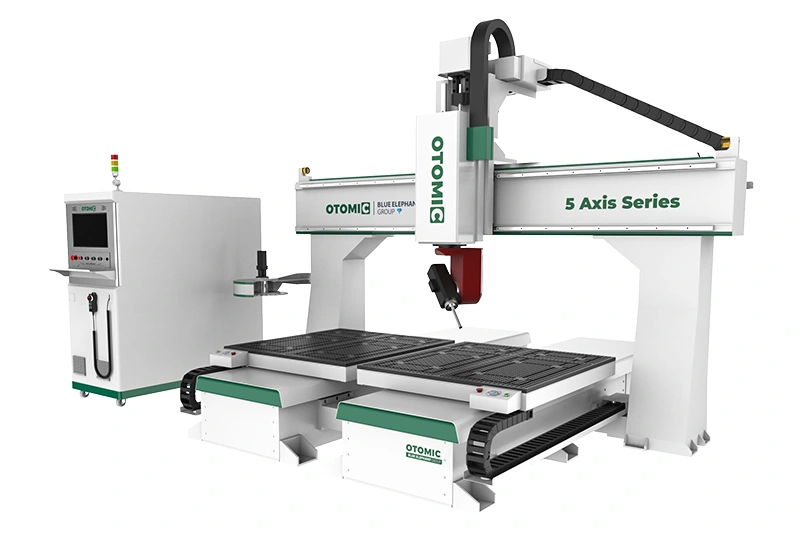

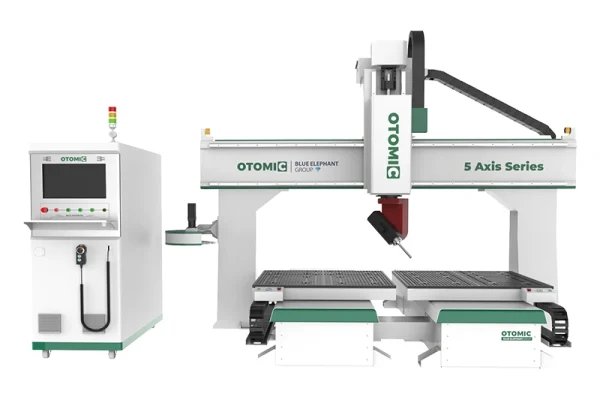

EW1 5 Axis CNC Router with Two Tables
- Brand : Blue Elephant
- Model : Omic EW1
- Standard : CE, ISO9001
- Table size : 1200mm*1200mm
- Category : 5 Axis CNC Router
- Supply Ability : 500+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
EW1 5 axis CNC router with two tables can reduce non-productive time by processing at one table while unloading at the other. This greatly improves work efficiency. It is widely used to process 3D wood, foam, and plaster molds, statues, and parts.
Features
- All components are from international famous brands, which greatly extend the life service of the machine.
- Two movable working tables can realize simultaneous processing and loading & unloading, which greatly saves loading and unloading time and improves work efficiency.
- With a carousel tool magazine, this CNC router can change tools automatically, extending the processes and increasing work efficiency.
Parameters
| Model | Omic EW1 |
| X,Y axis travel | 1200X1200mm |
| Z axis travel | 500mm-700mm |
| Spindle type | 10kw-12kw water cooling ATC spindle，24000RPM |
| Inverter type | 15kw Taiwan Delta inverter |
| Tool magazine | Carousel tool changer with 8/12pcs magazine |
| Tool holder with collet | HSK F63 tool holder |
| Control system | Syntec 610-E5 5 axis control system with RTCP functions |
| Driving system | X, Zaxis 1.3kw Y axis 1.8kw Japan Yaskawa servo motors |
| Reducer | Japan Shimpo |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Removable working table |
| Linear guide | X axis: Taiwan 30# Linear guide Y axis: Taiwan 30# Linear guide Z axis: Taiwan 30# Linear guide |
| Transmission | X axis:Taiwan Linear Grinding grade racks M2-1000 Y axis:Taiwan TBI Grinding grade screw, 4040-3100 Z axis:Taiwan TBI Grinding grade screw, 3210-1300 |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill software |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-60m/min |
| Working voltage | 380V 3PH 50HZ/ 60HZ（220V for option） |
Optional Items
| Vacuum pump | Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air Compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| table type | Vacuum table |
5 Axis CNC Router Machine Optional Parts
Application
INDUSTRIES
5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove.
In regard to materials, 5 Axis router can process various wood materials, plastics and composites.
FAQ
Wood, foam, MDF, or other materials.
It adopts the fixed-gantry and movable table structure, and the two worktables can move back and forth during the machining process. This helps ensure that all side surfaces can be processed.
Yes. It is equipped with a carousel tool magazine, which can hold 8 different functions tools.
