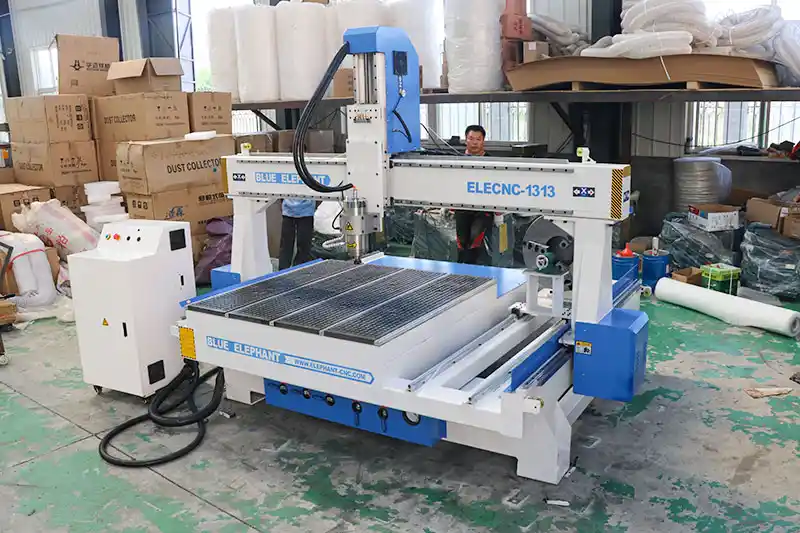

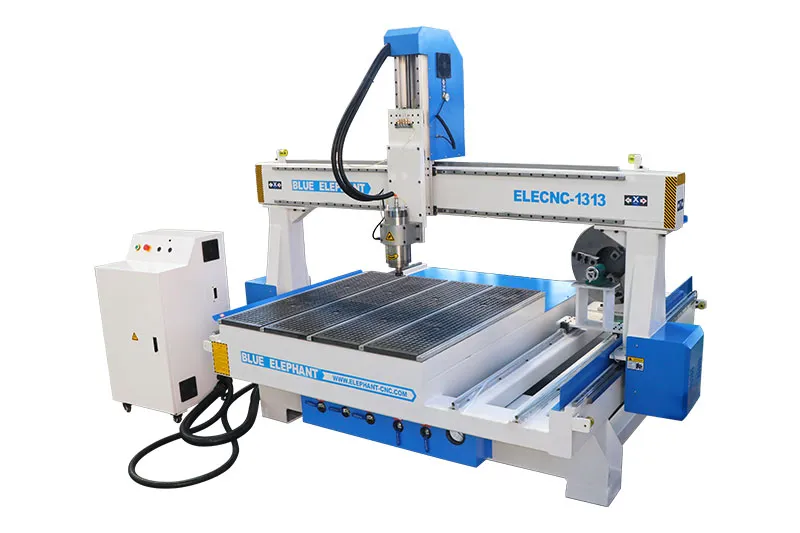

1313 Small CNC Router with Rotary Axis for Sale
- Brand : Blue Elephant
- Model : ELECNC-1313
- Standard : CE, ISO9001
- Table size : 1300mm*1300mm
- Category : Rotary Axis CNC Router
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1313 rotary axis CNC router has a small working area. With a small footprint and it is more flexible and convenient to use. Therefore, it is suitable for meeting the processing needs of the advertising industry, home use or small businesses.
Features
- Equipped with the rotary device, it can be used to process some workpieces like stair railings, table and chair legs, Roman columns, etc.
- Adopting Changsheng water cooling spindle, it has the features of good cooling effect and low noise.
- With a small footprint and it is more flexible and convenient to use.
- Imported parts ensure maximum machine life.
Parameters
| Model | ELECNC1313 |
| X,Y axis travel | 1300*1300mm, option: 1300x2500mm, 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 400mm, option: 200mm, 300mm, etc |
| Spindle type | 6kw water cooling spindle |
| Inverter type | 7.5kw inverter |
| Control system | Mach3 controller for 4 axis |
| Driving system | 750w Leadshine hybrid servo motor and driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | T-slot & vacuum table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Semi-auto lubrication system |
| Tool calibration | Tool sensor |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 30m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional Items
| Effective Working area | 1300*1300*500mm (optional) |
| Spindle | 6kw CS water cooled spindle |
| work table | T-slot& vacuum work table (4 zones) |
| limit switch | Japan OMRON limit switch |
| Motor and drive | Leadshine motor and driver |
| Control system | Mach3 |
| Inverter | Fuling Inverter |
| vacuum pump | 3KW water type vacuum pump |
Rotary Axis CNC Router Optional Parts
Application of 1313 Rotary Axis CNC Router

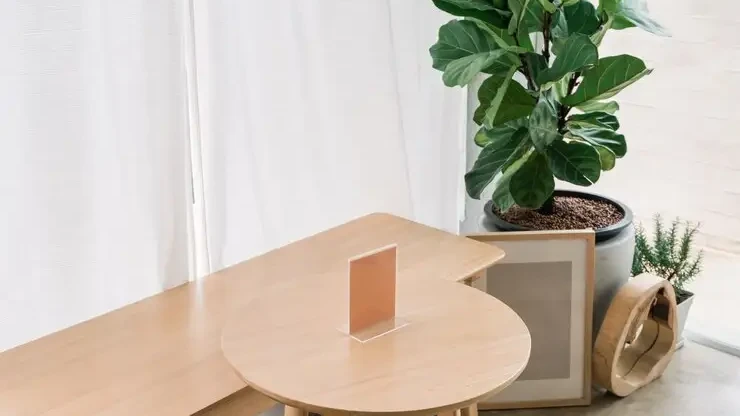

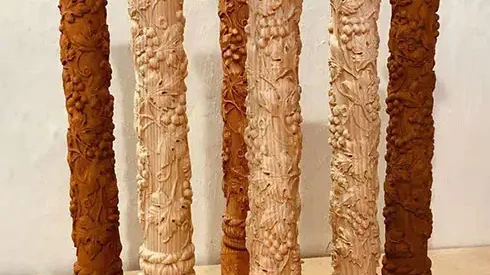

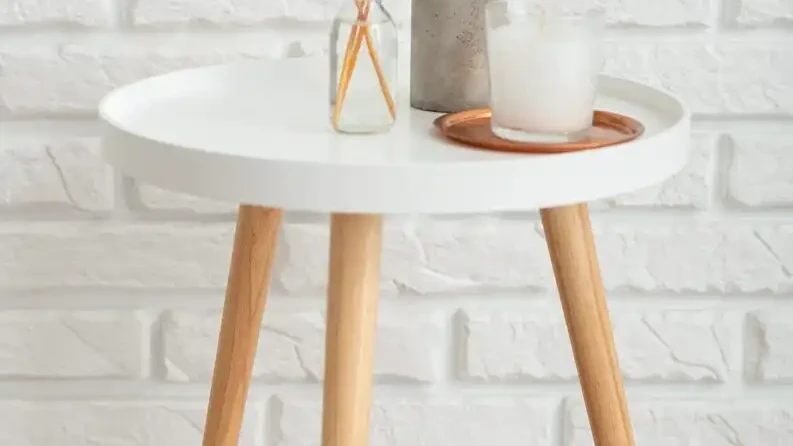

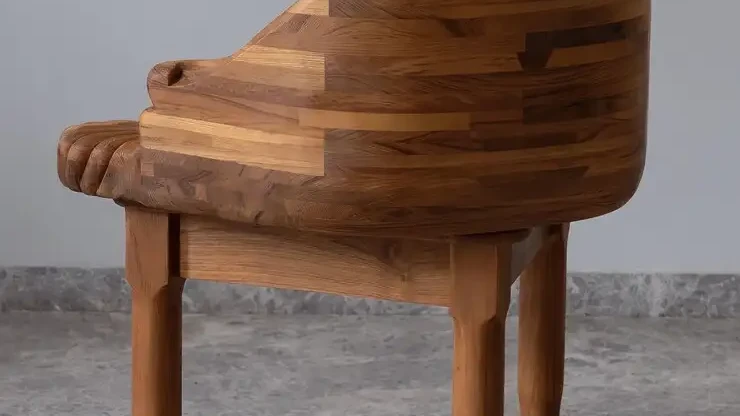

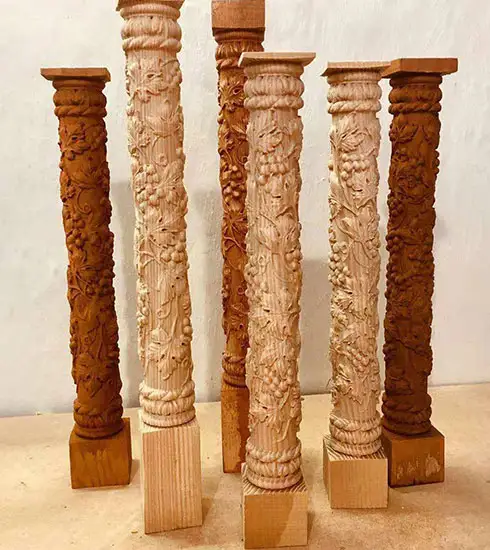

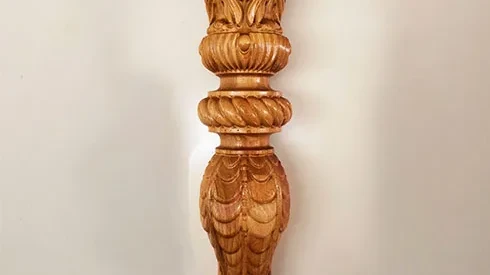

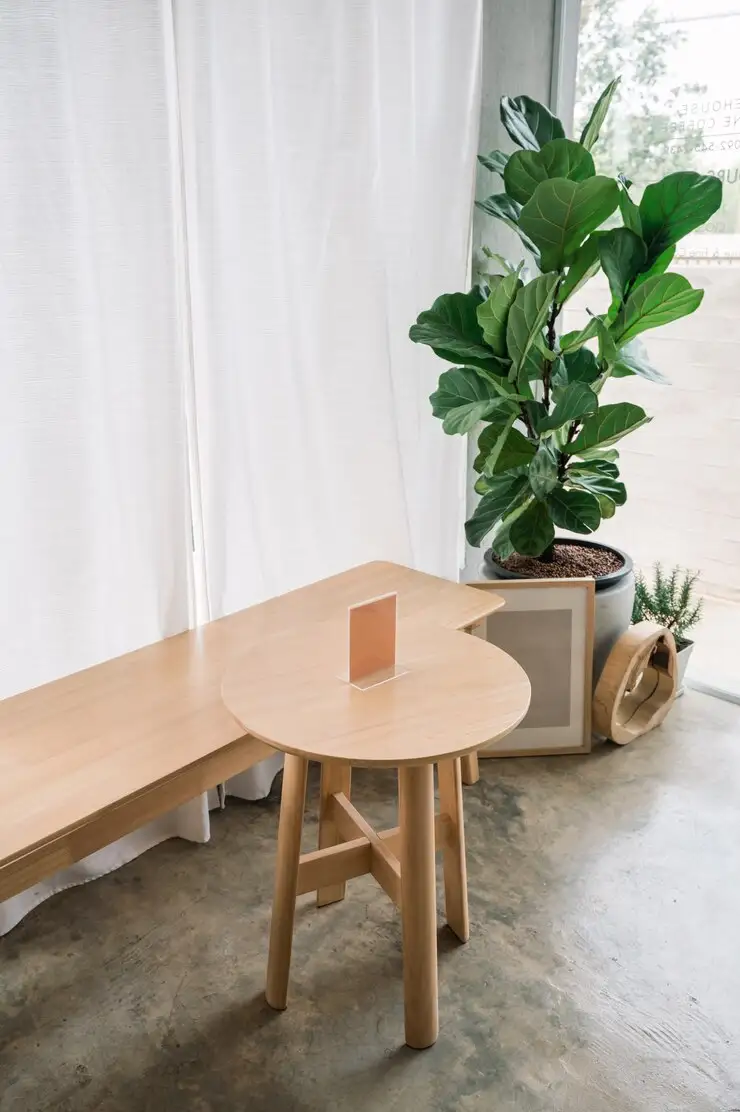

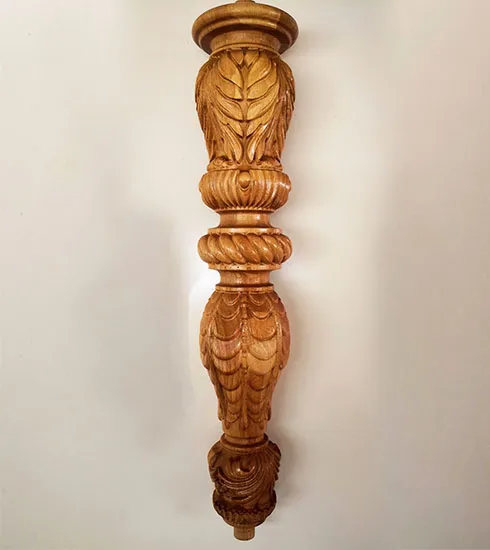

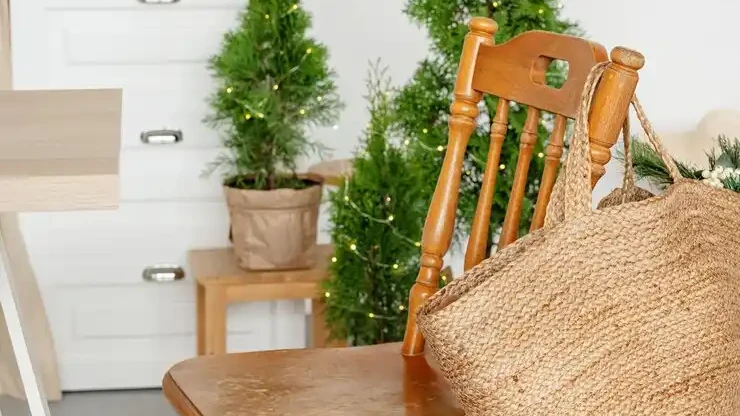

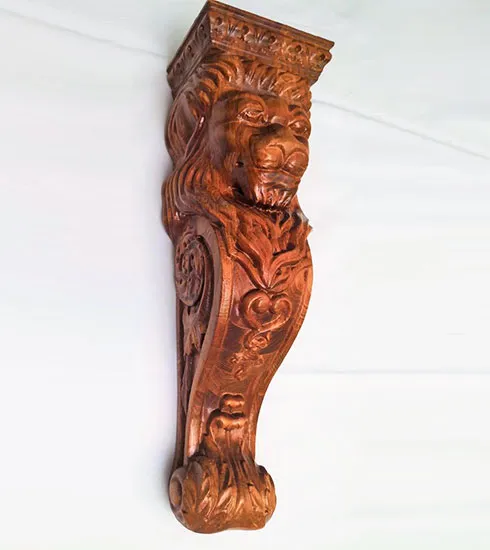

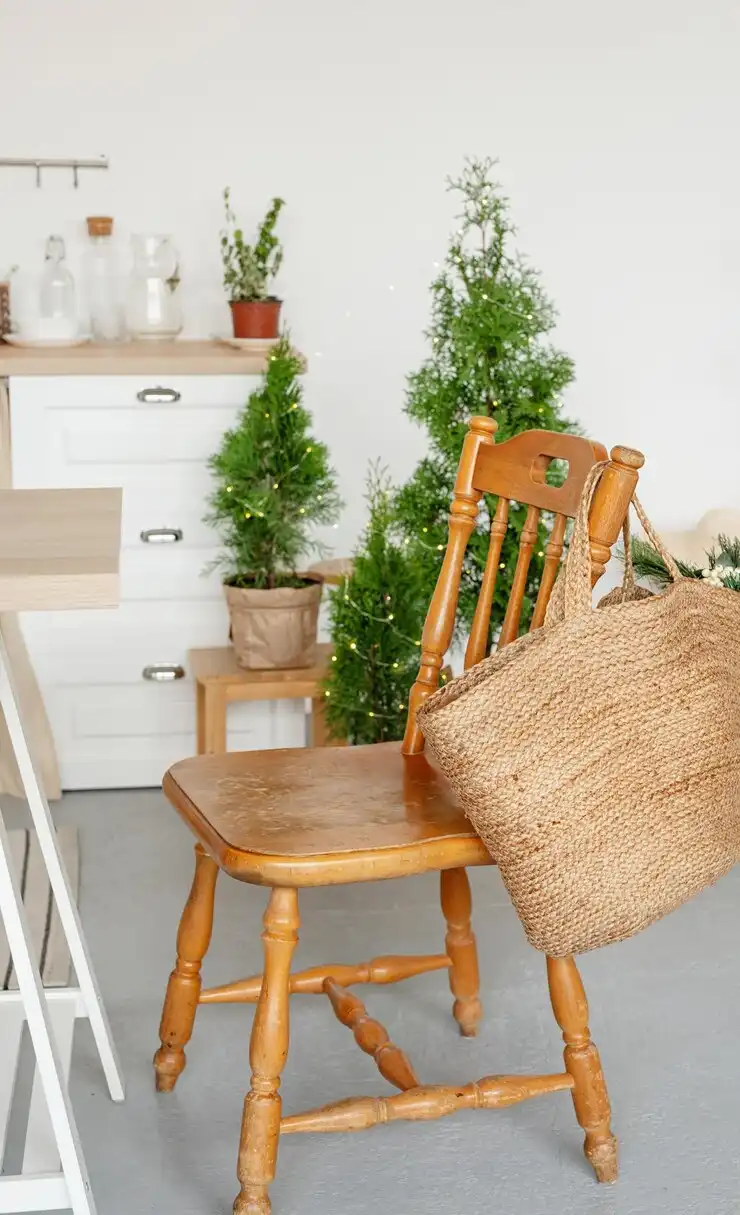

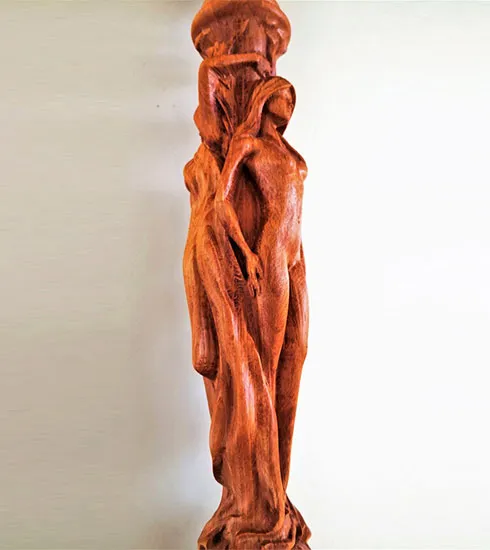

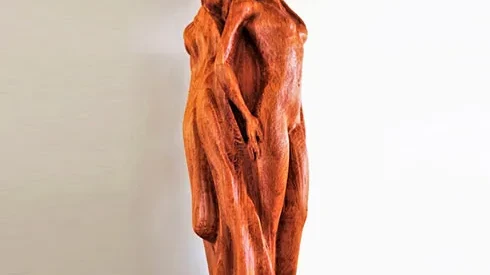

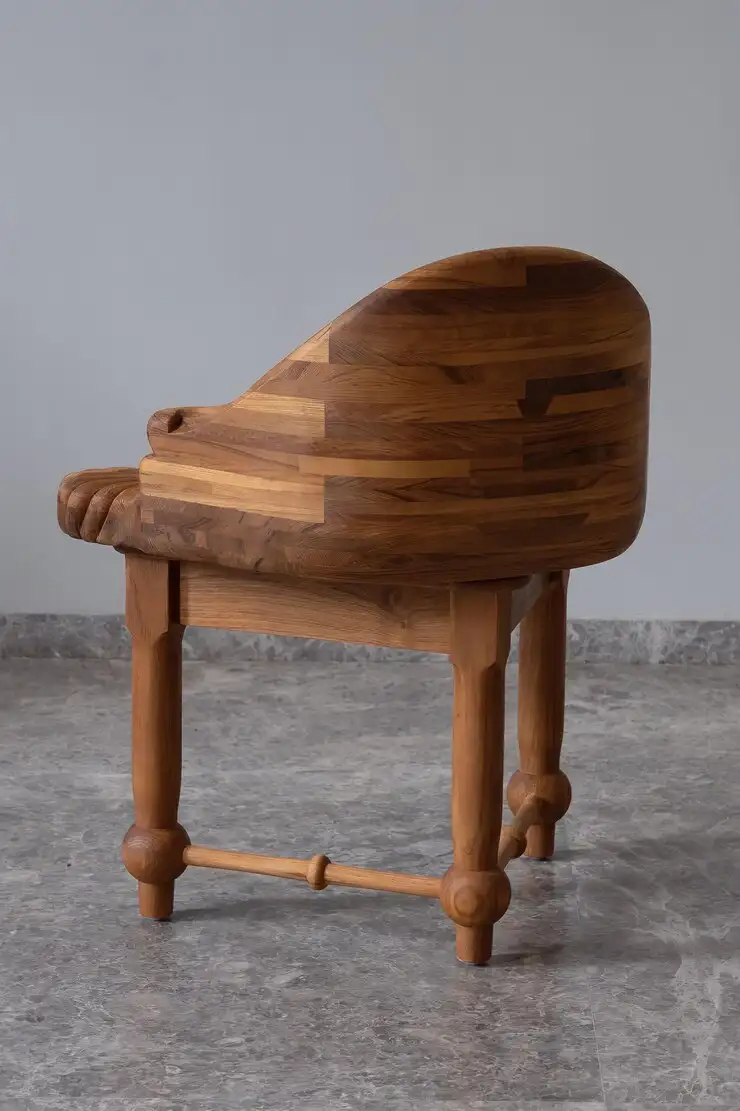

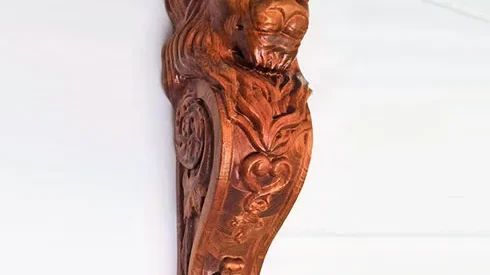

The 1313 rotary axis CNC router is a versatile small CNC router for woodworking designed for both flat sheet processing and 3D rotary machining. Compared with standard 3 axis CNC routers, it adds rotary axis capabilities for producing complex cylindrical and curved parts. Besides cutting, drilling, pocketing, and routing, this compact CNC machine is widely used for manufacturing wooden table legs, chair legs, handrails, architectural columns, and 3D models or sculptures from materials such as wood, rubber, and foam.
FAQ
A 1313 Rotary Axis CNC Router and a 4 Axis CNC Machine both add an additional machining axis compared with a standard 3-axis CNC router, but they achieve 4-axis processing in different ways.
A 1313 Rotary Axis CNC Router uses a rotary axis (A-axis) to rotate cylindrical or irregular workpieces during machining. The rotary device usually works like a CNC lathe attachment, allowing the tool to cut around the surface of materials such as wood columns, chair legs, baseball bats, stair components, and other round or curved parts. It is especially suitable for businesses that need both flat panel engraving and 3D rotary carving.
A 4 Axis CNC Machine, however, usually refers to a CNC router where the spindle itself can tilt or rotate, commonly with an A-axis that allows the cutting tool to approach the workpiece from different angles. For example, a 4-axis CNC router with a ±180° rotating spindle can machine angled surfaces, side holes, deep grooves, and complex 3D structures without repositioning the material.
In simple terms, a 1313 Rotary Axis CNC Router is designed for rotating workpiece processing, while a 4 Axis CNC Machine is designed for multi-angle cutting with a movable spindle. If your production mainly involves cylindrical products, a rotary axis CNC router is a better choice. If you need more flexibility for complex 3D woodworking, angled cutting, and furniture manufacturing, a 4-axis CNC machine offers wider capabilities.
Yes, the 1313 Rotary Axis CNC Router is a suitable choice for small woodworking businesses that focus on customized production and detailed wood processing. Its compact working area requires less installation space while still providing advanced rotary machining capabilities.
Compared with larger industrial CNC machines, the 1313 model is easier to operate, maintain, and integrate into small workshops. It is commonly used by furniture makers, woodworking studios, decoration manufacturers, and custom product designers who need to produce unique wooden components in small or medium batches.
Yes, beginners can operate a 1313 Rotary Axis CNC Router after basic training and practice. The machine uses CNC control software to complete machining automatically after the design file and cutting parameters are prepared.
For new operators, the main learning process includes learning CAD/CAM software, setting the work origin, selecting tools, and adjusting machining parameters. With proper training and technical support, most users can quickly become familiar with daily operations and produce stable results.
A 1313 Rotary Axis CNC Router is compatible with common CAD/CAM software used for woodworking and 3D machining. Popular software options include Aspire, ArtCAM, Fusion 360, and Type3, depending on the customer’s design requirements and controller configuration.
CAD software is mainly used to create or edit designs, while CAM software converts the models into CNC toolpaths. For rotary machining, the software should support 4th axis or rotary axis toolpath generation to ensure accurate cylindrical and 3D carving.
The maximum diameter and length of workpieces that a 1313 Rotary Axis CNC Router can process depend on the rotary axis size, spindle configuration, and customized machine design.
For rotary machining, the key factors are the rotary axis diameter capacity and working length. The rotary axis diameter determines the maximum thickness of round workpieces that can be installed, while the working length affects the size of parts such as table legs, chair legs, and wooden columns that can be processed.
Before purchasing, you should provide the dimensions of actual workpieces, including:
Maximum workpiece diameter
Total machining length
Material type and weight
Required carving depth and machining method
Based on these requirements, we can recommend a suitable rotary axis configuration.
Yes, the 1313 Rotary Axis CNC Router can be customized according to different production requirements. We can adjust machine configurations based on the customer’s materials, applications, and processing expectations.
Common customization options include spindle power, rotary axis specifications, control system, vacuum table configuration, working area, and additional accessories. These options allow users to optimize the machine for applications such as custom furniture production, wood carving, architectural decoration, and 3D model making.
