ET3.5-1328 4-Axis Column-Type Loading and Labeling Robotic Nesting Cell

(4.9 based on 165 ratings and reviews)

$40,000 – $60,000
  • Brand : Blue Elephant
  • Model : ET3.5-1328
  • Standard : CE, ISO9001
  • Table size : 1220*2800mm
  • Category : Nesting CNC Machine
  • Supply Ability : 400+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

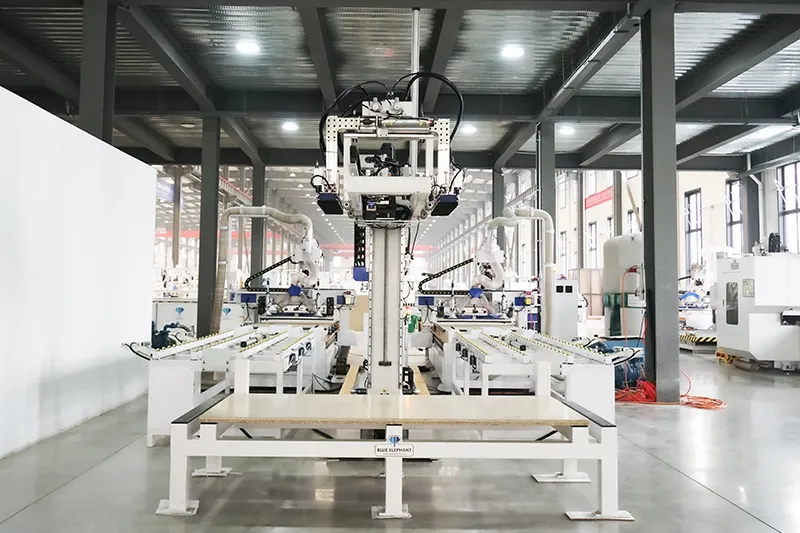

The ET3.5-1328 4-axis column-type loading and labeling robotic nesting cell consists of an operator console, control cabinet, robotic rail, label printer, material suction cups, and unloading table, compatible with different brands of cutting machine systems. Unlike conventional labeling machines, it adopts a fully stacked feeding method, allowing for loading more sheets at one time — up to 70 sheets with 18mm thickness. It requires no ground pit or hydraulic lifting platform, achieving maintenance-free operation.

Features

  • Supports multiple configurations with CNC nesting machines. It can be paired with a single CNC nesting machine to create a multi-station loading and labeling cell, or with two machines to form a “one-to-two” automated nesting production line.
  • Equipped with automatic barcode rotation function, it enables more reasonable label placement and avoiding label damage during cutting.

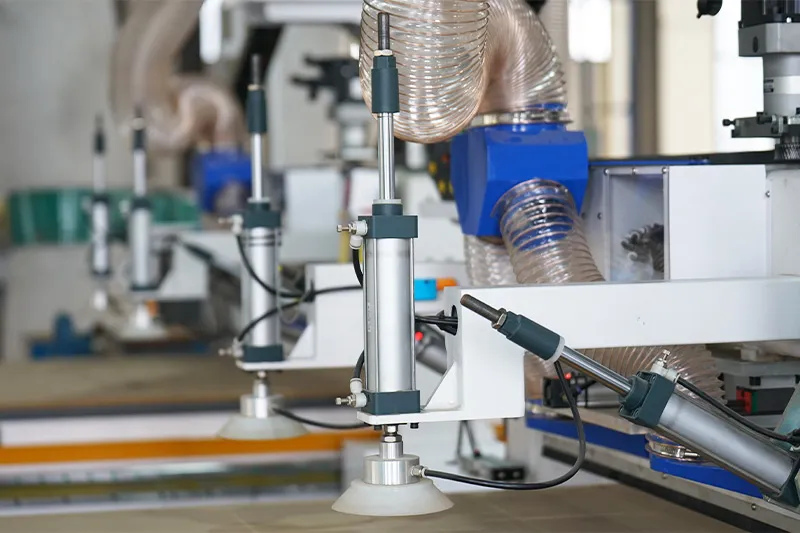

  • Utilizes sponge suction cups, providing better suction force and more reliable material handling.
  • The machine requires only one operator, making it simple and user-friendly while effectively reducing labor costs.

Parameters

ET3.5-1328 4-Axis Column-Type Loading and Labeling Robotic Nesting Cell
X, Y, Z axis travel 1300*3000*1260mm
Panel Processing Size Length: 2440 / 2800mm

Width: 1220mm
Controller Leadshine PLC + Blue Elephant labeling software
Machine Structure Ground track
Servo Motor Leadshine 1.3kW * 1

Leadshine 1.3kW (with brake) * 2

Leadshine 0.75kW * 1
Guide Rail Taiwan SHAC: Y 30 、 Z 30 、 X 20
Rack J&T: Y 2M、 X 1.5M
Lubrication System 1.5L Automatic Lubrication
Reducer Domestic Planetary Reducer
Printer Honeywell
Air Pressure 0.6-0.8MPa
Voltage 380V/3P/50HZ

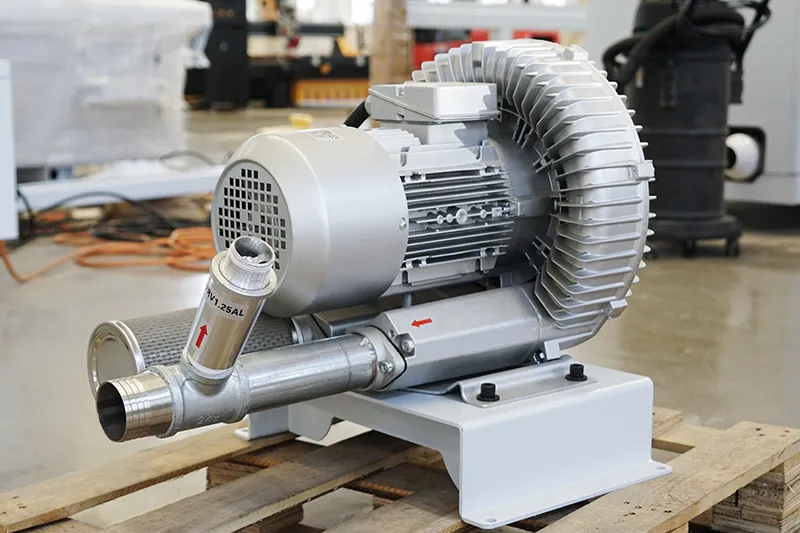

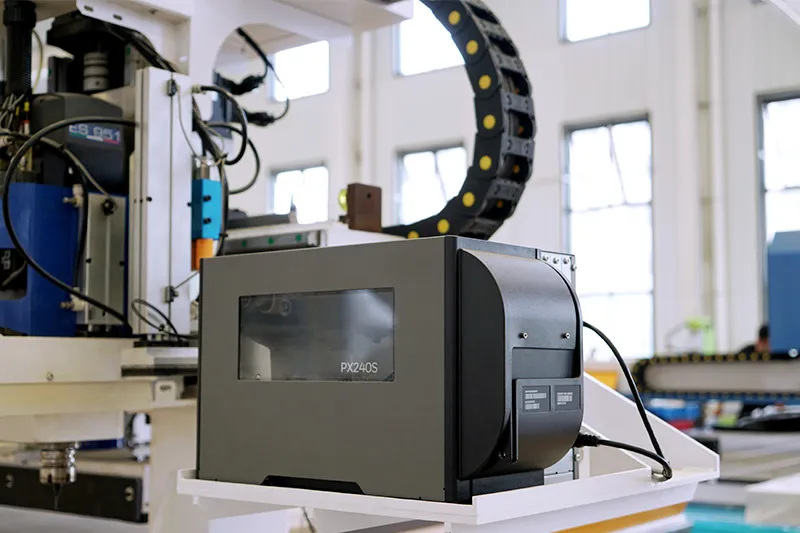

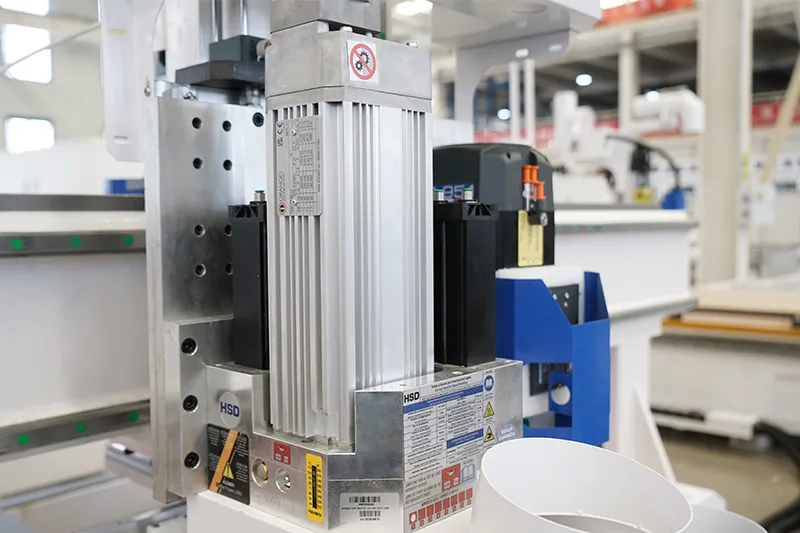

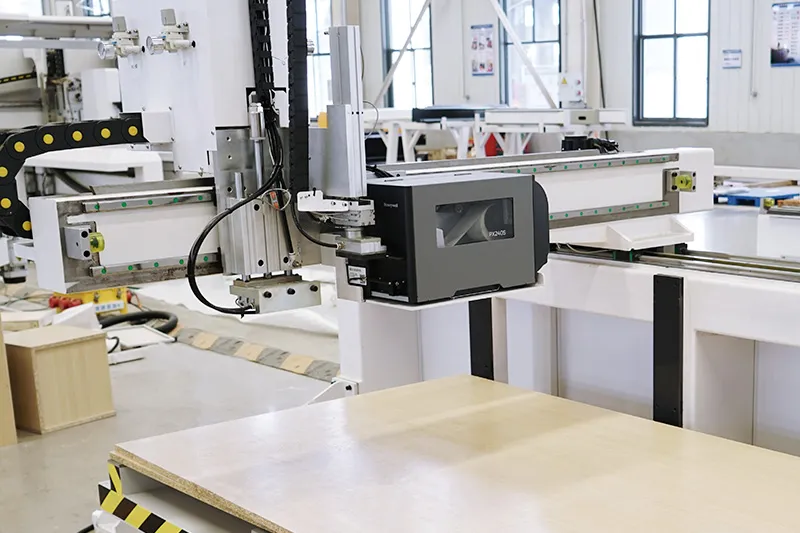

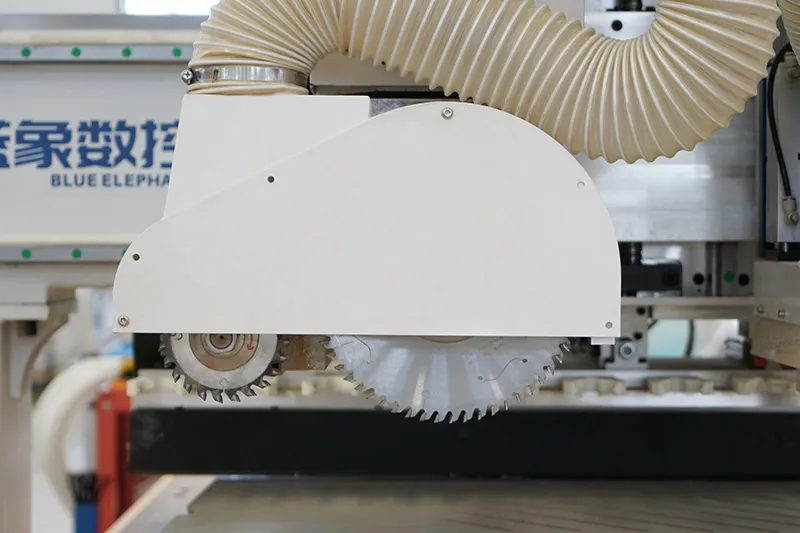

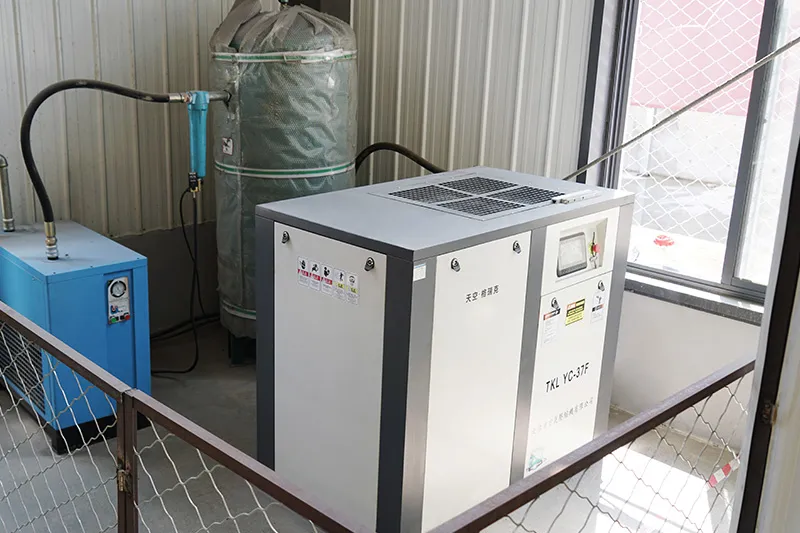

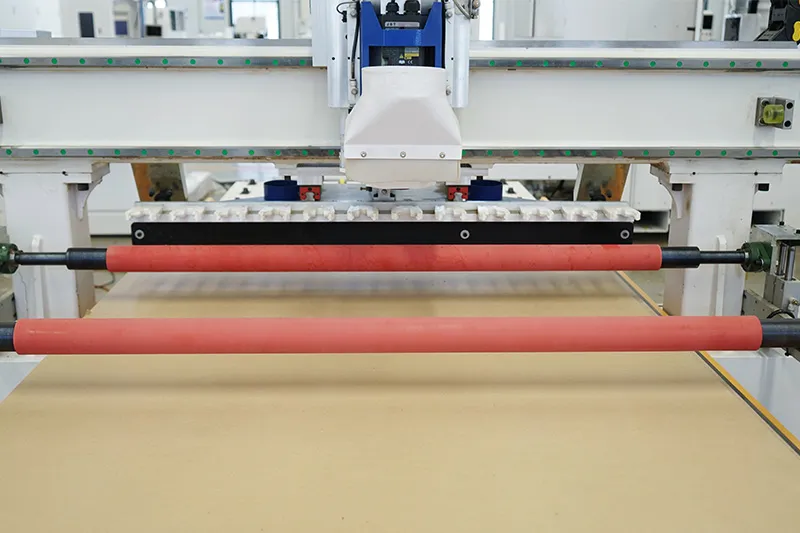

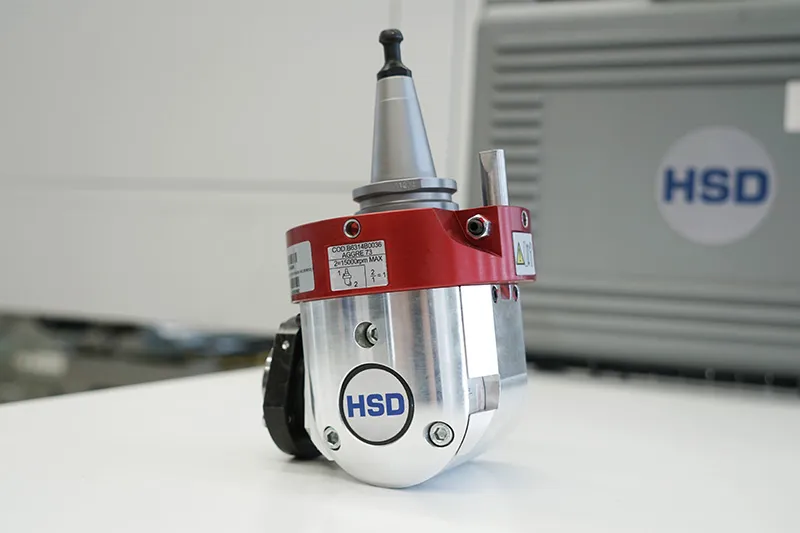

Nesting CNC Machine Optional Parts

Application

It is mainly used in furniture industry, decoration industry, advertising industry and other wood products processing. It can realize the production and processing of customized cabinets and wardrobes, as well as the shaping and processing of blister door panels.

FAQ

What are the advantages of this machine?

It is compatible with CNC nesting machine systems from different brands and can be configured in various ways with CNC nesting machines. Compared to conventional labeling machines, it can load more sheets at once.

How to learn to use the machine?

We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve the problem. In addition, we also provide you with teaching videos and manuals.

How to maintain the machine?

This machine is equipped with an automatic lubrication system and does not require manual maintenance.
