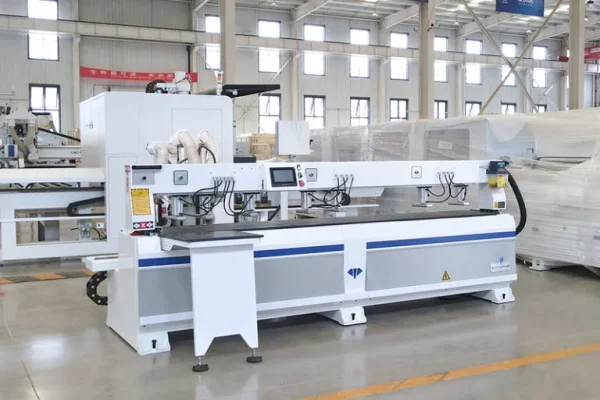

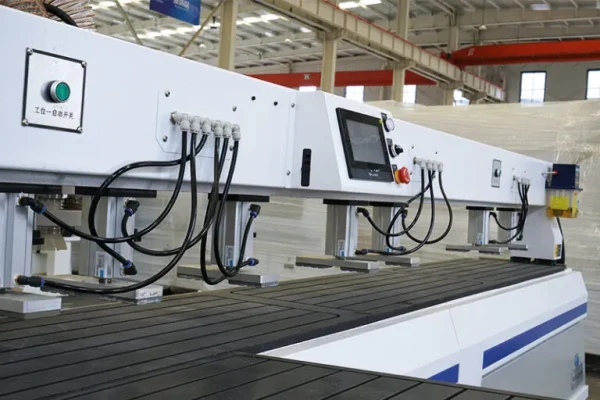

Four-process Handle-free Side Hole Drilling Machine
- Brand : Blue Elephant
- Model : Four-process Handle-free Side Hole Drilling Machine
- Power : 5.5Kw
- Drilling heads : Double
- Category : CNC Drilling Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
Four-process handle-free side hole drilling machine is mainly used for processing door panels, wardrobe door panels, wall panel fasteners and other workpieces, including milling processing of hinge holes, laminae, three-in-one connectors, handle-free grooves, lamp grooves, straightener grooves, frame handle grooves and other types of processes.
Features
- This side hole drilling machine supports various handles-free techniques, including bullhorn handles, rocket handles, nested handles, and semi-circular handles.
- The CNC drill machine features concealed hardware processing capabilities, supporting traditional 3-in-1 connectors and Lamello joinery techniques.

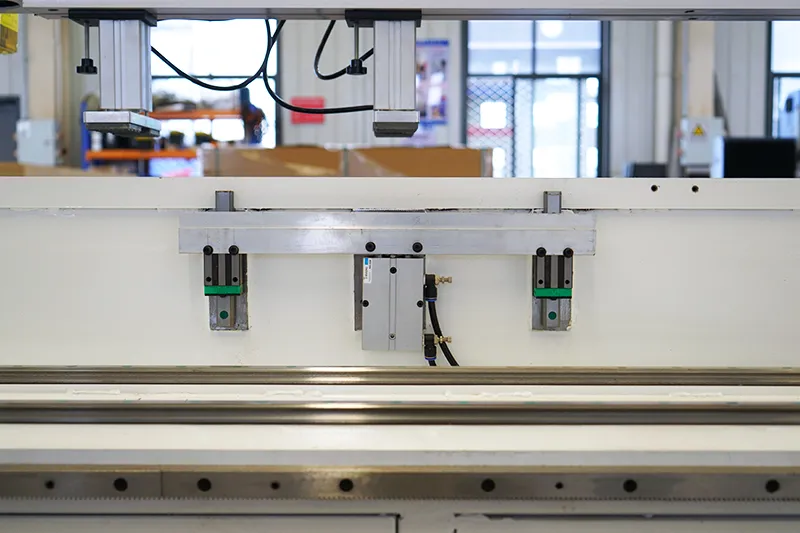

- Its movable crossbeam automatically adjusts according to panel width or processing position, ensuring flexible operation.

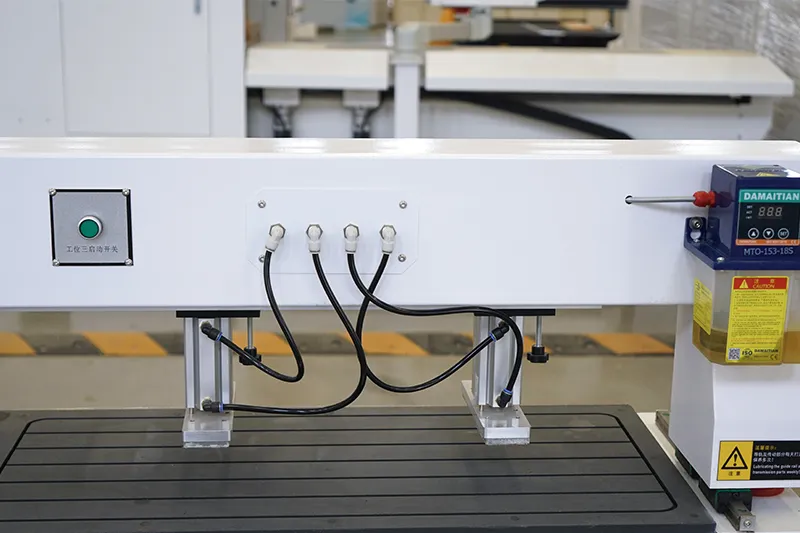

- The adjustable positioning stop block moves to avoid tool paths, adapting to various processing requirements.
Parameters
| Body size | 3600*1300*1450mm |
| Table height | 750mm |
| Left and right X-axis working stroke | 0-2800mm |
| Spindle motor brand | SCS/Huajiang/Changsheng/Oakmond |
| Front and rear Y-axis working stroke | 0-50mm |
| Spindle motor speed | 18000 rpm/min |
| Up and down Z axis working stroke | 0-50mm |
| Spindle motor power | T1/T2 spindle 2.2KW, T3/T4 spindle 3.5KW |
| Maximum sheet size (length/width/thickness) | 2800*1300*50mm |
| Control system | Lorenchi scanning code scanning dual system |
| Drive motor brand | Division servo motor |
| Laser sensor | American Banner laser head |
| Drive motor power | 750W servo *3 (Z axis with brake) |

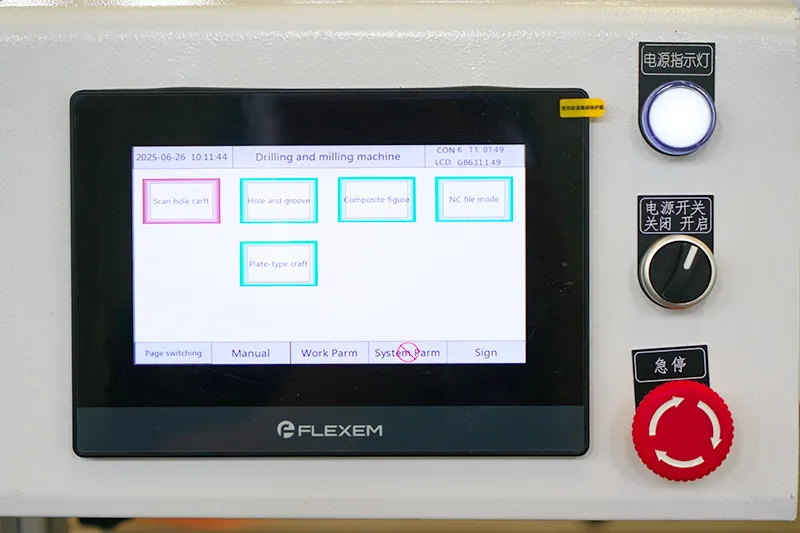

| Screen | 7 inch touch screen |
| Electrical main parts | Chint Electric |
| Inverter | Best 4KW |
| Rack | Jarl rack |
| Reducer | Taiwan Planet |
| Lead screw | Z+Y axis 25 high-precision grinding screw |
| Motor base | Die-casting high-precision grinding |
| Die-casting high-precision grinding | Taiwan Renben |

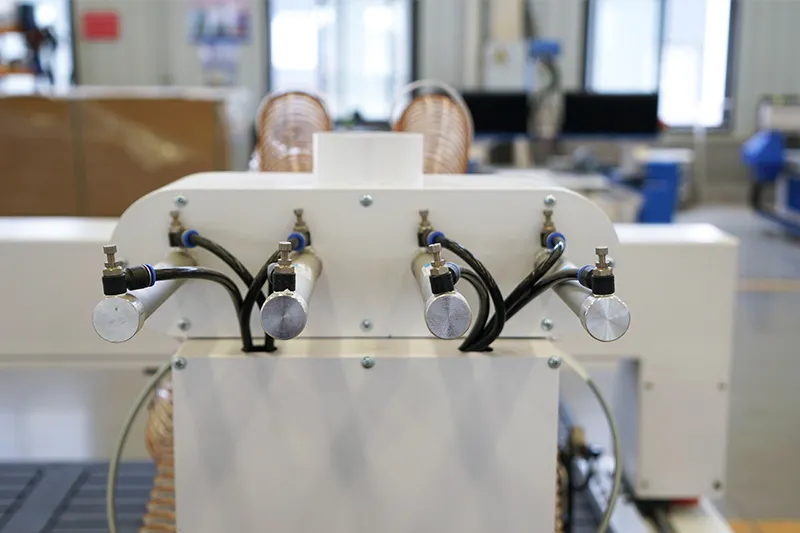

Side Hole Drilling Machine Optional Parts
Application
Four-step handle-free side hole drilling machine can process door panels, wardrobe door panels, wall panel fasteners and other workpieces. The processing technologies include hinge holes, laminos, three-in-one connectors, handle-free slots, lamp slots, straightener slots, frame handle slots, etc.
FAQ
For the machine, we have online teaching videos of machine operations and controller. And our engineer is good at English, so he can teach you online.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
You can do 30% prepayment at first, then we will start to make production. Whe the machine is ready , we will take pictures to you. After we have got your payment. We will send the machine to you.
