ELECNC-1330 ATC Labeling Nesting Workstation with Intelligent Vertical Storage
- Brand : Blue Elephant
- Model : ELECNC-1330 ATC
- Standard : CE, ISO9001
- Table size : 1300*3050mm
- Category : Nesting CNC Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description

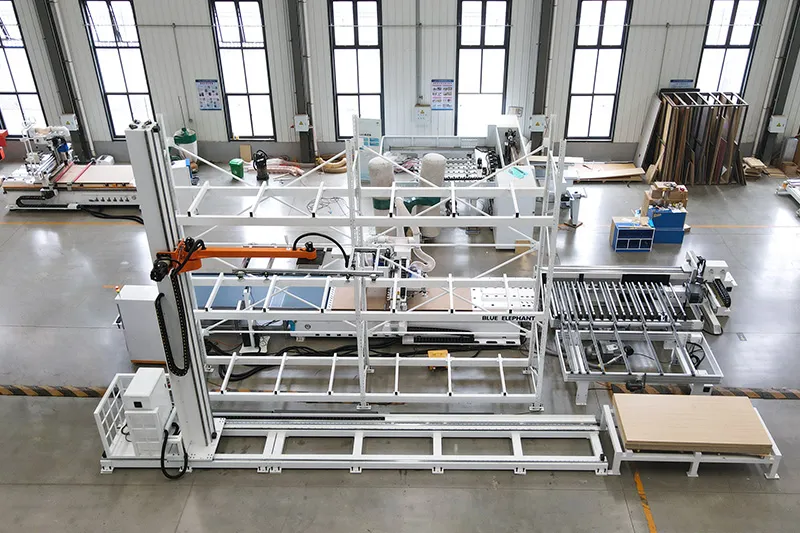

The Intelligent Vertical Storage Labeling and Nesting Workstation integrates automatic loading/unloading, labeling, and intelligent storage into one efficient solution. With fully automated material feeding and processing to unloading, it reduces labor, minimizes errors, and improves productivity. Its multi-layer storage system features six independent compartments for different panel sizes, maximizing space utilization and increasing material changeover efficiency.
Features
- The entire machine is equipped with German Igus cables, offering excellent flexibility and wear resistance, significantly reducing risks caused by cable aging.
- Panel dimensions can be customized to match the customer’s specific production requirements.
- The number of storage bins can be expanded by extending the rail system and adding additional shelving units.
- The storage rack can be configured with up to three layers, providing ample capacity for high-volume material storage.
Parameters
| Model | ELECNC-1330 ATC |
| X, Y, Z axis travel | 1300*3050*200mm |
| Panel Processing Size | Large: 1300×3050 mm
Small: 1220×2440 mm |
| Worktable Structure | Full-sheet vacuum table(8 Divisions), with valves on the right |
| Tool magazine | Linear tool changer under the gantry, with 12 tools |
| Voltage/frequency | 380V, 3PH, 50Hz |

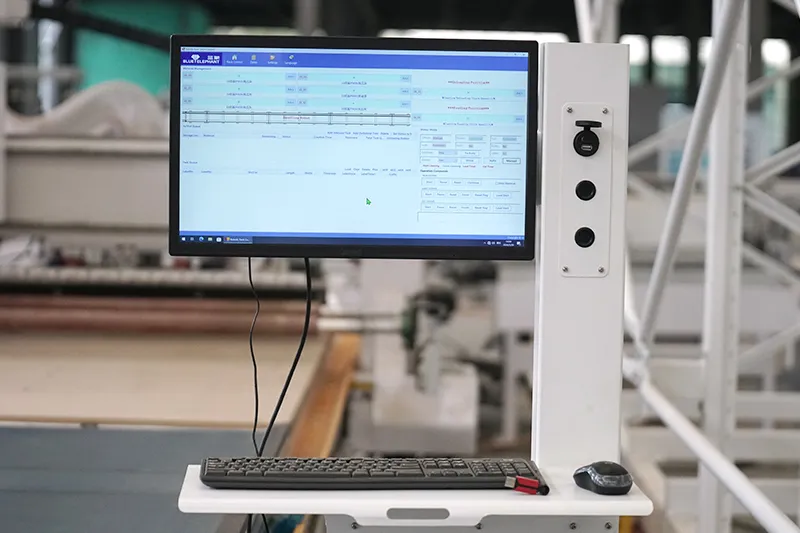

| Control system | Nesting CNC: Syntec 63WA controller, with mouse and keyboard
Robot arm: Taiwan LNC controller |
| Spindle power and speed | Italian HSK 9.6 kW air cooling spindle, 24,000 rpm |
| Inverter | 11 kW Delta MS300 inverter |
| Motor and driver | 850W Yaskawa servo |
| Reducer | Shimpo |
| Vacuum pump | 4 kW German Becker pump*2, in parallel
380V, 3PH, 50Hz |
| Positioning cylinder | X: 2, Y: 5; on the left |
| Guide rail | Taiwan SHAC: Y#30, X#25, Z#25 |
| Rack | J&T 2M helical gear |
| Lubrication system | 1.5L Automatic lubrication |
Labeling Nesting CNC Machine Optional Parts
nesting-cnc-machine-integrated-labeling-machine
nesting-cnc-machine-pressure-roller
nesting-cnc-machine-saw-blade
nesting-cnc-machine-vacuum-pump
nesting-cnc-machine-air-compressor
nesting-cnc-machine-c-axis-aggregate-head
nesting-cnc-machine-drill
nesting-cnc-machine-independent-labeling-machine
Labeling Nesting CNC Machine Application
The Intelligent Vertical Storage Labeling and Nesting Workstation is widely used in the furniture manufacturing, interior decoration, and wood products processing industries. Designed for high-efficiency panel processing, it integrates automatic material storage, loading, labeling, nesting, and unloading into a single workflow, making it ideal for smart factory and Industry 4.0 production environments. The machine is especially suitable for the production of customized furniture, including kitchen cabinets, wardrobes, closets, office furniture, and other panel-based products. It can also be used for the processing of thermoformed (vacuum-formed) door panels, decorative panels, and various wood-based materials such as MDF, plywood, particleboard, and melamine boards.
nesting-cnc-machine-for-kitchen-cabinet-1
nesting-cnc-machine-for-locker
nesting-cnc-machine-for-office-furniture
nesting-cnc-machine-for-wardrobe
nesting-cnc-machine-for-bookshelf
nesting-cnc-machine-for-drawer
nesting-cnc-machine-for-hotel-furniture
nesting-cnc-machine-for-kitchen-cabinet
FAQ
A traditional nesting CNC machine requires manual loading, unloading, and labeling, while a vertical storage labeling nesting workstation integrates intelligent storage, automatic loading, automatic labeling, and CNC nesting into one automated process. This reduces human errors, improves production flow, and increases overall productivity.
An intelligent vertical storage labeling and nesting workstation can significantly reduce manual handling, labeling, and material loading tasks. Compared with traditional production lines, a single workstation can often replace several operators, helping furniture manufacturers lower labor costs while maintaining consistent production efficiency and quality.
The storage capacity depends on the number of racks and shelf levels configured. Most intelligent vertical storage systems can store dozens to hundreds of panels while occupying a relatively small floor area. Additional racks and storage levels can be added to meet future production requirements.
The automatic labeling system delivers highly accurate label placement and data matching, ensuring that each panel receives the correct identification information before machining. This minimizes production errors and improves traceability throughout the manufacturing process.
Yes. The workstation can be integrated with popular furniture design, optimization, and MES production management software. This enables seamless data transfer from design to manufacturing, supporting smart factory and Industry 4.0 production environments.
