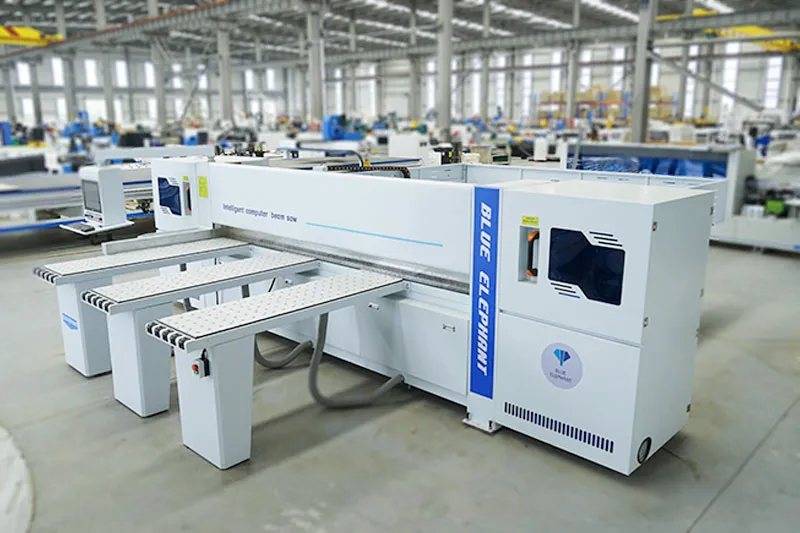

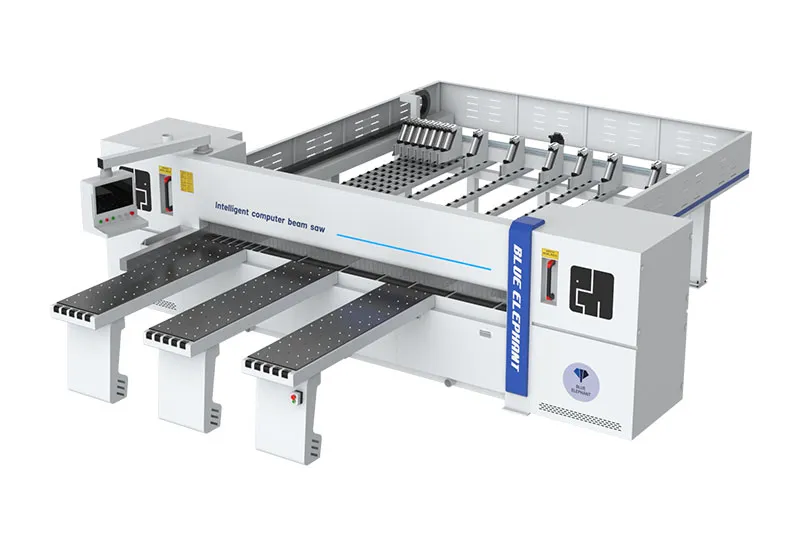

280 Automatic Computer CNC Beam Saw

(5.0 based on 169 ratings and reviews)

$29,000 – $31,000
  • Brand : Blue Elephant
  • Model : ELECNC-280
  • Machine size : 5400*5300*1800mm
  • Max.cutting length : 2700mm
  • Saw car moving speed : 100m/min
  • Category : Panel Saw Machine
  • Supply Ability : 350+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

280 automatic computer CNC beam saw is a computer-controlled and intelligent wooden panel cutting machinery. It can cut multiple layers of wooden panels with the thickness up to 100mm at the same time with high efficiency and excellent accuracy.

Features

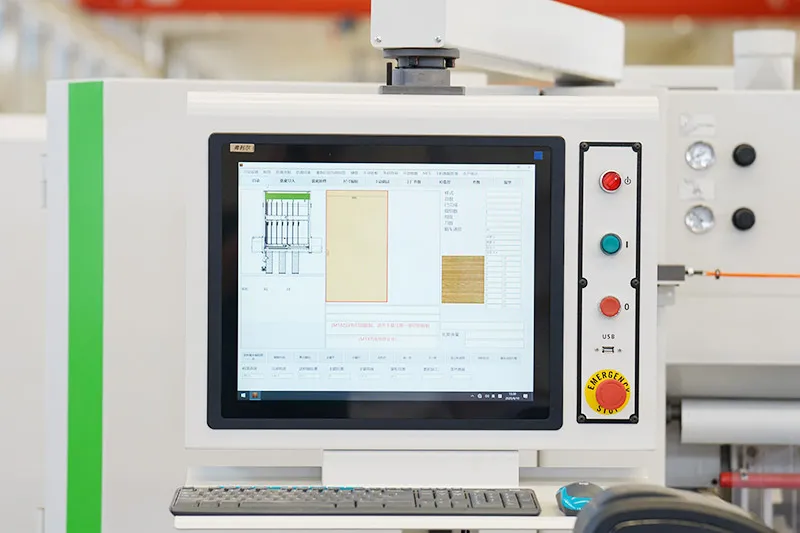

  • The machine adopts industrial computer control, which has an advanced but easy-to-operate man-machine interface.
  • Key components and other electrical appliances or toggle components are all from international brand-name products to ensure accuracy and reliability.
  • Optional optimization software adds drawing design and optimization while with the practical functions of residuals management, layout optimization, and barcode printing.
  • Due to the intelligence system, the worker only takes 2 hours of training before using it.

Parameters

Model ELECNC-280
Overall dimension 5400x5300x1800mm
Cutting length 2800mm
Cutting thickness 100mm

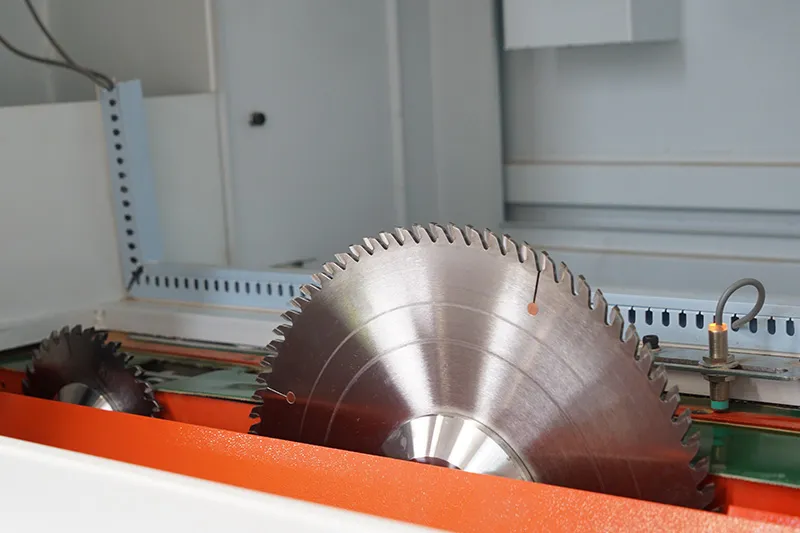

Main saw blade diameter 350mm
Main saw blade revolving speed 4800rpm
Groove saw blade diameter 180mm
Groove saw blade revolving speed 6900rpm
Forward speed of carriage 100m/min
Backward speed of carriage 150m/min
Main saw motor 15kW
Groove saw motor 2.2kW

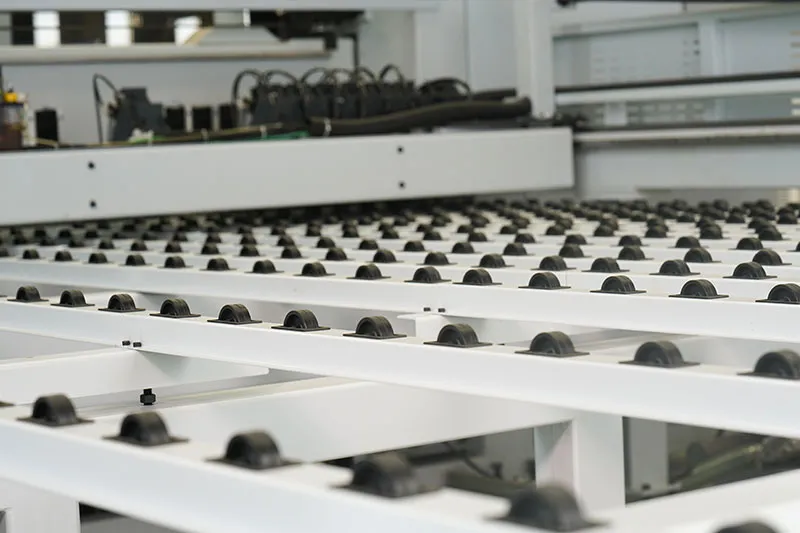

Auto feeding motor 2.0kW (AC, servo)
High-press ventilating motor 3kW
Total power 23kW
Auto feeding speed 100m/min

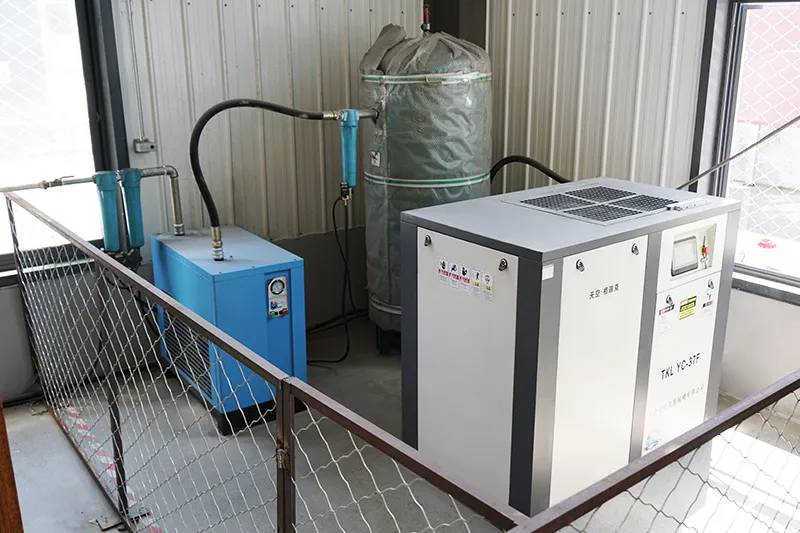

Air pressure 5-7kg/cm2
Platform height 950mm

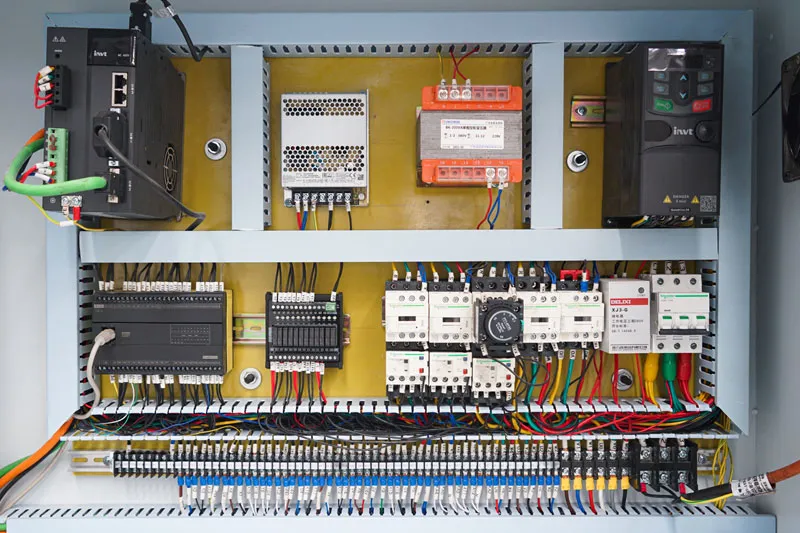

Control switch Schneider
PLC Fatek
Converter Invt
Screen Jikowi
Contactor Schneider
Pneumatic elements Hengtong
Solenoid valve AirTac
Motor Igarashi
Servo control system Invt
Linear guide rail SLM

Panel Saw Machine Optional Parts

Application

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.

FAQ

What's the maximum thickness I can cut with is panel saw?

100mm.

What's the maximum length I can cut?

2750mm.

Can I add label printer and side pressure device?

Yes, both of them can be added to this panel saw. It’d better to add the nesting software, a computer, a label printer and a side pressure device together.
