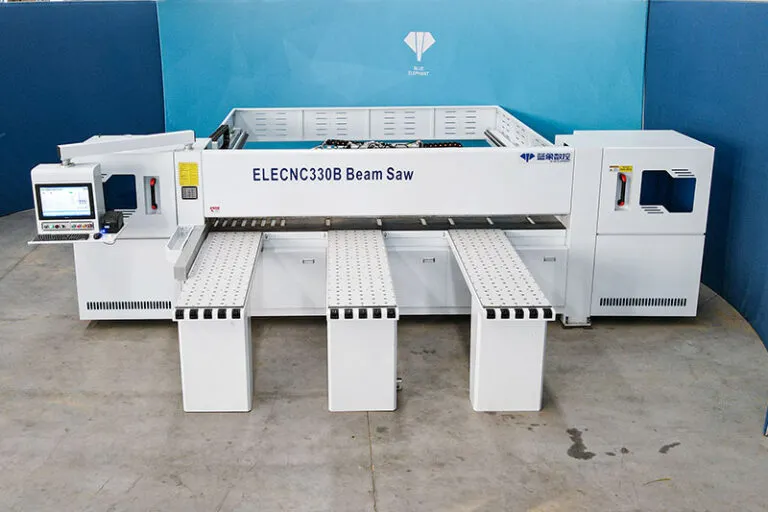

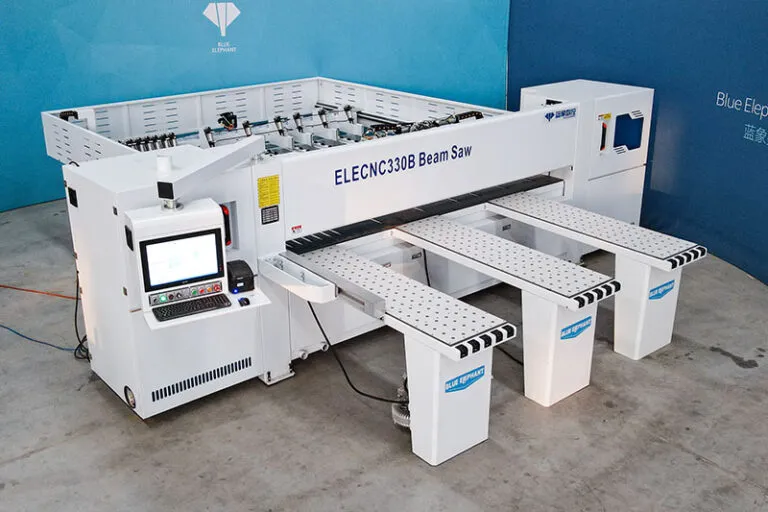

330 Computer Beam Saw Machine for Sale

(4.8 based on 192 ratings and reviews)

$32,000 – $35,000
  • Brand : Blue Elephant
  • Model : ELECNC-330
  • Machine size : 5900*5800*1800mm
  • Max.cutting length : 3300mm
  • Saw car moving speed : 100m/min
  • Category : Panel Saw Machine
  • Supply Ability : 380+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

330 Computer beam saw machine is good at cutting wooden panels in panel furniture manufacturing industry. It adopts the industrial computer control, which has an advanced but easy-to-operate man-machine interface.

Features

  • The structure is welded by a high-density technique and annealing process to ensure working stability and longevity.
  • With a reliable control system, the interface is concise and easy to use.
  • It can edit or simulate saw-cutting programs through compatibility with optimization software, barcode management software, and automation software.
  • Key components and other electrical appliances or toggle components are all from international brand-name products to ensure accuracy and reliability.
  • It can realize remote monitor for running status and extend intelligent connections of internet of things (optional function).

Parameters

Model ELECNC-330
Overall dimension 5900x5800x1800mm
Cutting length 3300mm
Cutting thickness 100mm
Main saw blade diameter 350mm
Main saw blade revolving speed 4800rpm
Groove saw blade diameter 180mm
Groove saw blade revolving speed 6900rpm
Forward speed of carriage 100m/min
Backward speed of carriage 150m/min
Main saw motor 15kW
Groove saw motor 2.2kW
Auto feeding motor 2.0kW (AC, servo)
High-press ventilating motor 3kW
Total power 23kW
Auto feeding speed 100m/min
Air pressure 5-7kg/cm2
Platform height 950mm
Control switch Schneider
PLC Fatek
Converter Invt
Screen Jikowi
Contactor Schneider
Pneumatic elements Hengtong
Solenoid valve AirTac
Motor Igarashi
Servo control system Invt
Linear guide rail SLM

Panel Saw Machine Optional Parts

Application

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.
