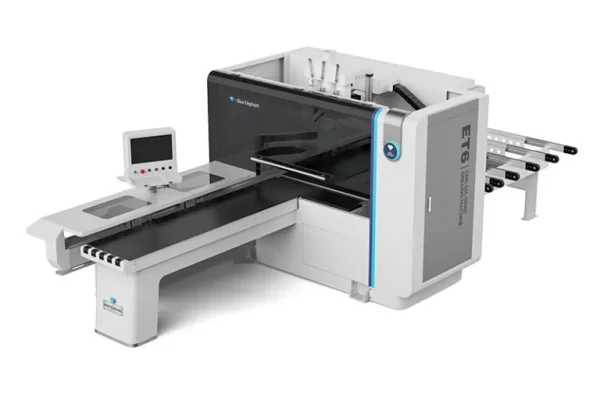

ET6 6 Sided CNC Drilling Machine for Sale
- Brand : Blue Elephant
- Model : ET6
- Power : 5.5kw
- Drilling heads : Double
- Category : CNC Drilling Machine
- Supply Ability : 420+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
ET6 6 sided CNC drilling machine is a high-end automatic CNC drilling machine for panel furniture, which has the advantages of high processing efficiency and high degree of automation. Through wireless code scanning with automatic sorting function, automatic positioning, and automatic loading processing, it can realize six-side position processing and front and back groove processing at a time.
Features
- This CNC drilling machine has an original skin breaking function, which can make the punching smoother and maximize the yield rate of the plate.
- The use of dual drives greatly improves the speed of slotting and punching, and correspondingly improves production efficiency.
- The use of high-end air floating table, so that the processing accuracy is more accurate.
- Automatically optimize the direction of the board to achieve front and back discharge.
Parameters
| Model | ET6 |
| Working size: | 1300x2500mm |
| Spindle type | 3.5KW Air Cooling Spindle*2 |
| Number of tools | 12 Vertical top drilling+8 horizontal drilling +9 bottom vertical drilling |
| Control system | Blue Elephant Custom System |
| Driver system | Absolute servo motor |
| Transmission | Taiwan helical rack |
| X axis Travel speed | 120m/min |
| Y axis Travel speed | 80m/min |
| Re-positioning accuracy | ±0.03mm |
| Software | Blue Elephant Custom System |
| Working voltage | 220V /380V/ 50-60HZ |
| Machine overall size | 5832*2727*2367mm |
Six Sided CNC Drilling Machine Optional Parts
Application
The six-sided CNC drilling machine is an advanced CNC equipment for drilling wooden boards. It is equipped with six-direction drills. Therefore, it can complete 6-sided drilling at one time without turning the sheet over. The six-sided wood drilling machine are widely used in the production of wooden furniture, such as cabinets, doors, office furniture, etc.
Six Sided CNC Drilling Machine FAQ
It can realize the drilling work on six sides of a wooden panel. It is very popular in cabinet and panel furniture industry.
2 drilling units in total, including 12 vertical top drill bits, 8 horizontal drill bits, and 9 bottom vertical drill bits.
Blue elephant custom system, and it is easy to operate.
