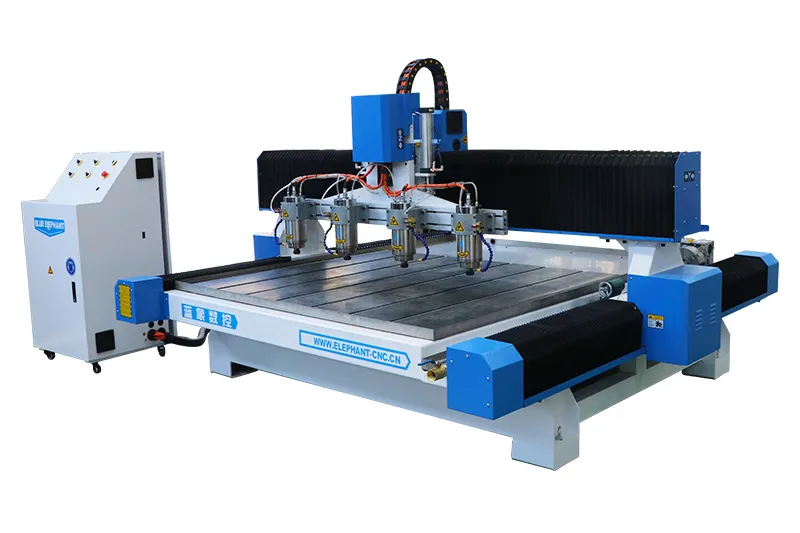

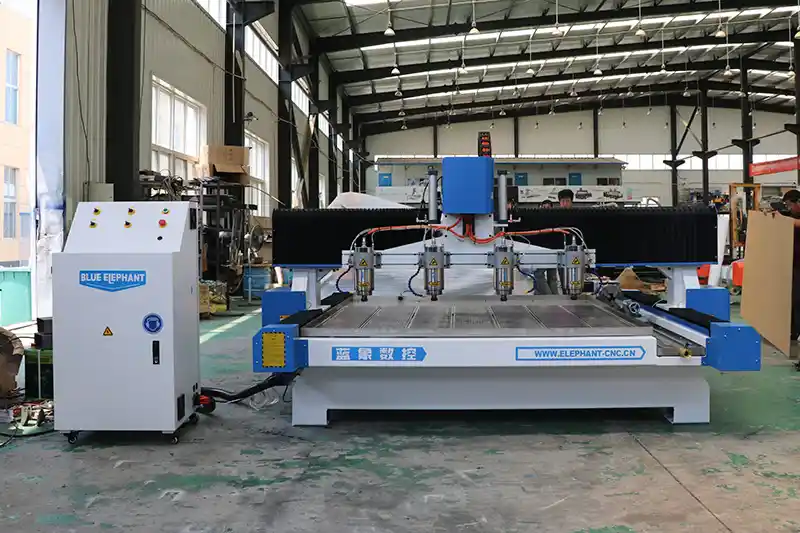

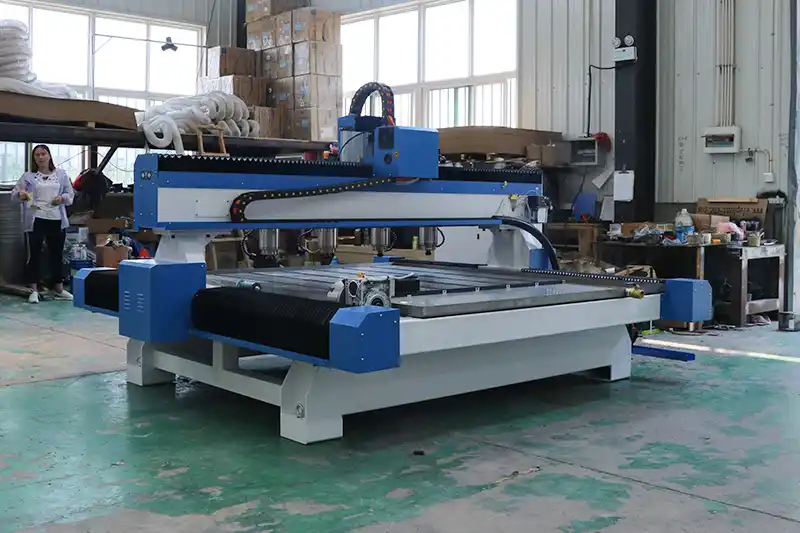

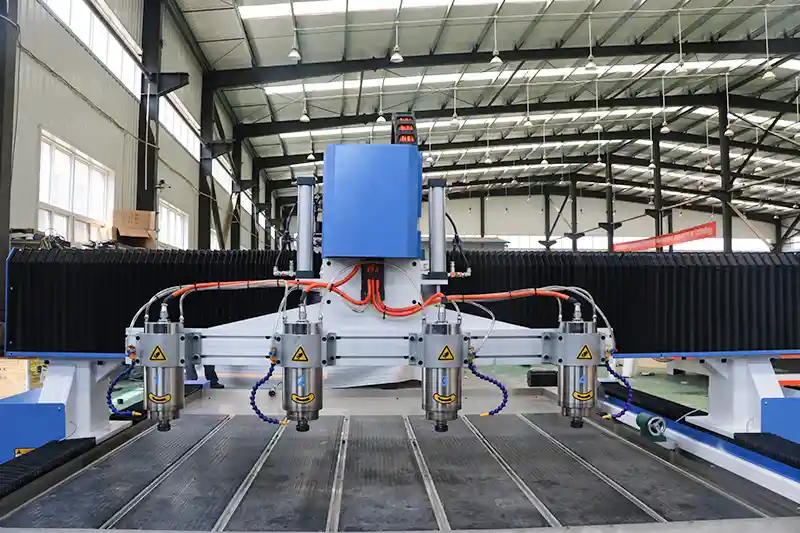

1815 Multi Head Stone CNC Router with 4 Spindles
- Brand : Blue Elephant
- Model : ELECNC-1815S
- Category : Stone Engraving Machine
- Supply Ability : 350+ Units in Stock
- Z Axis : 200mm, option: 300mm, 400mm, 500mm, etc
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1815 multi head stone CNC router with 4 spindles has a variety of machining functions. Firstly, it can meet a variety of work pieces at the same time, improving production efficiency. If you have a processing need for mass production, consider this machine.
Features
- Equipped with a counter top with a sink, the machine is more suitable for machining work pieces in the stone industry or in metal.
- The water spray function can reduce the wear on the spindle during processing, thus extending the life of the machine.
- Adopting International imported brand components like motor and driver, which make the machine have a longer service life.
- This machine can also be used in the woodworking industry, such as processing some hardwood and other materials.
Parameters
| Model | ELECNC1815-4S Stone CNC Router |
| X,Y axis travel | 1800x1500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, etc |
| Spindle type | 3kw water cooling spindle, 24000RPM 4.5kw/ 5.5kw/ 6kw for optional |

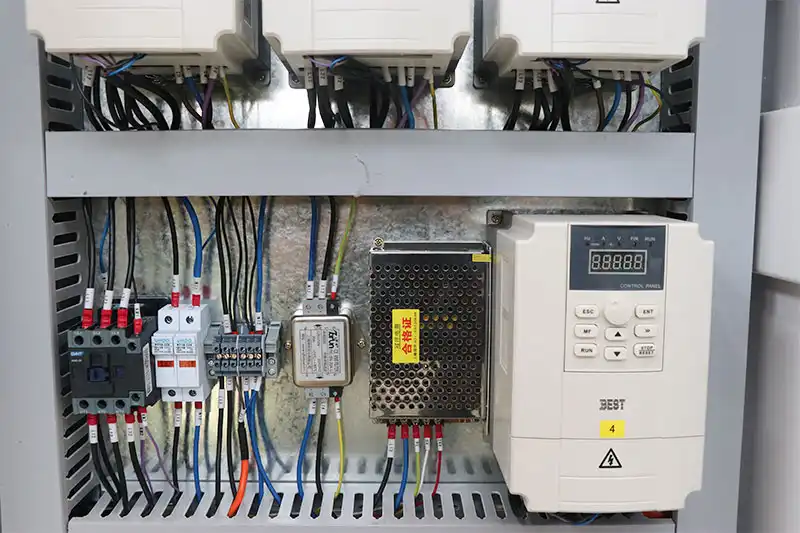

| Inverter type | 3.7kw Fuling inverter |
| Control system | Mach3 controller |
| Driving system | Stepper motors and drivers |
| Machine structure | Professional stone cnc bed, with heavy duty body more thicker and stronger |

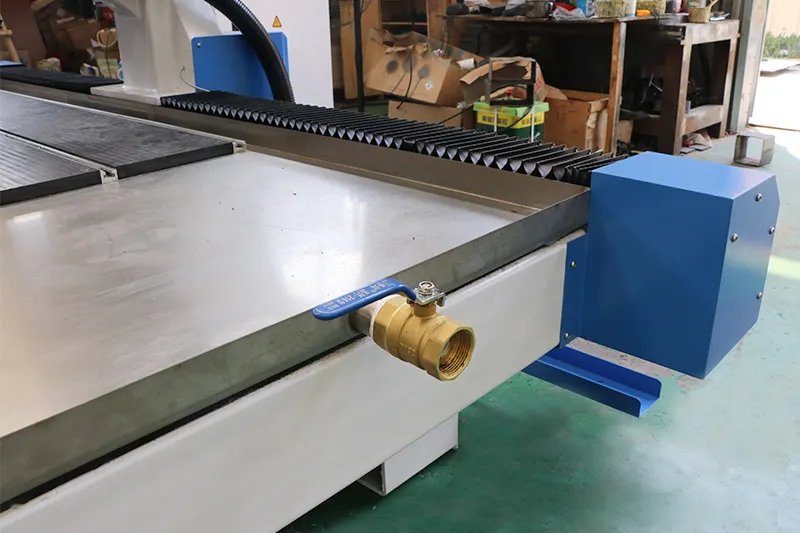

| Work table | slot working table, with steel water sink; Stainless steel sink for optional |
| Linear guide | Taiwan linear guide 20# |
| Transmission | X,Y axis: Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Dust cover | Dust covers for X, Y axis, protect the rails |
| Cooling system | Water cooling |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 25m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.05mm |
| Working accuracy | ±0.05mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional Items
| Spindle | 4.5kw/ 5.5kw/ 6kw water cooled spindle |
| Controller | DSP handle controller |
| Rails | Taiwan 25# linear rails |
| Motors | Leadshine servo motors Or Japanese Yaskawa servo motors |
Stone CNC Router Optional Parts
Application
INDUSTRIES
Stone engraving machine can deal with stone work, such as line carving, 2D plane carving, 3D relief carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, , stainless steel, iron, copper, etc. If you have the above materials need to process, stone engraving machine is definitely your best choice.
MATERIAL
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones
Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA
Soft metal: aluminum, brass, copper, mild steel
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
FAQ
This multi-head stone CNC machine is mainly used for engraving and cutting on marble, granite, quartz, as well as wood, plywood,acrylic, soft metal, etc.

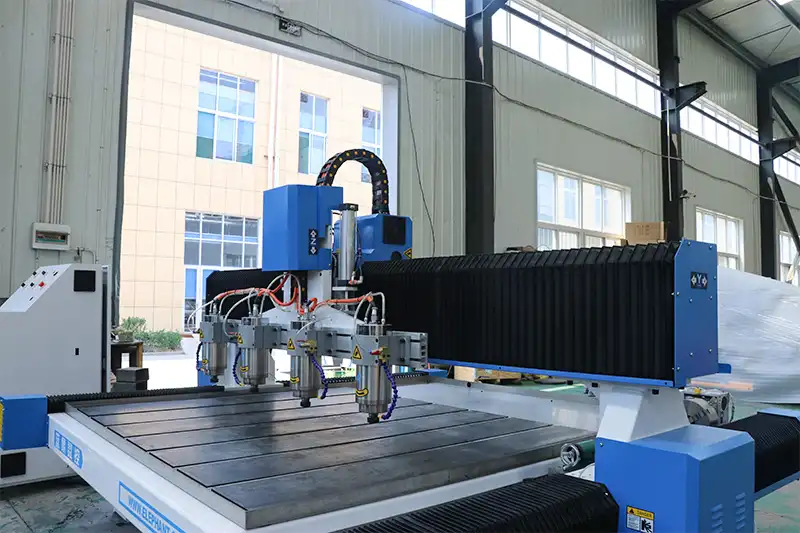

It has 4 spindles, which can do same designs at the same time, saving time and improving the working efficiency.
The machine comes with Mach3 controller, which needs to connect with the computer. After you transfer the working files into the computer, the machine can start.
