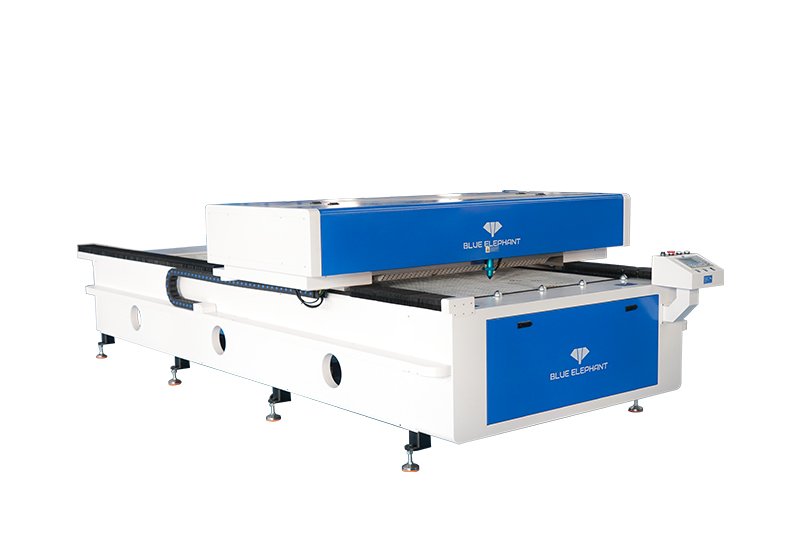

1331 650W CO2 Laser Cutting Machine
- Brand : Blue Elephant
- Model : ELECNC-1331
- Standard : CE, ISO9001

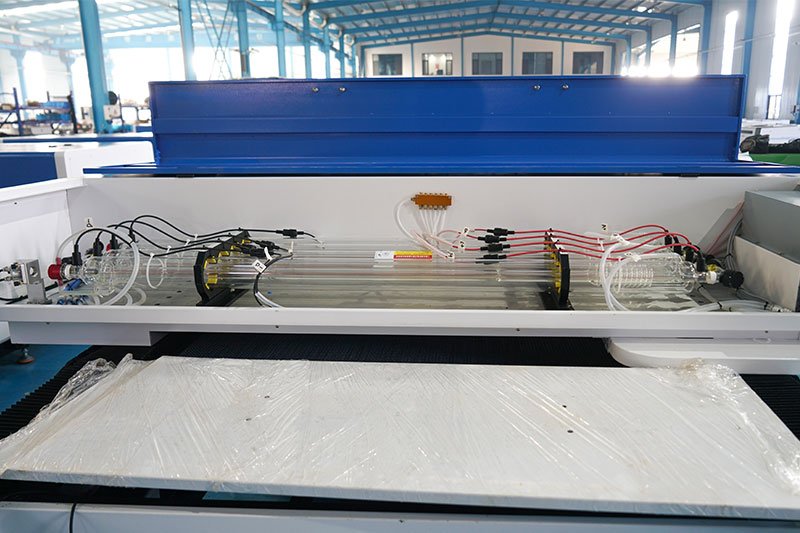

- Laser Tube : Sealed CO2 glass laser tube
- Laser Power : 650W CO2 laser
- Category : Co2 Laser Cutting Machine

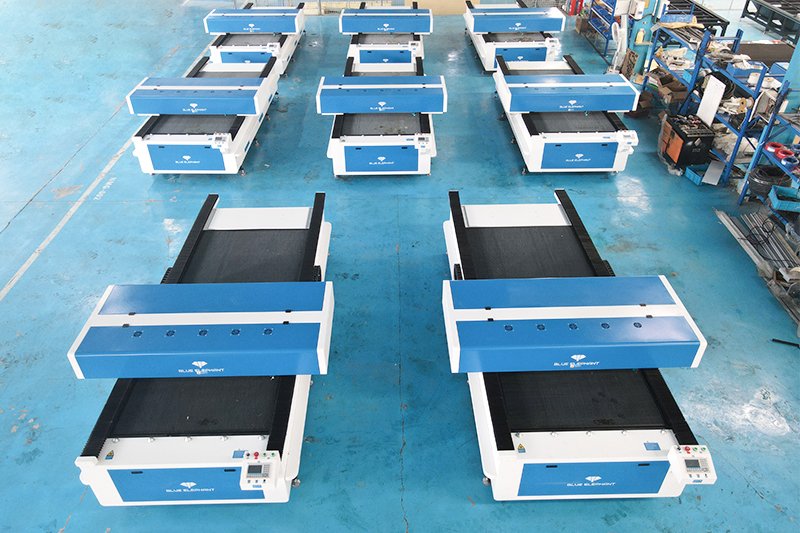

- Supply Ability : 320+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
1331 650W CO2 laser cutting machine is the newest CO2 laser cutting machine, it specially designed for industries that need high laser power. It can cut 30mm acrylic sheets at a speed of up to 10mm/s. So many industries can use it, such as Advertising industry, woodworking industry, furniture manufacturing, etc.
Features
- The high-power plywood CO2 laser cutting machine adopts 650W laser power, which can cut and engrave non-metallic materials such as acrylic, two-color board, wood board, etc.

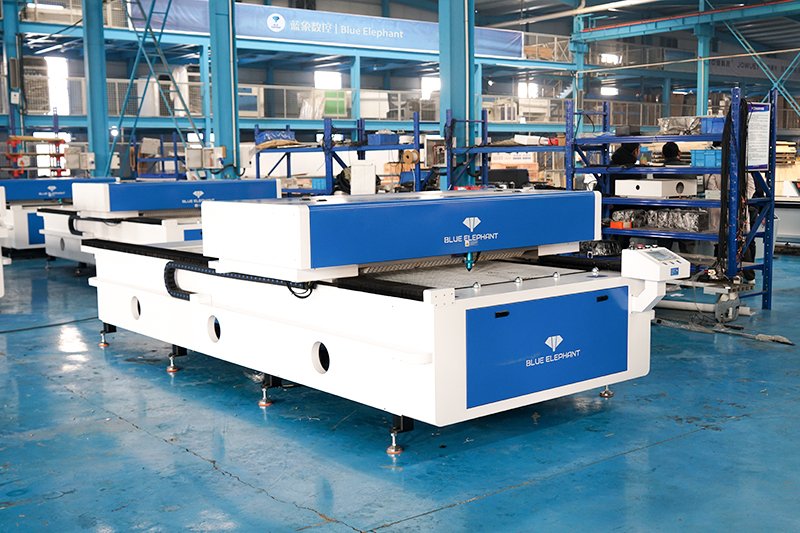

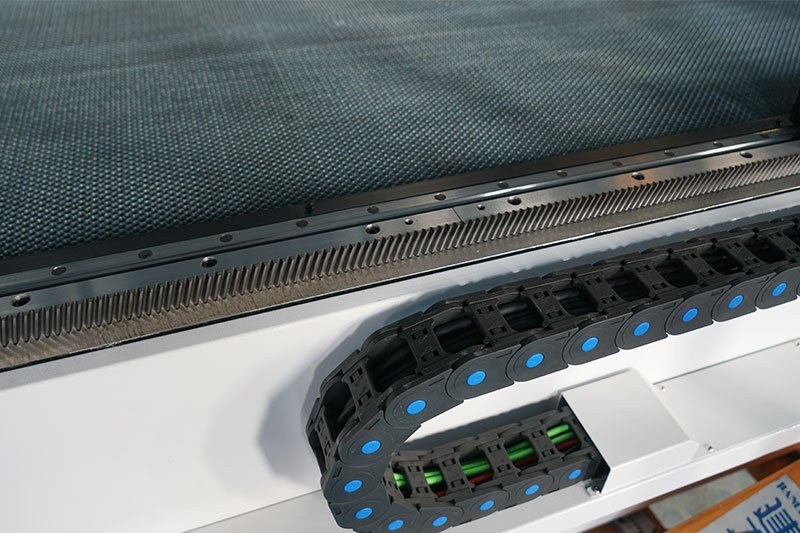

- The 650W CO2 laser cutting machine adopts a square tube welded frame, heavy-duty bed, and integrated beam, making the transmission more stable.
- It is equipped with a fire prevention device and smoke exhaust system to ensure a high safety factor. The upper and lower smoke exhaust devices ensure maximum smoke removal.
- The 650W CO2 laser cutter machine can load materials from all around, which is convenient and practical and greatly improves loading efficiency.

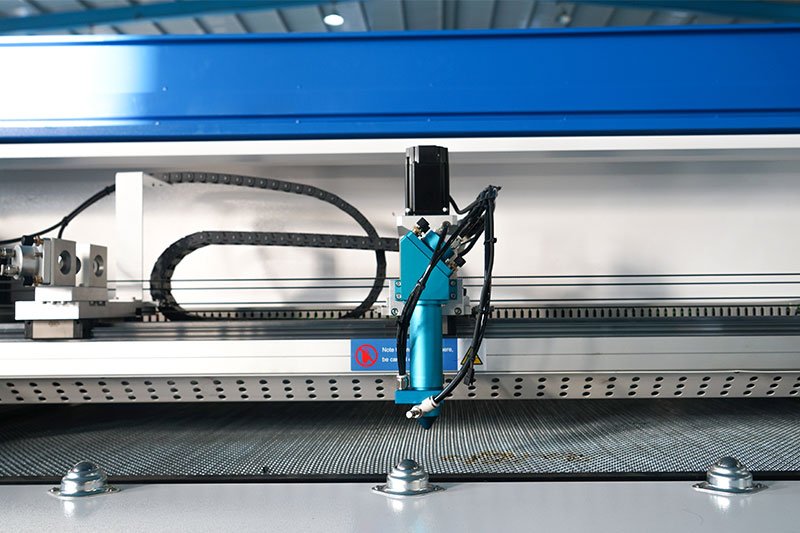

- It is equipped with a water-cooled lens for balanced heat dissipation, ensuring stable laser output.
Parameters
| Model | ELECNC1331 |
| Processing area | 1300mm*3100mm |
| Color | Blue and White |

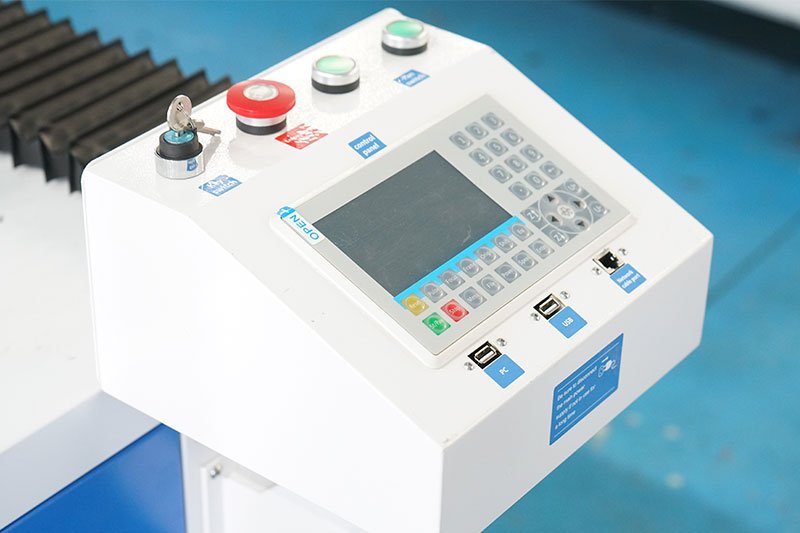

| Control System | RUIDA6445G |
| Laser power | 650w CO2 laser |
| Laser type | Sealed CO2 glass laser tube |
| Cutting speed | 0-600mm/s |
| Cutting thickness | 0-25mm acrylic (others determined by materials) |
| Position system | Red dot |
| Support graphic format | PLT、DXF、AI、BMP、RLD |
| Motor & drive | Servo motor and drive |
| Working voltage | 220V, 60Hz, 1Phase |
| Working table | Honeycomb working table |
| Packing | Wooden box |
| Application | Cut (acrylic, plexiglass, wood, MDF, textile) |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-95% |
| Cooling system | CW6200 water cooler |
CO2 Laser Cutting Machine Optional Parts

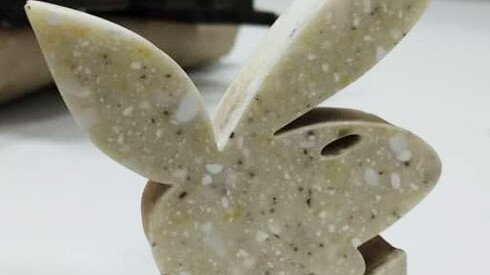

Application

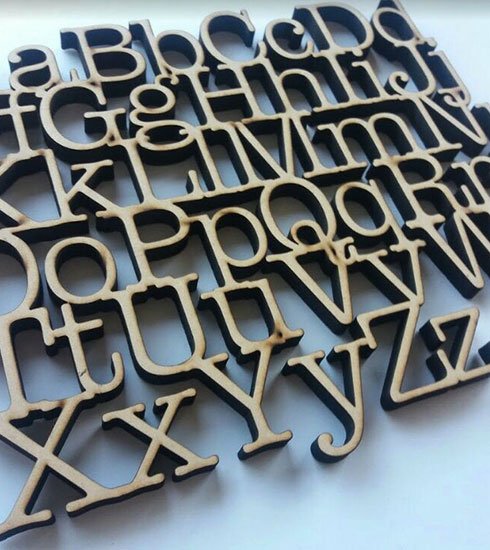

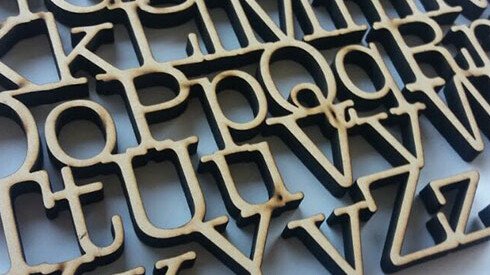

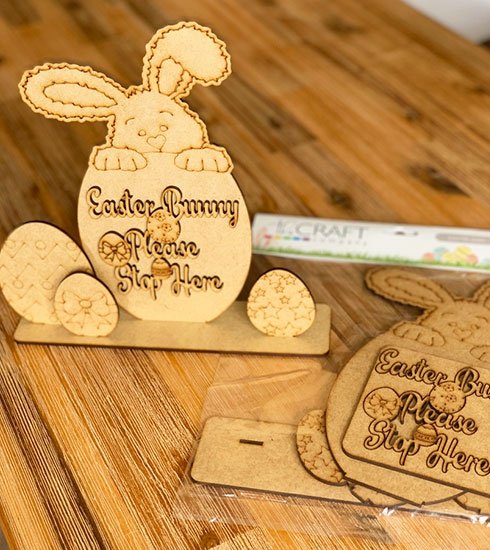

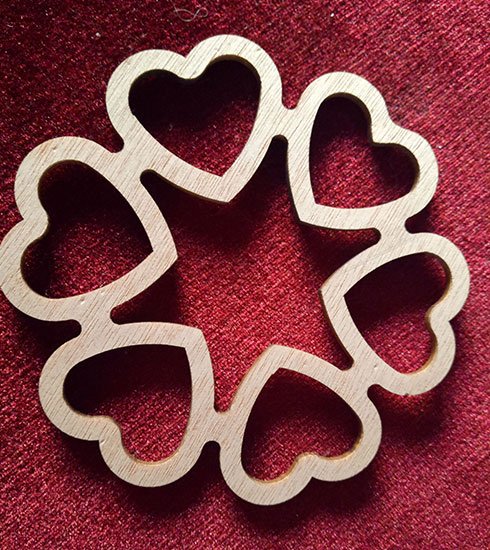

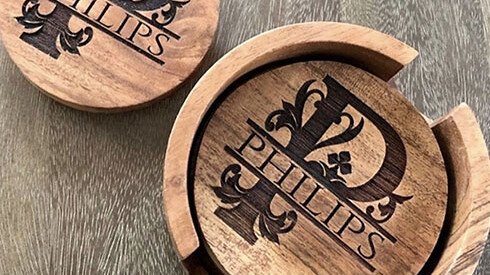

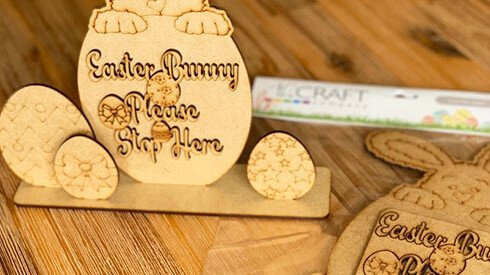

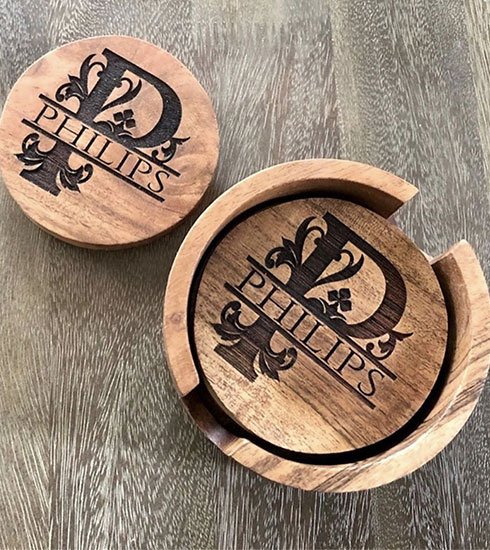

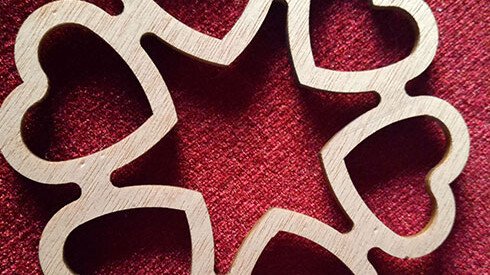

- Wood: CO2 laser cutting machines can cut and engrave various types and thicknesses of wood, making them suitable for creating furniture, crafts, wooden packaging, etc.

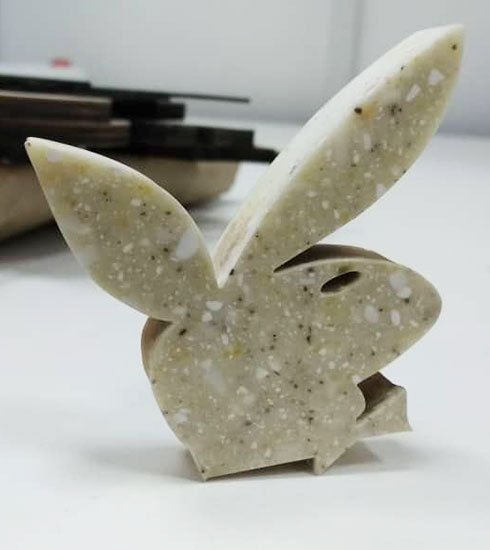

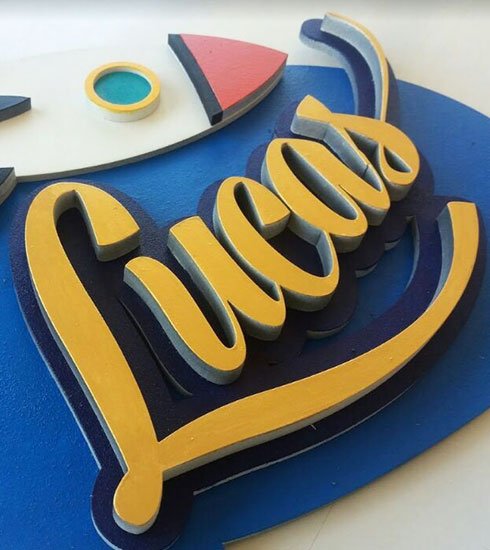

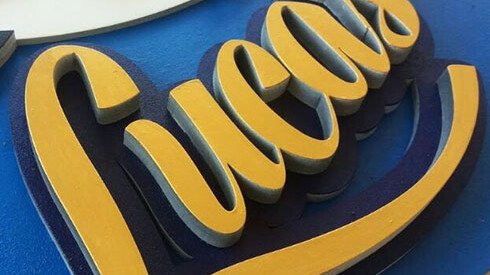

- Plastic: For various plastic materials such as acrylic, polyethylene, PVC, etc., CO2 laser cutting machines can precisely cut and engrave, making them suitable for producing models, plastic parts, etc.
- Leather: In the production of leather goods such as shoes, bags, belts, etc., CO2 laser cutting machines can achieve precise cutting, engraving, and personalized marking of leather.
- Fabrics and Textiles: In industries such as clothing and home décor, CO2 laser cutting machines can cut and engrave various fabrics, silk, wool, etc., enabling the creation of intricate patterns and designs.
- Rubber: CO2 laser cutting machines can cut rubber materials, making them commonly used in the manufacturing of seals, rubber pads, etc.
FAQ
A CO2 laser cutting machine can cut and engrave various non-metal materials, such as wood, acrylic, paper, feather, fabric, cloth, etc.
They are all CNC machines, able to perform intricate cuttings of non-metals, such as acrylic sheet, PVC, wood, MDF, etc. But there are also many differences when you use it to make dedicate works, it is all because:
1) Laser cutting is a process of heat-melt-burn by high energy laser beam; while
2) CNC Router cutting is a kind of high-speed-milling away materials from workpiece.
As one of acrylic laser cutting machine manufacturers in China, we also supply CNC router for acrylic sheet cutting, you can choose any machine on your need.
The price of an acrylic CNC machine is different based on many factors. For example, laser table size, laser power, additional CNC kits, such as rotary device and industrial chiller, etc. The price range of this machine in the market is about: USD5,000 – 10,000. please contact us for the latest quotation.
