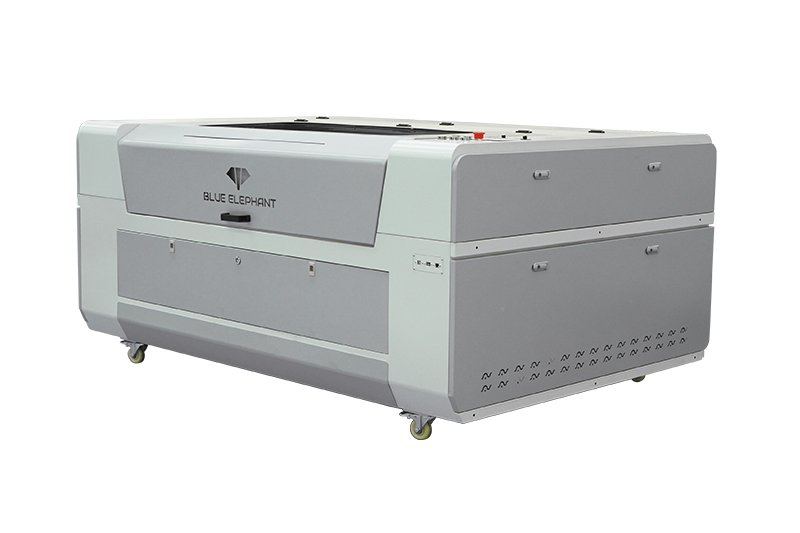

1390 Double Head CO2 Laser Cutting Machine
- Brand : Blue Elephant
- Model : ELECNC-1390
- Standard : CE, ISO9001
- Laser Tube : CO2 laser tube*2
- Laser Power : RECI 75-150W, Yongli 300W
- Category : Co2 Laser Cutting Machine
- Supply Ability : 360+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
1390 CO2 laser cutting machine is equipped with double heads. The two cutting heads significantly improve work efficiency and meet mass production demands. Its highly integrated machine structure ensures safe and stable operation.
Features

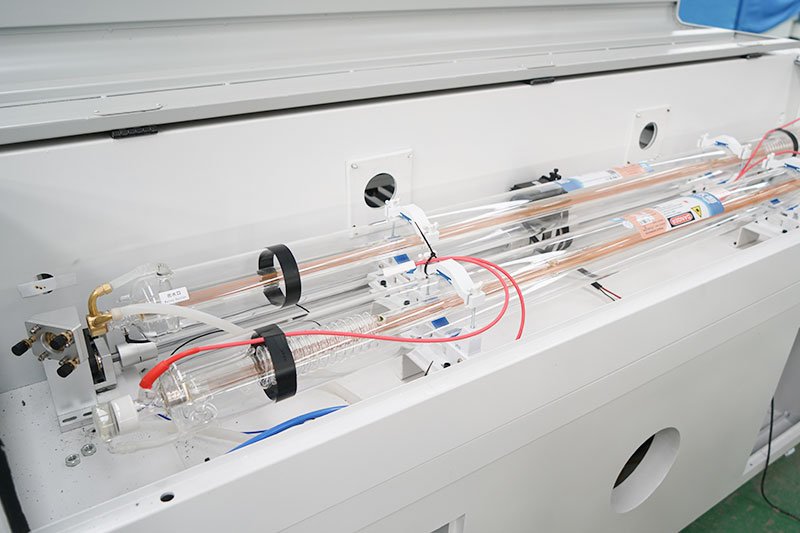

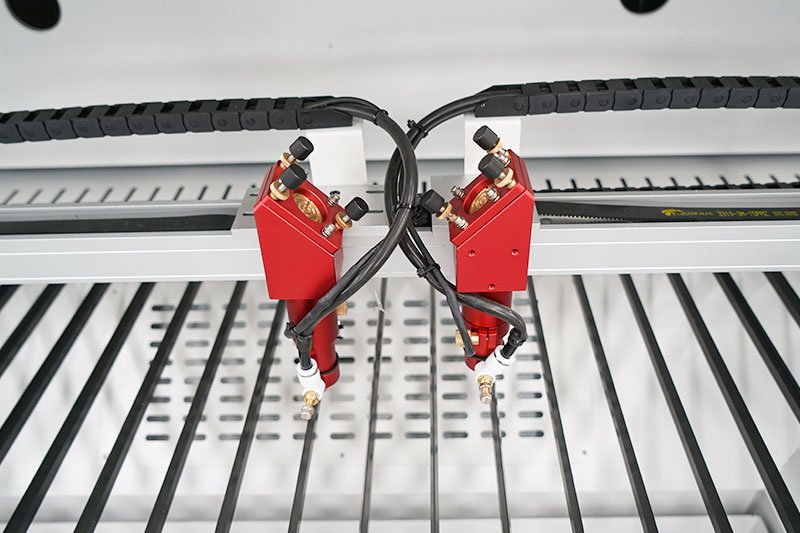

- It is provided with two high-precision laser heads and two CO2 laser tubes that work together, significantly improving cutting and engraving efficiency with high precision.
- The industrial laser tube has high power, a fine spot, and a long service life. Its cutting edges are smooth and free of ripple marks and burrs.
- The high-power stepper motor has stable performance and ensures safe and efficient operation.

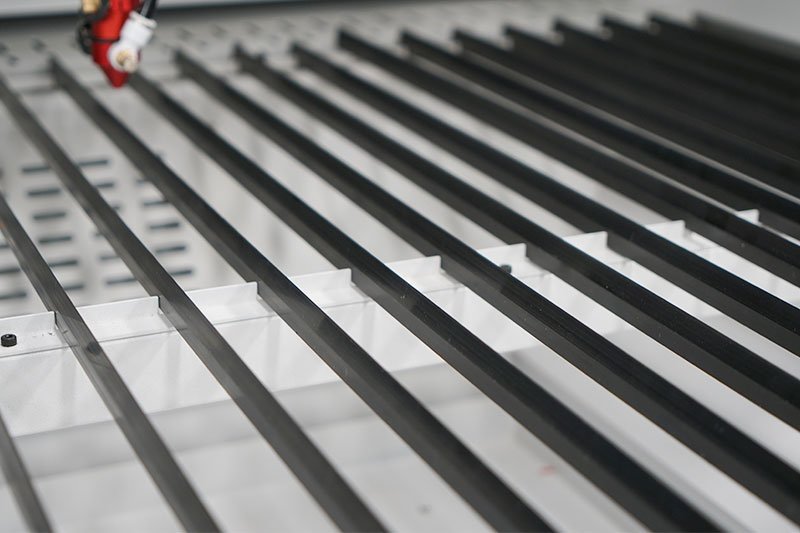

- It adopts a knife blade worktable, which has a small contact area with the workpiece and is suitable for processing acrylic sheets, MDF, and other hard sheets.
Parameters
| Model | ELECNC 1390 with two laser heads |
| Laser source | CO2 laser tube*2 |
| Laser power | RECI 75-150W, Yongli 300W |
| Working area | 1300x900mm, optional: 600x400mm, 900x600mm, 1600x1000mm |
| Worktable | Knife blade, optional: honeycomb |
| Cutting speed | 0-30,000mm/min |
| Repeated accuracy | ±0.01mm |
| Power supply | 220V, 50/60Hz, 1Ph |
| Cooling system | CW300/CW500/CW5200/CW6000 |
CO2 Laser Cutting Machine Optional Parts
Application
Applicable materials: leather, cloth, wool, acrylic, plexiglass, plastic, wood products, ceramic tiles, bamboo products, epoxy resin and other non-metallic products.
Applicable industries: clothing, model cutting, packaging and printing, advertising decoration, building decoration, computer embroidery cutting, handicrafts, paper products, precision cutting of non-metallic sheets, etc.
FAQ
A CO2 laser cutting machine can cut and engrave various non-metal materials, such as wood, acrylic, paper, feather, fabric, cloth, etc.
Yes, but with some conditions. The laser power of this CO2 laser cutter must be greater or equal to 130W. Besides, the laser head shall be a mixed type, which means that it can cut both metal and non-metal materials. For example, a 130W CO2 laser cutter can cut 1mm carbon steel and 1mm stainless steel.
Yes, this CO2 laser cutter can cut many materials, including acrylic sheet, fabric, cloth, MDF, plastic. It can also engrave patterns on acrylic sheets.
