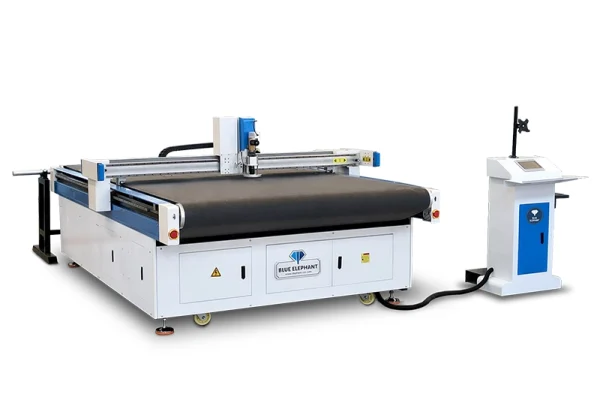

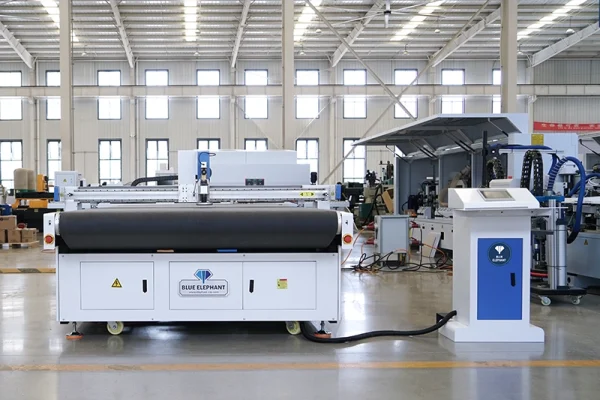

1625 Oscillating Knife Cutting Machine
- Brand : Blue Elephant
- Model : ELECNC-1625
- Standard : CE, ISO9001
- Table size : 1600mm*2500mm
- Category : Oscillating Knife Cutting Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
The 1625 Oscillating Knife Cutting Machine combines high-speed cutting, intelligent positioning, and stable processing, making it an ideal solution for precision processing of flexible and composite materials. With support for multiple cutting tools, the machine adapts to various material properties and processing requirements, meeting the diverse processing requirements for advertising, packaging, leather goods, textiles, automotive interiors, and composite material applications.
Features
- Professional nesting software: Integrated with professional nesting software, the machine automatically calculates the optimal cutting layout to maximize material utilization and reduce material costs.
- Automated feeding and cutting: Equipped with a simple feeding rack, it enables an automated feeding and cutting workflow, reducing manual intervention and improving production efficiency.

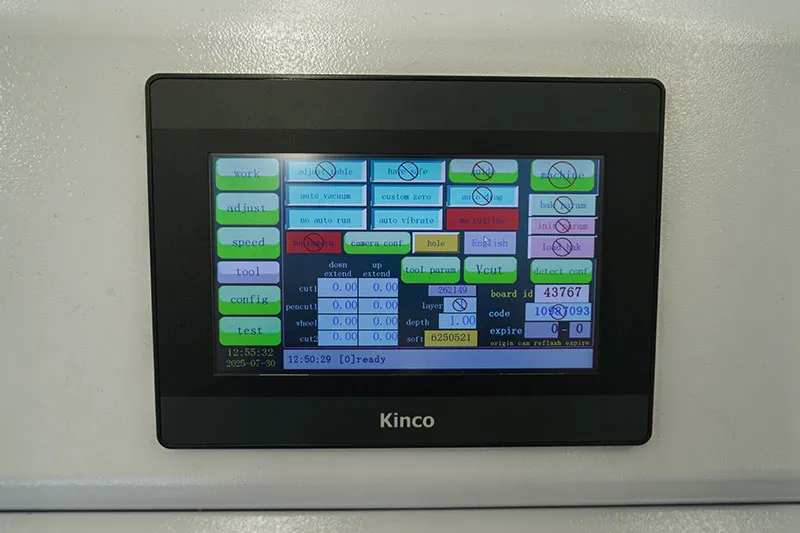

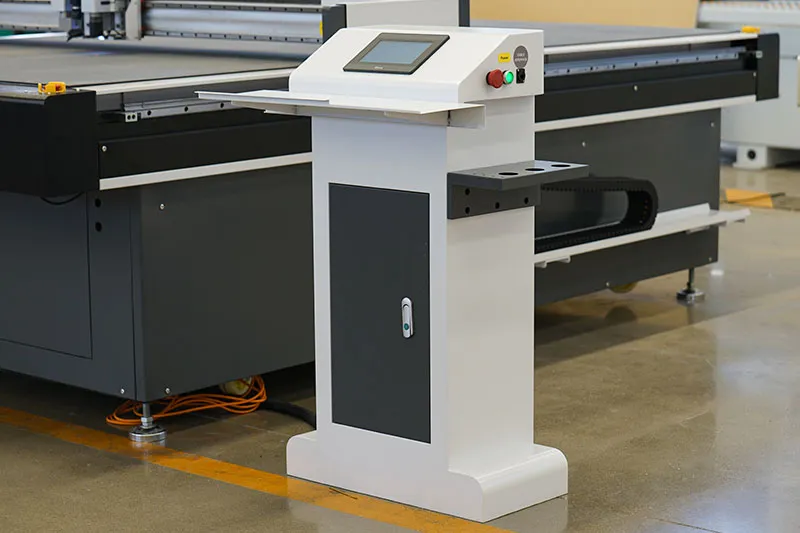

- Embedded control system: Developed with a self-developed embedded control system and an industrial touchscreen, the machine operates without a separate computer, providing higher stability and reliability.
- All-round safety protection: Combining an emergency stop, collision protection, and infrared intelligent safety detection, the machine ensures all-round safety for both operators and equipment.
Parameters
| Model | ELECNC-1625 |
| Working area | 1600*2500mm |
| Weight | About 1000kg |
| Machine bed | 5 mm thick, custom integrated welded bed |
| Tools |

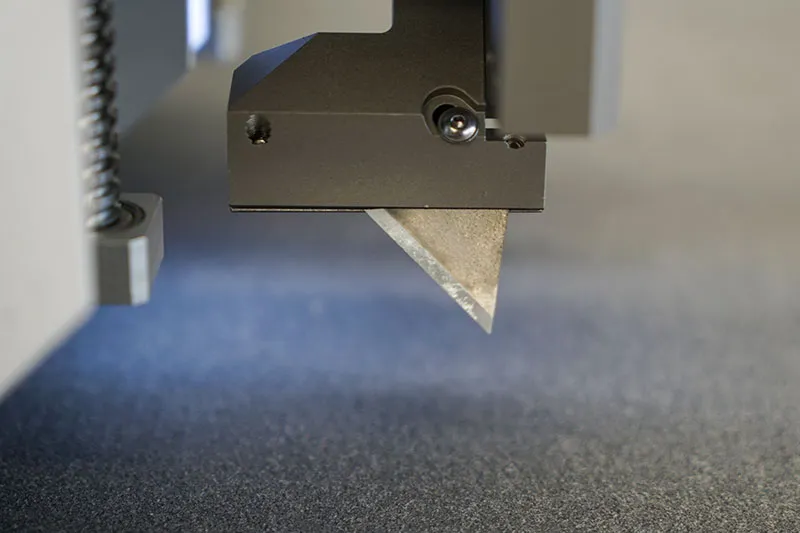

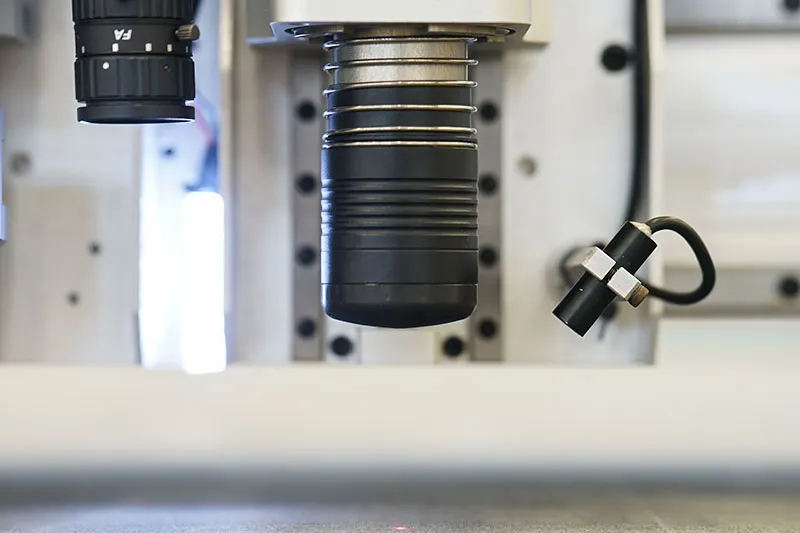

Oscillating knife blades: 20 pcs (10×20 mm, 10×25 mm blade length) |

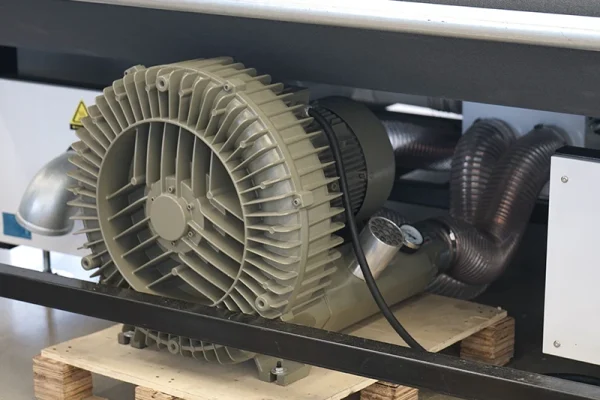

| Work table | Aluminum honeycomb vacuum work table |
| Transmission interface | Ethernet port |

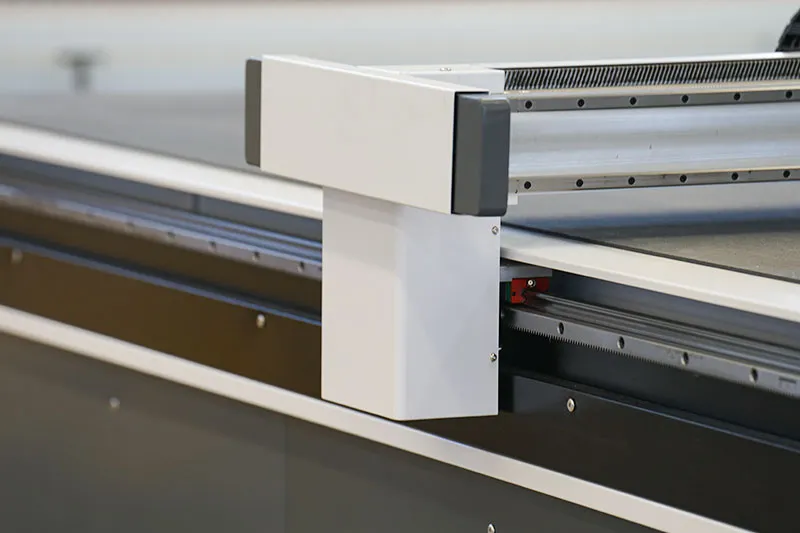

| Drive system | Taiwan linear guide rail, rack and pinion drive, Japan Panasonic servo motor, ball screw |

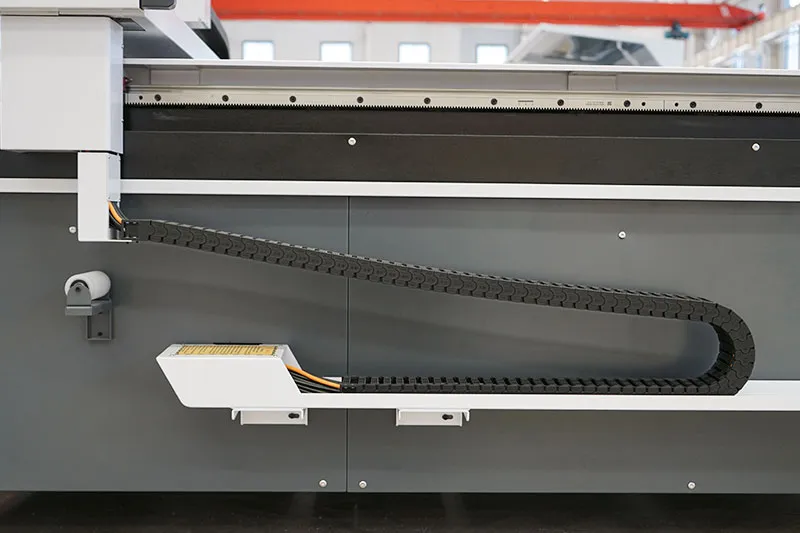

| Cable | Germany Igus cable |

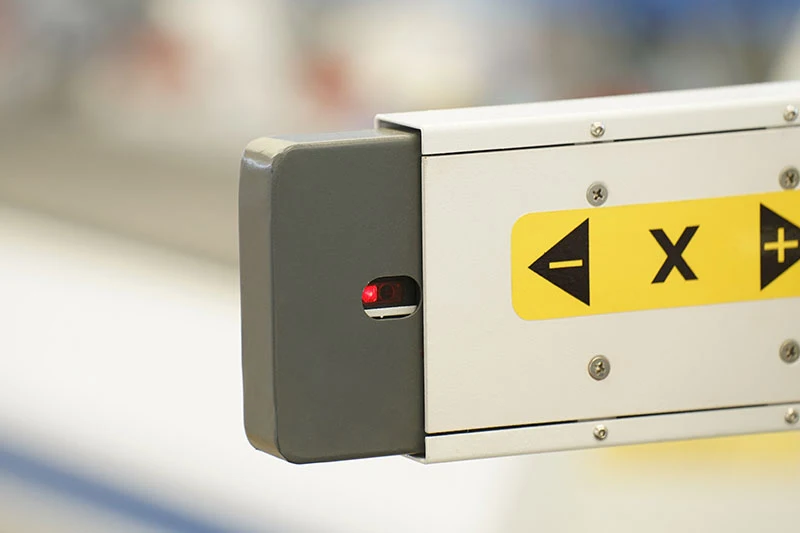

| Position device | Red light pointer positioning |
| Traveling speed | 500-2000mm/s |
| Cutting speed | 500-1500mm/s |
| Cutting thickness | 0.1-20mm |
| Cutting accuracy | ±0.02mm (depending on material and cutting pattern) |
| Supported software formats | PLT, DXF, etc. |
| Voltage | 220V/380V ±10%, 60Hz/50Hz |
Oscillating Knife Cutting Machine Optional Parts
Versatile Cutting Solutions for Multiple Industries
Advertising Materials Cutting
Precision cutting of PVC, KT board, foam board, and acrylic sheets for advertising production.
Packaging Industry
Creates custom packaging, cartons, and protective inserts with accurate digital cutting.
Leather Products
Efficiently cuts leather, artificial leather, and upholstery materials for various products.
Automotive Interior Materials
Cuts automotive carpets, seat covers, and interior composites with high precision.
1625 Oscillating Knife Cutting Machine FAQ
The 1625 Oscillating Knife Cutting Machine is designed for cutting a wide range of flexible and composite materials, including foam, leather, fabric, cardboard, rubber, felt, carpet, and other non-metal materials.
The 1625 Oscillating Knife Cutting Machine supports commonly used design and production formats such as DXF, PLT, AI, CDR, and other industry-standard files. It can work with popular software including AutoCAD, CorelDRAW, ArtCAM, Aspire, and similar design platforms.
Users can import commonly used design files and generate cutting paths according to different materials and applications. Professional nesting software can automatically arrange patterns to reduce material waste and improve production efficiency.
The main difference between the 1625 Oscillating Knife Cutting Machine and a laser cutting machine is the cutting method and suitable materials.
An oscillating knife cutter uses physical blade movement to cut materials without burning edges, making it ideal for foam, leather, fabric, cardboard, and other soft materials. A laser cutting machine uses heat-based cutting, which may cause melting, smoke, or edge discoloration on some materials.
For heat-sensitive and flexible materials, the 1625 Oscillating Knife Cutting Machine is often a better choice.
Yes, the 1625 Oscillating Knife Cutting Machine is suitable for both small batch production and customized cutting projects.
Its digital cutting process allows users to quickly change designs without making physical molds, making it ideal for sample production, personalized products, and short-run manufacturing. It helps small and medium-sized businesses improve flexibility and reduce preparation time.
Regular maintenance of the 1625 Oscillating Knife Cutting Machine helps ensure stable performance and extend the machine’s service life.
Daily maintenance includes cleaning the cutting area, checking the knife condition, and keeping the working table free of debris. Regular inspections of transmission components, lubrication systems, and electrical connections are also recommended for long-term reliable operation.
