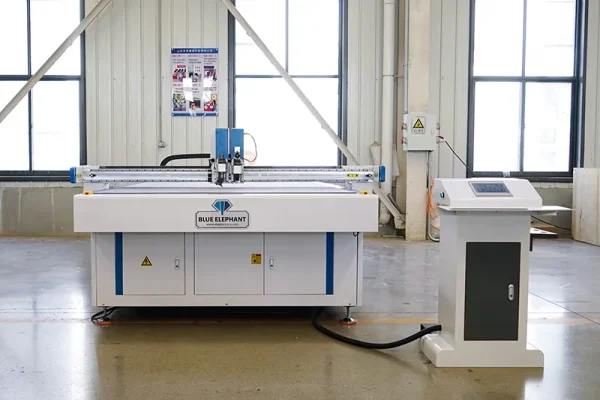

1625 CCD Oscillating Knife Cutting Machine
- Brand : Blue Elephant
- Model : ELECNC-1625
- Standard : CE, ISO9001
- Table size : 1600mm*2500mm
- Category : Oscillating Knife Cutting Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1625 CCD camera patrol oscillating knife cutting machine is suitable for cutting various flexible materials, composite materials, multilayer materials, and materials that require cutting without a heat-affected zone. It is widely used in industries such as advertising signage, automotive interiors, footwear and bags, packaging, and composite materials.
Features
- Durable machine bed: The machine bed is an integrally welded structure, treated with high-temperature heat treatment and finished product aging treatment, ensuring durability and preventing deformation over time.
- High-precision linear guide rails: It adopts Taiwan HIWIN linear guide rails, featuring high precision, low wear, and low energy consumption.

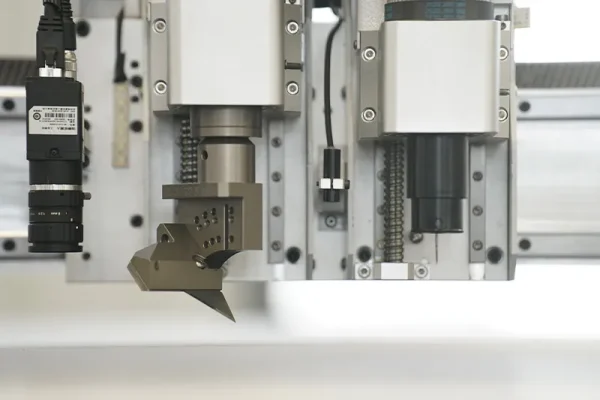

- CCD camera: It is equipped with a CCD camera to improve processing quality, efficiency, and automation while reducing material costs.
- Red light positioning system: The red light positioning system enhances production smoothness and reliability.
Parameters
| Model | ELECNC-1625 |
| Working area | 1600*2500mm |
| Weight | About 1000kg |
| Machine bed | 5 mm thick, custom integrated welded bed |
| Tools | Oscillating knife + angled cutting + kiss cutting + CCD |
| Work table | Aluminum honeycomb vacuum work table |
| Transmission interface | Ethernet port |
| Drive system | Taiwan linear guide rail, rack and pinion drive, Japan Panasonic servo motor, ball screw |
| Cable | Germany Igus cable, resistant to over 9 million bending cycles (field-verified) |
| Position device | Red light indicator positioning |
| Traveling speed | 500-2000mm/s |
| Cutting speed | 200-1500mm/s |
| Cutting thickness | 0.1-30mm (depending on actual material) |
| Cutting accuracy | ±0.02mm |
| Supported software formats | PLT, DXF, etc. |
| Voltage | 220V/380V ±10%, 60Hz/50Hz |
Oscillating Knife Cutting Machine Optional Parts
Oscillating Knife Cutting Machine Application

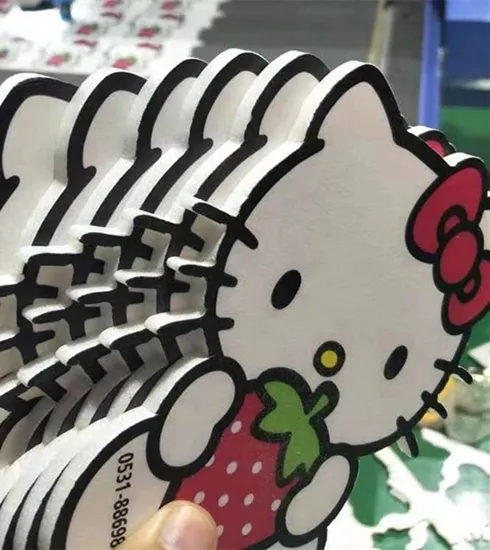

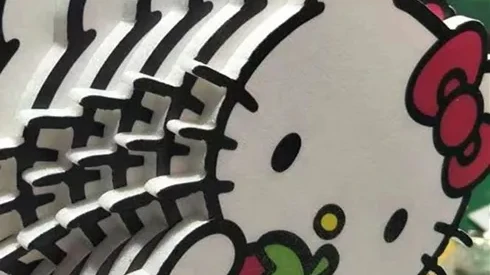

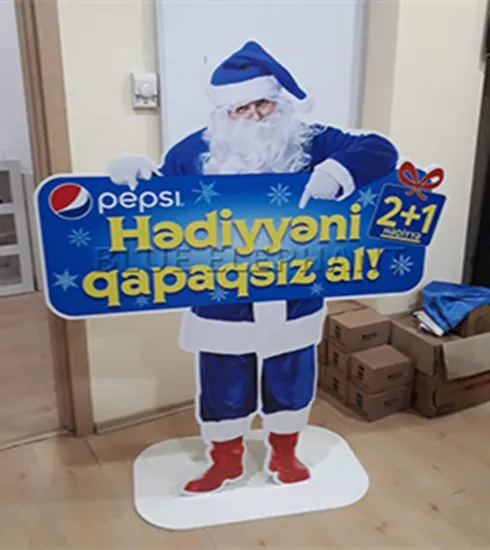

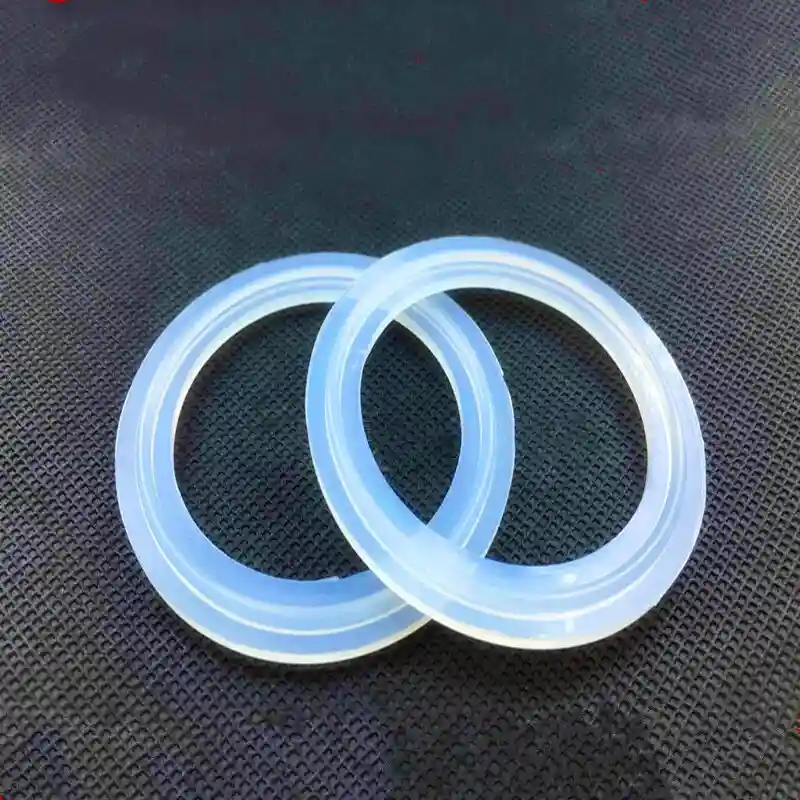

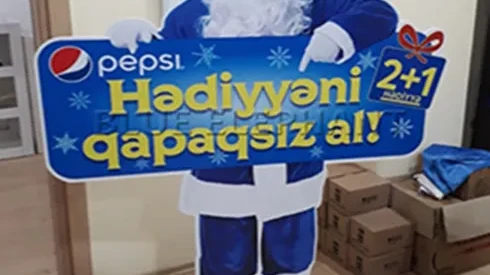

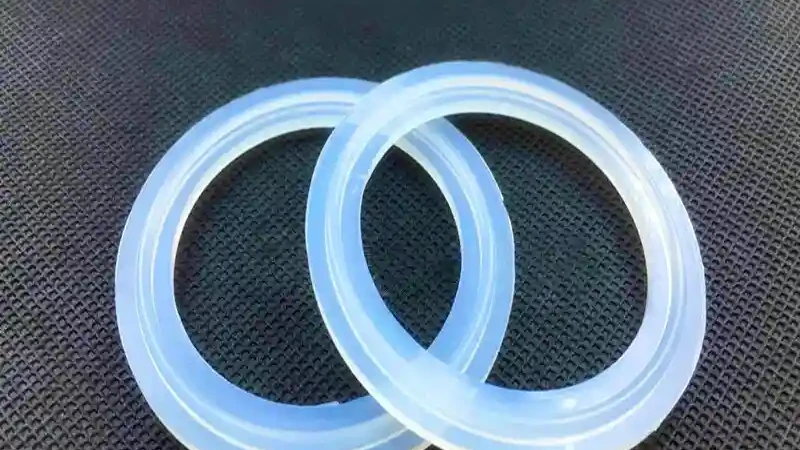

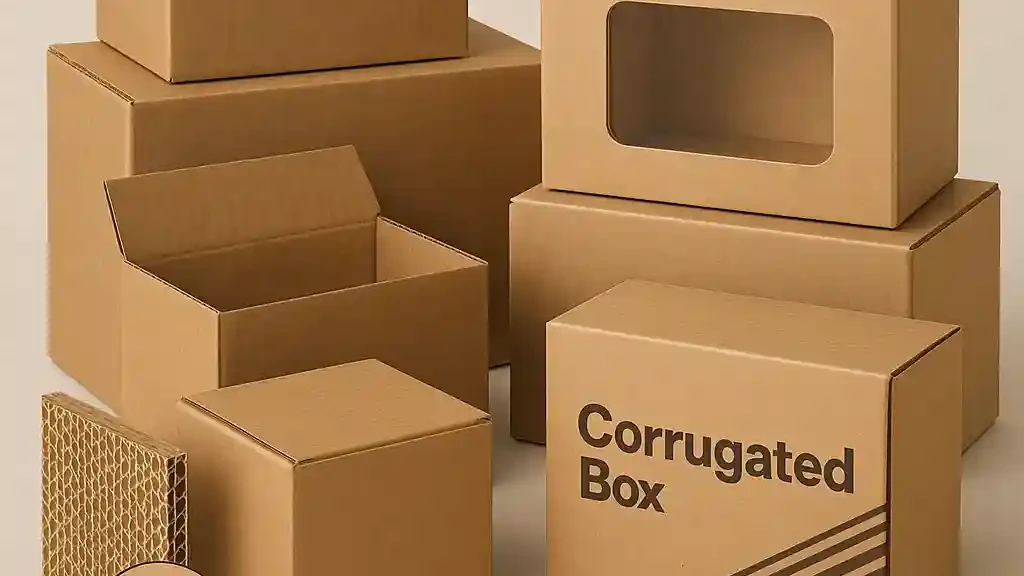

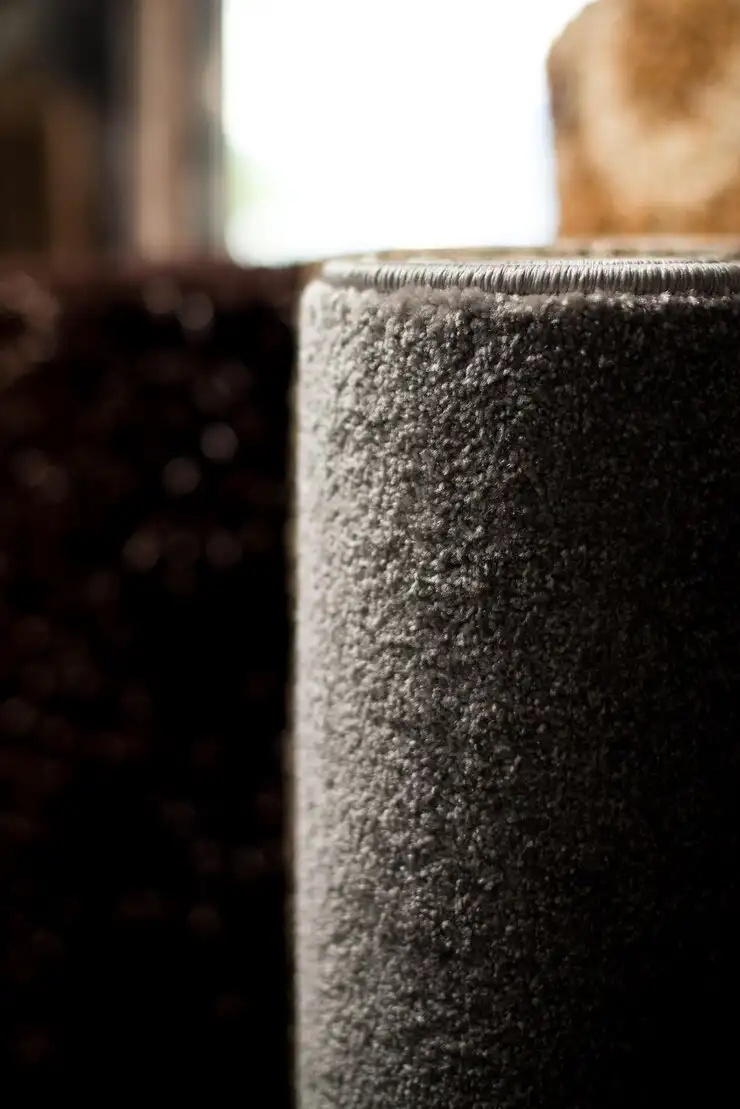

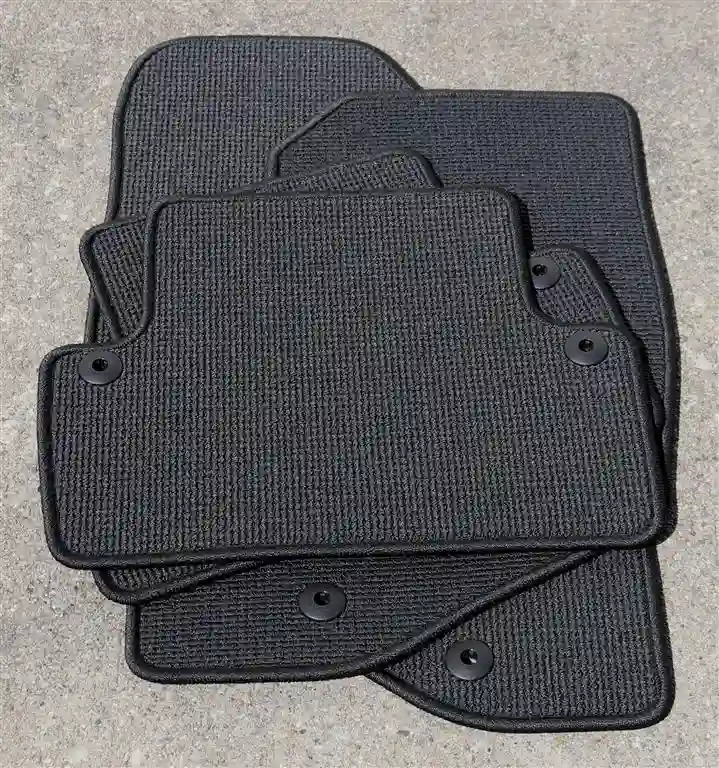

The CCD Camera Oscillating Knife Cutting Machine is widely used in advertising signage, packaging and printing, label and sticker production, carton sample making, automotive interiors, leather products, textiles, carpets, gaskets, and composite materials. Equipped with an advanced CCD vision system, it enables accurate contour cutting of printed graphics and flexible materials, making it ideal for both customized and mass-production applications.
FAQ
It can complete edge milling, curved edge cutting, countertop cutting and milling, inclined edge cutting, arc edge cutting and milling, wash basin cutting and other processes.For many flexible materials, the oscillating knife offers significant advantages because it cuts without generating heat. This prevents burned edges, discoloration, smoke, and material deformation, resulting in cleaner and more environmentally friendly production.
The machine supports commonly used design and production formats such as DXF, PLT, AI, CDR, and other industry-standard files. It can work with popular software including AutoCAD, CorelDRAW, ArtCAM, Aspire, and similar design platforms.
Yes. The CCD camera captures the image of the printed material and automatically generates the cutting path. This enables contour cutting without manual positioning, making it ideal for printed signs, labels, packaging, carpets, and advertising graphics.
Routine maintenance mainly includes cleaning the working table, checking blade wear, lubricating moving components, and ensuring the CCD camera lens remains clean. Regular maintenance helps maintain cutting accuracy and prolong machine life.
Most operators can learn basic machine operation within a short training period. The visual control system, automatic contour recognition, and intuitive software interface simplify setup and daily production tasks.
