QX3400-5X-SP 5 Axis CNC Bridge Saw Quartz Slab Production Line
- Brand : Blue Elephant
- Model : QX3400-5X-SP
- Category : 5 Axis Bridge Saw
- Supply Ability : 500+ Units in Stock
- Blade Diameter : 450mm
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description

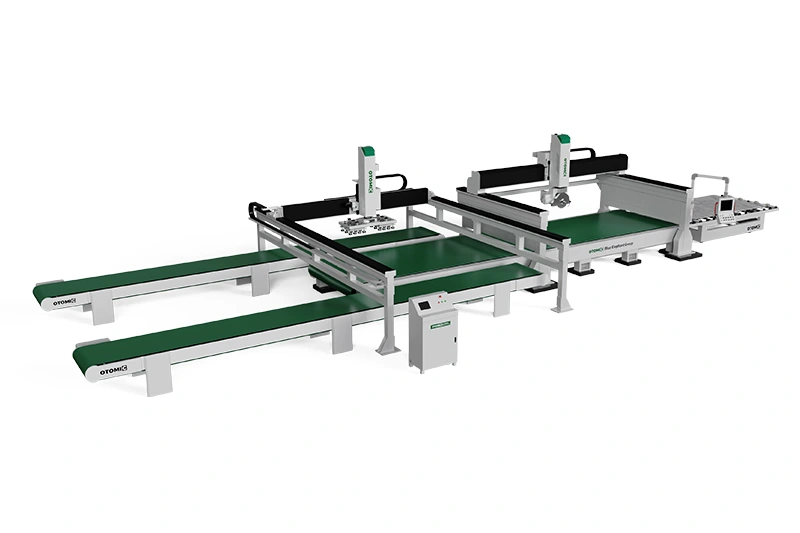

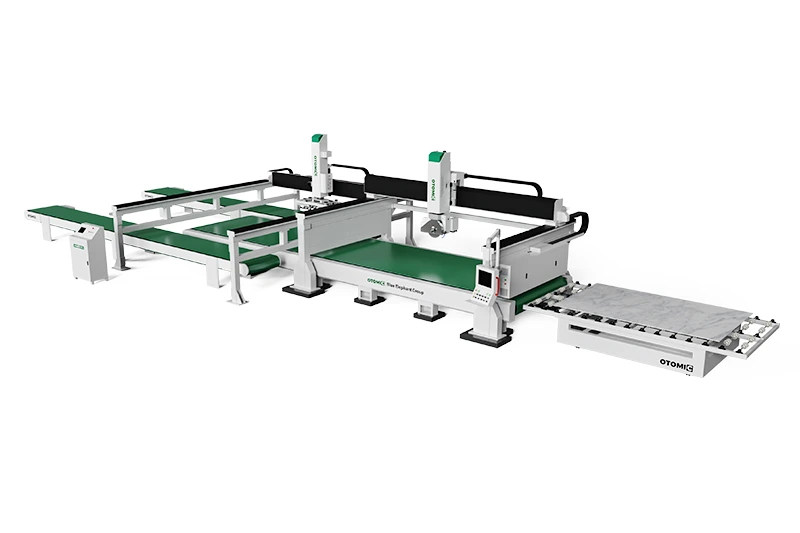

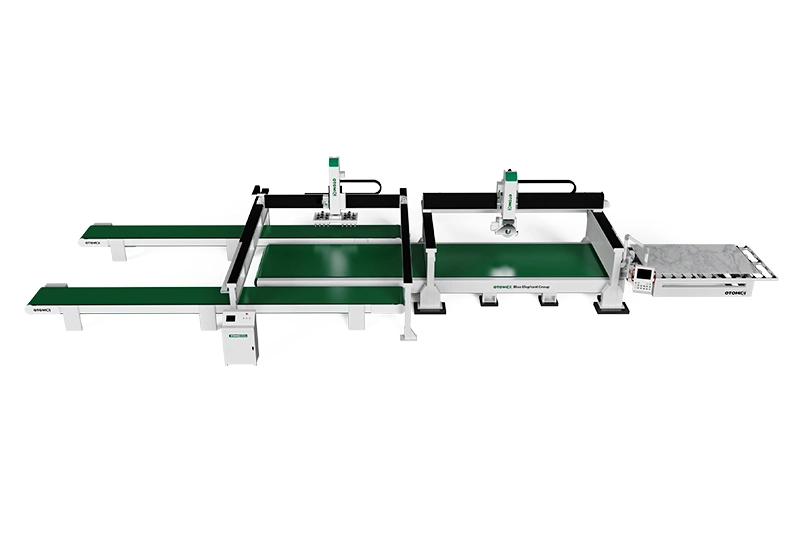

QX3400-5X-SP 5 axis CNC bridge saw quartz slab production line is a newly high-end stone processing center. The 5 axis bridge saw quartz stone cutting line includes three parts: a loading machine, a 5 axis bridge saw machine and an an unloading machine. It can solve various special-shaped processing of stone materials. It is compatible with functions of stone cutting, profiling, special-shaped cutting, etc. It gains popularity in stone processing for waterscapes, gardens, and high-end villas.
Features
- Automatic stone loading Place the large stone slabs on the fully automatic loading machine. Thus it will transport the stone slabs to the 5-axis bridge cutting machine. It will save loading time and labor, and improves work efficiency.
- 5 axis bridge saw machine The 5 axis bridge saw machine can take pictures and position through the visual function. It can also cut according to the pre-arranged engineering documents, making it more intelligent and easier to operate.
- High automation The production line control system automatically sets tools, moves stone slabs, and completes stone cutting.
- Automatic stone unloading According to the process, we can assign the automatic unloading machine to designated wire racks or palletizing racks. It greatly saves unloading time and reduces manual errors.
Parameters
| QX3400-5X-SP Quartz Stone Cutting Production Line | |||
| Bridge Saw | Working travel | X, Y, and Z | 3400*2000*250mm |
| C axis | ±365° | ||
| A axis | 0-90° | ||
| Maximum thickness | 80mm | ||
| Moving speed | 25m/min | ||
| Spindle | 22kw air cooling spindle, 4000rpm | ||
| Control system | CutCam | ||
| Motor | CutCam servo | ||
| Reducer | Japan SHIMPO | ||
| Worktable (optional) | Max. weight for feeding | 1500kg | |
| Max. speed for feeding | 10m/min | ||
| Saw | Dimension | 450mm | |
| Size | 6000×3500×3600mm | ||
| Loader | Working travel | X, Y, and Z | 3500*4000*1000mm |
| A axis | 0-90° | ||
| Control system | CutCam | ||
| Motor | CutCam servo | ||
| Reducer | Japan SHIMPO | ||
| Moving speed | 25m/min | ||
| Max suction size | 3200×1200mm | ||
| Min suction size | 300×150mm | ||
| Power | 8kw | ||
| Weight | 3000kg | ||
| Machine size | 5000×5800×3800mm | ||
4 Axis Bridge Saw Optional Parts
Application
Artificial stone cutting production line has various applications in the stone processing industry, producing a wide range of stone products, from countertops to decorative materials, to meet the needs of different sectors and customers.
Stone Countertop Manufacturing
Granite stone factory line is used for cutting and processing stone slabs to create high-quality stone countertops for kitchens and bathrooms.
Stone Flooring and Wall Tile
Marble stone assembly line is used to cut and process stone slabs to manufacture floor tiles, wall tiles, and other interior decorative materials.
Stone Sculpting
Quartz slab production line can be used for engraving and sculpting stone to create various art pieces, textures, and decorative designs.
Stone CNC Projects
Quartz countertop stone cutting production line can meet the requirements of large-scale stone projects, such as countertops, fireplaces, columns, and more in hotels, commercial buildings, and residential developments.
FAQ
It can complete various stone processing, like stone milling, curved stone edge cutting, stone countertop cutting and milling, inclined stone edge cutting, arc stone edge cutting and milling, wash basin cutting and so on.
This 5 axis stone bridge saw is provided with a built-in CAM software with Blue Elephant customized control system dedicated for stone CNC machine. The interface is human friendly, so it is easy to learn and operate.
Yes, the worktable of this machine can flip up to 80 degrees to facilitate the unloading of stone slabs. It also improves work efficiency and saves human labor.
