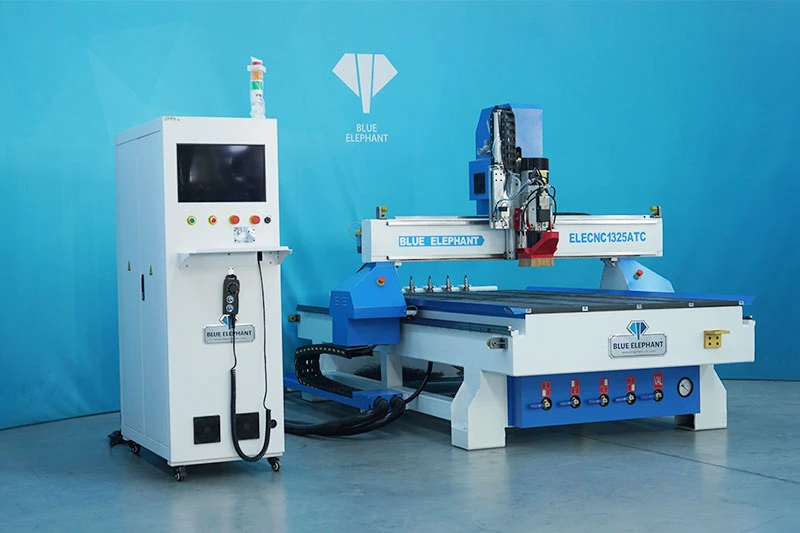

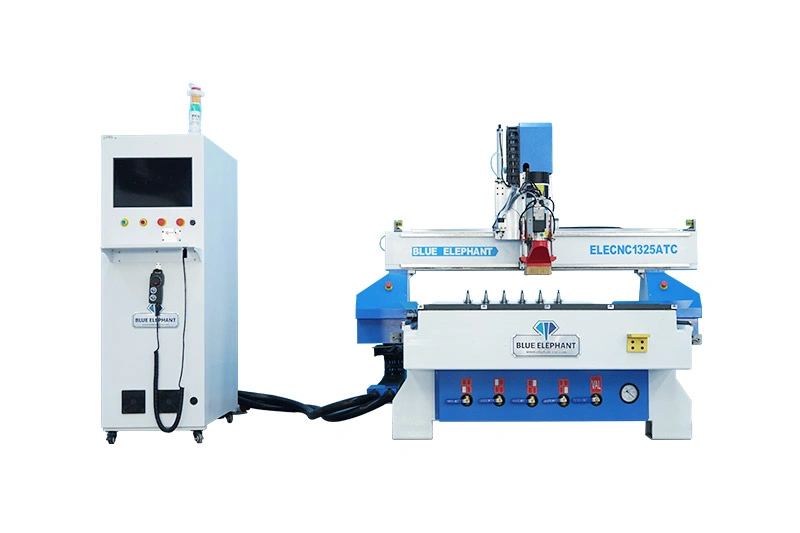

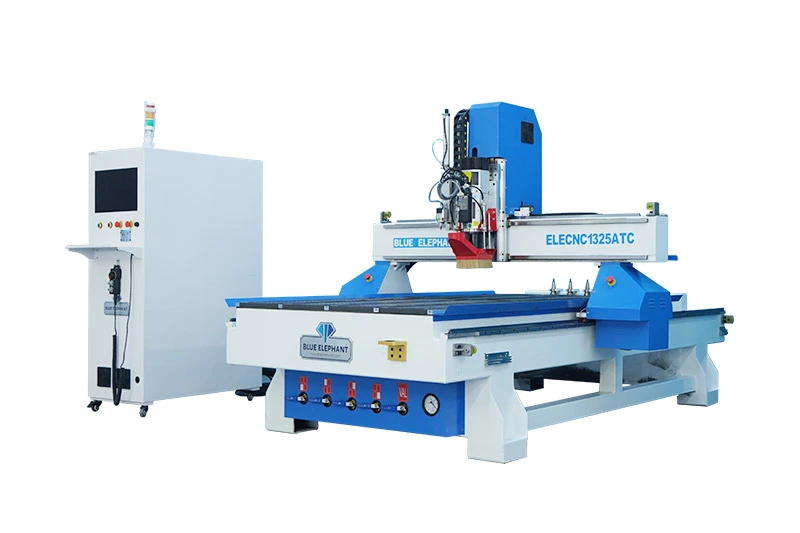

1325 4×8 ATC CNC Router with Laser Head
- Brand: Blue Elephant
- Model: ELECNC1325ATC
- Standard: CE, ISO9001
- Table size: 1300mm*2500mm (4′ x 8′)
- Category: ATC CNC Router
- Supply Ability: 500+ Units in Stock
- After-sale Service: Free Lifetime Technical Support online, Overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1325 ATC CNC router is a combination of an ATC CNC wood cutting machine with a laser head. The laser head is used to leave various marks on multiple non-metal materials. Then, the spindle moves to cut out shapes according to the given paths. Besides, the CNC router can change among 6 tools automatically, which greatly improves work efficiency.
Features
- The laser head can create various marks on a wide range of non-metallic materials, and then the spindle can move to cut out shapes. Both processes can be controlled within one program.
- The 9KW air-cooled spindle offers powerful cutting capability and stable operation for long-term working performance.
- The T-slot vacuum worktable helps firmly fix workpieces, ensuring high cutting precision.
- All components and parts use famous-brand products, ensuring smooth and reliable operation with a long service life of the CNC router.
Parameters
| Model | ELECNC1325ATC |
| X, Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle | 9kw HQD ATC air cooling spindle, 24000rpm |
| Laser head | Equipped with a laser head |
| Inverter type | 11kw Fuling inverter |
| Tool magazine | Linear tool magazine Option: carousel type auto tool changer |
| Tool holder with collet | BT30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | SYNTEC 60CA, option: Taiwan LNC controller |
| Driving system | 850w Leadshine servo motor |
| Reducer | Shimpo |
| Machine structure | Heavy duty machine body |
| Work table | T-slot & vacuum work table |
| Positioning cylinder | Optional: 5 pieces (X2, Y3) |
| Linear guide | HIWIN linear guide |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Auto tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
ATC CNC Router Optional Parts
Application
ATC CNC routers have a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
FAQs
Artcam/Aspire/Fusion 360/Alphacam/Ucancam,etc. As long as your software can generate G code, it can use on our CNC machine.
Yes. The rotary device is used for carving cylindrical pieces, like table legs, chairs, etc. We have diameters of 100mm, 200mm, 300mm, and 400mm to choose from.
We will provide a tool box according to the machine, which contains all the wearing parts.
