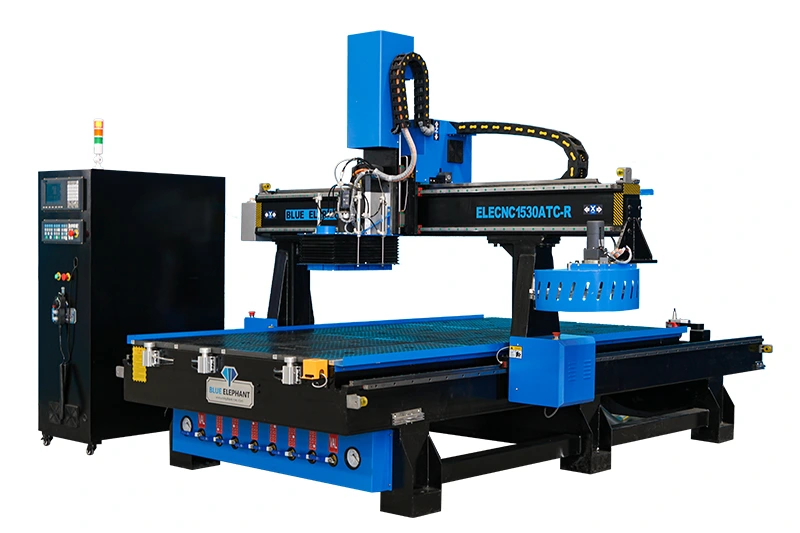

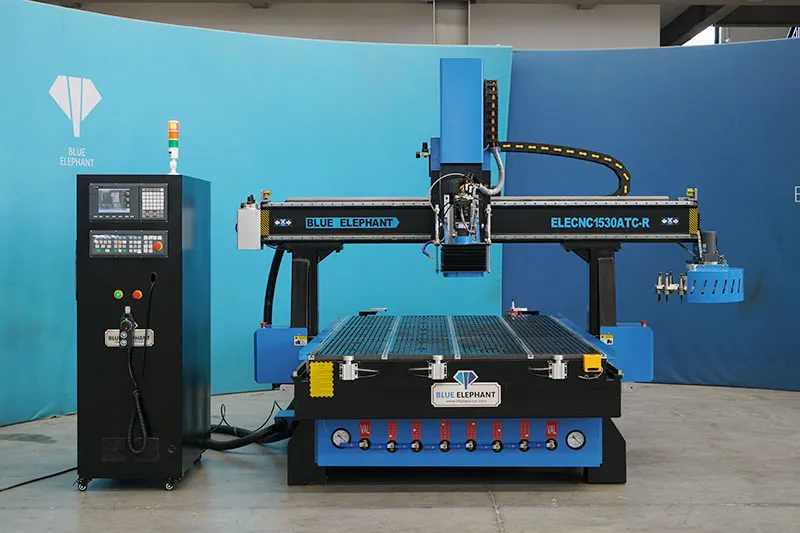

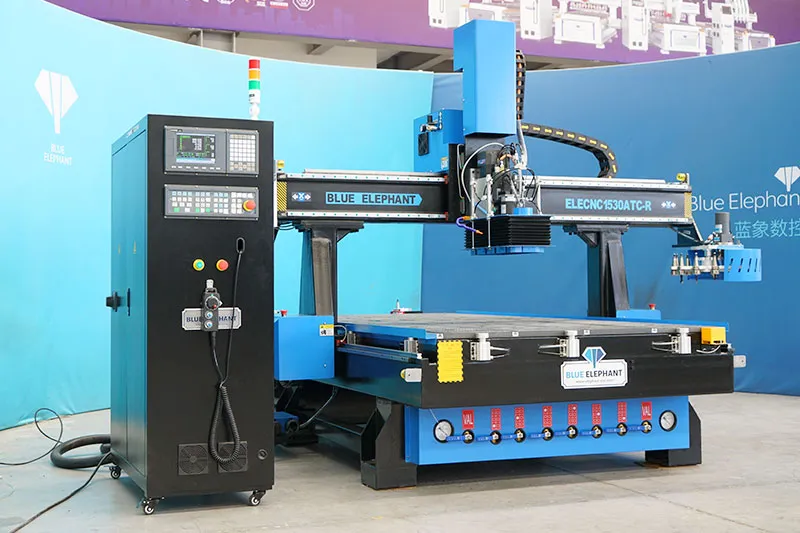

1530 5×10 ATC CNC Router with Aggregate Head
$25,000 – $35,000
- Brand: Blue Elephant
- Model: ELECNC-1530ATC
- Standard: CE, ISO9001
- Table size: 1500mm*3000mm (5′ x 10′)
- Category: ATC CNC Router
- Supply Ability: 400+ Units in Stock
- After-sale Service: Free Lifetime Technical Support online, Overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1530 ATC CNC router with aggregate head is designed for the wooden furniture cabinetry making. Equipped with an aggregate head, it can realize side wood drilling and slotting and vertical cutting quickly and precisely.
Features
- It features an automatic tool changing function, enabling the CNC router to change bits or the aggregate head automatically, ensuring higher work efficiency.
- This CNC wood router is equipped with an additional C axis and an HSD aggregate head, which can rotate 360 degrees to achieve cutting at any angle.
- The aggregate head can perform side wood drilling and slotting work when equipped with a CNC router bit, and can complete cutting at any angle when fitted with a saw blade.
- All specifications can be customized according to your actual processing requirements.
Parameters
| Model | ELECNC-1530ATC |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 300mm, option: 400mm, 500mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Aggregate head | HSD aggregate head at C axis |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC, option: Taiwan LNC controller |
| Driving system | 850w Yaskawa servo motor and driver; option: 1kw Taiwan Syntec servo, 850w AC servo motor |
| Reducer | Japan SHIMPO reducer |
| Rotary device | Diameter 200mm, option: 300mm, 400mm |
| Structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 7 pieces (X3, Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
ATC CNC Router Optional Parts
Application
- Furniture Cabinetry Industry: Various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, nightstands
- Decoration Industry: Door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos
- Wood / Plastic Craft Industry: Artworks, gifts, souvenirs, clock frames, holiday ornaments
- Advertising Industry: Advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
- Other Wooden Products: Printed circuit boards, insulation materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of lining materials for medical equipment, electronics, or other containers
FAQs
CAD→CAM→G code→Running
About our CNC router software,we have ARTCAM software and Aspire software free of charge.
LCL or FCL, after packing in a wooden box, the CNC router will be shipped by sea.
Both single-phase and three-phase power are possible. However, we recommend that you use 3-phase power, which is more energy-efficient and gives the cnc more power.
