E-700-3 Pro Curve Edge Banding and Trimming Machine
- Brand : Blue Elephant
- Model : E-700-3 pro
- Panel Thickness : One-side trimming: < 14 mm, Top & bottom trimming: 14-70 mm
- Category : Edge Banding Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description

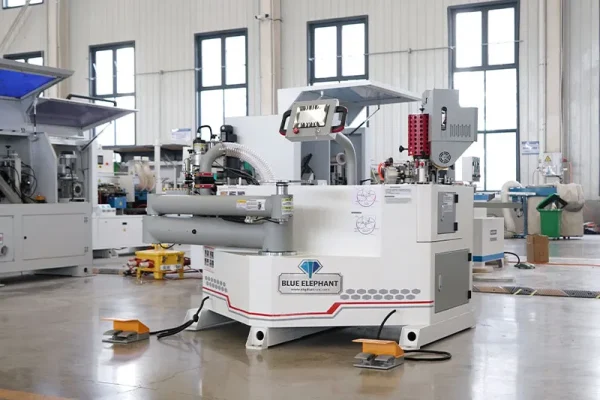

E-700-3 Pro curve edge banding and trimming machine is designed for efficient and flexible edge banding operations. It features an upper gluing pot with a built-in Teflon coating to prevent glue buildup and residue, improving utilization. Equipped with a trim adjustment-free design, it supports material thickness ranging from 14mm to 70mm, making it adaptable to various working conditions. The auxiliary automatic feeding system, combined with speed adjustment functionality, ensures smooth edge banding for circular, oval, and other irregular-shaped panels, allowing for effortless rotation of panels at corners.
Features
- PUA/EVA upper gluing pot: features one-touch glue discharge for easy and quick switching between different adhesives.
- Auxiliary automatic feeding frees up your hands: suitable for round, oval, and rounded-corner rectangular panels.
- Equipped with secondary auxiliary pressing roller, the edge banding and panel are pressed twice, improving bonding strength.
- Equipped with a photoelectric sensor that automatically detects panels; the machine stops rotating if no material is detected for 5 seconds.
- Machine head rotates at a 15° angle, making it compatible with various panel shapes.
Parameters
| Model | E-700-3 pro |
| Size | 1870*1400*1530mm |
| Weight | 530kg |
| Voltage | 380V, 50Hz, 3Ph |
| Total power | 6.5kW |
| Connection Method | Mechanical docking error ±0.6mm |
| Edge Strip Width | 14-70mm |
| Edge Strip Thickness | 0.5-3mm |
| Edge Sealing Speed | 0-30cm/s |
| Profiling Speed | 0-24 cm/s |
| Trimming | One-side trimming: < 14 mm
Top & bottom trimming: 14-70 mm |
| Inner Arc Radius | ≥20 mm (4 mm sealing radius for special operation) |
| Glue type | EVA/PUR |
| Glue Pot Capacity | 2600ml |
| Air Tank Capacity | 2L |
Edge Banding Machine Optional Parts
Application

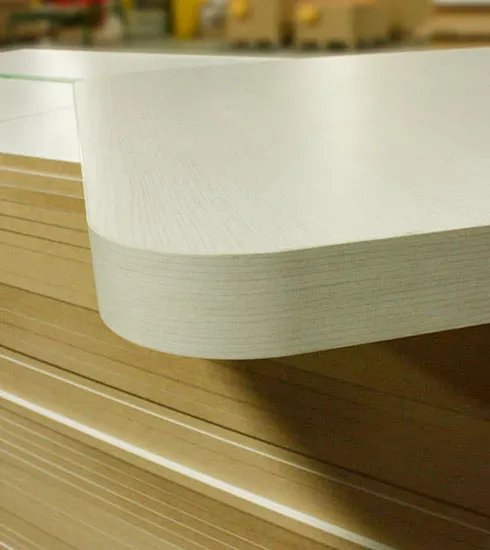

Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.
FAQ
This machine can process materials such as Medium density fiberboard, blockboard, solid wood board, particle board, polymer wood board, plywood, etc.

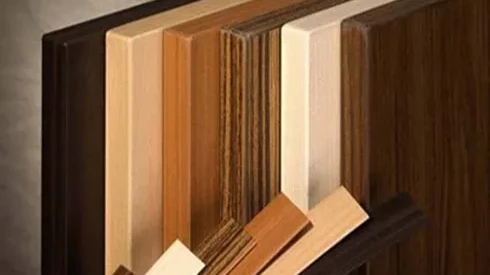

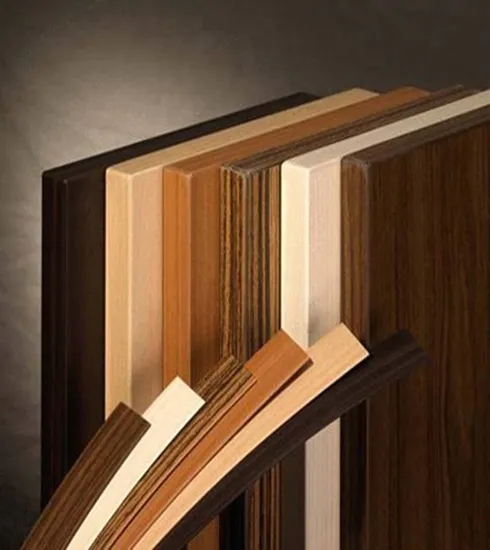

PVC, wood veneer (requires customization), plastic, melamine, etc.
At Blue Elephant, we understand that many of our clients are new to edge banding machine. That’s why we’re dedicated to providing lifetime technical assistance. With us, you’ll always have someone to speak with whenever you need help. Plus, we offer access to Blue Elephant University Training Videos, providing hands-on experience without the cost of paid training.
