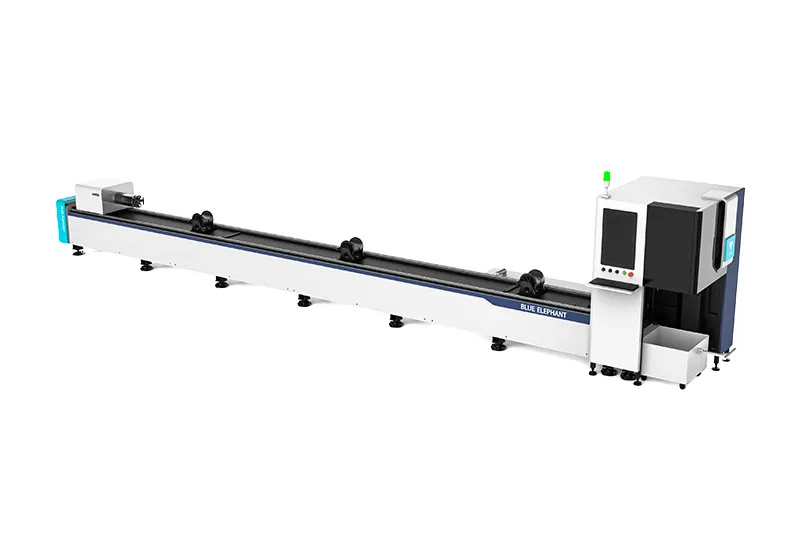

TL6160 Metal Tube Fiber Laser Cutting Machine
- Brand : Blue Elephant
- Model : TL6160
- Standard : CE, ISO9001
- Laser Power : 1.5kW – 3kW
- Category : Fiber Laser Cutting Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
TL6160 metal tube fiber laser cutting machine is designed for batch cutting of metal tubes and pipes, capable of processing round tubes, square tubes, and special-shaped tubes. The machine features a high-quality carbon steel welded frame and a gantry bridge structure for stability and durability. It is equipped with a gantry protective cover to prevent laser burns and smoke hazards, ensuring operator safety. It is widely used for cutting automotive exhaust pipes, water pipes, fuel pipes, fitness equipment, medical beds, bicycle frames, and more.
Features
- This machine adopts an integrated welded bed design, and its compact structure significantly enhances rigidity and vibration resistance, thereby effectively controlling machining errors and ensuring high precision and high-quality cutting results.
- The machine uses the world-class Raycus/Max laser source to release high-quality laser beams for precise processing of materials. The cutting edge is flat and smooth without any burrs.
- The pneumatic chuck can automatically adjust the center, which is suitable for tubes of various shapes. The high rotational speed of the chuck improves the processing efficiency.
- It is equipped with three adjustable pneumatic support rollers, which can be quickly adapted to different tube sizes and shapes.
- The cutting area is equipped with a dedicated exhaust duct that quickly removes smoke and harmful gases,maintaining air quality and cleanliness and providing a clean and comfortable working environment for operators.
Parameters
| Model | TL6160 |
| Machine size | 8885mm*1430mm*1800mm |
| Machine weight | 2T |
| Tube size range | round tube: Φ20-Φ160mm
square tube: □15 – □160mm rectangular tube: side length ≤ 160mm |
| Max. tube processing length | 6m |
| Max. tube weight | 150kg |
| Positioning Accuracy | ±0.05mm |
| Repositioning accuracy | ±0.03mm |
| Max. chuck rotating speed | 130r/min(Motion speed decreases as tube weight increases) |
| Max. chuck feed axis speed | 92m/min |
| Max. laser head travel axis speed | 60m/min |
| Max. Z-axis speed | 30m/min |
| Max. acceleration | 1G |
| Laser power | 1.5-3kW |
| Laser source | MAX |
Fiber Laser Cutting Machine Optional Parts
Application
Fiber laser cutting machines provide large and small companies with economical and affordable laser cutting capabilities for metals. For example, stainless steel, carbon steel, galvanized, aluminum, etc. Therefore, the company has a good opportunity to laser cut highly complex metal parts, prototypes and custom parts in a cost-effective manner internally. This metal tube fiber laser cutting machine is widely used to cut various pipes and tubes.
FAQ
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
The machine is equipped with the XC4000T² control system, specially designed for tube processing, supporting multiple pipe nesting and cutting applications. It ac- commodates various pipe types and specifications. The system also features auxil- iary support functions,improving both processing efficiency and product quality, while ensuring cutting precision. The user-friendly interface makes it easy to learn and operate.
