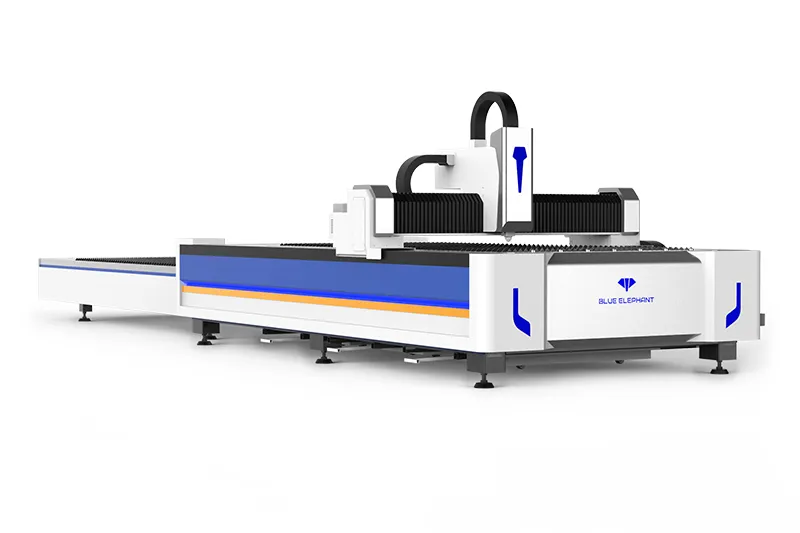

1530E Fiber Laser Cutting Machine with Exchange Platform

(5.0 based on 114 ratings and reviews)

$20,000 – $40,000
  • Brand : Blue Elephant
  • Model : ELECNC-1530E
  • Standard : CE, ISO9001
  • Laser Power : 1kW – 6kW
  • Category : Fiber Laser Cutting Machine
  • Supply Ability : 450+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

1530E Fiber Laser Cutting Machine is a good choice for the large metal production factories . In addition, it is equipped with an exchange platform, increasing productivity by 50%.

Features

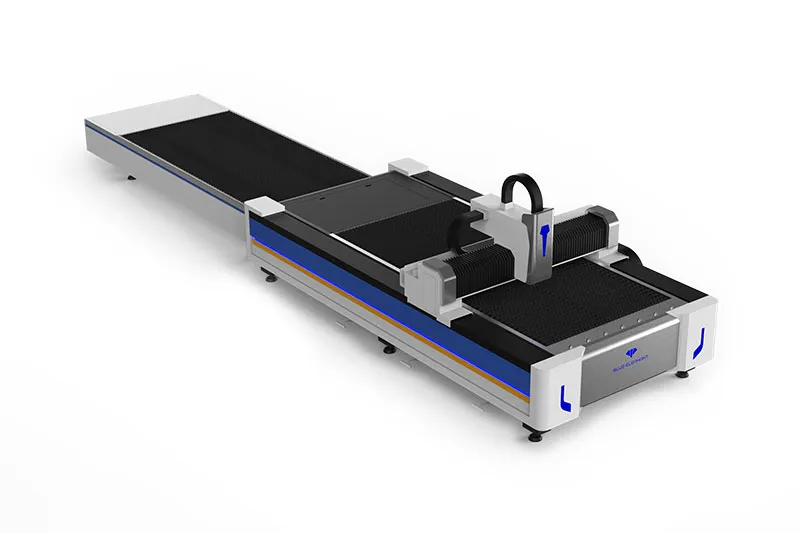

  • Automatic exchange platform
    Two platforms can exchange automatically with the exchanging time of 20s to 25s, which improve work efficiency greatly.
  • Intelligent automatic focusing laser head
    Automatic focusing mode of the laser head reduces human interference with a focusing speed of 10m/min and repeated positioning accuracy of 50um.
  • Aircraft-grade aluminum beam
    Aircraft-grade aluminum is corrosion resistant, lightweight and highly rigid, guaranteeing high speed laser cutting. Besides, it also guarantee the excellent cutting precision due to the perfect dynamic performance.
  • High quality thick wall carbon steel sheet welded bed
    High strength machine bed is more stable and durable. After 600℃ stress relief annealing treatment, the machine bed has strong structural rigidity. The overall mechanical structure of the machine has small deformation, low vibration, ensure cutting accuracy.
  • Integrated large volume dust removal system
    The dust removal system can remove all the smoke generated from the cutting process with large air volume. This helps protect the operator’s health and the working environment.

Parameters

Model ELECNC-1530E ELECNC-1540E ELECNC-2560E
Working area (mm) 1515*3030 1515*4050 2520*6050
Worktable bearing capacity 950kg 1250kg 2300kg
Positioning accuracy ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy ±0.02mm ±0.02mm ±0.02mm
Max. exchange time 25s 35s 40s
Max. acceleration 1.5G 1.5G 1.5G
Laser power 1kW – 6kW 1kW – 6kW 1kW – 6kW
Laser Multiple options Multiple options Multiple options
Machine bed Tube welding bed/Sheet welding bed Tube welding bed/Sheet welding bed Tube welding bed/Sheet welding bed
Max. running speed 140m/min 140m/min 140m/min

Application

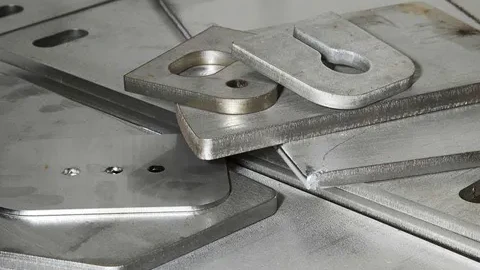

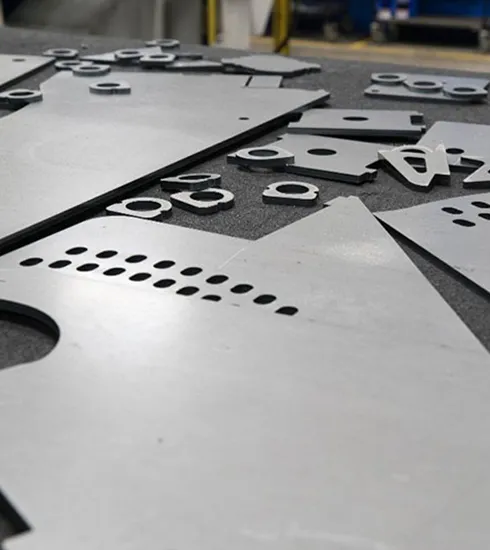

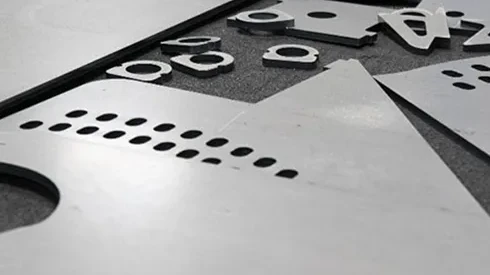

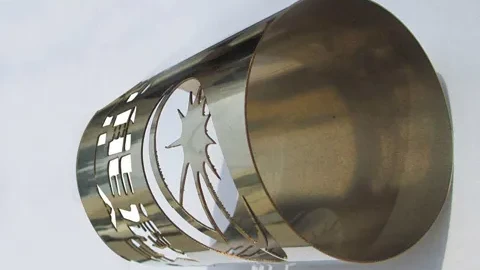

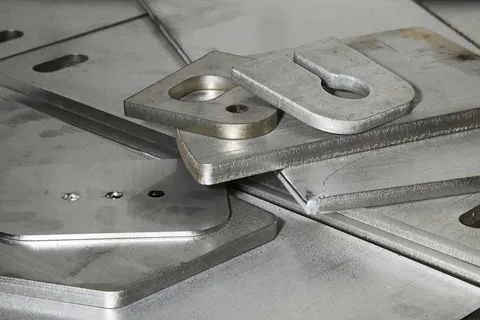

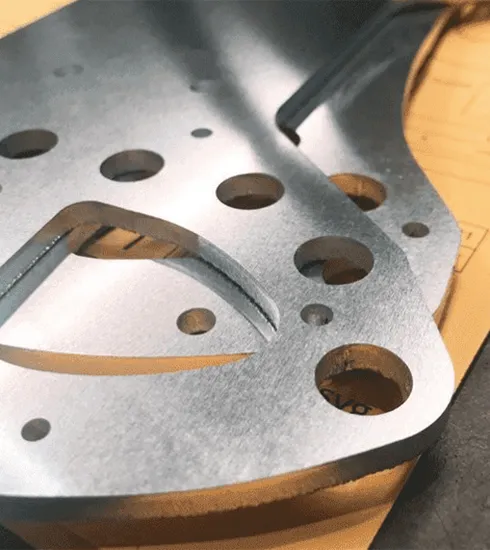

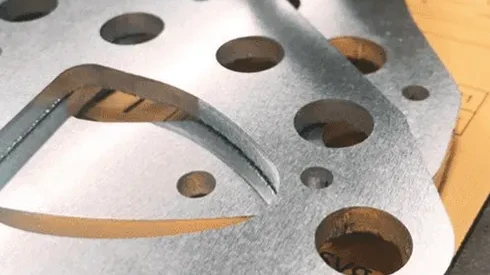

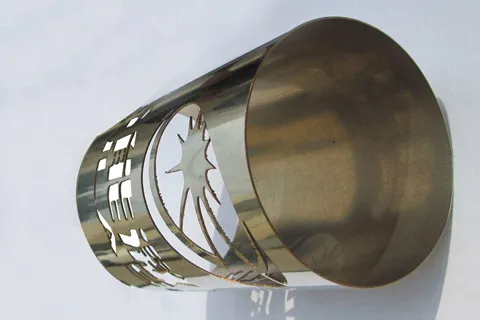

Metal sheet fiber laser cutting machines are used in various metalworking industries. For example, aviation, aerospace, electronics, electrical appliances, automobiles, machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, and other manufacturing and processing industries.
