SLT-A Fully Enclosed Exchange Table Metal Sheet & Tube Laser Cutting Machine
- Brand : Blue Elephant
- Model : SLT-A
- Standard : CE, ISO9001
- Laser Power : 1kW – 3kW
- Category : Fiber Laser Cutting Machine
- Supply Ability : 360+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description

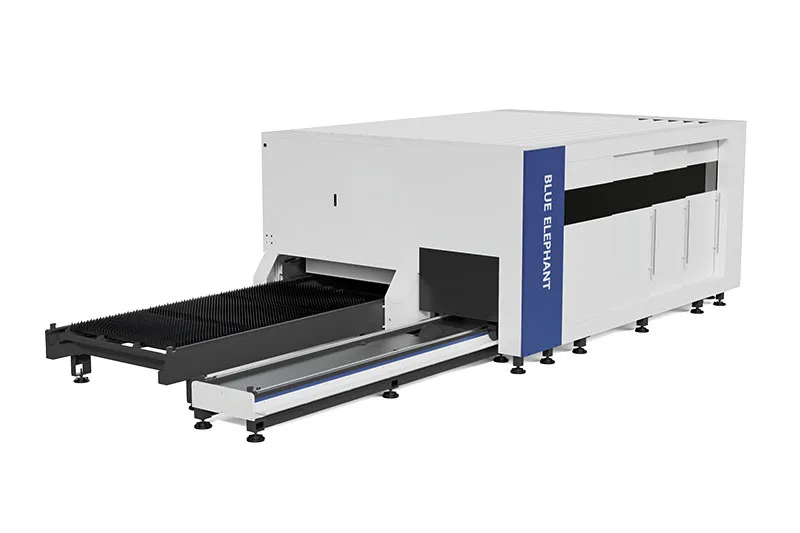

SLT-A fully enclosed exchange table metal sheet & tube laser cutting machine is designed with a fully-enclosed protective cover. This integral feature allows the machine to meet stringent environmental protection requirements while simultaneously ensuring operator safety. An observation window is included, enabling users to monitor the cutting process directly during operation. Built with high-quality components and parts, this all-cover machine guarantees high precision, rapid cutting speeds, and a long service life. The laser cutting machine’s working size and laser power are customizable to suit specific customer needs.
Features

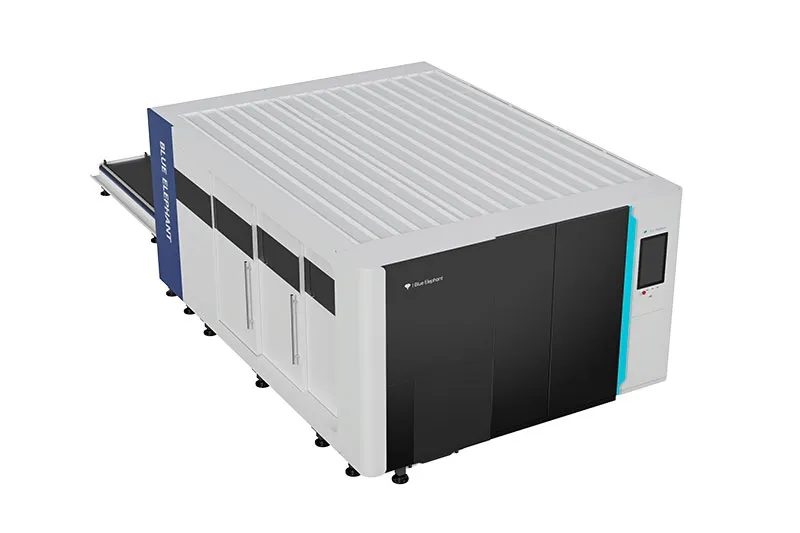

- The fully enclosed protective cover effectively prevents smoke and dust, making the metal laser cutting machine more environmentally friendly.
- Equipped with a 15-second exchange platform, this laser cutter enables quick loading and unloading, significantly boosting processing efficiency.
- The use of a lightweight aviation aluminum beam enhances the machine’s speed, while ensuring high precision during operation.
- With a user-friendly operating system, it allows for fast cutting of various shapes on metal materials, including carbon steel, stainless steel, copper, aluminum, and galvanized sheet.
- It can not only process metal sheets, but also process round metal tubes, square metal pipes, etc.
Parameters
|
Model |
1530SLT |
2040SLT |
2560SLT |
|
Working area (mm) |
1515*3030 |
2020*4040 |
2525*6050 |
|
Positioning accuracy |
±0.03mm |
±0.03mm |
±0.03mm |
|
Repositioning accuracy |
±0.02mm |
±0.02mm |
±0.02mm |
|
Max. exchange time |
25s |
30s |
40s |
|
Max. acceleration |
2.0G |
2.0G |
2.0G |
|
Laser power |
1kW – 3kW |
1kW – 3kW |
1kW – 3kW |
|
Laser |
Multiple options |
Multiple options |
Multiple options |
|
Focusing method |
Auto/manual |
Auto/manual |
Auto/manual |
|
Machine bed |
Sheet welded bed |
Sheet welded bed |
Tube welded bed |
|
Max. running speed |
140m/min |
140m/min |
140m/min |
Fiber Laser Cutting Machine Optional Parts
Application
Metal sheet and tube laser cutting machines are capable of cutting a wide variety of metals, including highly reflective ones. These machines can process materials such as carbon steel, stainless steel, aluminum, copper, brass, titanium, nickel, and various alloys. With diverse applications, fiber laser cutting machines are widely used in industries such as decoration, infrastructure, construction, microelectronics, advertising, kitchen appliances, automotive, equipment manufacturing, and more.
FAQ
The primary consumables for fiber laser cutting machines include protective lenses, nozzles, and ceramic rings.
The accuracy of a fiber laser cutting machine is influenced by factors such as the shape of the laser beam, the slit width, the precision of the cutting table, and the material of the workpiece.
