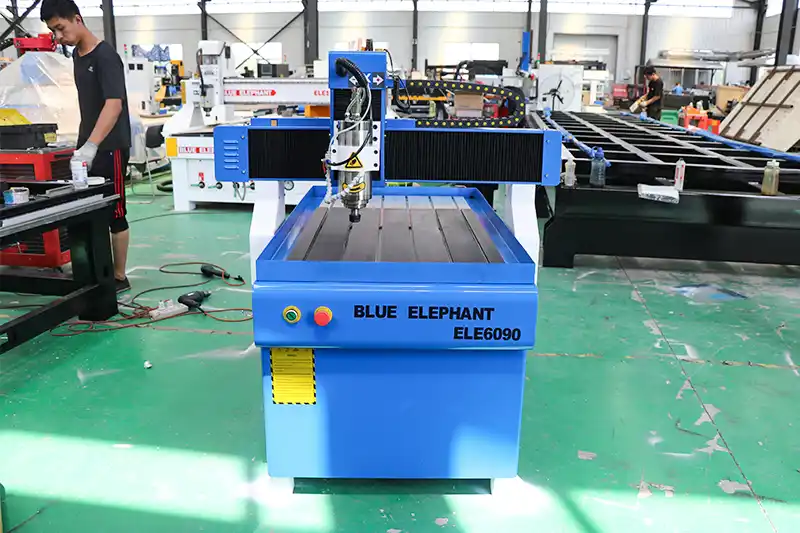

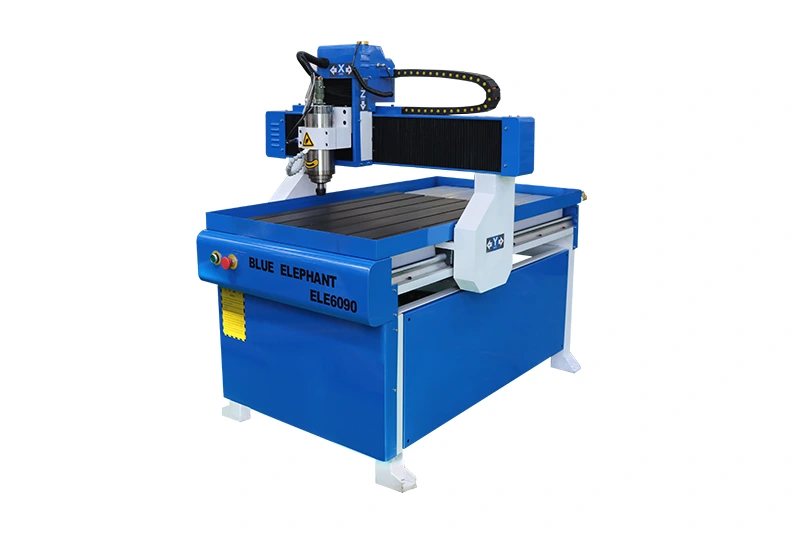

6090 Mini CNC Router Machine for Sale
- Brand : Blue Elephant
- Model : ELECNC-6090
- Standard : CE, ISO9001
- Table size : 600mm*900mm
- Category : Hobby CNC Router
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
6090 mini CNC router machine has a smaller working table of 24×36 inches. With the advantages of small footprint, easy operation, best price, it is especially suitable for the hobby users or smaller shop.
Features
- The effective working table size can be increased and designed according your requirements.

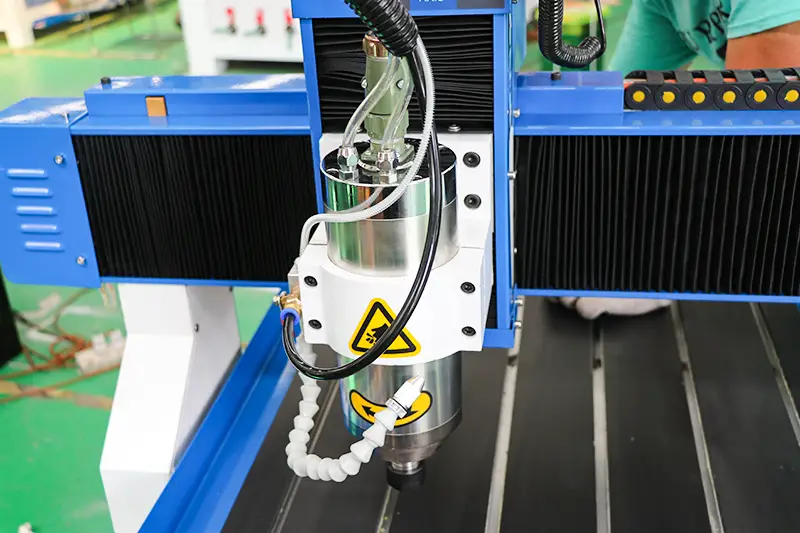

- Adopting a water cooling spindle, it brings good cooling effect and less noise.
- Adopting an integral cast iron frame, the machine is more durable and stable in operation.
- With Taiwan TBI ball screw for Z axis, it has the advantages of high precision and smooth transmission.
Parameters
| Model | ELECNC6090 |
| X,Y axis travel | 600x900mm, option: 1200*1200mm; 600*1500mm |
| Z axis travel | 160mm, option: 200mm |
| Spindle type | 2.2kw water cooling spindle, ER20 |
| Inverter type | 2.2kw |
| Tool magazine | No tool magazine Option: Linear type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Mach3, option：DSP A11 |
| Driving system | Stepper motor 450A and Leadshine M542 |
| Machine structure | Special desktop type design |
| Work table | T-slot work table with PVC protection |
| Water misting spray | include |
| Water tank | SS water tank |
| Linear guide | #20 Taiwan Square Linear guide |
| Transmission | X, Y, Z axis: Taiwan TBI high precision ball screw |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 25m/min |
| Working speed | 20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.003mm |
| Working accuracy | ±0.07mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ |
Optional Items
| Work table | Vacuum work table |
| Lubrication system | automatic lubrication system |

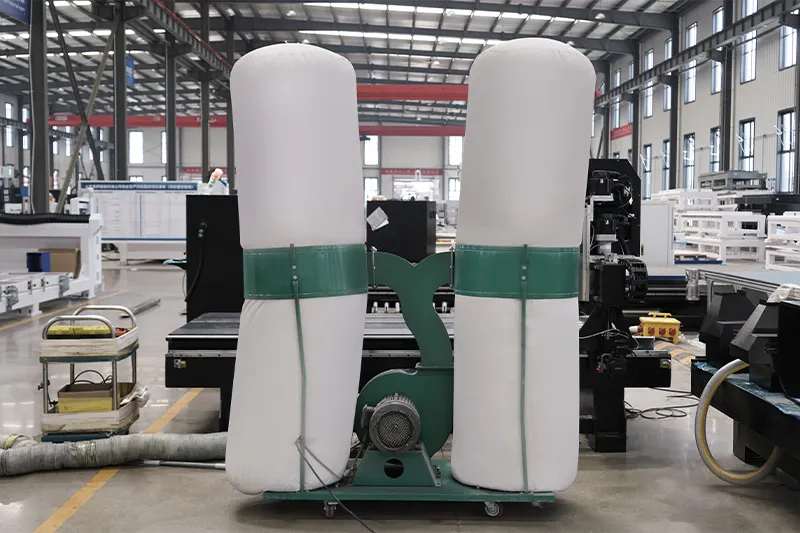

| Dust collect system | 1.5, 2.2kw, etc., including dust hood, pipe, all full set |
| Spindle type | Air cooling spindle, ATC spindle,etc |

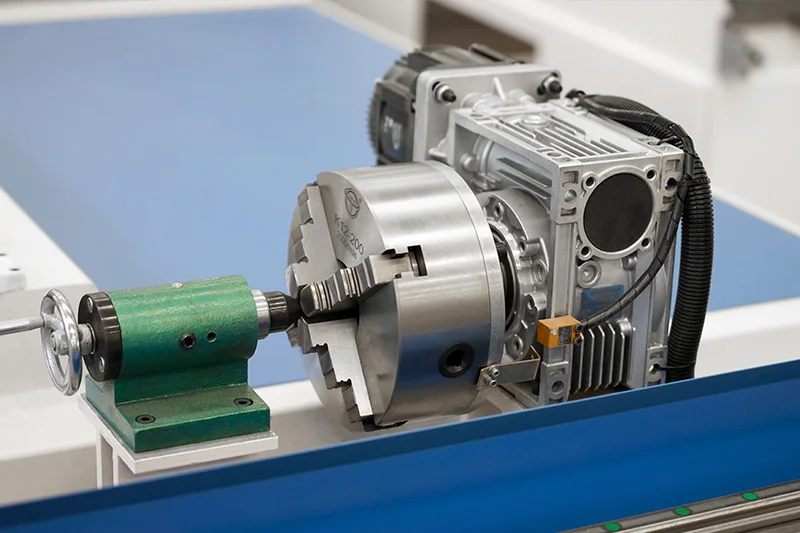

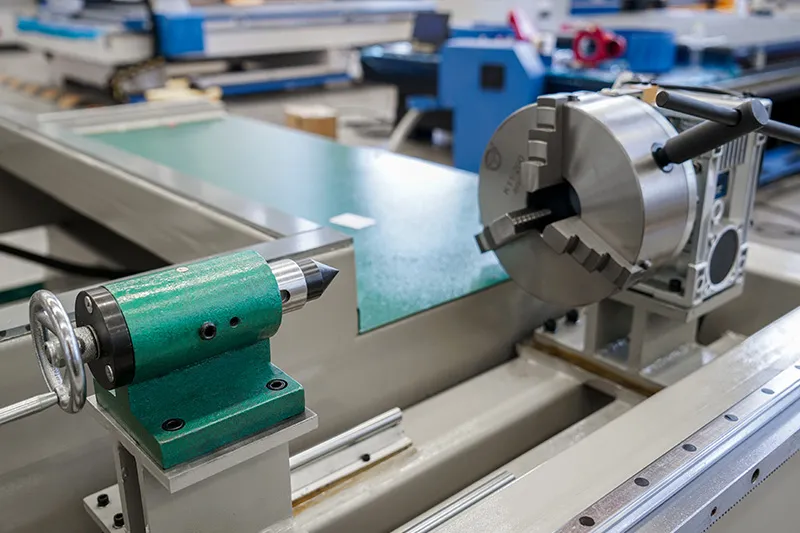

| rotary | 80mm diameter, 100mm diameter |

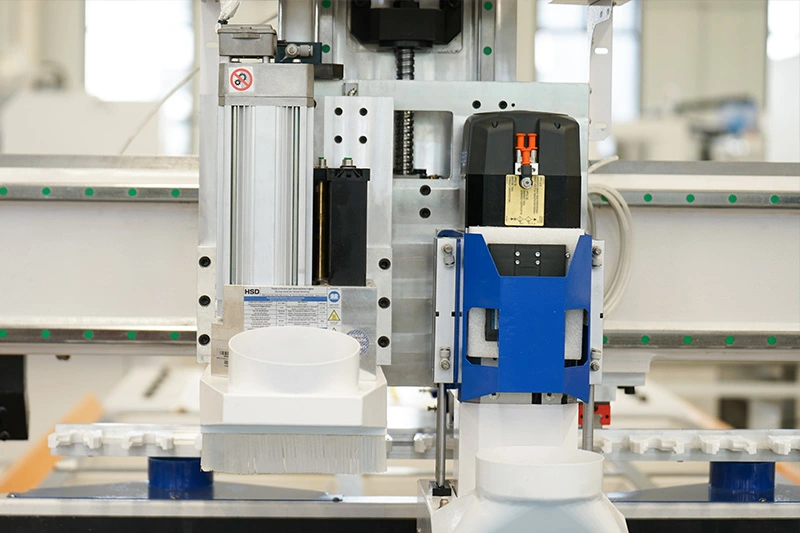

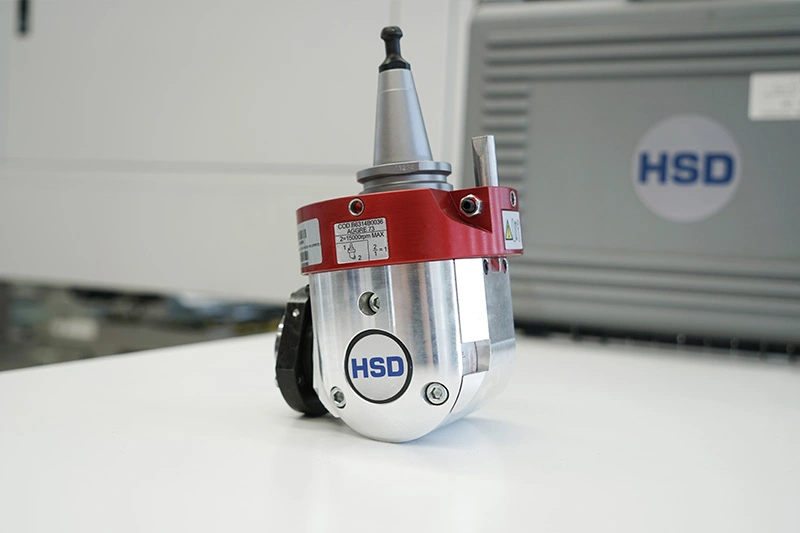

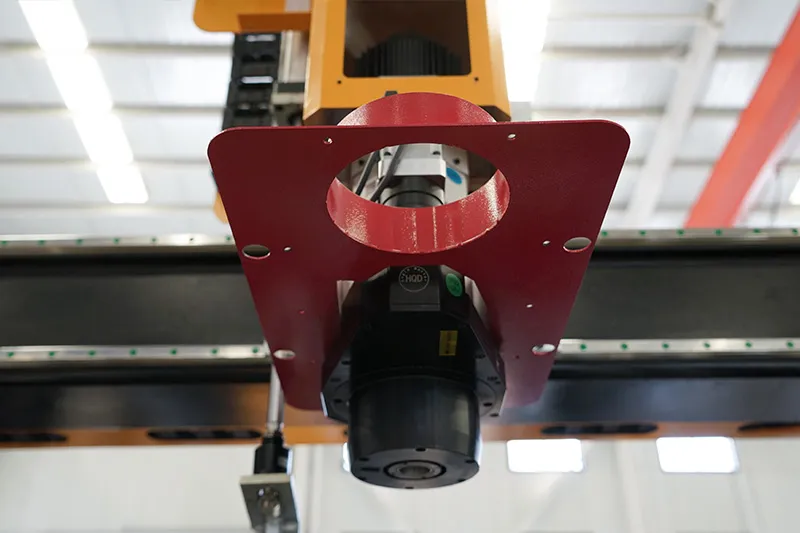

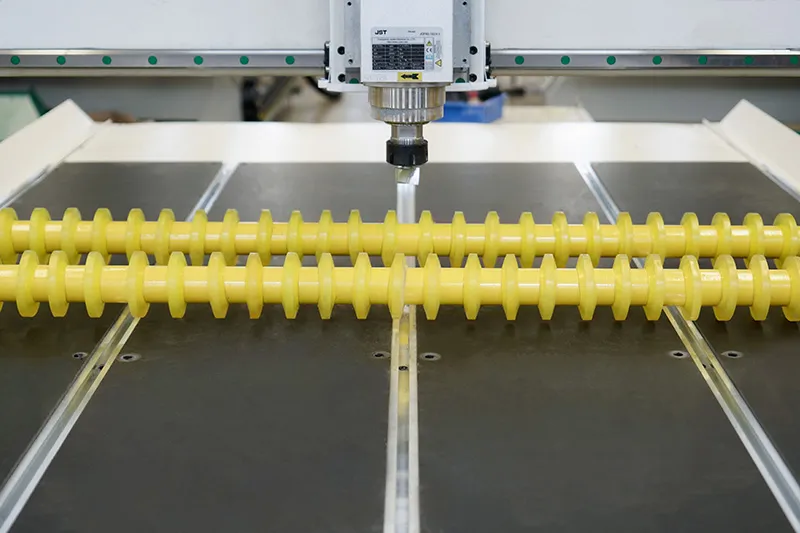

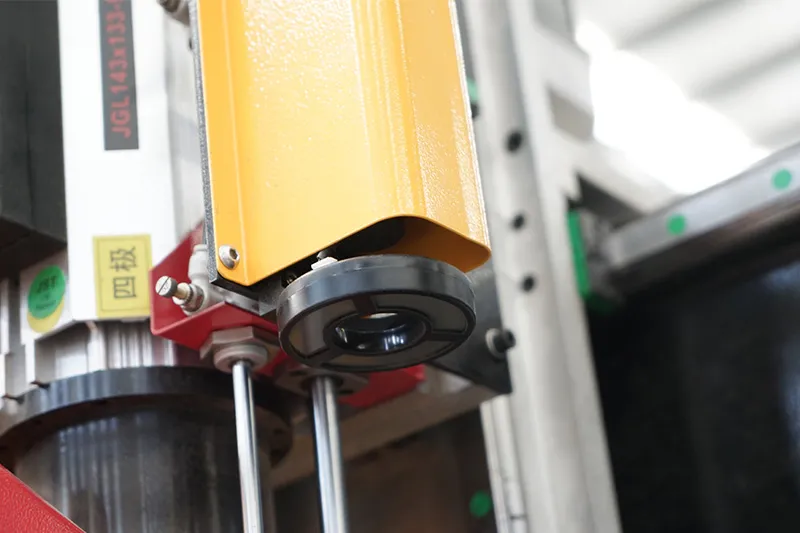

Mini CNC 6090 Router Optional Parts
Small Wood CNC Router Application
With its compact design and small footprint, the mini CNC router 6090 is perfectly suited for small-batch production and custom machining in small workshops. It handles materials such as plywood, MDF, PVC, plastic, acrylic, foam, solid wood, and aluminum, making it an excellent choice for sectors including woodworking, advertising signage, and handicrafts.
FAQ
Yes, a high quality mini CNC router 6090 can process aluminum when set up correctly; achieving good results requires a machine structure with higher rigidity, matched spindle power, and the correct feed rate and depth settings.
The standard working area of the best mini CNC router 6090 is 600 mm × 900 mm; however, the working area can also be customized to meet specific production requirements.
Yes. The 6090 small CNC router for wood is ideal for beginners because its CNC system is simple, intuitive, and easy to operate; users only need basic knowledge of CNC programming and machine maintenance.
Yes. The 6090 CNC mini router can engrave 3D designs, such as sculptures, bas-reliefs, and wooden artworks.
Yes. The 6090 mini CNC engraving machine can operate continuously provided it receives regular maintenance—such as tool changes, periodic lubrication, and dust removal—which helps extend the 24×36 CNC router’s service life.
