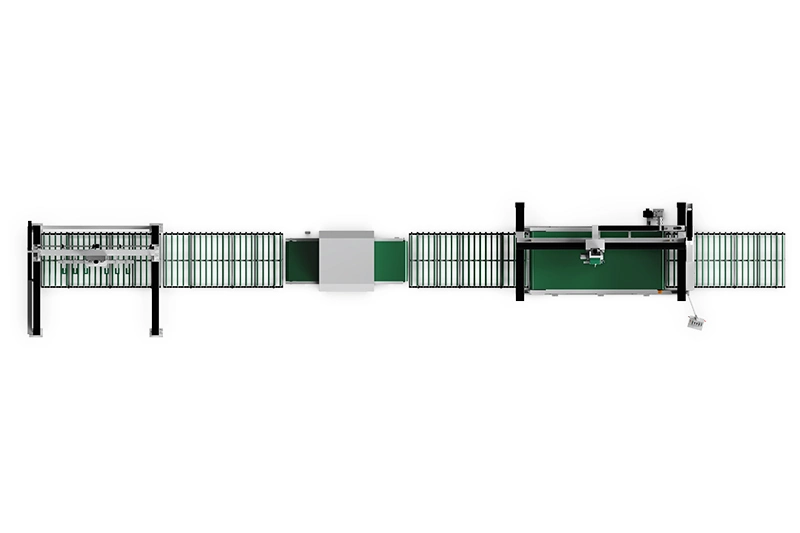

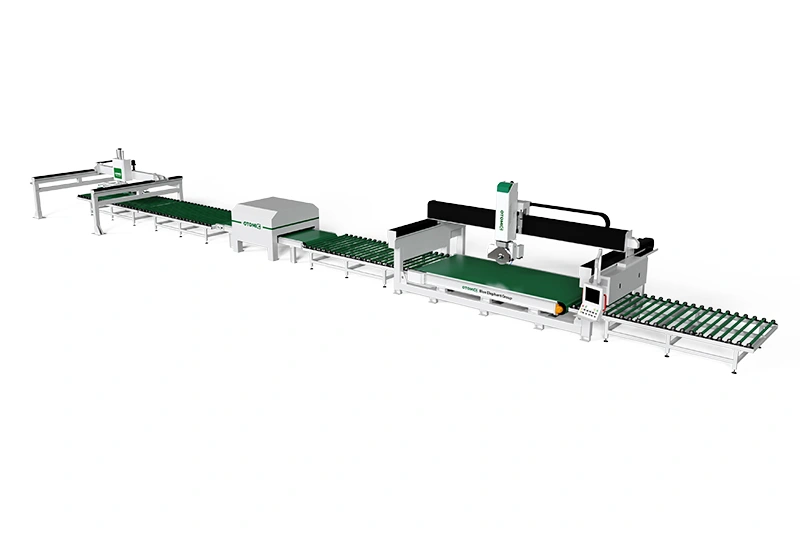

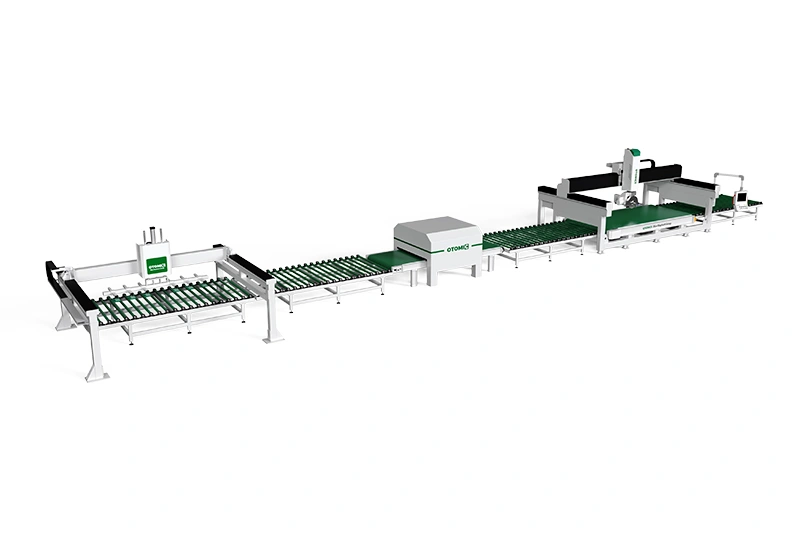

QX3400-5X-MP 5 Axis CNC Bridge Saw Granite Slab Cutting Line
- Brand : Blue Elephant
- Model : QX3400-5X-MP
- Category : 5 Axis Bridge Saw
- Supply Ability : 400+ Units in Stock
- Blade Diameter : 300-450mm
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
QX3400-5X-MP 5 axis CNC bridge saw granite slab cutting line integrates cutting, milling, drilling, polishing into one. It can realize granite slab cutting, quartz section cutting, marble block cutting, etc. It is an ideal choice for tombstone manufacturing, cabinet stone countertops, bathtubs, etc.
Features
- Complete intelligent stone processing line: It integrates automatic loading, automatic typesetting, automatic knife setting, automatic stone cutting, and automatic unloading.
- 5-axis linkage: This 5-axis CNC granite bridge saw machine cutting line can realize X-Y-Z-A-C 5-axis linkage, with a rotation range of 0°-365° and a tilting range of 90°, enabling cutting in any direction and at any angle.
- Multiple processing functions: Equipped with a granite saw blade, the 5-axis CNC bridge saw can perform granite stone cutting, chamfering, polishing, grooving, drilling, arc grinding, etc.
- Wide material application: The granite slab and block cutting line can cut marble, granite, jade, bluestone, etc., making it widely applicable in hotels, the construction industry, construction sites, and more.
Parameters
| QX3400-5X-MP Granite Stone Cutting Production Line | ||||
| Bridge Saw | Working travel | X, Y, and Z | 3400*1600*250mm | |
| C axis | ±365° | |||
| A axis | 0-90° （Auto） | |||
| Maximum thickness | 80mm | |||
| Moving speed | 25m/min | |||
| Spindle | 22kw air cooling spindle, 4000rpm | |||
| Control system | CutCam | |||
| Motor | CutCam servo | |||
| Reducer | Japan SHIMPO | |||
| Worktable (optional) | Type | Stick/Belt | ||
| Max. weight for feeding | 1500kg | |||
| Max. speed for feeding | 10m/min | |||
| Saw | Dimension | 300mm – 450mm | ||
| Size | 6000×3500×3600mm | |||
| Loader | Working travel | X, Y, and Z | 3500*4000*1000mm | |
| A axis | 0-90° | |||
| Control system | CutCam | |||
| Motor | CutCam servo | |||
| Reducer | Japan SHIMPO | |||
| Moving speed | 25m/min | |||
| Max suction size | 3200×1200mm | |||
| Min suction size | 300×150mm | |||
| Power | 8kw | |||
| Weight | 2500kg | |||
| Machine size | 4500×5000×3000mm | |||
5 Axis Bridge Saw Optional Parts
Application
Artificial stone cutting production line has various applications in the stone processing industry, producing a wide range of stone products, from countertops to decorative materials, to meet the needs of different sectors and customers.
Stone Countertop Manufacturing
Granite stone factory line is used for cutting and processing stone slabs to create high-quality stone countertops for kitchens and bathrooms.
Stone Flooring and Wall Tile
Marble stone assembly line is used to cut and process stone slabs to manufacture floor tiles, wall tiles, and other interior decorative materials.
Stone Sculpting
Quartz slab production line can be used for engraving and sculpting stone to create various art pieces, textures, and decorative designs.
Stone CNC Projects
Quartz countertop stone cutting production line can meet the requirements of large-scale stone projects, such as countertops, fireplaces, columns, and more in hotels, commercial buildings, and residential developments.
FAQ
It can complete various stone processing, like stone milling, curved stone edge cutting, stone countertop cutting and milling, inclined stone edge cutting, arc stone edge cutting and milling, wash basin cutting and so on.
This 5 axis stone bridge saw is provided with a built-in CAM software with Blue Elephant customized control system dedicated for stone CNC machine. The interface is human friendly, so it is easy to learn and operate.
Yes, the worktable of this machine can flip up to 80 degrees to facilitate the unloading of stone slabs. It also improves work efficiency and saves human labor.
