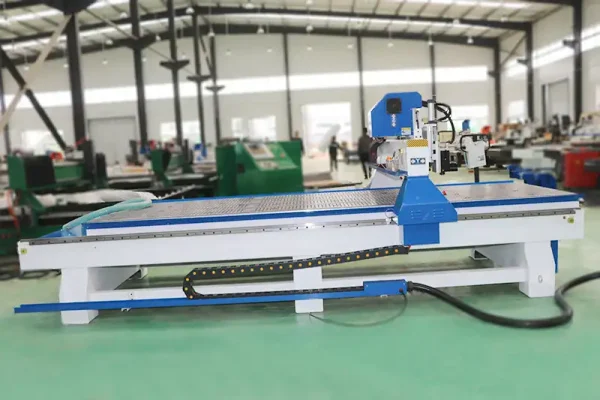

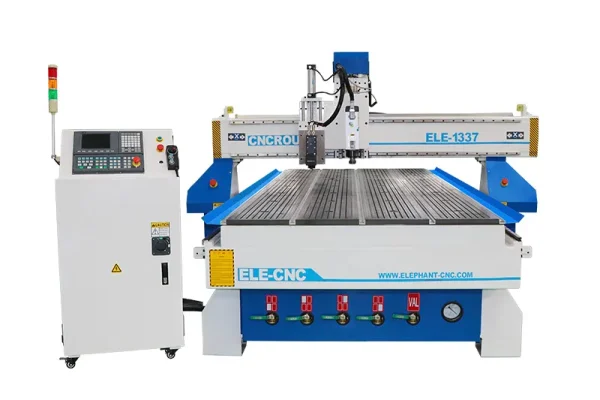

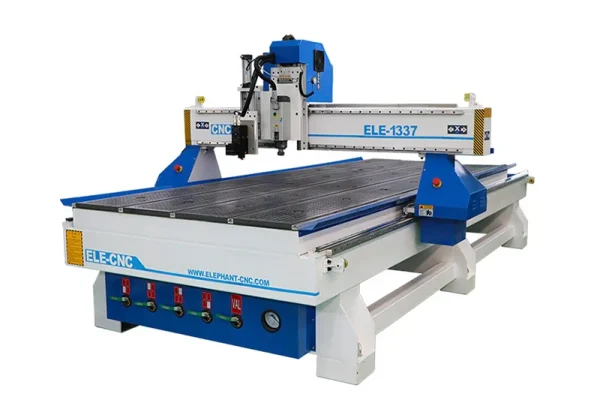

1337 Digital Fabric Cutting Machine with EOT-3 Oscillating Knife
- Brand : Blue Elephant
- Model : ELECNC-1337
- Standard : CE, ISO9001
- Table size : 1300mm*3700mm, optional: 1300mm*2500mm(4’×8′), 1500mm*3000mm(5’×10′); 2100mm*3000mm, etc.
- Category : Oscillating Knife Cutting Machine
- Supply Ability : 350+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1337 digital fabric cutting machine with EOT-3 oscillating knifecan cut soft materials such as leather, cardboard, rubber, etc. CNC knife cutting is safer, which has no heat and smock generating. This machine is also good at woodworking such as woodcutting and wood carving, the same as 3 axis CNC router.
Features
- Taiwan SYNTEC control system: The Oscillating Knife Cutter machine works with the Taiwan SYNTEC control system with a 1.4m control box and supports EOT-3 with a CNC router.
- EOT-3 oscillating knife head: The EOT-3 oscillating knife head is imported from Germany.
- HSD air-cooled spindle: The HSD air-cooled spindle can process wood, plywood, acrylic, and soft metal, while the EOT-3 oscillating knife can process foam.
- Customizable working size: The working size can be increased, such as the 2050 Oscillating Knife CNC Cutting Machine or ELECNC-2030 CNC Oscillating Knife Cutting Machine.
- Customized specifications: All specifications can be made and customized according to customers’ requirements, such as the ELECNC-2030 CNC Router with Oscillating Knife.
Parameters
| Model | ELECNC1337 |
| X,Y axis travel | 1300x3700mm, optional: 1300*250mm, 1500*3000mm; 2100*3000mm, etc. |
| Z axis travel | 200mm, optional: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 3kw Italian HSD air cooling spindle, 18000rpm |
| Inverter type | 3.7kw |
| Oscillation knife | Germany EOT-3 oscillation tangential knife |
| Tool holder with collet | ER25 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC controller |
| Driving system | Servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |

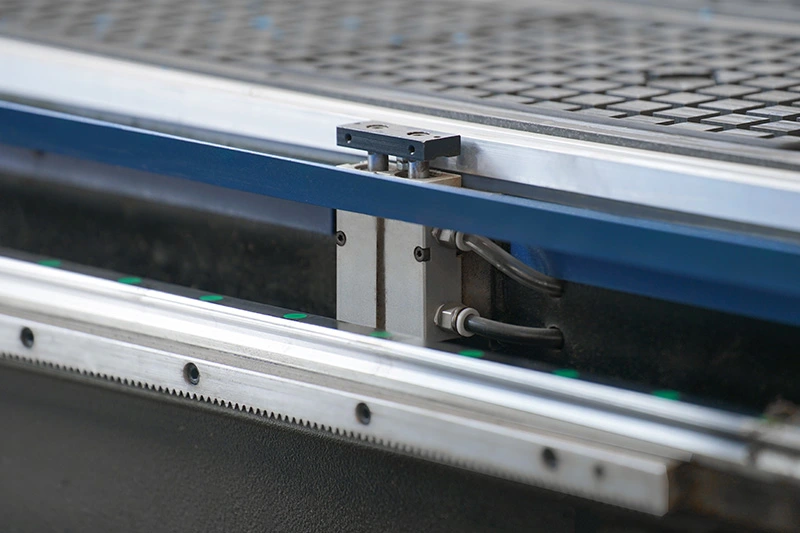

| Positioning cylinder | Option: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | No need |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |

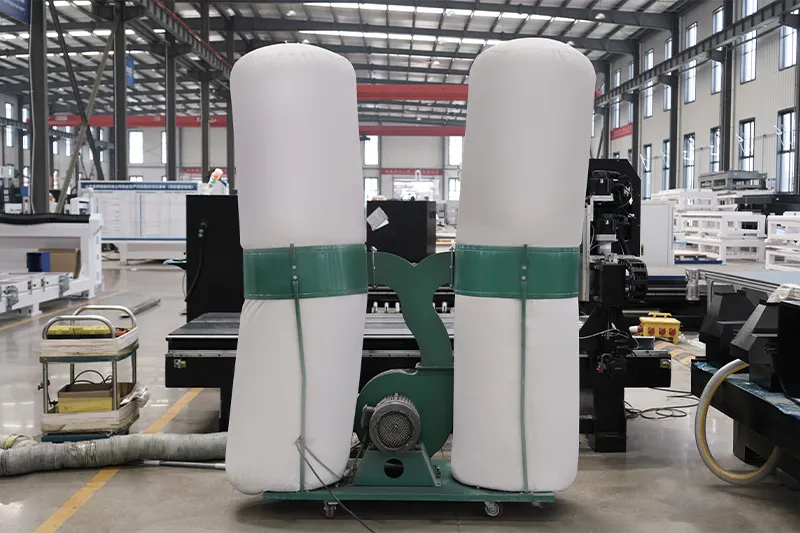

| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | ATC spindle |
| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 320mm |

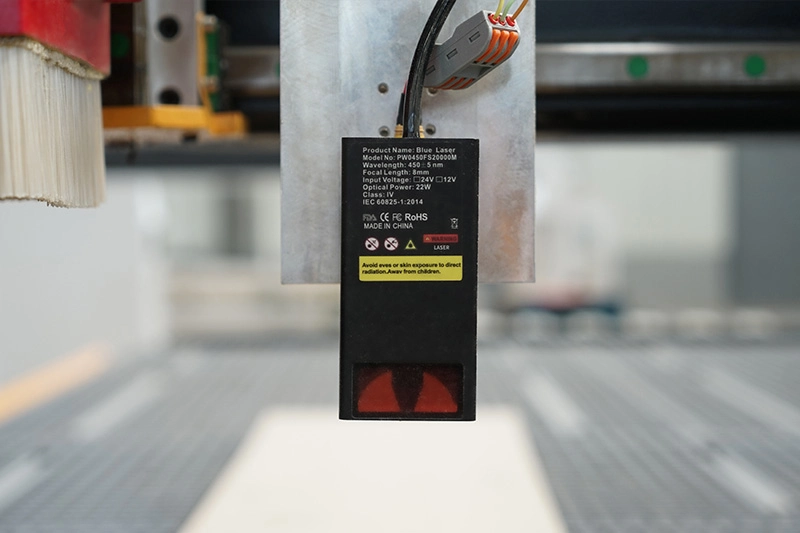

Oscillating Knife Cutting Machine Optional Parts
Application
The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.
FAQ
The oscillating tangential knife EOT-3 is easy to operate with all of our CNC machines. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material.
You can process sealing material, carbon fibre preggers, corrugated board, leather and cork,
tissue and foil, expanded plastic slabs, carpets.
After use machine,please clean machine,especially for helical rack gear and square linear guide. Please pay attention to lubrication linear guide.
ISO VG32 or 5w30.
