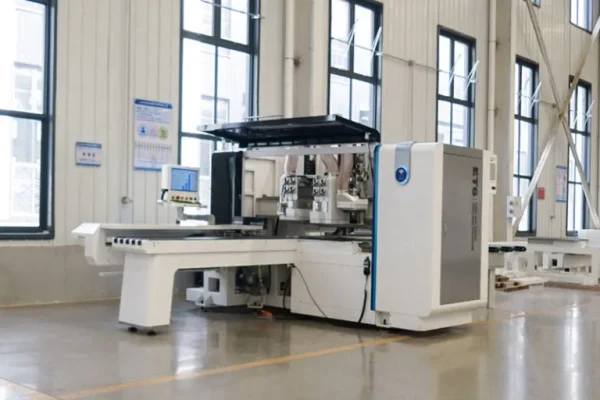

ET6DT 6 Sided CNC Drilling Machine with Double Drill Units
- Brand : Blue Elephant
- Model : ET6DT
- Power : 5.5kw
- Drilling heads : Double
- Category : CNC Drilling Machine
- Supply Ability : 450+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
ET6DT 6 sided CNC drilling machine with double drill units adopts a double drill units + automatic tool change design. While meeting traditional drilling, upper and lower grooving and other functions, it also has a variety of processes such as laminar, side grooving, and front milling that can be completed in one go. There is no need for manual tool change, and it can solve processing needs in one stop.
Features

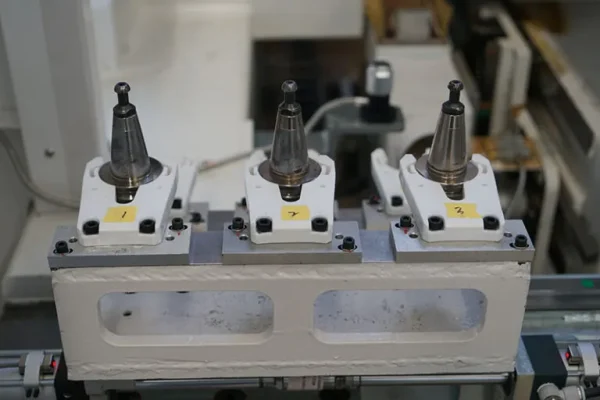

- Six-position large-capacity tool magazine supports diverse processing techniques, enabling quick tool changes for different needs.
- Upgraded clamps feature three positioning units, offering flexibility for narrow slab positioning.
- It is double drill package structure. The minimum vertical hole can be 100mm and the double drill units can be processed simultaneously, with high processing efficiency and high precision.
- The six sided CNC drill equipped with an automatic tool setter to guarantee accuracy and boost processing efficiency.
Parameters
| Model | ET6DT |
| Panel size | Width: 50-1220mm Length: 250-2800mm Thickness: 12-45mm |
| Number of tools | CC Drill 12 Vertical top drilling*2 + 8 horizontal drilling*2 +9 bottom vertical drilling*1 |
| Voltage/frequency | 380V/50HZ/3P |
| Control system | Blue Elephant Custom System |
| Spindle type | HQD3.5KW*1 CC ATC 5.5KW*1 18000 rpm |
| Inverter | Fuling |
| Tool magazine capacity | 6 Tools ISO30 |
| Driver system | Absolute servo motor |
| Reducer | Shimpo |
| Worktable | Air floatation table |
| Guide rail | SHAC |
| Rack | JT |
| Lubrication system | 1.5L Automatic lubrication |
| Fan | 1.6KW |
Six Sided CNC Drilling Machine Optional Parts
Application
The six sided CNC drill can complete 6 side drilling at one time without turning the sheet over. You can use it in the production of wooden furniture, such as cabinets, doors, office furniture, etc.
Six Sided CNC Drilling Machine FAQ
It can realize the drilling work on six sides of a wooden panel. It is very popular in cabinet and panel furniture industry.
It has 2 drilling units in total, including 12 vertical top drill bits*2, 8 horizontal drill bits*2, and 9 bottom vertical drill bits.
Blue elephant custom system, and it is easy to operate.
