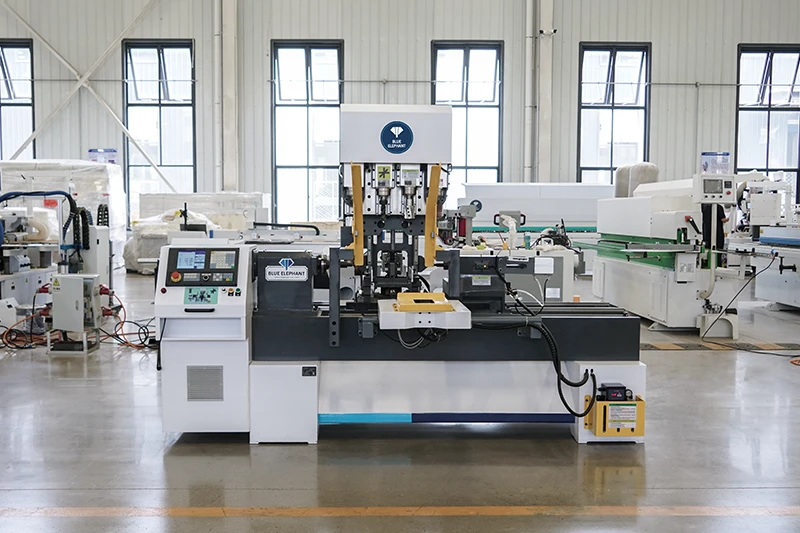

412T6 CNC Wood Lathe for Sale
- Brand : Blue Elephant
- Model : 412T6
- Standard : CE, ISO9001
- Dimensions : 3020*2220*2050mm
- Category : Subsidiary Equipment
- Supply Ability : 350+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
The 412T6 CNC Wood Lathe is designed for high-precision and efficient wood turning, making it ideal for producing furniture legs, stair components, decorative columns, crafts, and other customized wooden products. With an intelligent CNC control system, stable structure, and user-friendly operation, it helps woodworkers improve productivity while achieving consistent and high-quality machining results.
Features
- No need to return to the origin after alarms, power failure, or restart, enabling quick recovery and reducing downtime.
- Dual-core system optimizes tool paths in real time, ensuring smoother operation and higher processing efficiency.
- Supports handwheel simulation machining to test programs in advance and reduce errors and material waste.
- Provides high-precision and consistent turning performance for complex customized wooden parts.
- User-friendly CNC interface is intuitive and easy to operate for users with different experience levels.
- The integrated cast machine body with rigid structural components ensures stable and reliable machining accuracy.
Parameters
| Model | 412T6 |
| Overall Dimensions | 3020*2220*2050mm |
| Weight | Approx. 2000 kg |
| Power | Total power: 29.5kW
Rated power: 12.5kW |
| Machining Travel | 1200mm × 200mm |
| Feeding System | Automatic magazine-type feeding
(Loading range: width*thickness ≤ 100*100mm, length: 80–1200mm) |

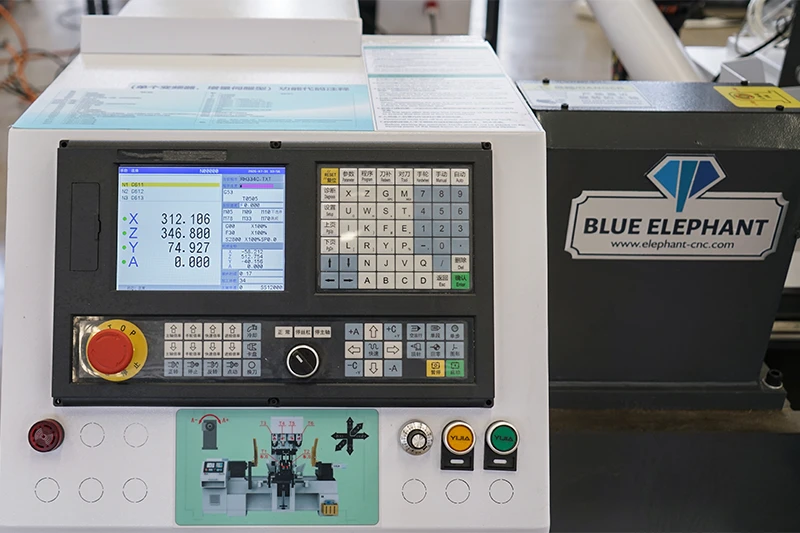

| Control System | Newker 4-axis turning-milling compound system |
| X/Y/Z/A Axis Drive System | X/Y/Z: Sincr servo drives
A axis: Alpha spindle servo motor |
| Lathe Tool Post | Pneumatic cylinder retractable 2-station turning tool holder |
| Guide Rails | 25mm and 30mm precision linear guide rails |
| Ball Screw | Precision ball screws |
| Inverter | Fuling |
| Max. Moving Speed | 12m/min |
| Max. Processing Speed | 10m/min |
| Spindle | 1*4.0kW servo lathe spindle, 6000rpm
2*4.5kW angle-adjustable electric spindle, 18,000rpm 1*7.5kW electric spindle, 12,000rpm |
| Machining Accuracy | ±0.07mm/200mm |
| Repeat Positioning Accuracy | ±0.06mm |
| Lubrication System | Automatic high-pressure oil supply, volumetric equal distribution system |
| Electrical Cabinet | High dust-proof electrical components |
| Tailstock | Manual jog and automatic dual-function balanced cylinder tailstock |
| Input Voltage / Air Pressure | 360–415V, 0.5–0.8Mpa |
CNC Wood Lathe Optional Parts

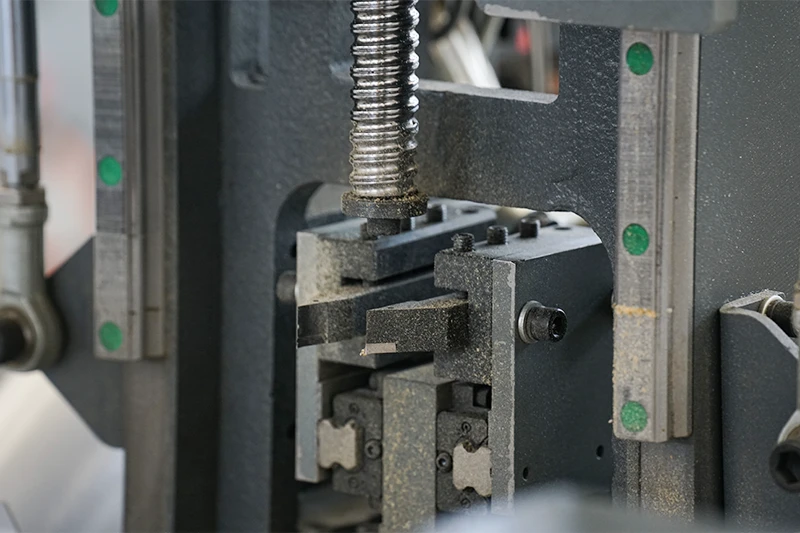

cnc-wood-lathe-ball-screw

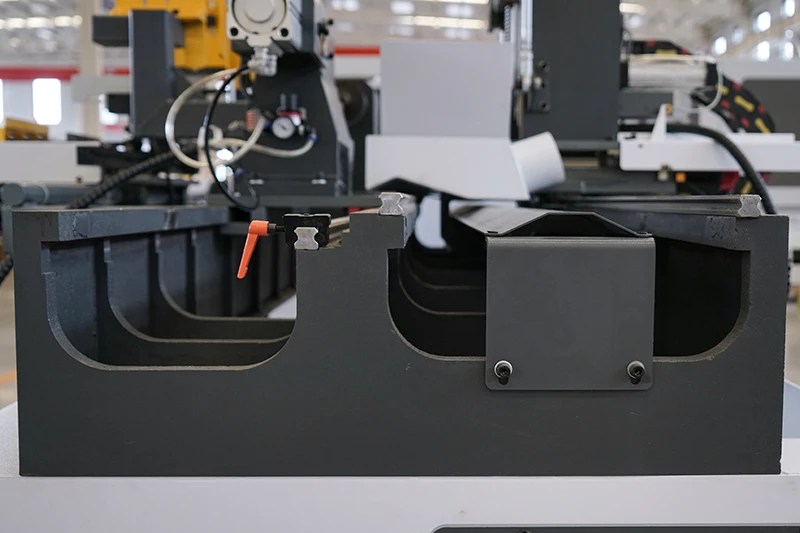

cnc-wood-lathe-bed-frame

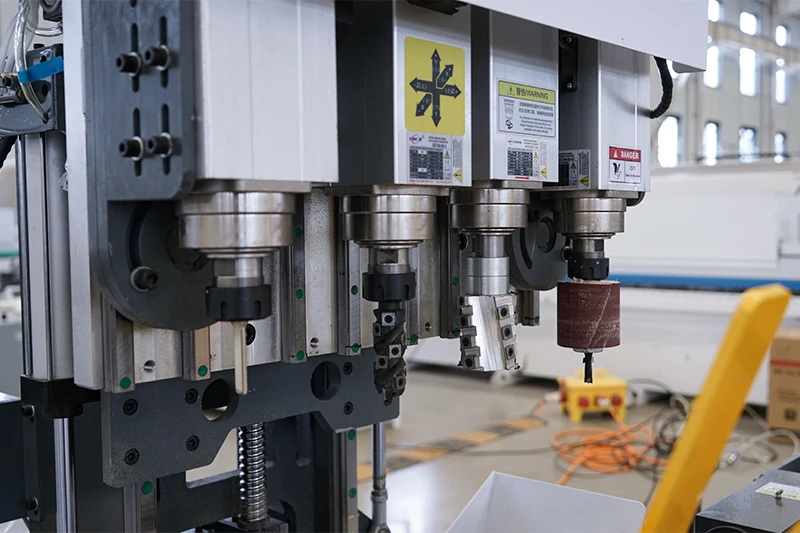

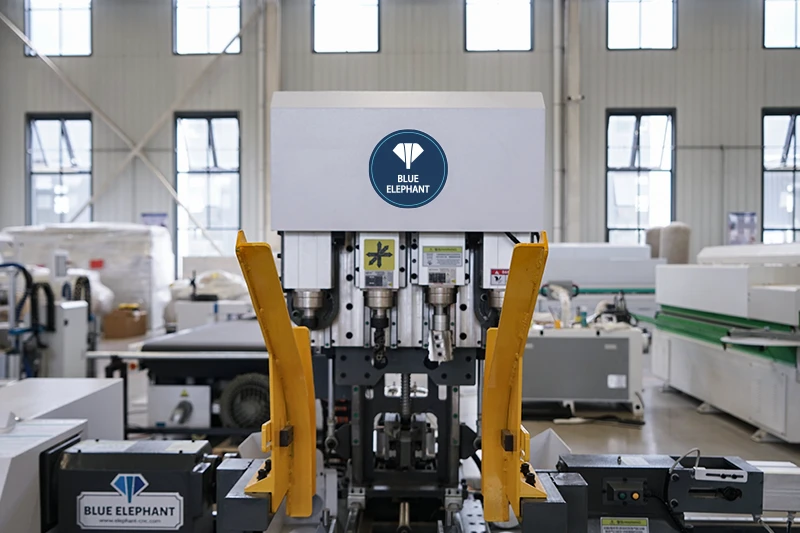

cnc-wood-lathe-milling-module

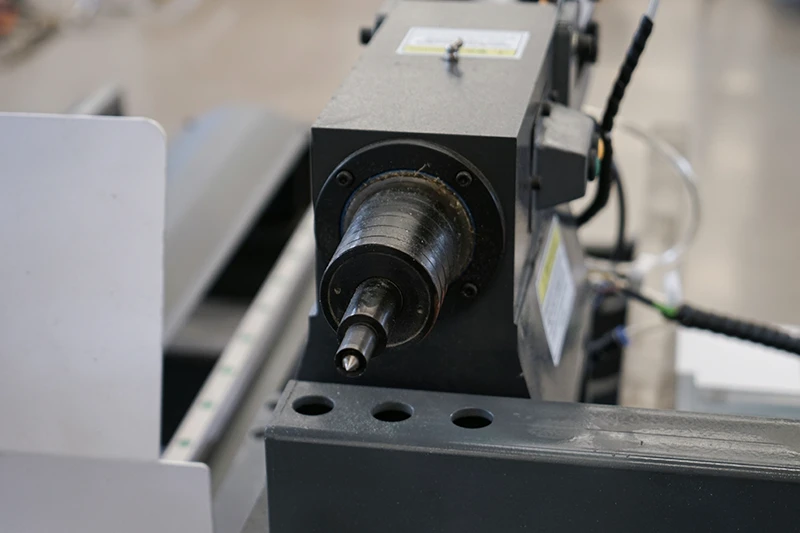

cnc-wood-lathe-spindle
One Lathe Machine, Multiple Applications
Solid Wood Furniture
Precision machining of table legs, chair legs, bed posts, and other customized furniture components.
Architectural Woodwork
Efficiently produces staircase columns, wooden pillars, handrails, and interior decorative components.
Wood Crafts & Decorations
Creates bowls, vases, ornaments, and other artistic wooden products with complex designs.
Musical Instrument Parts
Produces guitar necks, drumsticks, and other rotary wooden parts for musical instrument manufacturing.
FAQ
A 412T6 CNC Wood Lathe is mainly used for processing various wood materials, including hardwood, softwood, solid wood, and other wood-based materials. It is suitable for producing furniture components, decorative parts, crafts, and customized wooden products.
Yes. The 412T6 CNC Wood Lathe is designed for multi-process woodworking. It can perform turning, side milling, and drilling operations without frequent workpiece repositioning, which helps improve machining accuracy, shorten production time, and reduce labor costs.
A 412T6 CNC Wood Lathe usually works with CAD/CAM software to create machining designs and generate CNC programs. Users can design customized wooden parts in compatible software and transfer the machining data to the CNC control system for automatic processing.
Yes. The 412T6 CNC Wood Lathe is equipped with an intuitive CNC control system that simplifies programming and operation. With basic CNC training, new operators can learn machine operation quickly and complete wood turning projects efficiently.
When choosing a CNC Wood Lathe, businesses should consider machining requirements, product types, production volume, accuracy needs, and future expansion plans. A machine like the 412T6 is suitable for small and medium woodworking businesses that need flexible production, multi-process machining, and stable quality.
