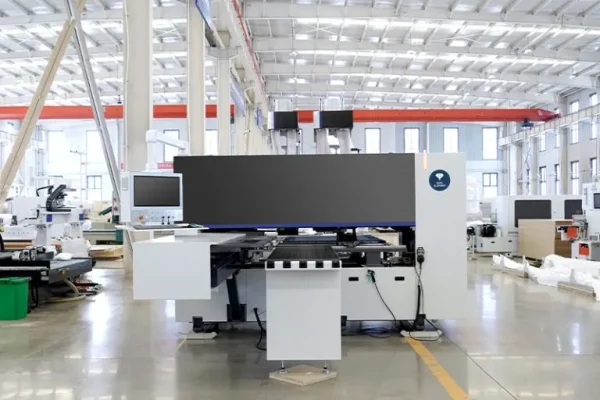

ET6 ATC CNC 6-Sided Drilling Machine with Double Drill Unit and Four Milling Heads
- Brand : Blue Elephant
- Model : ET6

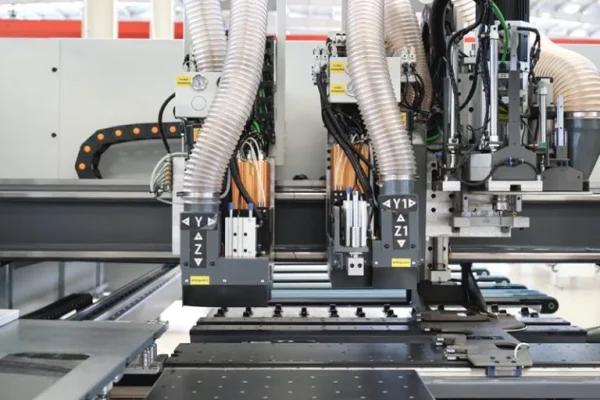

- Drilling heads : Double
- Category : CNC Drilling Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description

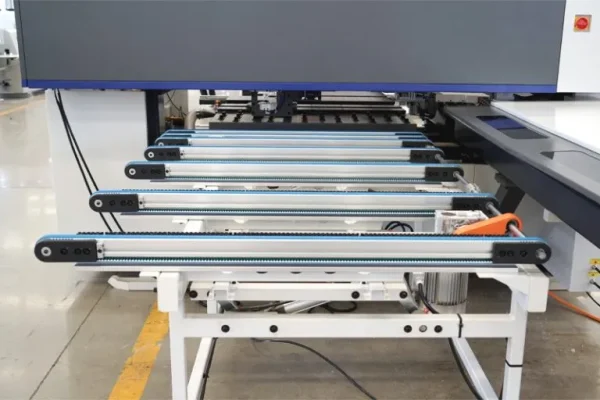

The ET6 ATC CNC 6-Side Drilling Machine is a high-end automatic machine for making panel furniture. It has wireless code scanning, smart sorting, auto positioning, and auto loading. It can drill six sides and cut grooves in one process. Fast automatic tool change greatly improves processing efficiency, accuracy, and overall flexibility.
Features
- The machine has a C-axis rotatable spindle with a 6-tool disc ATC, along with an independent cross-shaped side end mill magazine and one adjustable angle head, it can achieve rapid automatic switching between various tools.
- The lower processing unit features a dual-spindle design, each with 6 kW power. Customers can install two different milling cutters based on process needs, no manual tool changing required.
- This machine can perform various processes such as milling profiles, wire grooves, LED strip grooves, top and bottom hinge grooves, invisible connector slots, and 45° Lamello joints.
Parameters
|
Model |
ET6 |
|
Machine overall size |
5900*3150*2500mm |
|
Dust extraction ports |
Upper: Φ200mm*2 Lower: Φ150mm |
|
Spindle motor power |
Upper spindle: 9 kW with C-axis and ATC Lower spindles: 6 kW* 2 |
|
Spindle speed |
18,000 rpm |
|
Number of tools |
Top vertical drills: 12*2 Top horizontal drills: X (2+2)* 2, Y 2*2 Bottom vertical drills: 9 |
|
Max. positioning speed |
X axis: 130 m/min Y axis: 100 m/min Z axis: 50 m/min A axis: 60 m/min U axis: 130 m/min V axis: 100 m/min W axis: 50 m/min |
|
Workpiece size |
Width: 30-1200mm Length: 70-3300mm Thickness: 9-55mm |
|
Side processing (saw blade) |
Max. cutting depth: 8 mm Min. cutting thickness: 4 mm |
|
Min. size for synchronous dual-drill processing |
Vertical: 64 mm Horizontal (X): 128 mm Horizontal (Y): 188 mm |
6 Sided CNC Drilling Machine Optional Parts
6 Sided CNC Drilling Machine Application
The ET6 CNC 6-sided drilling machine is widely used in the production of kitchen cabinets, wardrobes, office furniture, customized panel furniture, and other intelligent furniture manufacturing applications. It is suitable for processing various panel materials, including MDF, particle board, plywood, melamine boards, solid wood panels, and composite furniture boards. With its high-precision drilling, grooving, and milling capabilities, the machine helps furniture manufacturers improve production efficiency and machining accuracy for both mass production and customized orders.
FAQ
Most industrial six-sided drilling machines support common furniture production formats such as DXF, MPR, BPP, XML, BAN, and PDX, allowing seamless integration with CAD/CAM and nesting software.
Yes. The machine can be integrated with automatic loading tables, edge banding machines, robotic sorting systems, and intelligent furniture production lines to achieve continuous automated production.
After scanning the barcode attached to the panel, the machine automatically calls the corresponding machining program, reducing setup time and minimizing human operation errors.
By completing multiple drilling and grooving operations in a single setup, the machine minimizes positioning errors and ensures consistent machining quality across large production batches. This helps improve assembly accuracy and product consistency.
A 6-sided CNC drilling machine can significantly reduce manual handling and positioning work. Compared with traditional row drilling machines, one operator can often manage multiple production processes simultaneously, improving labor efficiency and reducing production costs.
