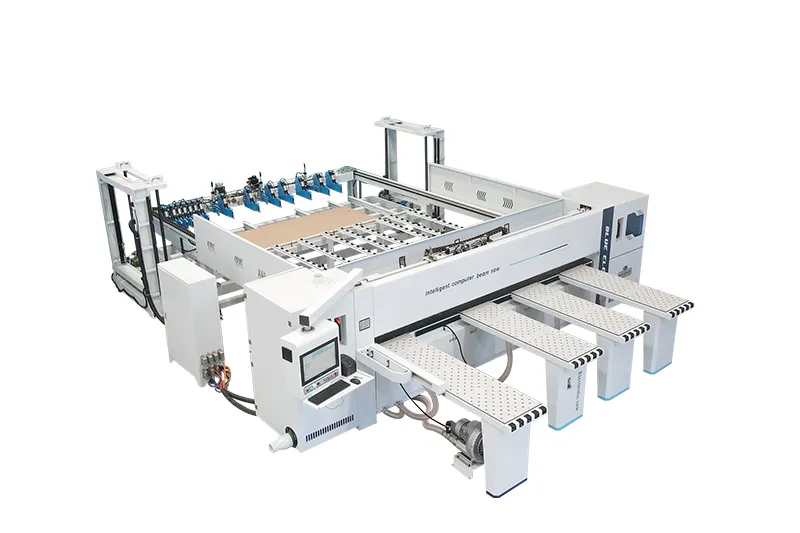

330C Rear Feeding Computer Beam Saw Machine

(5.0 based on 147 ratings and reviews)

$35,000 – $40,000
  • Brand : Blue Elephant
  • Model : ELECNC-330C
  • Machine size : 5900*5800*1800mm
  • Max.cutting length : 3300mm
  • Saw car moving speed : 100m/min
  • Category : Panel Saw Machine
  • Supply Ability : 400+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

330C rear feeding computer beam saw machine is specially designed for panel cutting in the mass production of panel furniture. It improves the panel cutting efficiency by 70% compared with a manual sliding panel saw machine. This panel dividing saw can connect to any intelligent logistics system or warehousing to form smart nesting workstation.

Features

  • The main and subsidiary workbenches are welled with 25mm and 18mm thick steel plates respectively to ensure long-term sawing accuracy.
  • High-quality and stable electrical appliances can prolong the service life of the panel saw machine.
  • The air pressure is kept at 0.6-0.8kgf/cm2, which ensures stable operation, excellent cutting accuracy and outstanding durability.
  • The rear feeding lifting platform automatically feeds the panels, saving time and manpower and improving efficiency.

Parameters

Model ELECNC-330C
Overall dimension 5900x5800x1800mm
Max. cutting length 3300mm
Max. cutting thickness 100mm
Positioning accuracy ±0.02mm
Cutting accuracy ±0.15mm
Main saw rotating speed 4100r/min
Max. auto feeding speed 100m/min
Groove saw rotating speed 6200r/min
Main saw motor 15kW
Groove saw motor 2.2kW
High pressure fan 2.2kW
Total power 23kW
Air pressure 0.6-0.8MPA

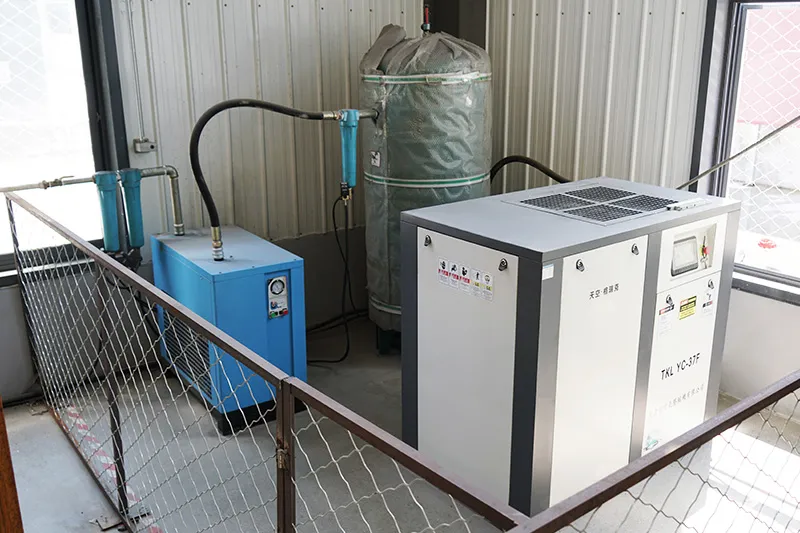

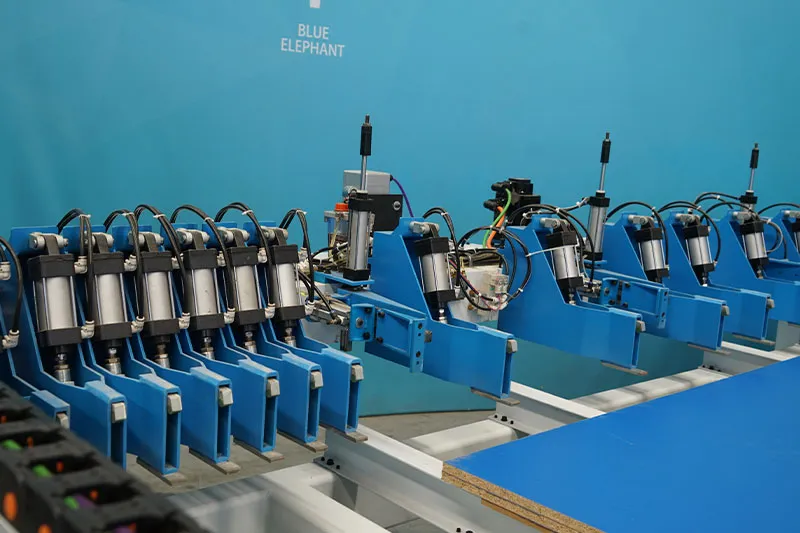

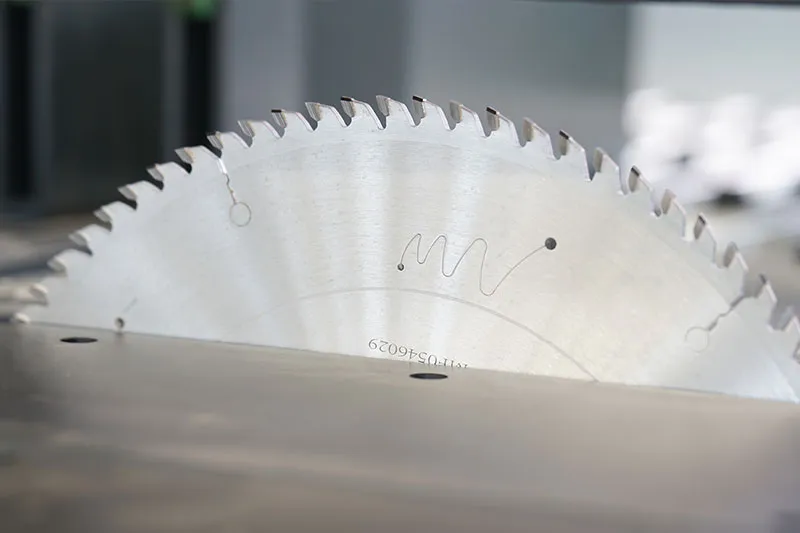

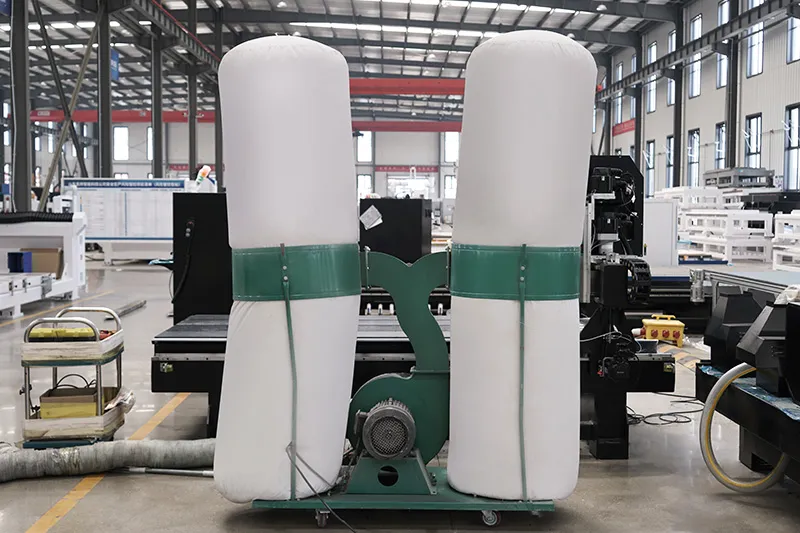

Panel Saw Machine Optional Parts

Application

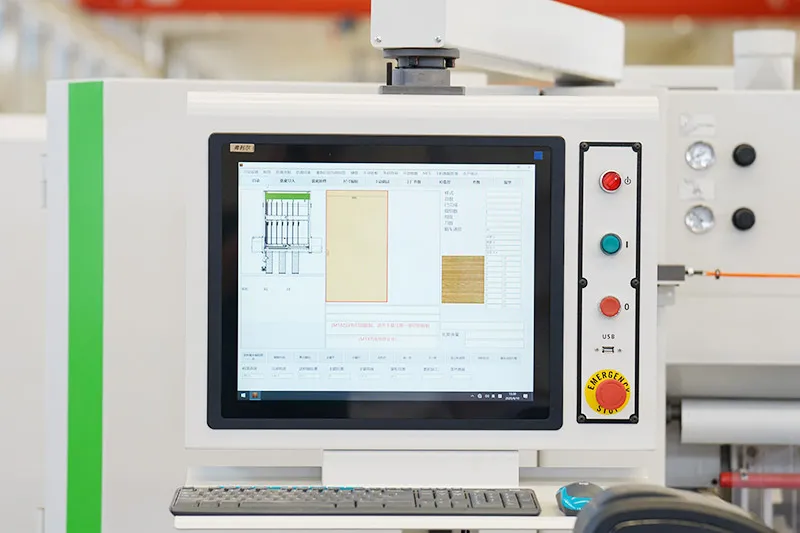

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels for office furniture and engineering furniture production. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.
