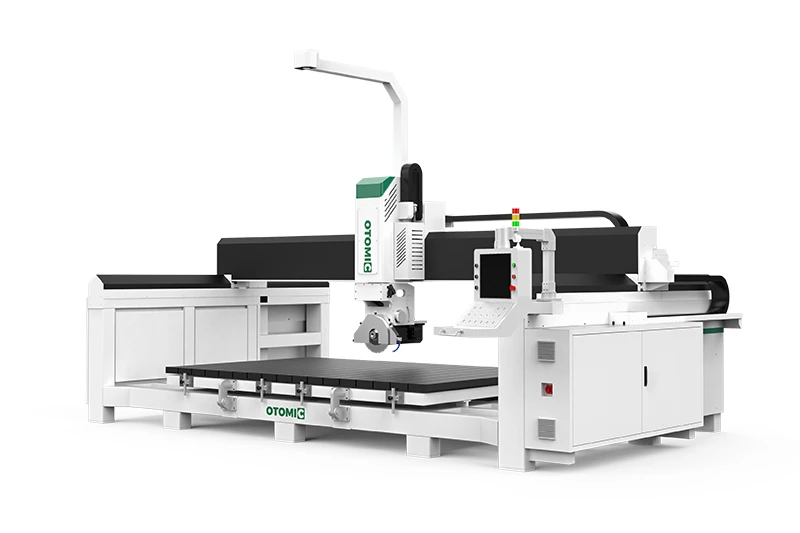

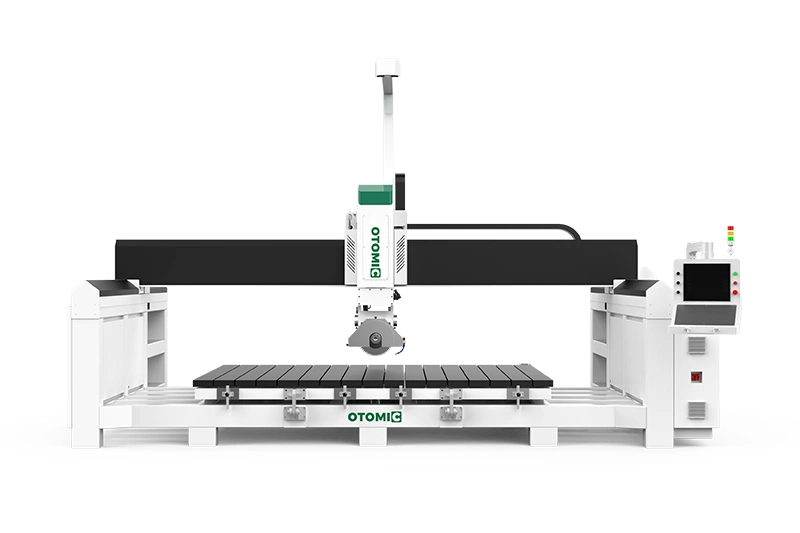

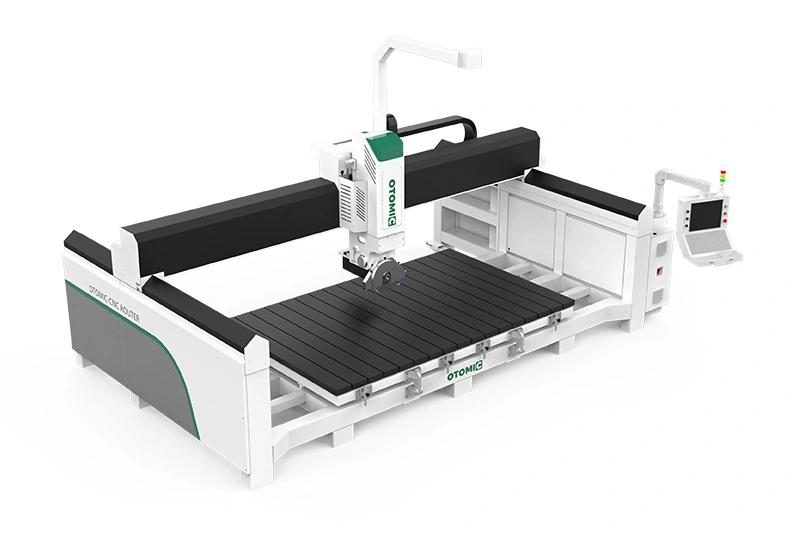

ES4-3220 4 Axis CNC Bridge Saw Machine
- Brand : Blue Elephant
- Model : ES4-3220
- Blade Diameter : 360mm
- Category : 4 Axis Bridge Saw
- Supply Ability : 350+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
ES4-3220 4 Axis CNC bridge saw machine’s c axis can rotate 0° or 45°, it can automatically cut stone materials. Besides, we can add camera and infraded head to this machine, increasing the positioning accuracy and precision. It gains great popularity in various stone processing industries.
Features
- The 4 axis bridge saw blade can be tilted by 45°to cut standard-size boards and realize four-sided chamfering, plane grooving, basin hole digging, etc.
- The bridge saw worktable can overturn 85° to facilitate loading and unloading of stone materials.
- The infrared ray head can locate the cutting position to make the cutting be faster and more accurate.
- Automatic suction cup can move the board and avoid saw notch.
Parameters
| ES4-3220 4 Axis CNC Bridge Saw | ||
| Travel | 3 axis | 3200*2000*200mm |
| C axis | ±360° | |
| A axis | 0/45° | |
| Speed | X axis | 30mmin |
| Y axis | 30mmin | |
| Z axis | 10mmin | |
| Servo motor | X axis、Y axis | 2KW HANYU absolute value servo motor |
| Z axis | 2KW HANYU absolute value servo motor（with brake） | |
| C axis | 1KW HANYU absolute value servo motor | |
| Guide | Y axis | Taiwan 30# |
| X axis | Taiwan 30# | |
| Z axis | Taiwan 30# | |
| Rack | X axis、Y axis | 2M |
| Worktable | Structure | squared timber |
| Size | 3200×2000mm | |
| Flip angle | 0-85° | |
| Reverse weight | 800KG | |
| Saw blade | Size | 360mm |
| Maximum thickness | 60mm | |
| Screw | Z axis | 3210 |
| Reducer | X/Y axis SHIMPO reducer | |
| Saw blade motor | 15KW Saw blade motor (rated: 2930r/min) | |
| Inverter | 18.5KW Fuling inverter | |
| Controller | Blue Elephant customized control system（built-in CAM software） | |
| Low-voltage apparatus | Schneider | |
| Air Pressure | 0.6-0.8Mpa | |
| Voltage | 380V/3P/50HZ | |
| Machine size | 5.85m×4.5m×3.6m | |
| Machine weight | 3.5t | |
4 Axis Bridge Saw Optional Parts
Application
The 4 axis quart CNC bridge saw can cut rhombus, sector, square, rectangle, trapezoid, quadrilateral, special shape, polygon, circle, oval, countertop, stove board, specification board, pot hole, etc.
The 4 axis bridge saw for stone can also cut marble, granite, and other stones for making stone sculptures, countertops, tombstones, and so on. In addition, it is also used in building construction. It can cut building materials such as bricks, concrete slabs and tiles to suit a variety of construction needs.
FAQ
It can complete edge milling, curved edge cutting, countertop cutting and milling, inclined edge cutting, arc edge cutting and milling, wash basin cutting and other processes.
This 5 axis stone bridge saw is provided with a built-in CAM software with Blue Elephant customized control system dedicated for stone CNC machine. The interface is human friendly, so it is easy to learn and operate.
Yes, the worktable of this machine can flip up to 80 degrees to facilitate the unloading of stone slabs. It also improves work efficiency and saves human labor.
