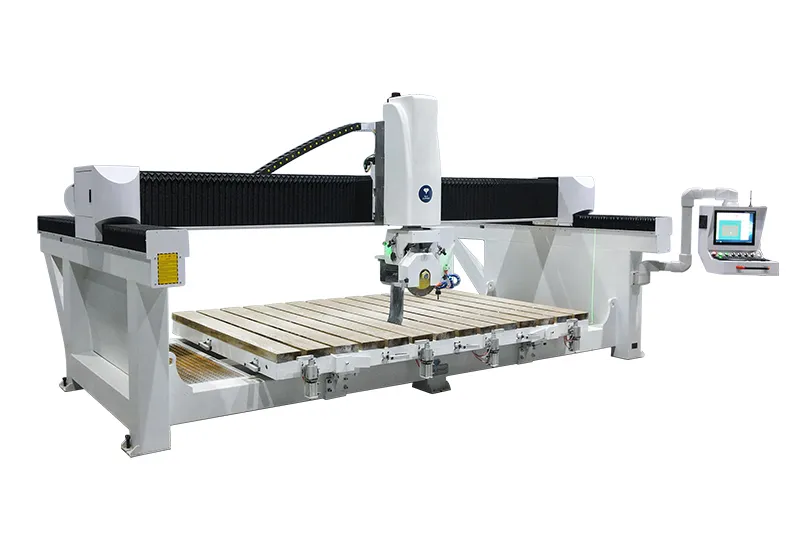

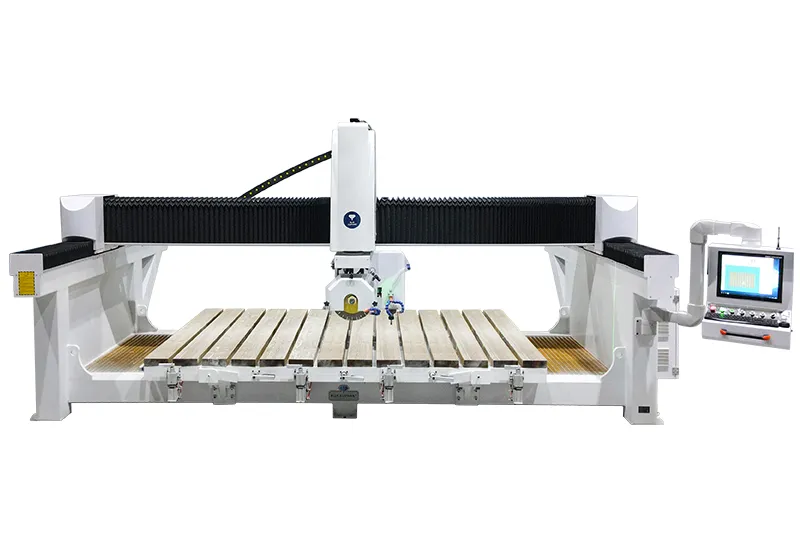

4+1 CNC Bridge Saw Machine for Sale
- Brand : Blue Elephant
- Model : 4+1 CNC Bridge Saw Machine
- Blade Diameter : 350mm
- Category : 4 Axis Bridge Saw
- Supply Ability : 420+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description

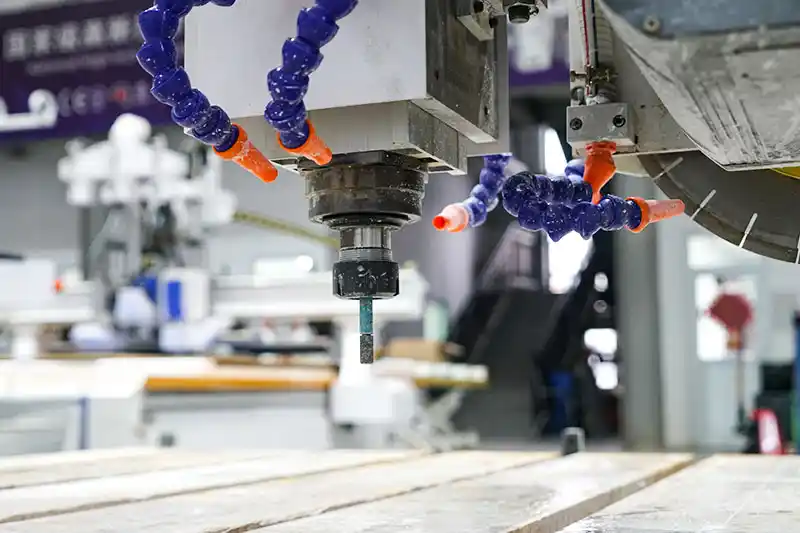

This 4+1 CNC bridge saw machine has an additional 5.5kw water-cooled spindle. It can work alternately with the saw blade, so it greatly improve processing efficiency. But unlike the heavy-duty 4 axis 4+1 CNC bridge saw machine, it can’t add a camera or material moving device.
Features
- The economical 4 axis 4+1 CNC bridge saw can realize cross cutting, vertical cutting, bevel cutting, rhombus cutting, circle cutting, oval cutting, 45° chamfering, under-counter basin and in-counter basin cutting, etc. However, edge grinding and polishing are not supported.

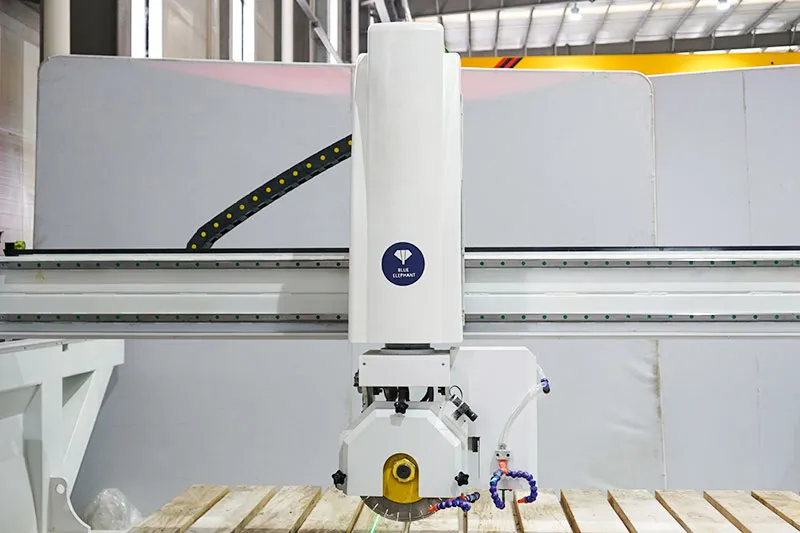

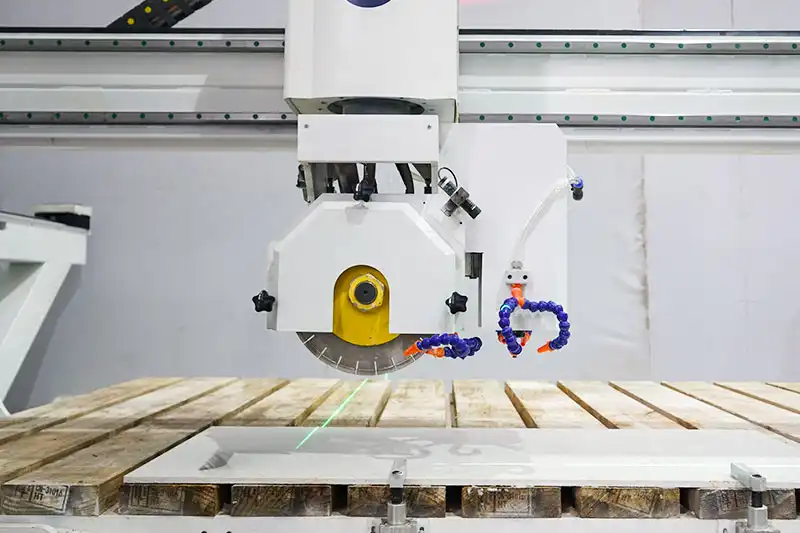

- The diameter of the 4+1 stone CNC bridge saw blade is 350mm and the 4+1 stone CNC bridge saw spindle speed is 24000rpm/min. So it can realize the maximum cutting thickness of 80mm. Moreover, the spindle and saw blade can work alternately without affecting each other.

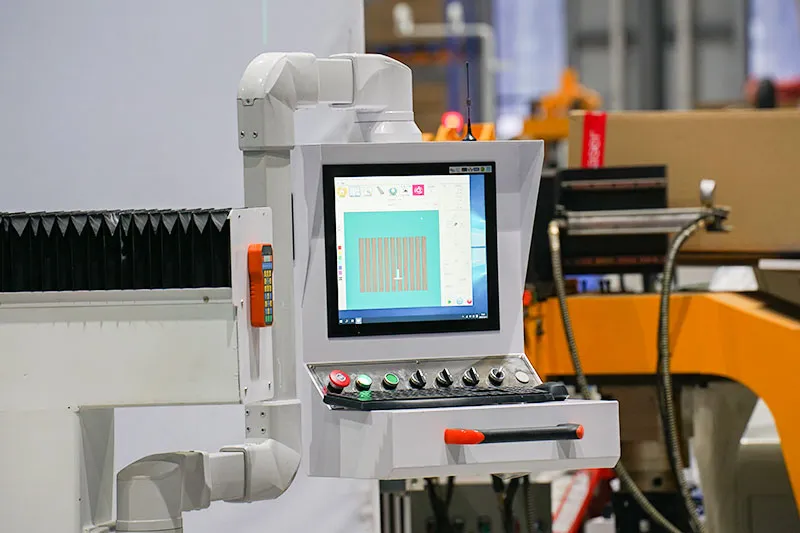

- Use Blue Elephant customized control system and imported parts to ensure high-precision processing and smooth operation of the 4-axis 4+1 marble CNC bridge cutting saw.
- High-power saw blade motor, size and voltage of the economical 4+1 quartz bridge saw, we all can customize and upgrade.
Parameters
| 4+1 CNC Bridge Saw Machine | ||
| Travel | 3 axis | 3200*2000*400mm |
| C axis | ±360° | |
| A axis | 0/45° | |
| Control System | Blue Elephant Customized Control System | |
| Motor & Drive | Serve motor and drive | |
| Turning Table | Size | 3200×2000mm |
| Flip angle | 0-85° | |
| Saw Blade | Diameter | 350mm |
| Maximum thickness | 80mm | |
| Spindle | Power | 5.5kw |
| Rotating speed | 24000rpm | |
| Voltage | 380V,3PH,50/60HZ | |
| Motor power | 15kw | |
| Motor speed | 3300rpm | |
| Machine size | 5.36m×3.3m×2.41m | |
4 Axis Bridge Saw Optional Parts
Application
Stone Countertops: According to custom sizes and designs required, it can precisely cut and shape slabs of granite, marble, or quartz.
Architectural Stone: It can cut architectural stone pieces for buildings, including exterior cladding, facade elements, columns, etc.
Flooring and Wall Tiles: They can cut large stone slabs into smaller tiles of uniform sizes, so it can create visually appealing surfaces.
Monuments and Memorials: It can create intricate designs, lettering, and customized shapes for honoring individuals or events.
Furniture and Artistic Pieces: We can use it in artistic pieces, sculptures, and decorative elements from stone or wood materials.
FAQ
Yes. It can be set in the system and the maximum speed is 3300rpm/min.
No. The 4+1 bridge cutting saw is similar to a nesting CNC machine, which can only cut large plates into small plates as required. While the quartz stone processing center is responsible for edge grinding and polishing.
