EM610 Door Wall Cabinet CNC Processing Center

(4.9 based on 156 ratings and reviews)

$25,000 – $30,000
  • Brand : Blue Elephant
  • Model : EM610
  • Category : Door Wall and Cabinet Integrated Machine
  • Supply Ability : 500+ Units in Stock
  • Processing thickness : 10-60mm
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty ：12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

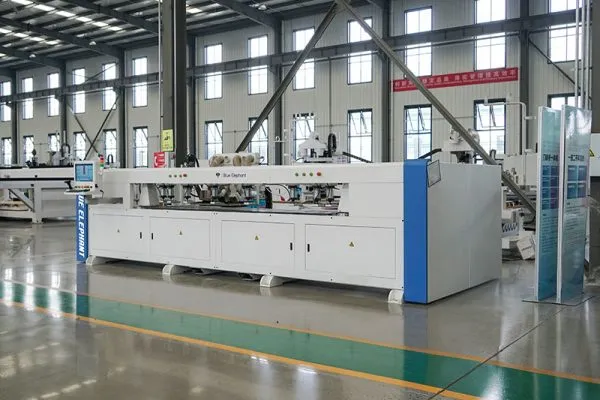

EM610 door wall cabinet CNC processing center is designed for milling various profiles on door panels, wardrobe doors, wall panels, and fittings, including hinge holes, mounting notches, laminating and 14 other processing technologies, with support for 45° bevel laminating. It can operate with or without software integration. The machine features a safety guard, dual-position cycling for small panels, single-position processing for large panels, and two positioning devices for accuracy. It also includes a QR code scanner for automatic data collection, supporting XML, MPR, and other formats.

Features

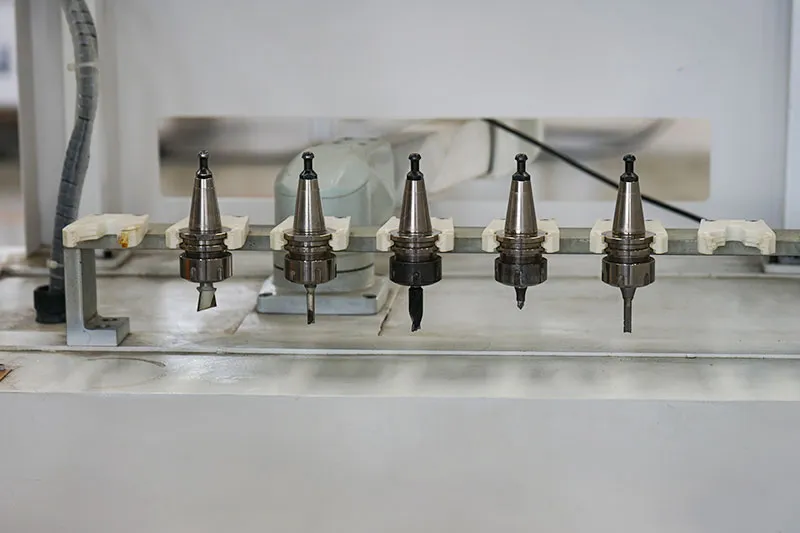

  • The processing center has an eight-tool magazine for quick tool changes, supporting various processes.
  • It features horizontal and vertical tool setting systems, offering 2x higher precision and 1x faster speed than manual methods.
  • The board thickness measurement function automatically adjusts the tool with an accuracy of less than 0.1mm.
  • The crossbeam automatically adjusts based on board width or processing position.

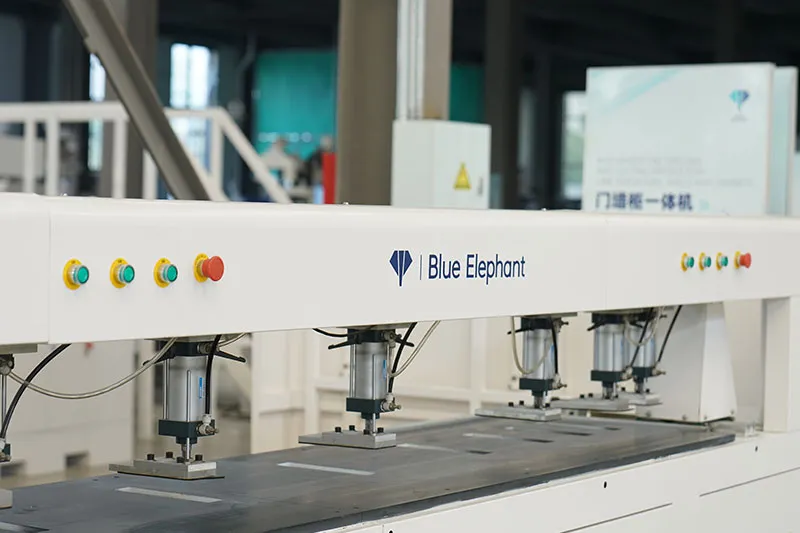

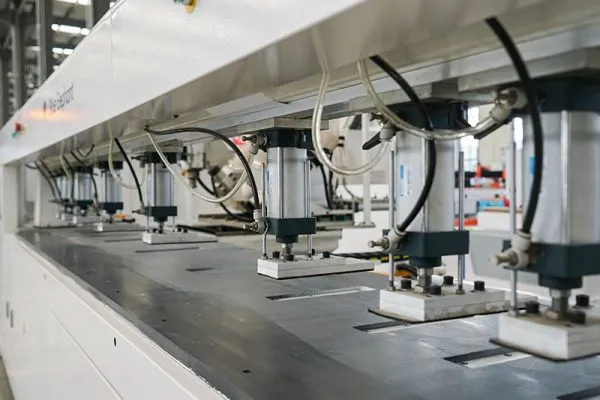

  • It has eight pressing cylinders with flexible, anti-slip plates to prevent board damage.
  • It also includes ten narrow board pressing units, processing boards as narrow as 50mm.

Parameters

Model EM610
Processing length 250-3050mm
Maximum processing width 180mm
Minimum processing width 50mm (25mm thickness or less)
Processing thickness 10-60mm
Control system Blue Elephant customized control system

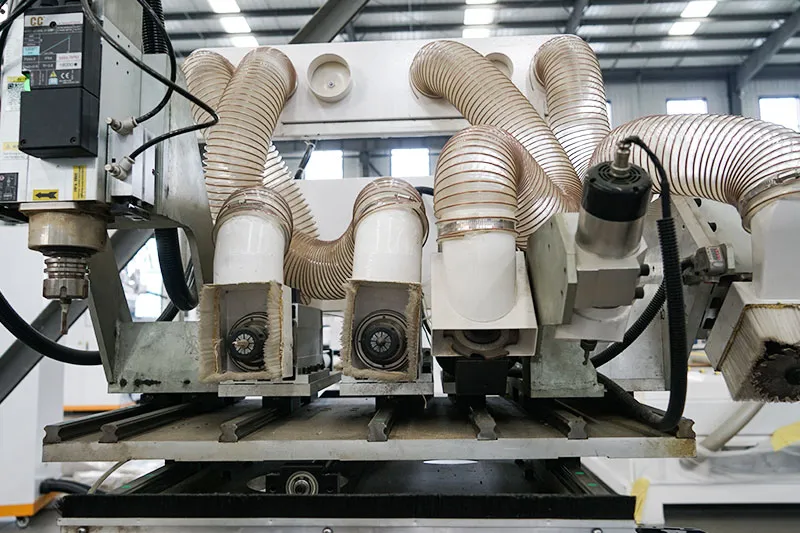

ATC spindle 5.5KW Changchuan ISO ATC spindle, equipped with an 8-tool magazine
Side horizontal spindle 2*4.5KW Jester air cooling spindle

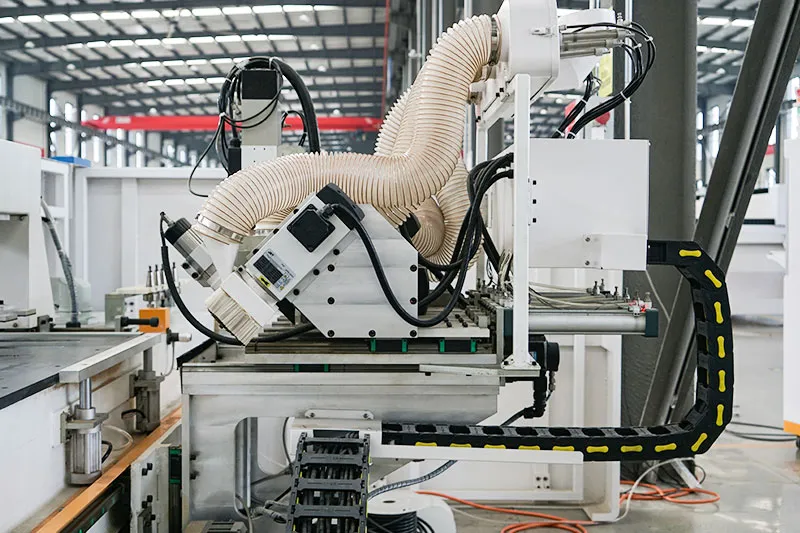

45° bevel Lamello spindle 2.2KW Changchuan right-angle spindle
45° bevel Lamello pilot hole spindle Jester 800W round air-cooled spindle
Bevel cutting spindle 4.5KW Jester air cooling spindle
Servo motor 850W Delta servo motor
Guide rail Taiwan SHAC Y axis 30#, X/Z axis 25#
Rack Taiwan JT M2
Screw Z axis 3505, X axis 2510
Reducer Japan SHIMPO 1:8
Inverter Fuling Inverter 7.5KW + 2.2KW
Floor space 5850mmx3000mm
Machine power About 12KW
Machine weight About 2000kg

Door Wall Cabinet CNC Processing Center Optional Parts

Application

EM610 door wall cabinet CNC processing center is mainly designed for milling various profiles on door panels, wardrobe doors, wall panel fittings, and other workpieces. This includes tasks such as hinge holes, mounting notches, laminating, IF connectors, top and bottom hinge slots, lock hole slots, embedded slots for tatami, handle-free grooves, bay window grooves, lighting grooves, sliding door wheel slots, straightener slots, staggered sliding door slots, and frame handle slots.

FAQ

What processing operations can cabinet and door drilling machine perform?

Hinge hole, hanging code notch, lamino, IF connector, top and bottom hinge slot, door lock hole slot, tatami embedded slot, handle-free slot, crabapple slot, light slot, sliding door pulley slot, straightener slot, etc.

What materials are cabinet and door drilling machine suitable for?

Door and cabinet integrated machine is usually suitable for various wood, composite materials and some plastic materials.

What is the processing size range of cabinet and door drilling machine?

250*50mm-3050*180mm.
