EM610 Cabinet and Door Wood Drilling Machine

(5.0 based on 189 ratings and reviews)

$25,000 – $30,000
  • Brand : Blue Elephant
  • Model : EM610
  • Category : Door Wall and Cabinet Integrated Machine
  • Supply Ability : 500+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty ：12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

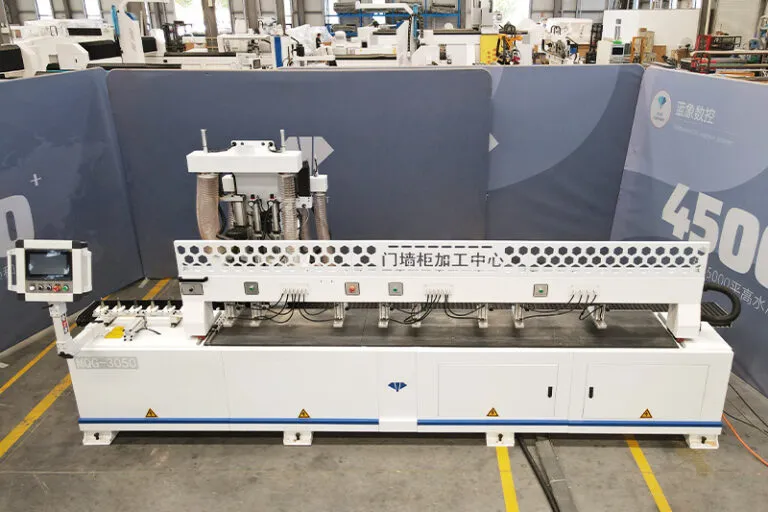

EM610 cabinet and door wood drilling machine is specially designed for furniture making industry. It can process hinge holes, hanging code gaps, lamello, connectors, door lock hole slots, handle-free slots, crabapple slots, lamp slots, sliding door pulley slots, straightener slots, etc.

Features

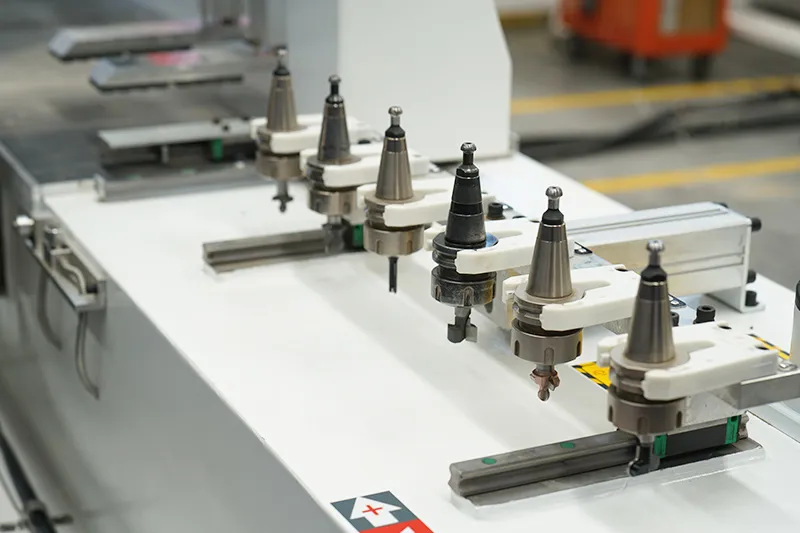

  • Equipped with a 8-tool automatic tool change magazine, it can quickly switch tools according to different process requirements.
  • With tool setting instruments in both horizontal and vertical directions, the accuracy is 2 times higher than manual tool setting. And the speed is 1 times higher.
  • The cabinet and door drilling machine also has automatic plate thickness measurement function. It can automatically adjust the tool according to the actual thickness of the plate. And making the detection error less than 0.1mm.

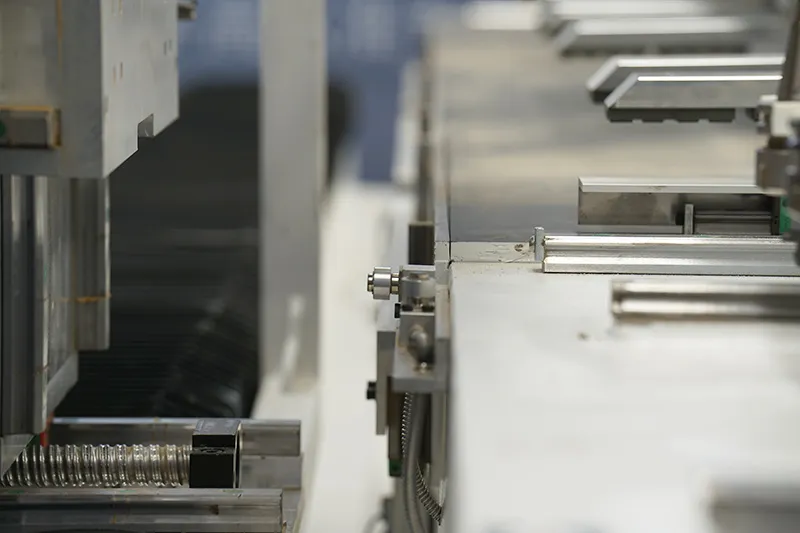

  • Added with 8 sets of pressing cylinders, the pressing device is easy to move. Thus prevent plate damage and plate running.
  • Configure a QR code wireless scanner, the cabinet and door drilling machine can automatically obtain processing data..

Parameters

Model EM610
Processing length 250-3050mm
Maximum processing width 180mm
Minimum processing width 50mm
Processing thickness 10-60mm

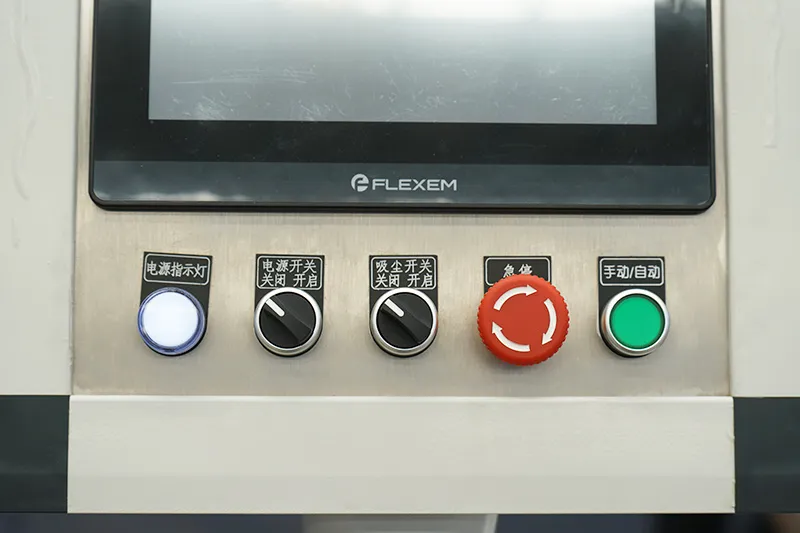

Control system Blue Elephant customized control system
Main Spindle 5.5KW Changchuan ISO ATC spindle
Horizontal spindle 2*4.5KW Jester air cooling spindle
45°Lamello spindle 2.2KW Changchuan right-angle spindle

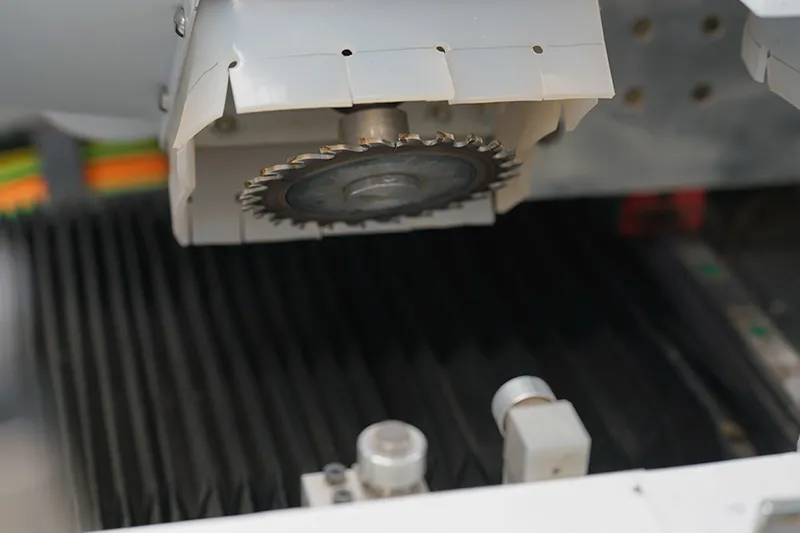

45° saw blade spindle 4.5KW Jester air cooling spindle
Servo motor 850W Delta servo motor
Guide rail Taiwan SHAC Y axis 30#, X/Z axis 25#
Rack Taiwan Jingter M2
Screw Z axis 3205, X axis 2510
Reducer Japan SHIMPO 1:8
Inverter 7.5KW Fuling Inverter + 2.2KW
Machine power 12KW
Machine weight 2000kg

Door, Wall and Cabinet Integrated Machine Optional Parts

Application

Hinge holes, hanging code notches, Lamino slots, IF connectors, top and bottom hinge grooves, door lock slots, embedded grooves for tatami mats, handle-free slots, begonia slots, light slots, sliding door pulley slots, straightener slots, staggered sliding door slots, and edge handle slots on workpieces such as door panels, wardrobe door panels, wall panel fasteners, etc.

FAQ

What processing operations can cabinet and door drilling machine perform?

Hinge hole, hanging code notch, lamino, IF connector, top and bottom hinge slot, door lock hole slot, tatami embedded slot, handle-free slot, crabapple slot, light slot, sliding door pulley slot, straightener slot, etc.

What materials are cabinet and door drilling machine suitable for?

Door and cabinet integrated machine is usually suitable for various wood, composite materials and some plastic materials.

What is the processing size range of cabinet and door drilling machine?

250*50mm-3050*180mm.
