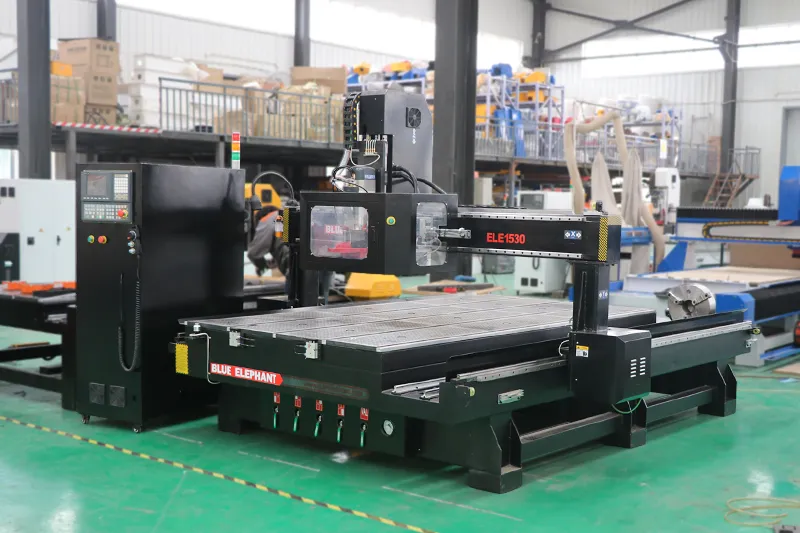

1530 5×10 ATC CNC Router with Rotary Device
- Brand: Blue Elephant
- Model: ELECNC-1530ATC
- Standard: CE, ISO9001
- Table size: 1500mm*3000mm (5′ × 10′)
- Category: ATC CNC Router
- Supply Ability: 420+ Units in Stock
- After-sale Service: Free Lifetime Technical Support online, Overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

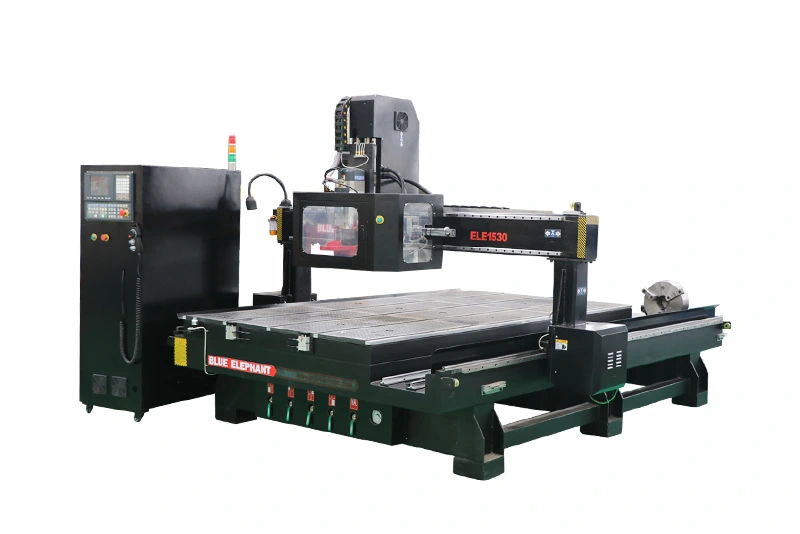

Description
5×10 ATC CNC router rotary axis CNC machine is equipped with a worktable of 1500x3000mm. The CNC kit- automatic tool changer and ATC Spindle makes the CNC machine fetch the right bits automatically. And the rotary device is mainly used for 3D wood carving and cylinder objects carving.
Features
- The carousel automatic tool changer can automatically switch between 8 tools during engraving and carving, significantly reducing machining time and labor costs for heavy-duty or long-duration woodworking.
- The rotary device is designed for cylindrical workpieces, such as chair legs, stair balusters, Roman columns, and other column-shaped components.
- The 5×10 CNC router features a customizable working area to meet different production and processing requirements.
- Equipped with a dust collection system, the 5×10 CNC router keeps the working environment cleaner and improves overall machining efficiency.
Parameters
| Model | ELECNC1530ATC-4 |
| X,Y axis travel | 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |

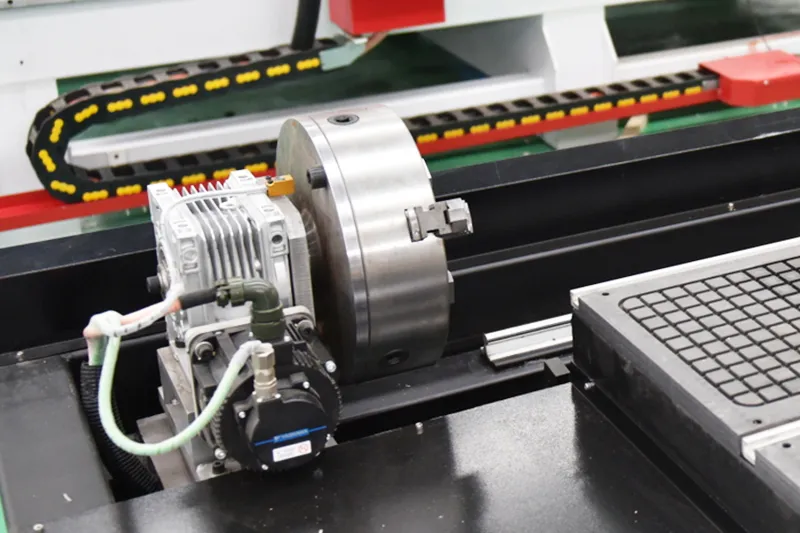

| The 4th axis | 200mm chuck diameter, used for processing round wood to make furniture legs, statues, Roman columns, etc. |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC / LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. Option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Aspire, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | ≥0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
ATC CNC Router Optional Parts
Application
A rotary axis CNC wood router is good at carving wood cylinders with the help of the rotary device. For example, square or rectangle wooden sticks, round sticks, rubber sticks, etc. This helps make table legs, chair armrests, stair armrests, handrails, building columns, pillars, posts, 3D statues, molds, and other three-dimensional workpieces. In addition, it can complete all the work that a 3 axis CNC wood router could do.
FAQs
That is possible. With the aid of the tool, the chuck of the rotary axis can be freely retracted and thus clamp smaller diameter workpieces.
The machine can cut/engrave aluminium with an accuracy of ±0.05 mm. Equipped with a cooling device, it prevents deformation of the aluminium and extends the life of the milling tool.
Both single-phase and three-phase power are possible. However, we recommend that you use 3-phase power, which is more energy-efficient and gives the machine more power.
