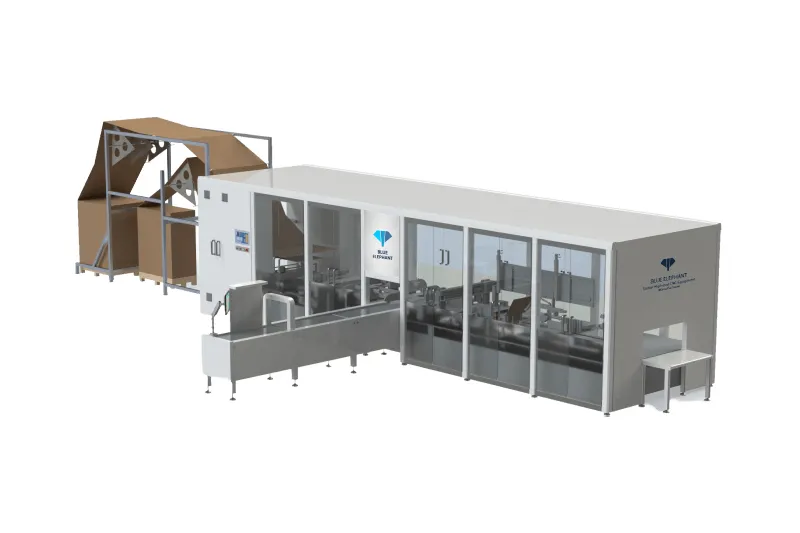

ABL1200 Corrugated Box Making & Packaging Line
- Brand : Blue Elephant
- Model : ABL1200
- Equipment Size : 6500mm×15000mm×3500mm (W×L×H)
- Weight : 10000kg
- Cardboard Type : Sheet
- Category : Corrugated Box Maker Machine
- Supply Ability : 500+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
ABL1200 Corrugated Box Making & Packaging Line is a highly efficient and automated solution for manufacturing corrugated boxes for packaging and wrapping goods. It integrates several key components, such as the feeder, printing, cutting, folding, and stacking sections, resulting in a seamless and continuous production process. Moreover, the ability to customize box designs, dimensions, and structures empowers enterprises to address diverse packaging demands, thereby gaining a competitive edge.
Features
- The registration system ensures accurate positioning and synchronization of printed images, delivering crisp and vivid visual effects.
- Generate barcodes and serial numbers automatically, streamlining tracking and management procedures.
- Store and manage die sets intelligently, facilitating rapid die exchange and minimizing downtime.
- An intuitive human-machine interface permits swift mastery of machine controls, promoting user-friendliness and enhancing operability.
- Remotely diagnose and resolve issues with the aid of embedded internet communication modules, eliminating unnecessary physical visits.
Parameters
| Parameter | Value |
|---|---|
| Size | 6500mm×15000mm×3500mm (W×L×H) |
| Weight | 10000KGS |
| Power | 380V, 50-60HZ, 50A, 20KW |
| Production Rate | 1000 Units/Hour |
| Sheet Type | Z-shaped |
| Max Box Size | 800mm×600mm×215mm (W×L×H) |
| Min Box Size | 240mm×150mm×35mm (W×L×H) |
| Sheet Thickness | 2.5mm~8mm |
Corrugated Box Maker Machine Optional Parts
corrugated-box-making-packaging-line-part-1
corrugated-box-making-packaging-line-part-2
corrugated-box-making-packaging-line-part-3
corrugated-box-making-packaging-line-part-4
Application
- E-Commerce Industry: Produce shipping boxes tailored to individual merchandise dimensions, maximizing storage efficiency and safeguarding fragile consignments.
- Logistics Sector: Manufacture bespoke storage boxes for varied cargo configurations, mitigating transportation hazards and conserving resources.
- Food Processing Enterprises: Develop hygienic food packaging solutions conforming to regulatory standards, shielding edibles from cross-contamination risks.
- Pharmaceutical Corporations: Fabricate tamper-evident medical packaging to ensure patient safety and comply with strict regulations governing drug dissemination.
corrugated-box-making-machine-for-drink-packaging-boxes
corrugated-box-making-machine-for-food-packaging-boxes
corrugated-box-making-machine-for-industrial-cardboard-boxes
corrugated-box-making-machine-for-logistics-packaging-box
corrugated-box-making-machine-for-logistics-transport-box
corrugated-box-making-machine-for-medicine-cardboard-boxes
corrugated-box-making-machine-for-storage-cardboard-boxes
corrugated-box-making-machine-for-warehouse-packaging-boxes
FAQ
You can use our machine in several sectors, including fulfillment hubs, parcel service locations, furniture workshops, box-manufacturing facilities, storage spaces, and e-commerce platforms.
The Anypack on-demand box machine produces 85 distinct FEFCO-standard carton varieties, meeting global standards for box design.
Our AB2500 Custom Corrugated Box Making Machine carry CE certification, and we welcome assessments from independent entities, including SGS and TÜV Rheinland.
