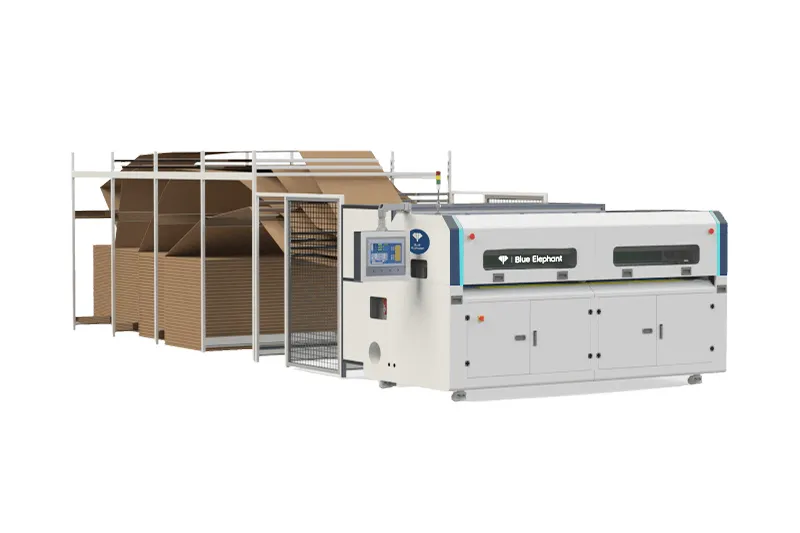

AB2500F Corrugated Cardboard Box Making Machine

(4.8 based on 163 ratings and reviews)

  • Brand : Blue Elephant
  • Model : AB2500F
  • Equipment Size : 1900mm×3500mm×5000mm (W×L×H)
  • Weight : 5000kg
  • Cardboard Type : Sheet
  • Category : Corrugated Box Maker Machine
  • Supply Ability : 300+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

AB2500F corrugated cardboard box making machine plays a crucial role in the production of cardboard boxes for various industries. These machines are designed to create sturdy and durable boxes suitable for packaging, transporting, and protecting goods. They typically consist of several components, including a prefeed conveyor, forming station, gluing station, and stacking system.

Features

  • Modular Design: Many corrugated box maker machines offer a flexible layout, allowing manufacturers to adapt the machine to their specific production needs.
  • Multiple Configurations: Different machine models accommodate diverse box styles, ranging from basic rectangular prisms to intricate die-cut designs.
  • Quick Setup: Manufacturers can rapidly changeover between various box sizes thanks to automated setup procedures, enhancing overall productivity.
  • Integrated Quality Control: Some machines incorporate cameras and scanners to inspect box dimensions and alignment, ensuring consistently sized and aligned boxes throughout the production run.
  • Smart Technology: IoT connectivity enables remote monitoring and predictive maintenance, helping minimize unexpected downtime and lower maintenance costs.

Parameters

Size 3500(L)×1900(W)×5000(H)mm
Weight 5000kg
Power 380V, 50-60HZ, 32A,16KW
Production Rate 400 PCS/Hour
Sheet Type Z-shaped Cardboard
Cardboard density range Up to 1200g/m²
Max.board size 2500mm Width x Unlimited Length
Min.board size 200mm Width x 650mm Length
Slotting Knife 2 PCS ×500mm Length
Servo Motor Qty 8 Sets
Max Sheet Size 2500mm Width, Unlimited Length
Min Sheet Size 340mm Width, 700mm Length
Switchover Time 2-15 Seconds

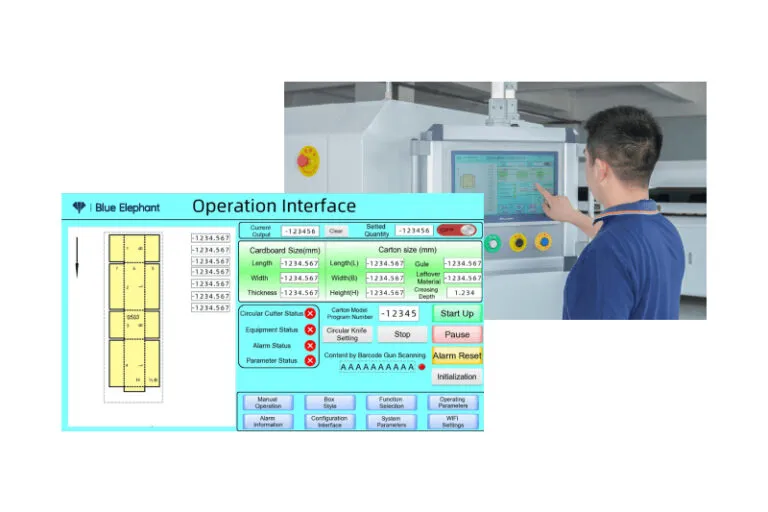

Touch Panel 15.6 Inch
Cardboard thickness 2-10mm
Vertical Cutting knife 4
Scoring/Creasing Wheel 4
Horizontal Cutting Knife 1
Air Pressure 0.6-0.7MPa
Box styles More than 85 Fefco codes

Corrugated Box Maker Machine Optional Parts

Application

  • E-Commerce Industry: Produce shipping boxes tailored to individual merchandise dimensions, maximizing storage efficiency and safeguarding fragile consignments.
  • Logistics Sector: Manufacture bespoke storage boxes for varied cargo configurations, mitigating transportation hazards and conserving resources.
  • Food Processing Enterprises: Develop hygienic food packaging solutions conforming to regulatory standards, shielding edibles from cross-contamination risks.
  • Pharmaceutical Corporations: Fabricate tamper-evident medical packaging to ensure patient safety and comply with strict regulations governing drug dissemination.

FAQ

Where can your AB2500 Custom Corrugated Box Making Machine be utilized?

You can use our machine in several sectors, including fulfillment hubs, parcel service locations, furniture workshops, box-manufacturing facilities, storage spaces, and e-commerce platforms.

Which kinds of boxes can your machine manufacture?

The Anypack on-demand box machine produces 85 distinct FEFCO-standard carton varieties, meeting global standards for box design.

Are there any certificates for your devices?

Our AB2500 Custom Corrugated Box Making Machine carry CE certification, and we welcome assessments from independent entities, including SGS and TÜV Rheinland.
