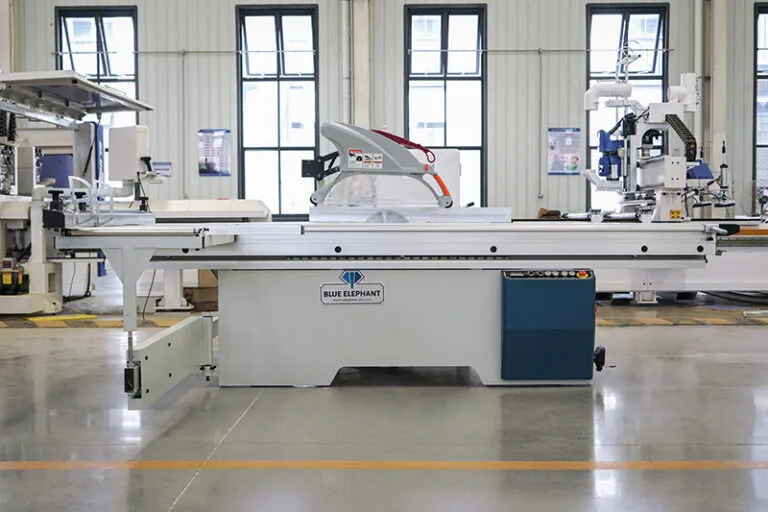

6132YIII Sliding Table Saw for Sale

(4.9 based on 165 ratings and reviews)

$5,000 – $7,000

Brand : Blue Elephant
Model : ELE6132YIII
Machine size : 3200*3150*900 mm
Max.cutting length : 3200mm
Category : Panel Saw Machine
Supply Ability : 400+ Units in Stock
After-sale Service : Free Lifetime Technical Support online, Overseas service.
Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

The 6132YIII sliding table saw is easy to operate, featuring electrically adjustable blade lift and angle adjustment for 90° and 45° bevel cuts. The CE-certified sliding table saw features a sturdy frame and is well-made for stability and safety.

Features

This sliding table saw is equipped with standard European-style protective cover for safe production.
With large and small saw blades, it is capable of high cutting precision.
Standard scale for more accurate measurements.
It is ideal for cutting small panels. Unlike CNC machines, no drawing is required; simply measure the dimensions and cut directly.

Parameters

Model	ELE6132YIII
Overall Dimensions	3200 x 3150 x 900 mm
Sliding Table Size	3200 x 435 mm
Cutting Length	3100 mm
Cutting Width Between Saw Blades	1200 mm
Cutting Height	100 mm
Saw Blade Diameter	300 mm
Scoring Blade Diameter	120 mm
Main Saw Blade Speed	4000/5000 rpm
Scoring Blade Speed	7000 rpm
Saw Spindle Diameter	30 mm
Main Motor	5.5 KW, 3KW(single-phase)
Scoring Saw Motor	1.1 kW
Main Saw Blade Tilt Angle	0°-45°
Voltage	380V,3PH,50HZ

Panel Saw Machine Optional Parts

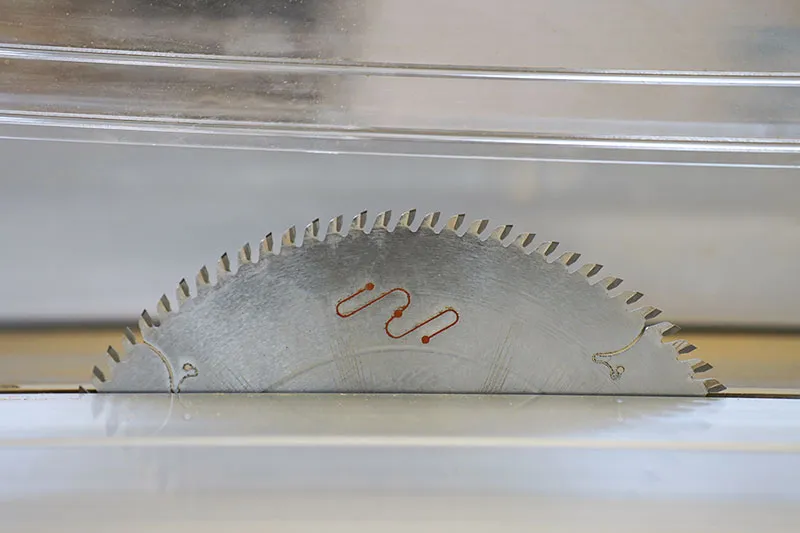

sliding-table-saw-saw-blade

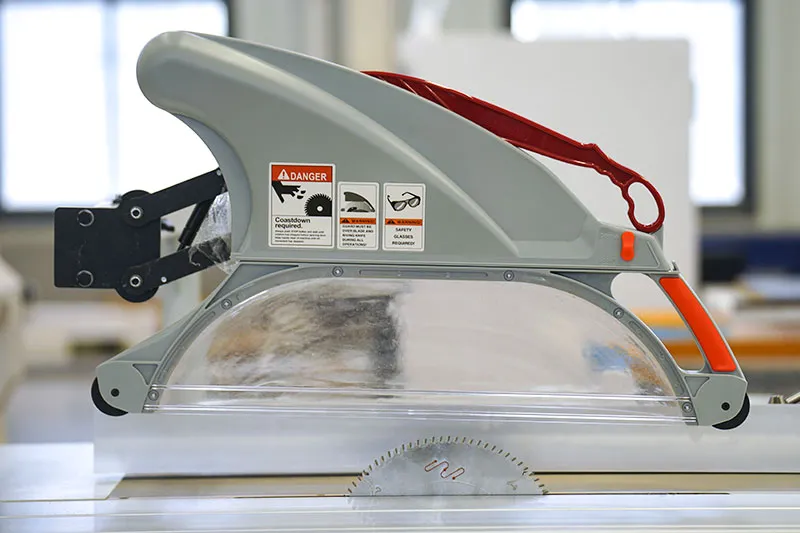

sliding-table-saw-dust-hood

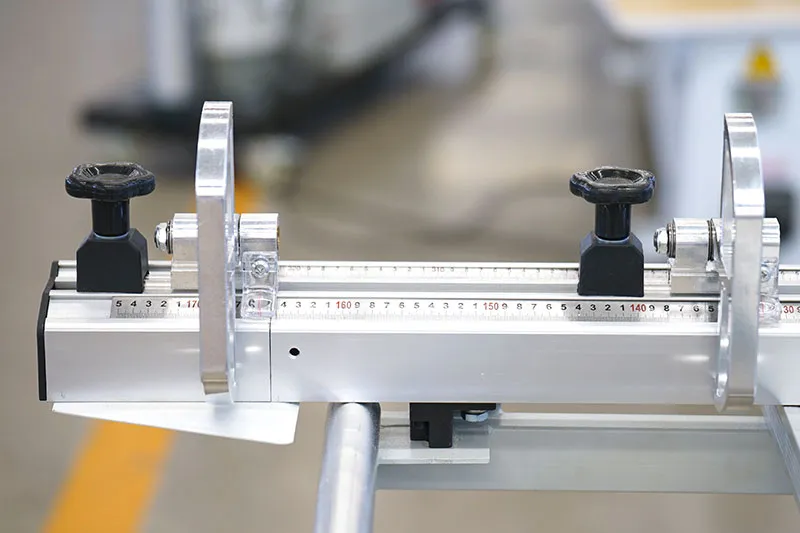

sliding-table-saw-part

sliding-table-saw-ruler

Application

6132YIII sliding table saw is mainly used to cut wooden boards in the woodworking industry. It can cut various types of wood materials, like hardwood, softwood, MDF, particle boards, melamine boards, plywood, etc. Besides cutting, it can also make straight and inclined slots on the wooden boards by adjusting the angle of the saw blade.
