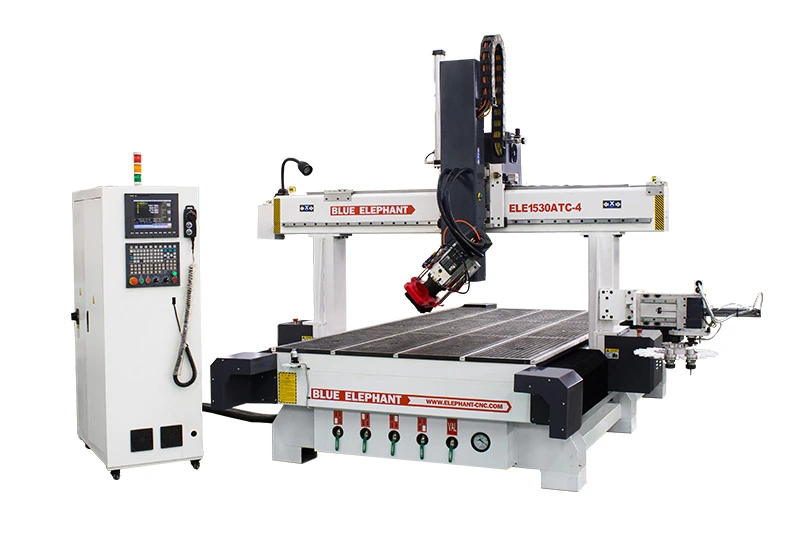

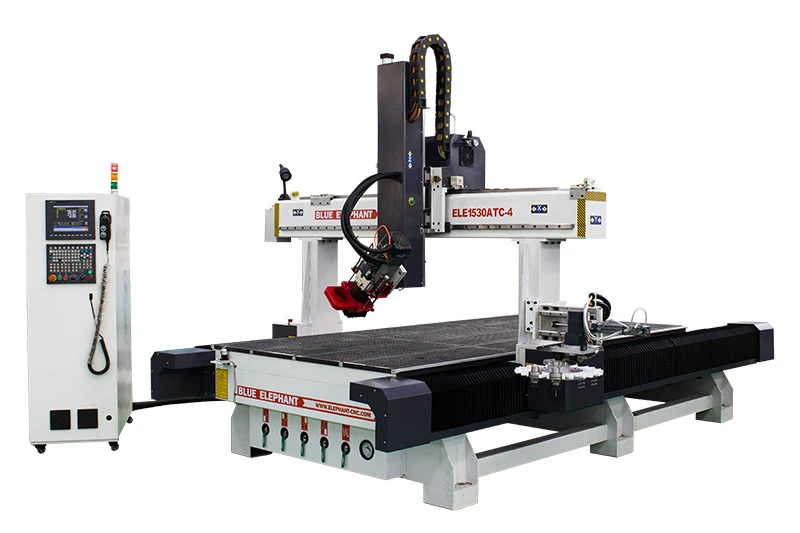

1530ATC-4A 5×10 CNC Router for Sale

(4.9 based on 179 ratings and reviews)

$23,000 – $26,000

Brand : Blue Elephant
Model : ELECNC1530ATC-4A
Standard : CE, ISO9001
Table size : 1500mm*3000mm (5′ x 10′)
Category : ATC CNC Router
Supply Ability : 400+ Units in Stock
After-sale Service : Free lifetime technical support online, overseas service.
Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Warranty : 12-month limited warranty for the entire machine (Extended warranties available for major parts).

Description

1530 4 axis CNC router is suitable for making sofa, doors, cabinet making. With side carousel auto tool magazine, it is fitful for 3D carving and engraving wood furniture. There are also dust covers for rail guide protection. And the vacuum table helps fix materials on the table.

Features

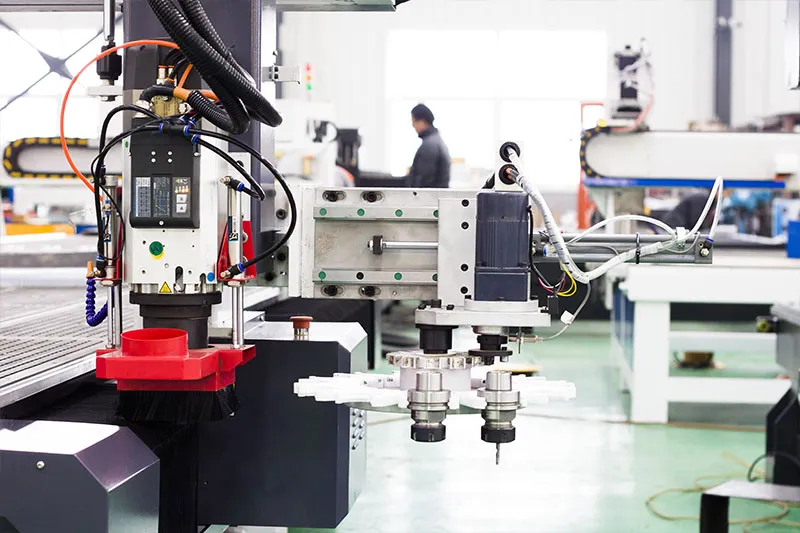

Carousel automatic tool magazine holds multiple tool bits and enables faster tool changing.
Heavy-duty frame and gantry with 8-10mm thickness, Japan YASKAWA servo motor, and rack and pinion transmission ensure stable and precise operation.
Equipped with Taiwan SYNTEC control system with computer panel and Italy HSD 4-axis ATC air-cooled spindle for efficient processing.
High-quality CNC components, ISO30 collet, YASKAWA servo motor, and HSD 4-axis ATC air-cooled spindle ensure reliable performance and long service life.

Parameters

Model	ELECNC1530ATC-4A
X, Y axis travel	15003000mm; Optional: 13002500mm, 21003000mm, 21004000mm, etc.
Z axis travel	600mm; Optional: 500mm, 400mm, etc.
Spindle type	9kw ATC air-cooled spindle, HSK F63, ER32
Inverter type	11kw
4th axis	Cycloidal pin wheel precision reducer with high transmission accuracy and torsional stiffness; swing range: -90° to +90°
Tool magazine	Carousel type automatic tool changer; Optional: Linear type automatic tool changer
Tool holder with collet	HSK F63, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC / LNC controller
Driving system	1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets; Optional: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy-duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table

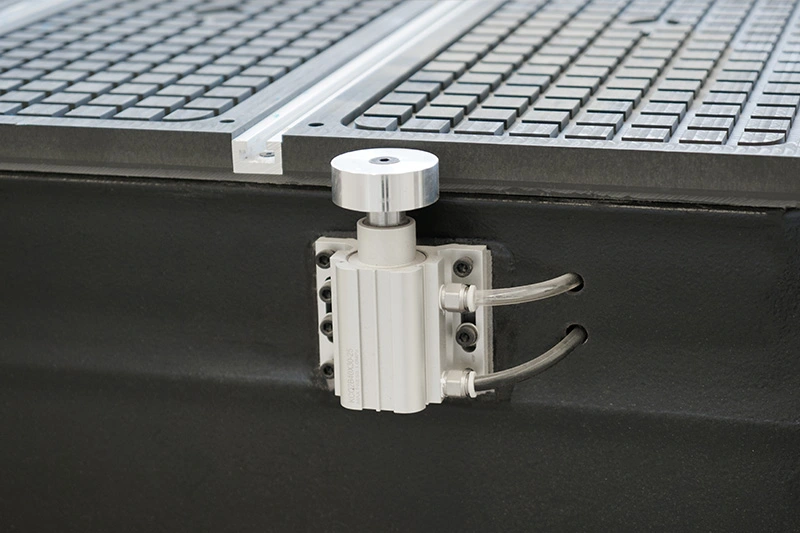

Positioning cylinder	Optional: 7 pieces (X3, Y4)
Linear guide	Taiwan linear guide
Transmission	X, Y axis: Taiwan / Germany helical rack and pinion; Z axis: Taiwan TBI high-precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE and cUL certificates
Compatible software	Powermill, UG, Alphacam, Fusion 360, etc.
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ; 380V 3PH 50HZ/60HZ

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free Tongyou, Taiwan Eurovac, Germany Becker
Dust collection system	3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, and complete set New type
Air compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc.
Rotary device	Industrial-grade rotary device support, diameter 200mm, 300mm

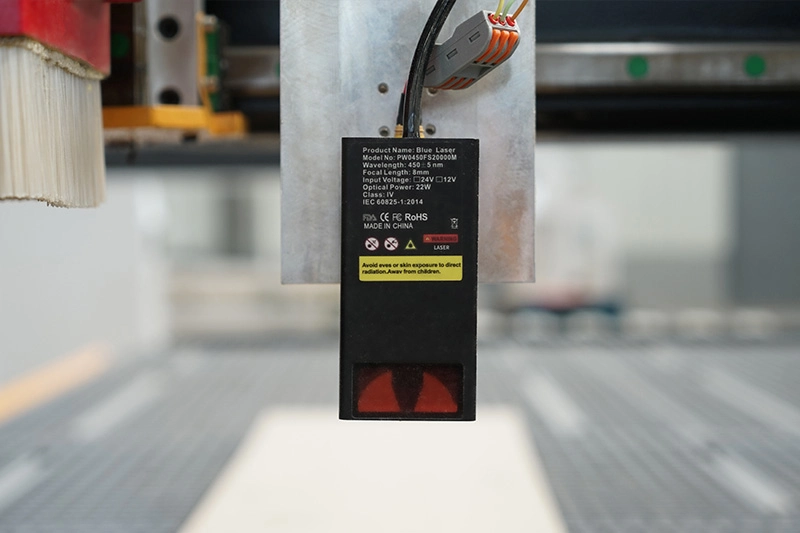

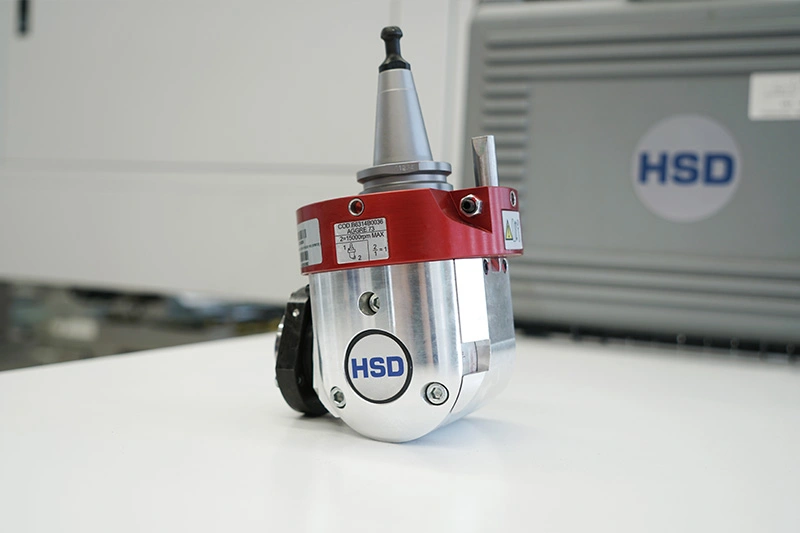

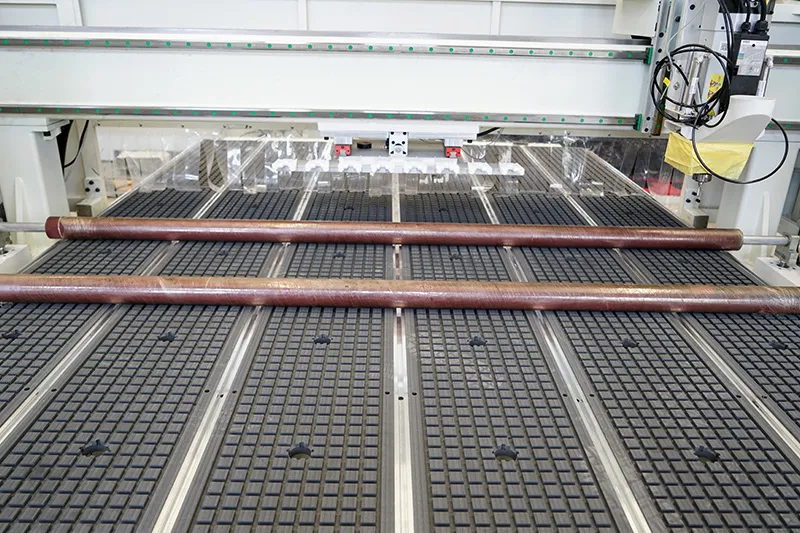

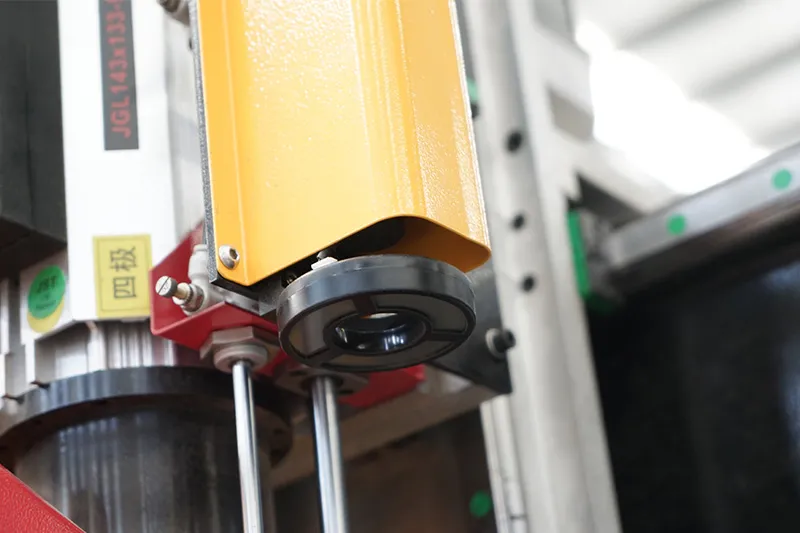

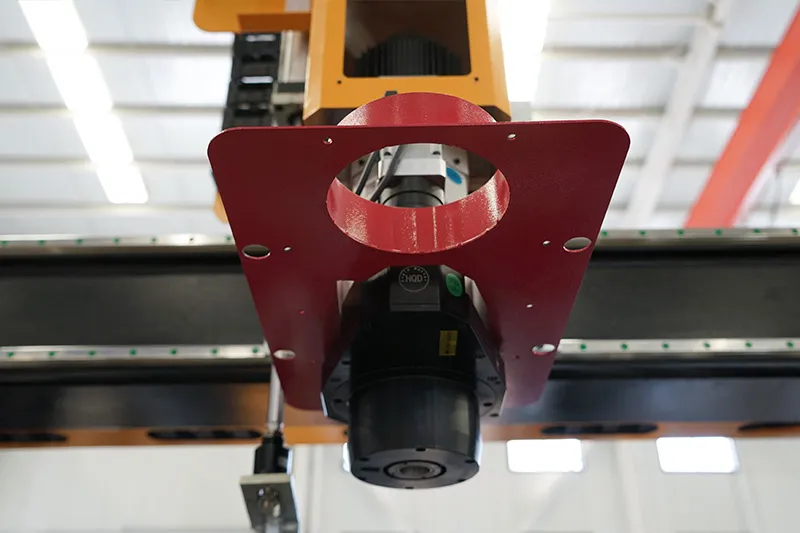

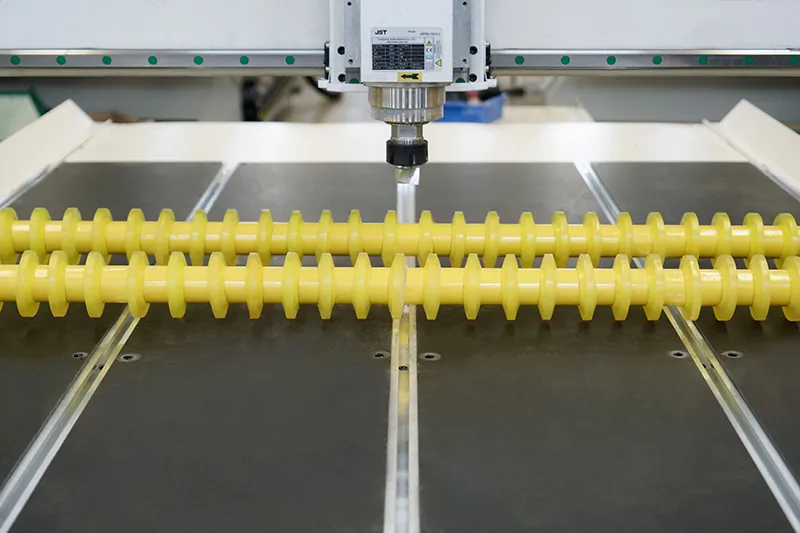

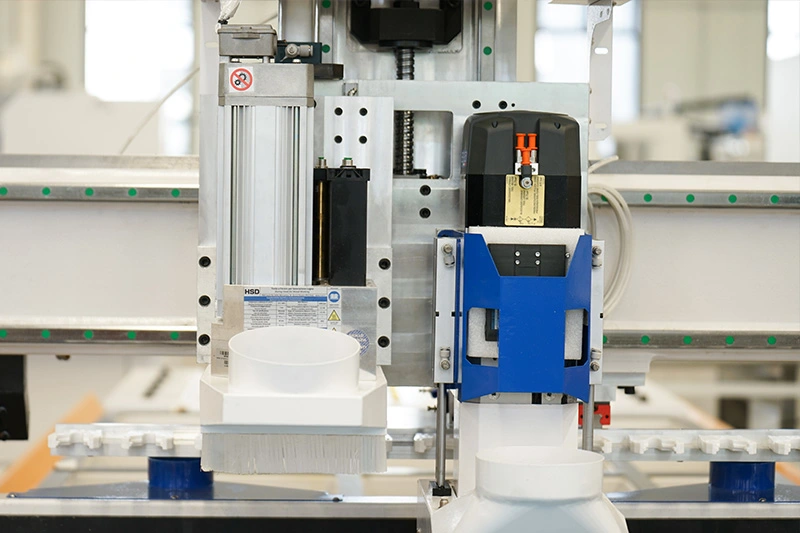

ATC CNC Router Optional Parts

Application

Furniture industry: Various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, nightstands
Decoration industry: Door frames, photo frames, mirror frames, screens, lights, holiday decorations
Craft industry: Artworks, gifts, souvenirs, clock frames, holiday ornaments
Advertising industry: Advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
Other wooden products: Printed circuit boards, insulation materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of lining materials for medical equipment, electronics, and other containers
