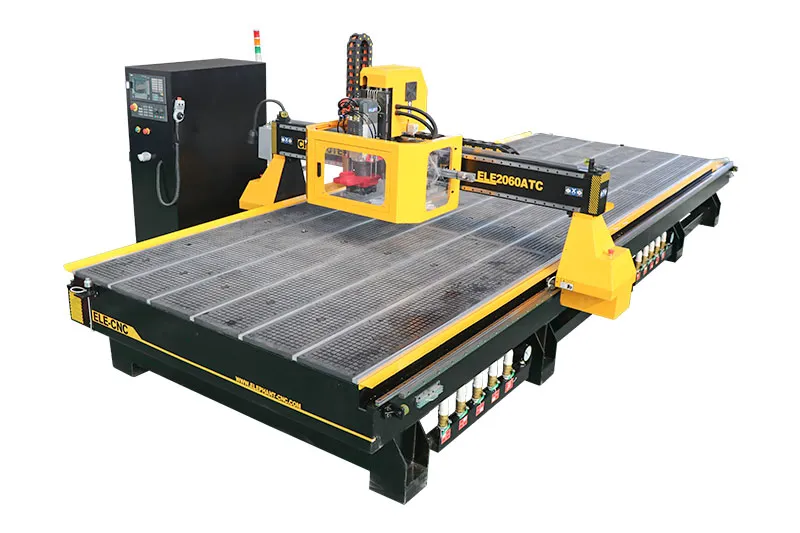

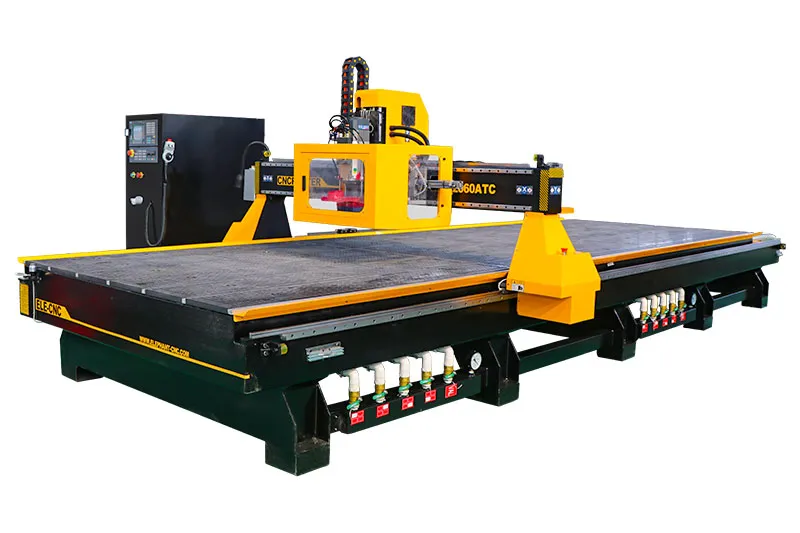

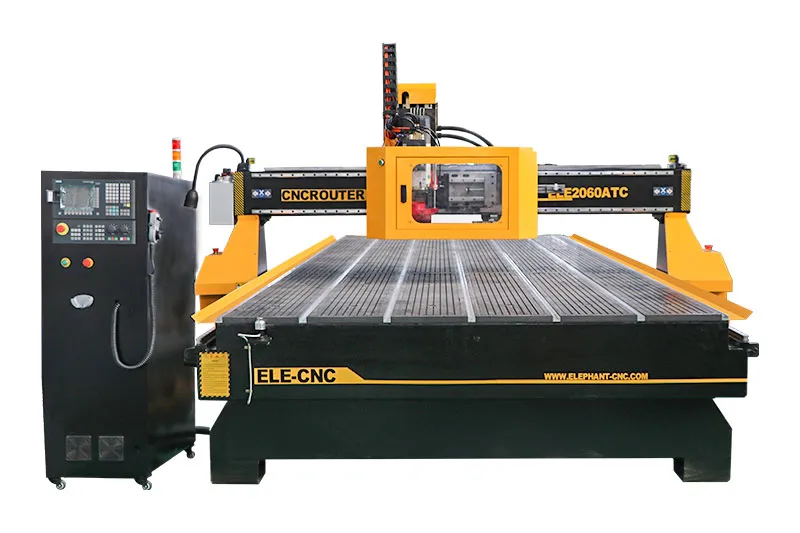

2060 ATC CNC Router Machine for Sale
- Brand: Blue Elephant
- Model: ELECNC-2060
- Standard: CE, ISO9001
- Table size: 2000mm*6000mm
- Category: ATC CNC Router
- Supply Ability: 420+ Units in Stock
- After-sale Service: Free Lifetime Technical Support online, Overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
2060 ATC CNC router machine can change more than 8 sets of tools automatically in the Wood engraving process. It mainly for heavy-duty and automatic woodworking, cause it can greatly save time, fewer people and time needed for machine operation. 3D ATC CNC Wood Router Machine for sale at cost price.
Features
- Equipped with an Italy HSD ATC air-cooled spindle and carousel tool changer for faster tool shifting.
- Global-quality CNC parts ensure stable performance and high finishing quality.
- The rigid vacuum table with grids and T-slots helps securely clamp the workpiece in place.
- The 3-axis woodworking CNC router is suitable for more complex 3D surface processing.
Parameters
| Model | ELECNC2060ATC |
| X,Y axis travel | 2000x6000mm, Option: 1300x2500mm, 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, Option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC / LNC controller, Option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. Option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan #25 Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan/Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc |
ATC CNC Router Optional Parts
Application
Woodworking industry: Processing of three-dimensional wave board, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window, and auxiliary processing of shoe polishers, game machine cabinets and panels, mahjong tables, computer tables and panel furniture. Advertising industry: Advertising signage, logo making, acrylic cutting, plastic molding, and processing of various advertising materials and decorative products. Mold industry: It can engrave copper, aluminum, iron and other metal molds, as well as artificial marble, sand and stone, plastic plates, PVC pipes, wooden boards and other non-metal molds. Craft gift industry: It can carry out a variety of shadow carvings, reliefs, and widely used in crafts industry.
FAQs
For a 3-axis CNC machine, the standard travel of the Z axis is 200mm. If you need, we can customize a higher Z axis for you.
ATC means Automatic Tool Changer. With it, the CNC machine can change bits automatically and greatly improve the working efficiency.
Yes, you can. The machine details can be changed as you wanted. Our factory can design the CNC machine according to your requirements. We will provide you with the most suitable CNC machine.
