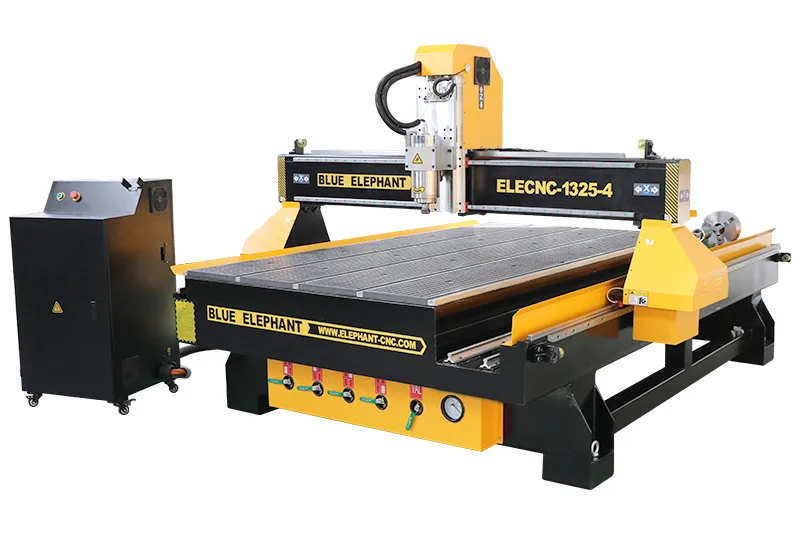

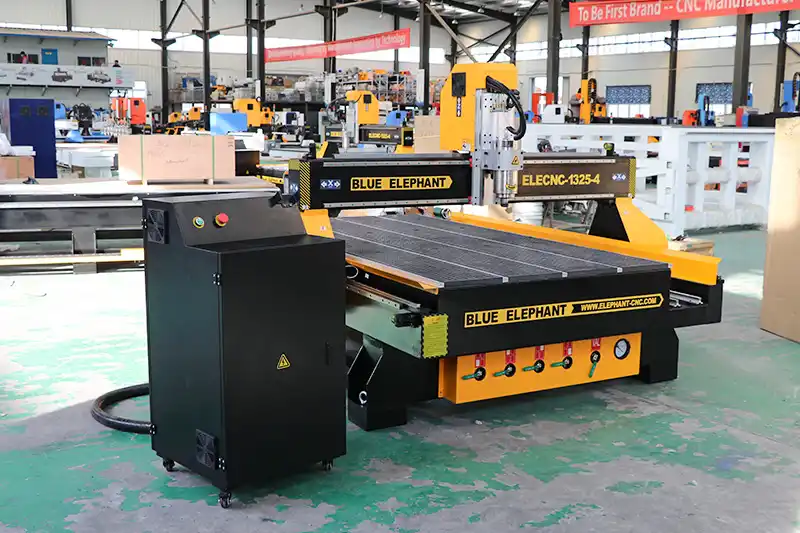

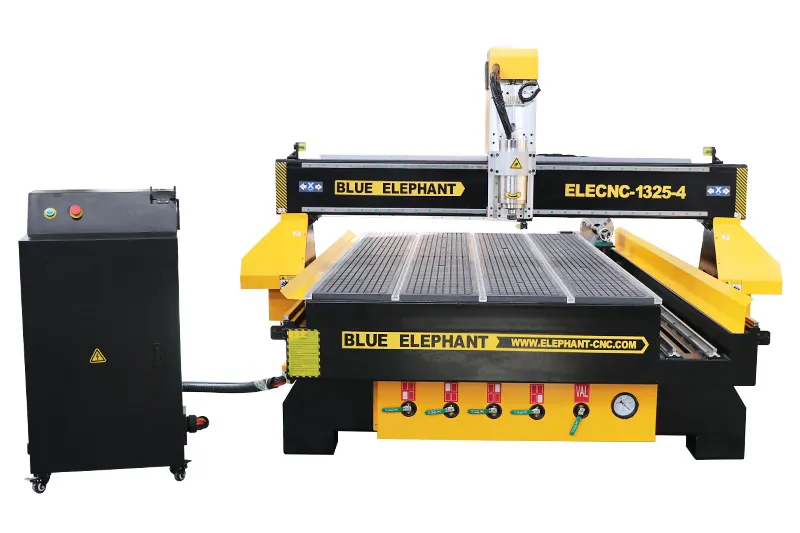

1325 Rotary Axis CNC Wood Carving Machine

(4.9 based on 162 ratings and reviews)

$4,500 – $9,000

Brand : Blue Elephant
Model : ELECNC1325-R
Standard : CE, ISO9001
Table size : 1300mm*2500mm(4′ x 8′)
Category : Rotary Axis CNC Router
Supply Ability : 450+ Units in Stock
After-sale Service : Free Lifetime Technical Support online, Overseas service.
Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

1325 rotary axis CNC wood carving machine is a cost-effective cnc router. This type of rotary axis CNC machine not only can process flat workpieces, but also can process cylindrical workpieces. Therefore, it is deeply loved by customers at home and abroad.

Features

Adopting water cooling spindle, it has the features of high speed and low noise.
New type of square tube heavy bed to ensure smooth operation of the machine.
Designed with 4th axis rotary table, it can realize the processing of plane workpiece and cylinder workpiece.
Adopting high-precision helical rack to ensure more precise machining accuracy and machining quality.

Parameters

Model	ELECNC1325-R
X,Y axis travel	13002500mm, option: 15003000mm; 21003000mm; 2100*4000mm, etc
Z axis travel	200mm, option: 300mm, 400mm, etc
Spindle type	3kw water cooling spindle
Inverter type	3.7kw Fuling inverter

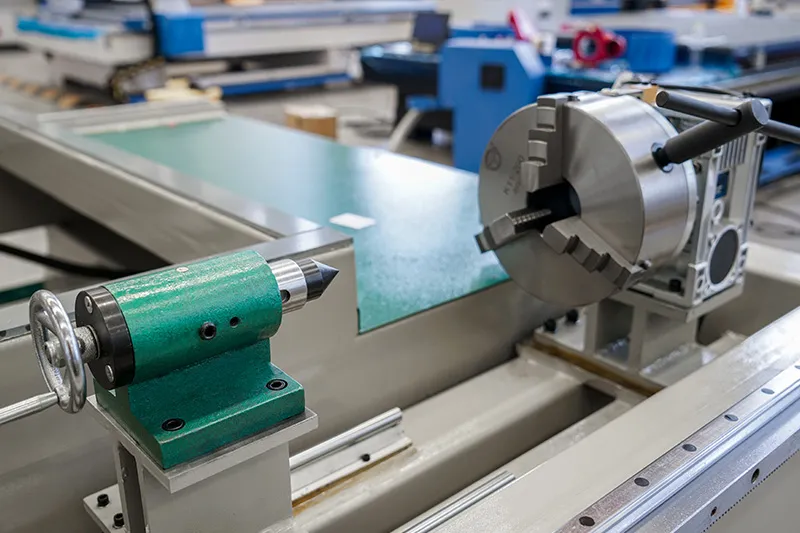

The 4^th axis	Cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree
Control system	DSPB18 controller
Driving system	FL118 motor and Leadshine driver
Machine structure	Heavy duty body with quenching treatment
Work table	Slot & vacuum work table
Linear guide	Taiwan Linear guide
Transmission	X, Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	Automatic lubrication system
Tool calibration	Manual tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam /Aspire, etc
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free: Tongyou,Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type
Air compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc

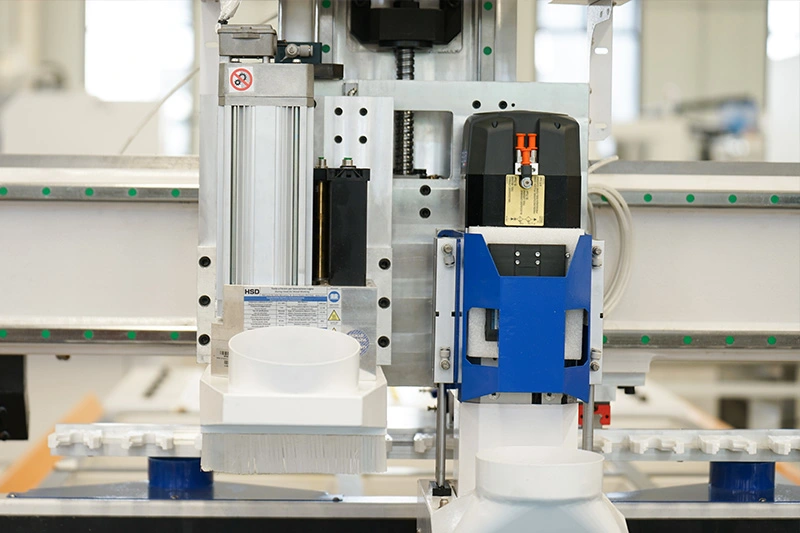

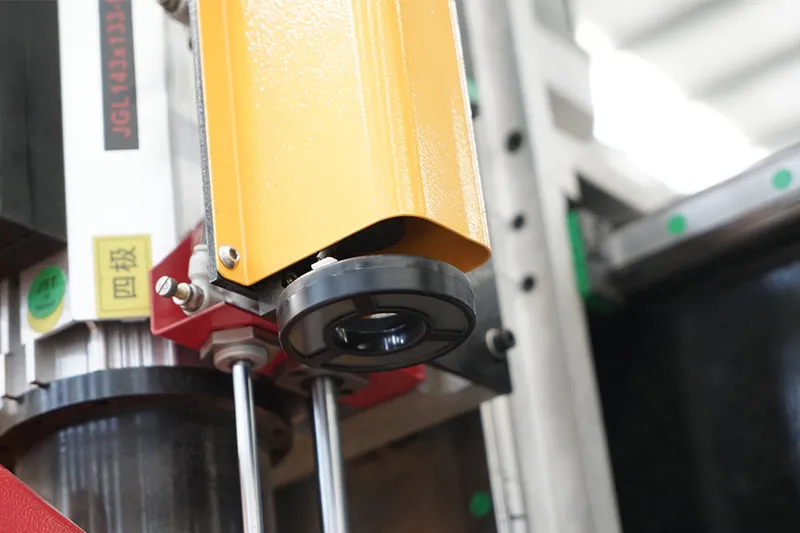

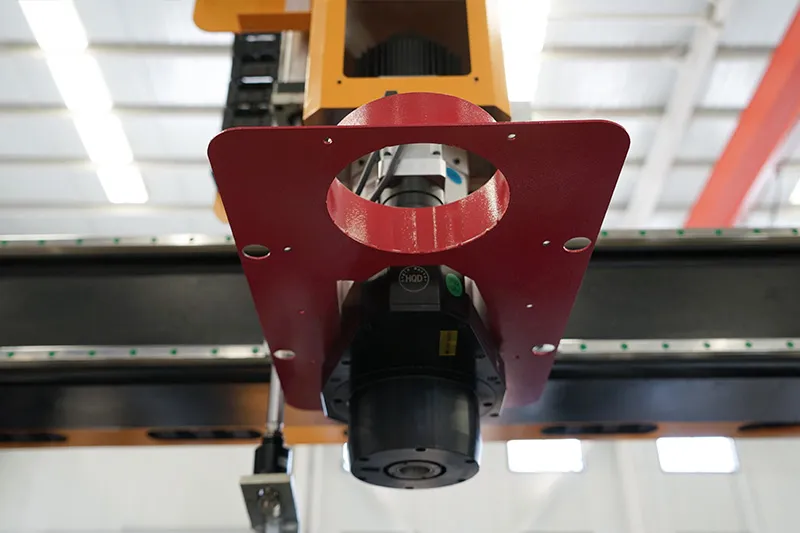

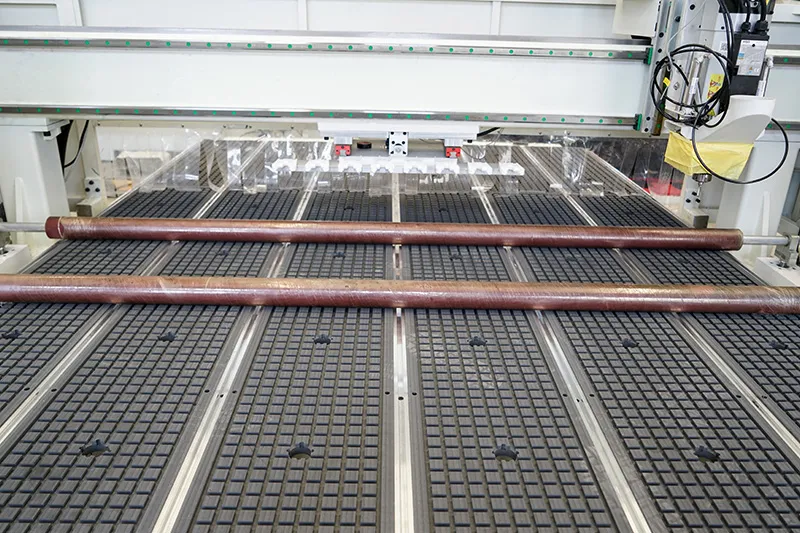

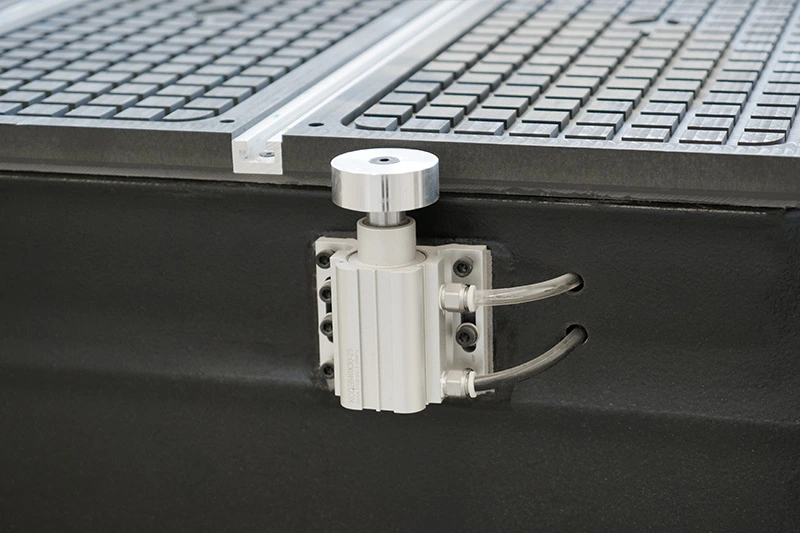

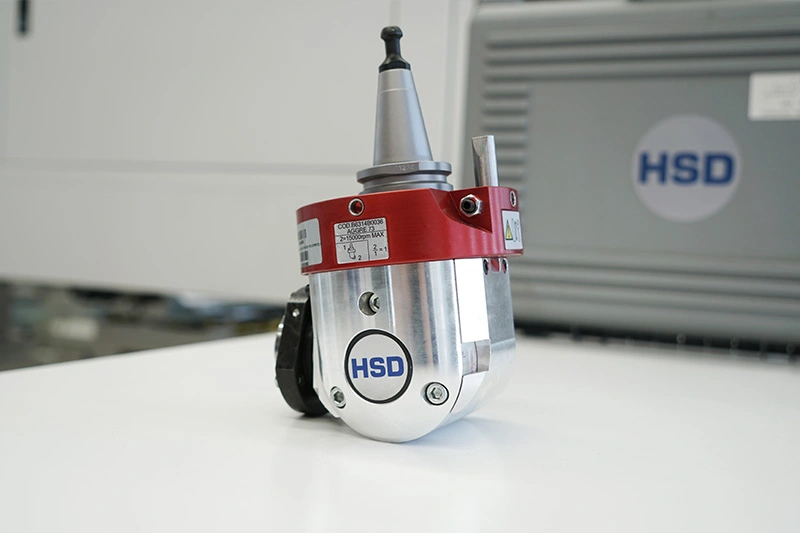

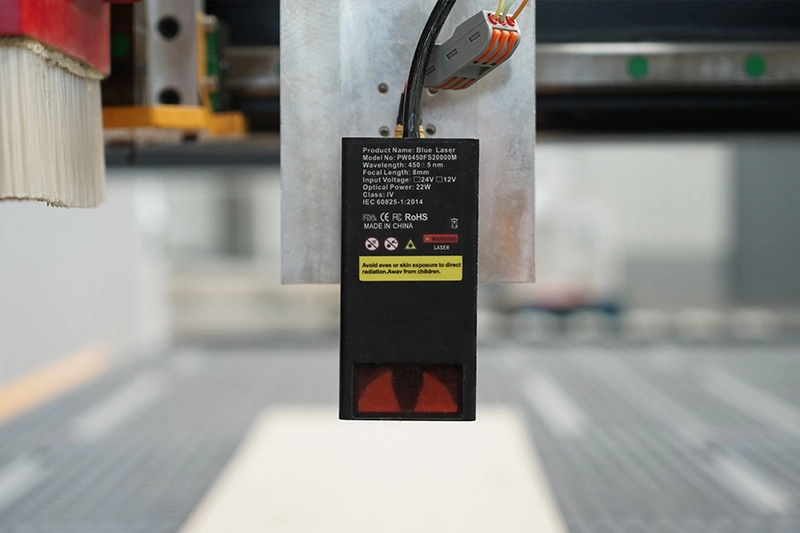

Rotary Axis CNC Router Optional Parts

Application

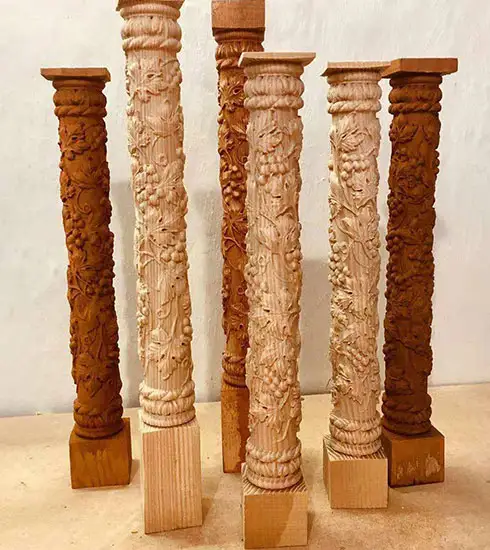

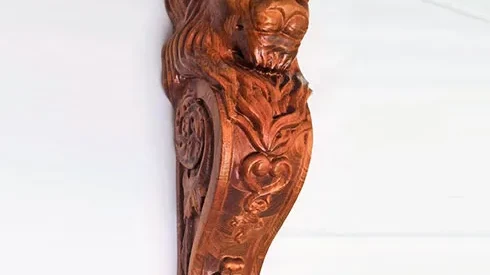

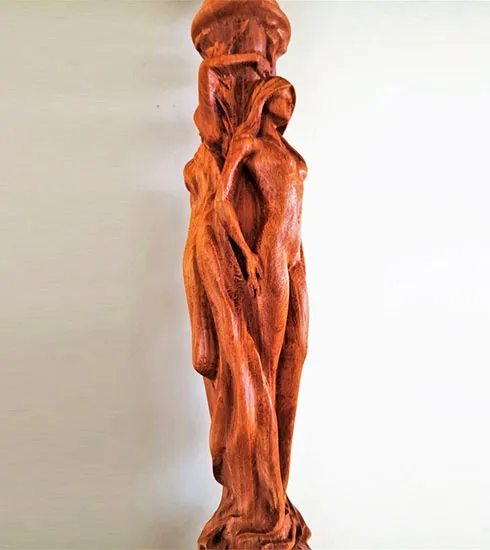

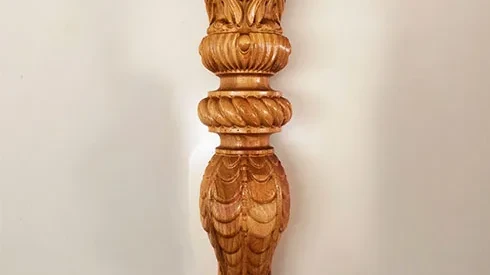

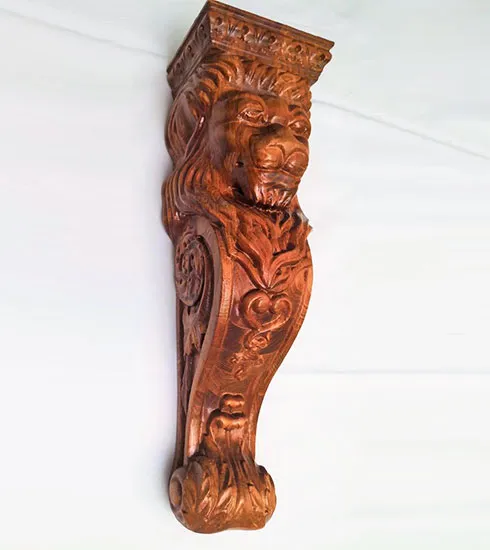

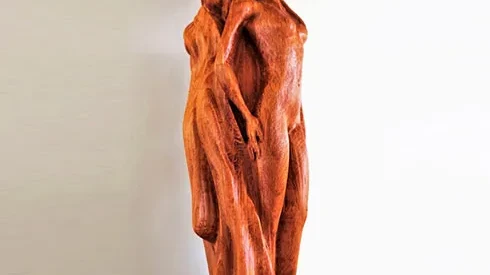

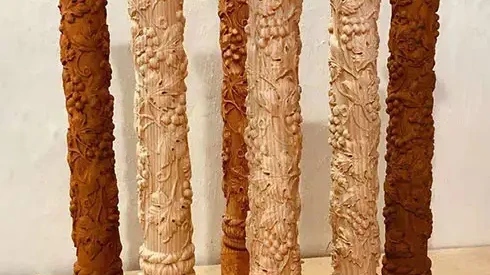

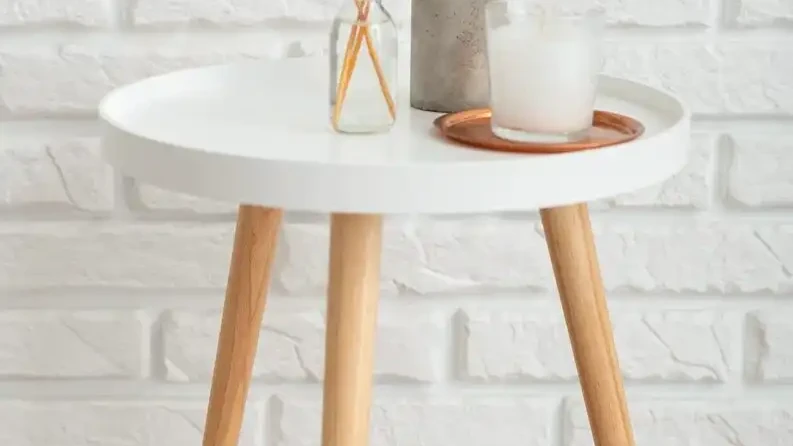

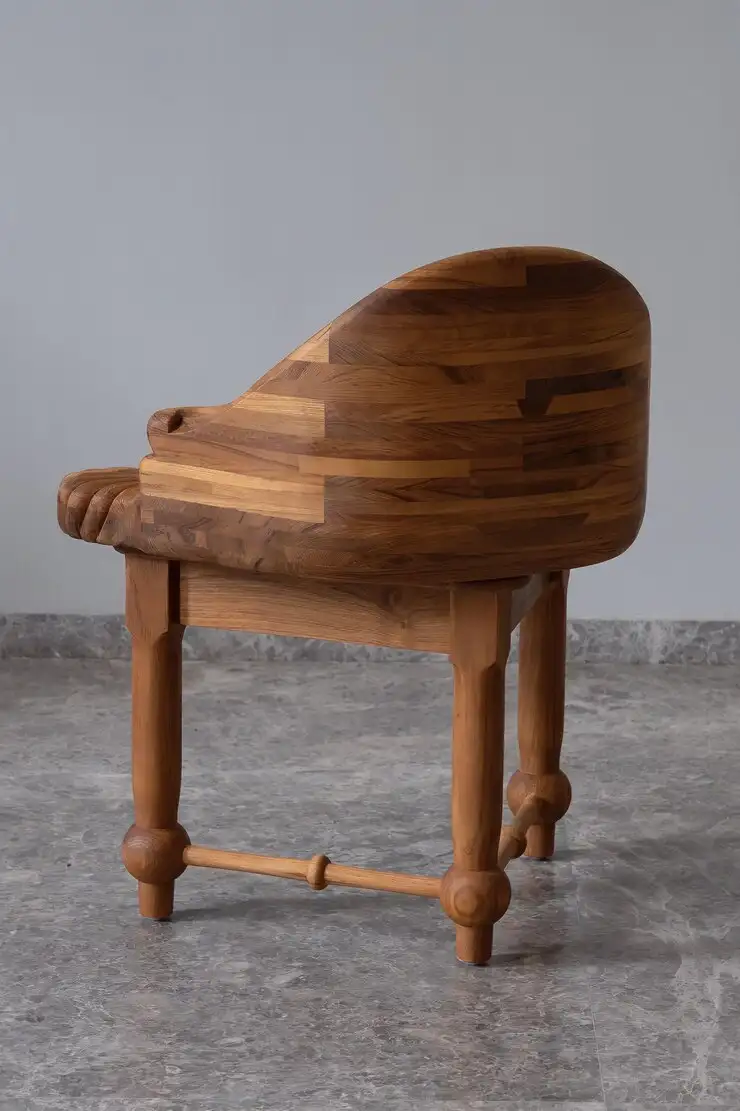

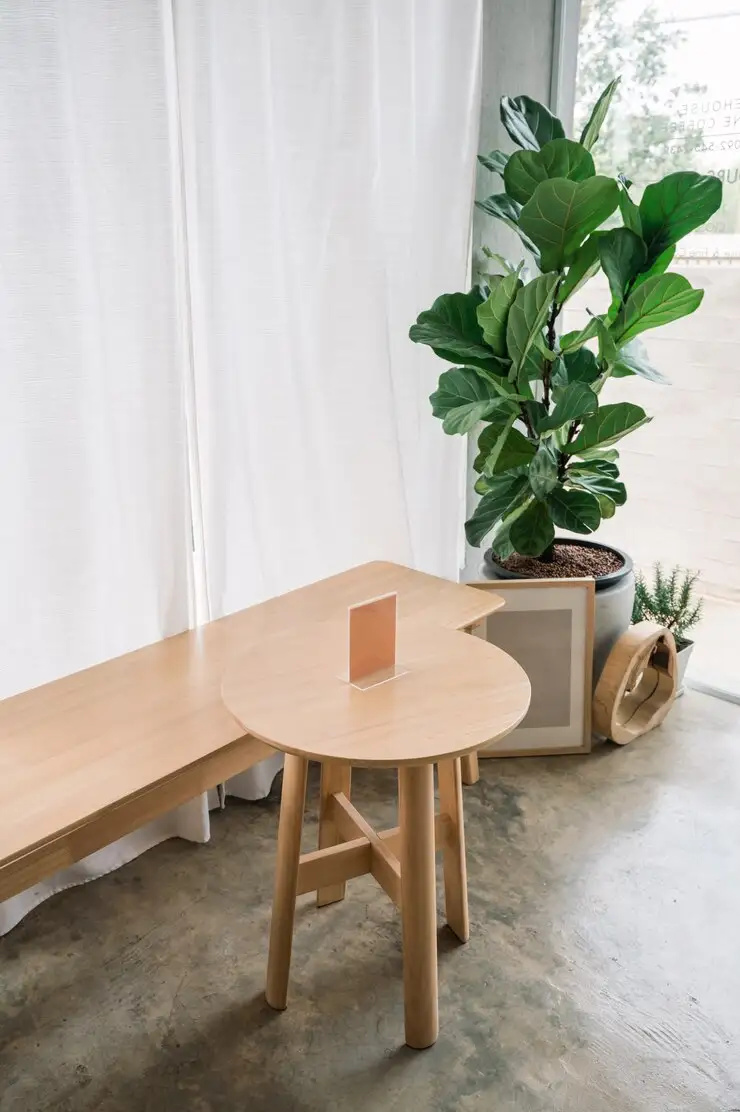

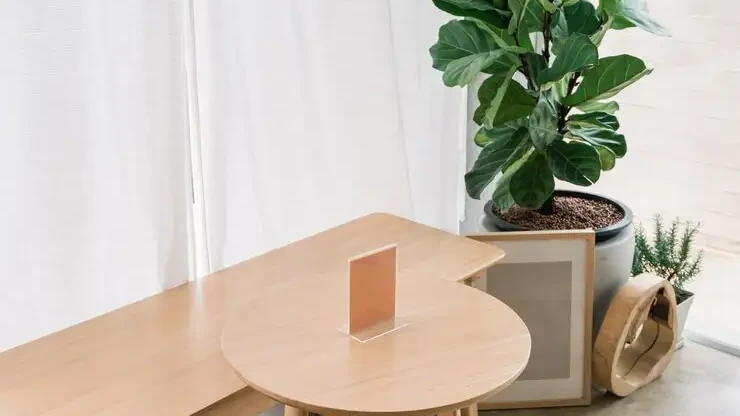

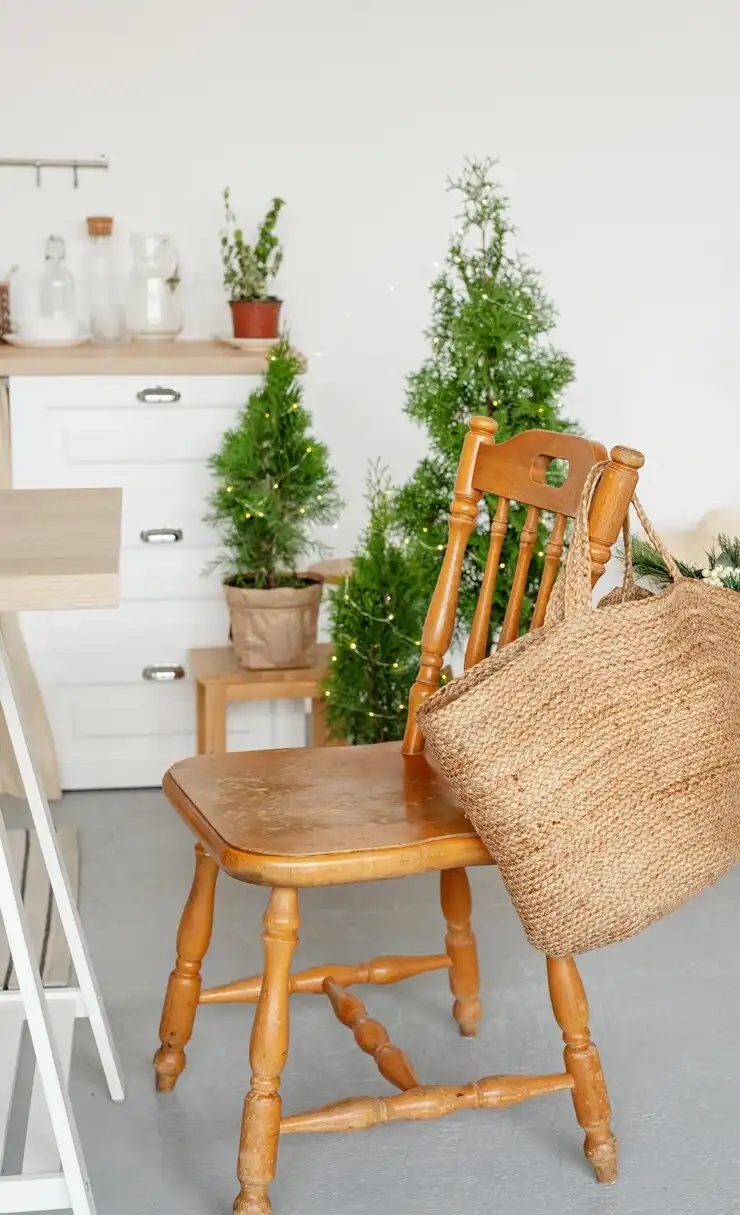

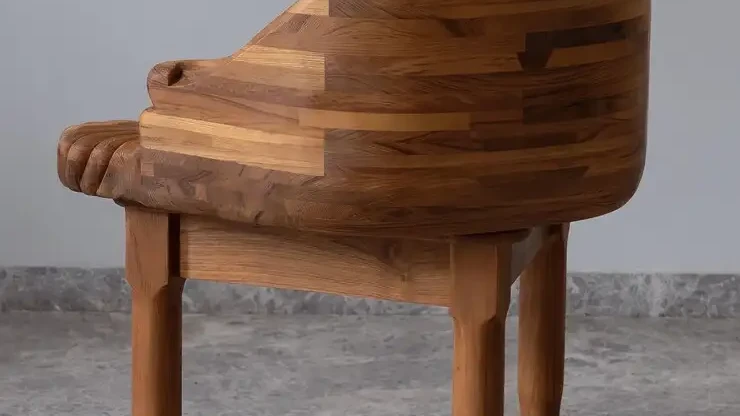

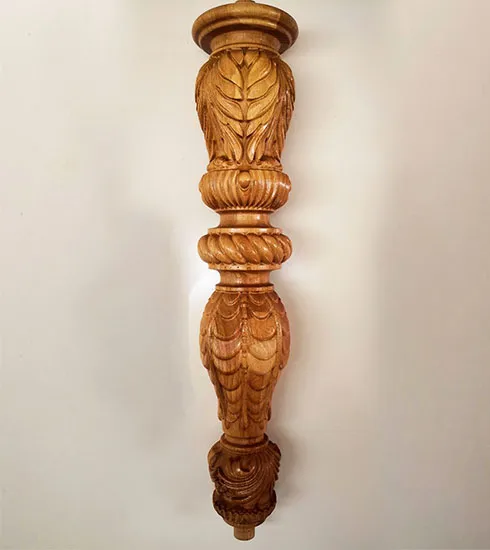

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
