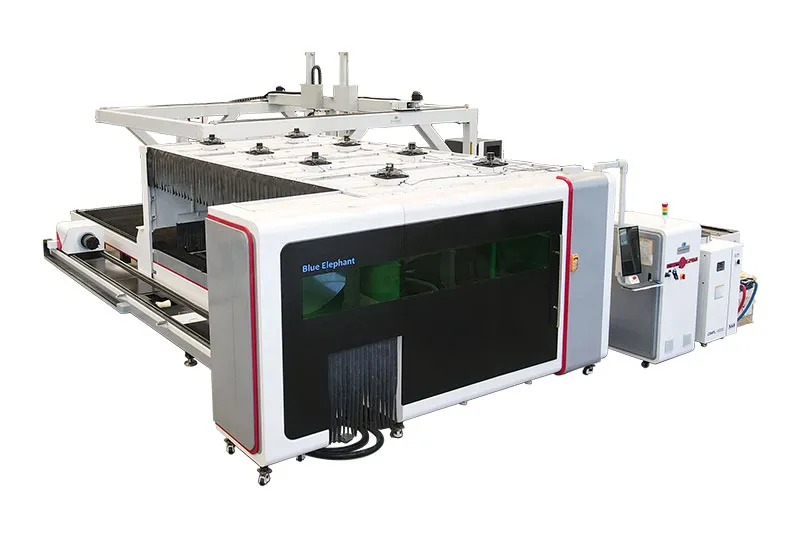

Half Enclosure Sheet and Tube Fiber Laser Cutting Machine
- Brand : Blue Elephant
- Model : 2040SP6T220
- Standard : CE, ISO9001
- Laser Power : 6kW
- Category : Fiber Laser Cutting Machine
- Supply Ability : 450+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
Half Enclosure Sheet and Tube Fiber Laser Cutting Machine adopts a half enclosed protective cover.It is stable, efficient and high-precision.The loading and unloading equipment greatly improved work efficiency.
Features
- The high-strength carbon steel plate welded machine bed is more stable and solid, the overall mechanical structure of the machine has small deformation, small vibration, strong structural rigidity, and ensures cutting accuracy.

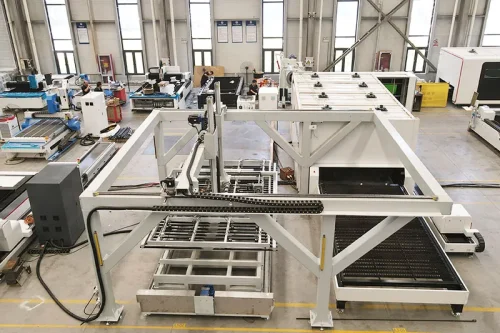

- The production process realizes fully automatic loading and unloading, saving time and effort. It is equipped with raw material and finished product trays, meeting all large, medium and small plate cutting requirements, and has complete functions, which is popular among customers.
- Aviation-grade aluminum is corrosion-resistant, highly rigid, and lightweight, which ensures the high-speed operation of the laser machine. At the same time, the material is resistant to distortion, tilting, and deformation, ensuring the stability and accuracy of cutting.
Parameters
| Automatic Loading and Unloading Integrated Half Enclosure Sheet and Tube Fiber Laser Cutting Machine | |||
| Rated load | kg | 1000 | |
| X axis travel | mm | 5000 | |
| Z axis travel | mm | 1500 | |
| Max.size of the load material | mm*mm | 2000*4000 | |
| Min.size of the load material | mm*mm | 500*500 | |
| Max. thickness of single board | mm | 16 | |
| Min. thickness of single board | mm | 0.5 | |
| Air supply pressure | MPa | 0.55 | |
| Max. running speed | M/min | 20 | |
| Total machine size | Length | mm | 9000 |
| Width | mm | 6000 | |
| Height | mm | 4200 | |
| Total machine weight | Kg | 4000 | |
Fiber Laser Cutting Machine Optional Parts
Application
The application industries of large-format and high-power fiber laser cutting machines include:
Metal Fabrication and Manufacturing
It is widely used for cutting and processing metal materials such as steel, aluminum, copper, stainless steel, etc. This includes industries such as automotive manufacturing, aerospace, defense manufacturing, and metal component manufacturing.
Electronics Manufacturing
Laser cutting machines are used for cutting electronic components, circuit boards, plastic casings, etc., meeting the high-precision requirements of electronic products.
Stage Arts and Set Construction
Laser cutting technology is utilized in theaters, film production, and exhibition construction to create stage sets, decorations, and special effects.
FAQ
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
We have online teaching videos of machine operations and controller. And our engineer is good at English, so he can teach you online.
