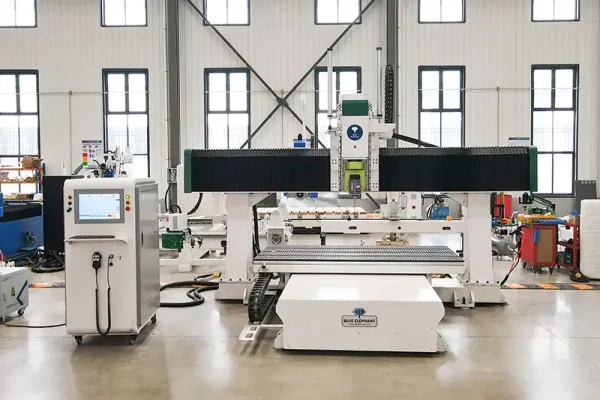

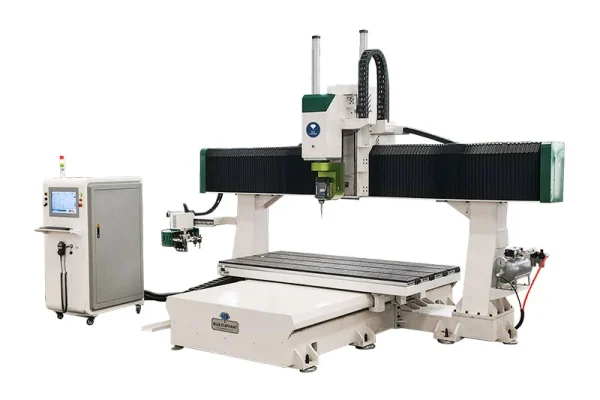

EW1 1325 5 Axis CNC Router Machine
- Brand : Blue Elephant
- Model : ELE1325ATC-5
- Standard : CE, ISO9001
- Table size : 1300mm*2500mm
- Category : 5 Axis CNC Router
- Supply Ability : 450+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
EW1 1325 5 axis CNC router machine is added with a protective cover, carousel ATC magazine and T slot & vacuum table. Therefore, it is widely used in aerospace, automotive, mold manufacturing, artwork manufacturing, medical equipment and other fields. It can realize more complex and precise parts processing. So it is an ideal machine for improving production efficiency and product quality.
Features
- The T slot & vacuum table has stronger adsorption capacity and is easier to fix the material.

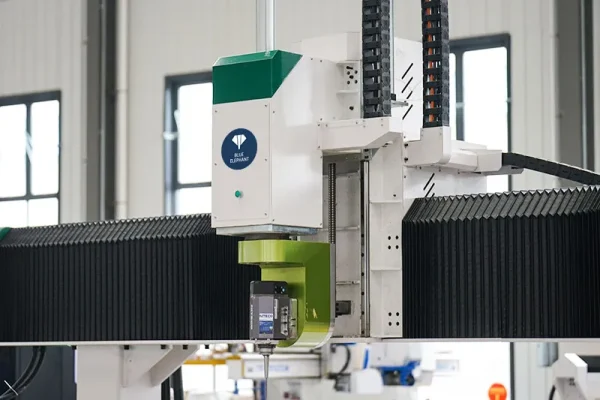

- The metal sheet cover on the Z axis is both beautiful and dustproof.

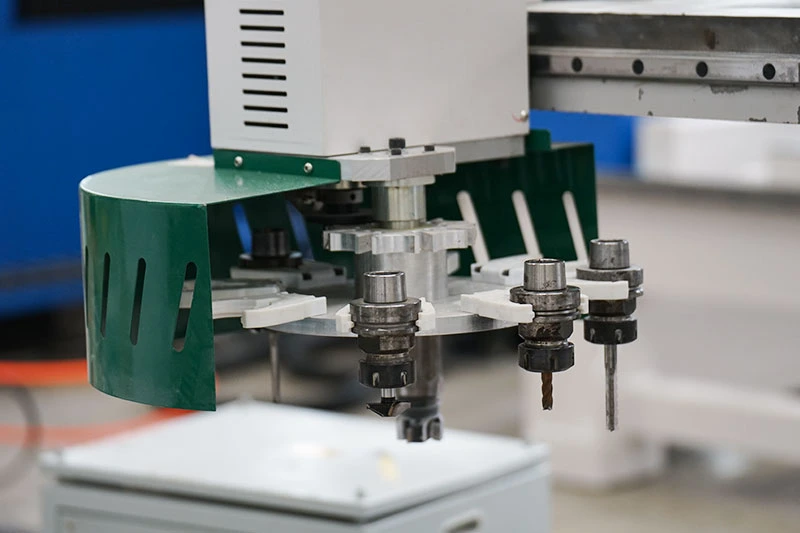

- 8-tool carousel magazine can automatically change tools to realize more complex works.

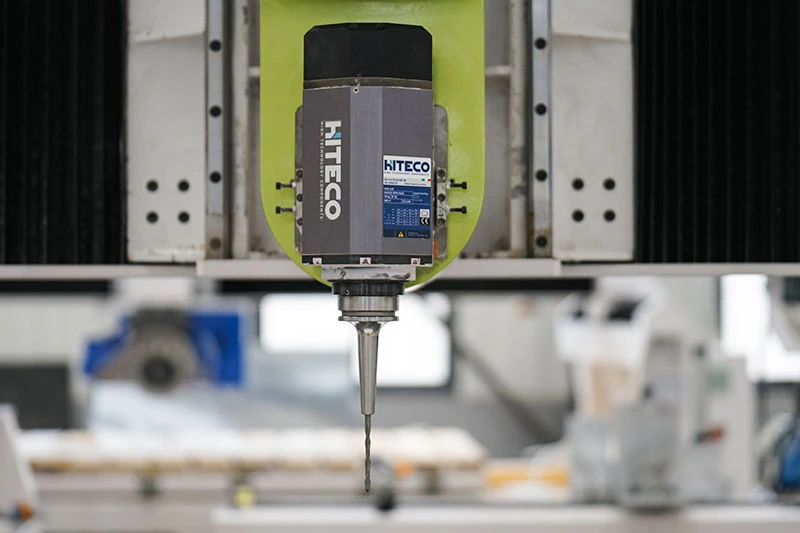

- The 11kw liquid cooling spindle can rotate for fast 3d engraving.
- All accessories are from international first-line brands, ensuring the processing accuracy and quality.
Parameters
| Model | ELE1325ATC-5 EW1 |
| Five-axis travel | 1300*2500*500mm |
| Number of tool magazines | 8 pcs magazine |
| Tool magazine type | Beam end disc |
| Tool handle specifications | F63 |
| Voltage/frequency | 220V/3PH/6OHZ |
| Control system | Syntec 610 5 axis control system with RTCP functions |
| Spindle power/speed | LX500 5 Axis Head＋Italy Hiteco 11KW liquid cooling spindle 24000rpm |
| Inverter | Delta 15KW inverter |
| Drives and motors | YASKAWA Servo motors Y:1.8KW X Z:1.3KW |
| Bed structure | EW1 moving table |
| X axis reducer | Shimpo reducer |
| Table structure | T-slot & Vacuum working table |
| Transmission | Y: Taiwan TBI screw 4040 Z: Taiwan TBI screw 3210 |
| Chassis | Rittal |
| Linear guide | Taiwan SHAC 30mm |
| X rack | Taiwan JT 2M |
| Lubrication system | 1.5L automatic lubrication |
| Vacuum pump | Ribake 7.5KW double vortex pump 220V/3PH/60HZ |
| Chiller | Taiwan TEYU chiller CW5300BI 220V/1PH/60HZ |
| Tool setting | Automatic tool setting |
5 Axis CNC Router Machine Optional Parts
Application
The five-axis CNC machining center is a high-precision, high-efficiency CNC machining tool with the ability to process simultaneously in multiple axes. It can process workpieces in different angles and directions, so as to achieve more complex part processing and higher processing accuracy. Such as complex surface processing, multi-angle hole processing, complex three-dimensional parts processing, high-precision parts processing, etc.
FAQ
Precision machining of five-sided three-dimensional sculptures, models and complex geometric surfaces.
The key to distinguish 5 axis CNC router is whether the machine tool has the RTCP function.
The five-axis engraving machine refers to the addition of two devices that can rotate around a linear coordinate axis on the basis of three-axis linkage.
