ET6 ATC CNC 6-Sided Drilling Machine with Single Drill Unit and Four Milling Heads
- Brand : Blue Elephant
- Model : ET6
- Power : 5.5kw
- Drilling heads : Single
- Category : CNC Drilling Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description

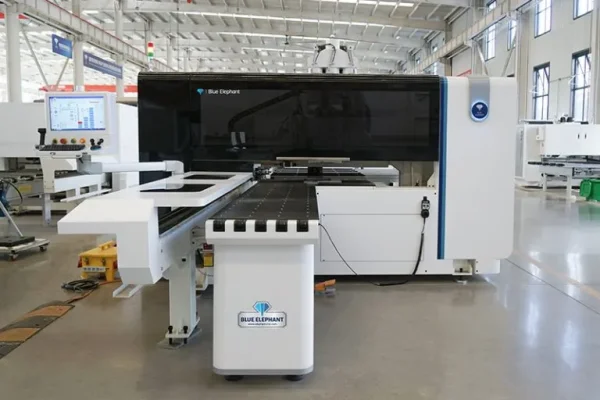

ET6 ATC CNC 6-Sided Drilling Machine is a high-end, fully automatic solution for panel furniture production. With wireless code scanning, intelligent sorting, automatic positioning, and automatic loading, it completes six-sided drilling and front–back slotting in a single process. Equipped with an ATC system, it supports fast, automatic tool changes, improving efficiency, accuracy, and overall machining flexibility.
Features

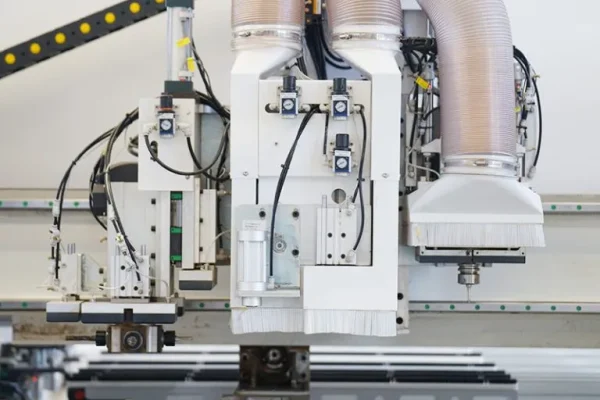

- The six side drilling machine is equipped with an advanced skin-breaking function, ensuring smoother drilling and maximizing panel yield rates.
- Its dual-drive design significantly boosts drilling and slotting speed, resulting in higher overall production efficiency.
- A high-end air-floating table ensures greater stability and improved machining accuracy.
- The CNC drill automatically optimizes board orientation to achieve efficient front-and-back unloading.
- It also supports side milling with a right-angle head, enabling two-in-one connector processing and top-bottom hinge drilling.
Parameters
|
Model |
ET6 |
|
Panel dimensions |
Width: 50-1200mm Length: 250-2800mm Thickness: 12-45mm |
|
Working voltage |
380V, 3ph, 50hz |
|
Control system |
Blue Elephant Custom System, with handwheel |
|
Spindle power/speed |
2*3.5 kW HQD air-cooling spindle, 18,000 RPM 5.5 kW CC ATC spindle, 18,000 RPM 2.5 kW CC four-head milling spindle, 6,000 / 9,000 RPM |
|
Inverter |
Fuling |
|
Driver system |
Absolute servo motor |
|
Reducer |
Shimpo |
|
Table structure |
Air-floating table |
|
Guide rail |
Taiwan |
|
Rack |
JT rack |
|
Lubrication system |
Automatic lubrication |
|
Fan |
1.6kw standard configuration |
|
Tool setting |
Automatic tool setting |
Six Sided CNC Drilling Machine Optional Parts
Six Sided CNC Drilling Machine Application
The six-sided CNC drilling machine is a high-end CNC solution designed for precise drilling of wooden panels. Featuring six-directional drilling capabilities, it can perform six-sided drilling in a single setup without the need to flip the panels. This machine is widely used in the production of wooden furniture, including cabinets, doors, office furniture, and more.
Six Sided CNC Drilling Machine FAQ
Blue elephant custom system, and it is easy to operate.
It can realize the drilling work on six sides of a wooden panel. It is very popular in cabinet and panel furniture industry.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
