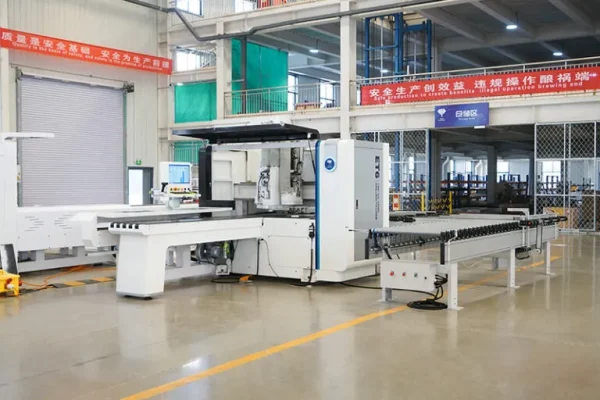

ET6 6 Sided CNC Drilling Machine with a Return Table
- Brand : Blue Elephant
- Model : ET6
- Power : 5.5kw
- Drilling heads : Double
- Category : CNC Drilling Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
ET6 6 sided CNC drilling machine with a return table has wireless code scanning and automatic sorting functions. At the same time, the cnc drill automatically positions and loads materials, achieving one-time six-sided processing, front and rear groove processing. It has high processing efficiency and high degree of automation, suitable for industrialized production of panel furniture
Features
- With an original skin breaking function, the 6 sided CNC drilling machine can achieve smoother punching and maximize the yield rate of the plate.

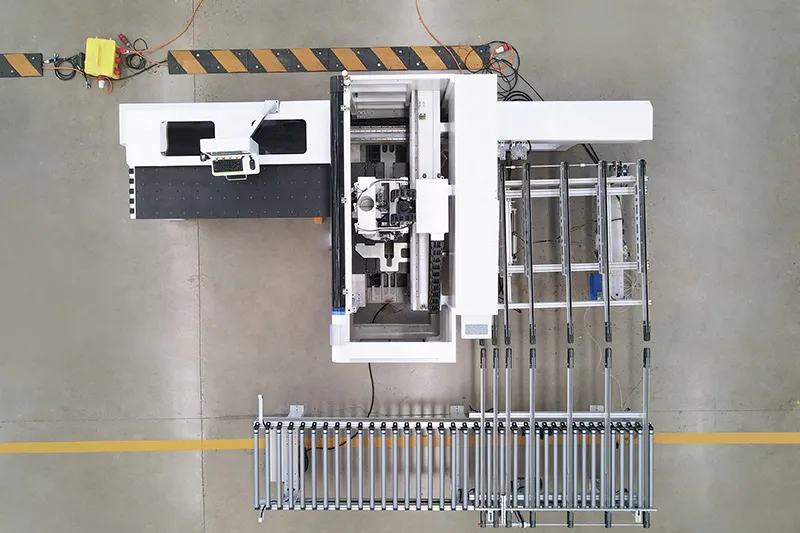

- It adds a return table . Only one worker is needed to load and unload materials, the operation is simple and fast, saving worker costs.
- It can automatically optimize and adjust the direction of the plate to achieve front and back discharge.
- Air-floating worktable is adopted to achieve precise processing.
- Dual drive can greatly improve the slotting and punching speed.
Parameters
| Model | ET6 |
| Working size: | 1300x2500mm |
| Spindle type | 2*3.5KW HQD |
| Number of tools | 12 Vertical top drilling+8 horizontal drilling +9 bottom vertical drilling |
| Control system | Blue Elephant Custom System |
| Driver system | Absolute servo motor |
| Rack | JT rack |
| X axis travel speed | 120m/min |
| Y axis travel speed | 80m/min |
| Re-positioning accuracy | ±0.03mm |
| Software | Blue Elephant Custom System |
| Working voltage | 220V /380V/ 50-60HZ |
| Machine overall size | 5832*2727*2367mm |
| Table structure | Air floating table |
| Guide rail | Taiwan guide rail |
| Lubrication system | Automatic lubrication |
| Reducer | Shimpo |
| Inverter | Hpmont |

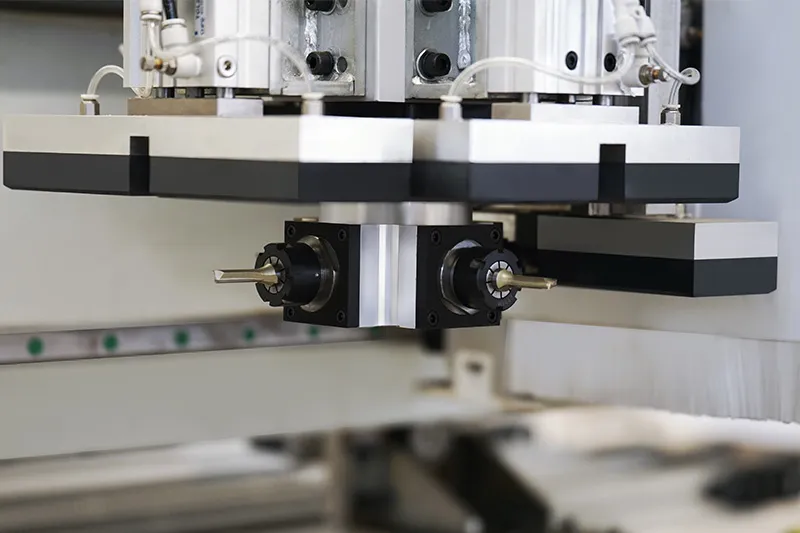

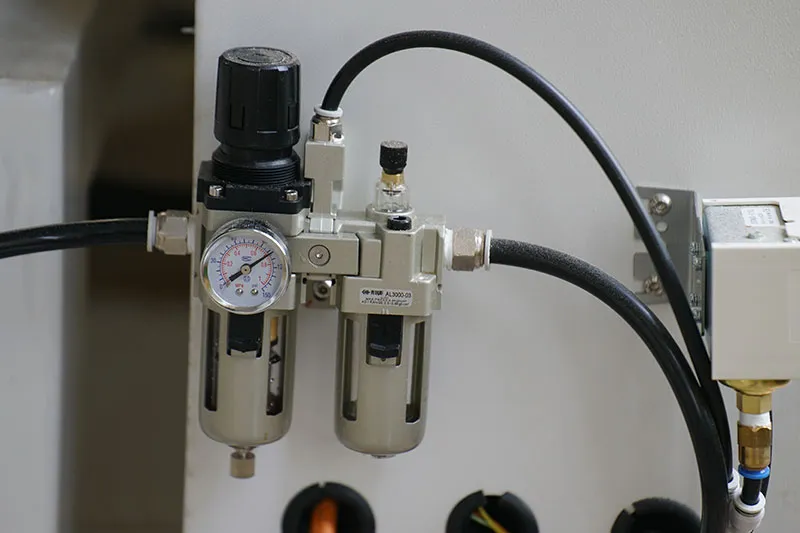

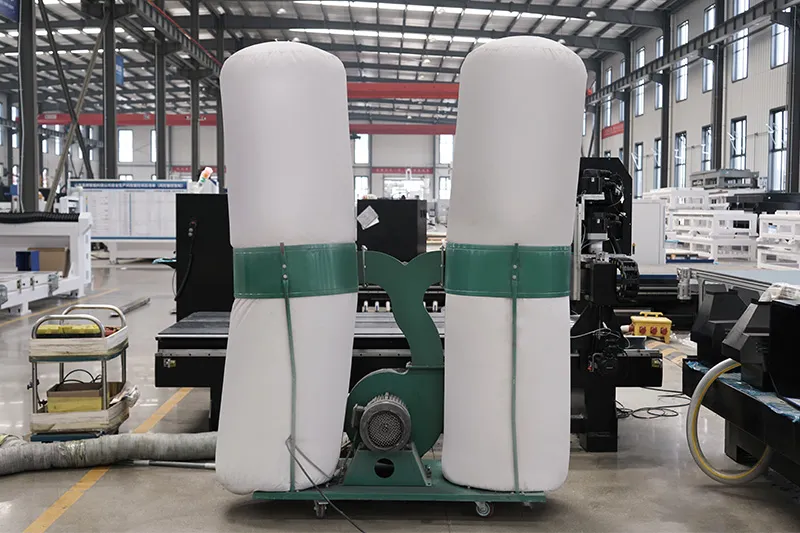

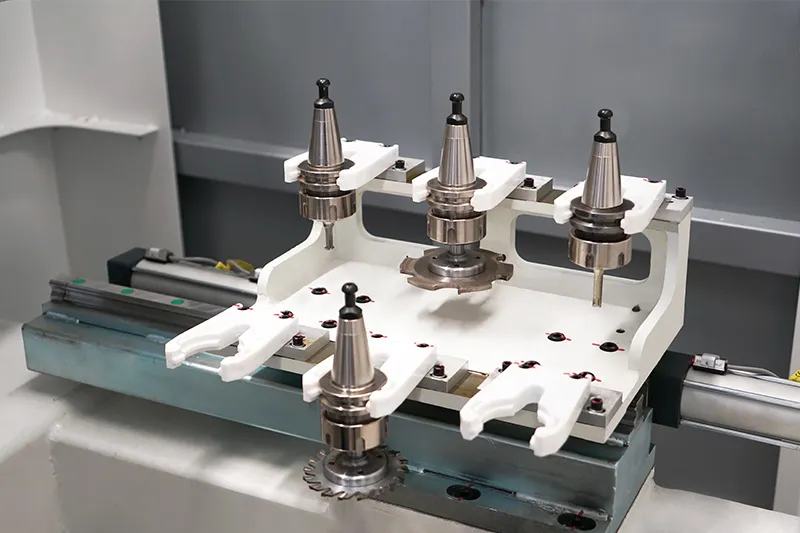

Six Sided CNC Drilling Machine Optional Parts
Application

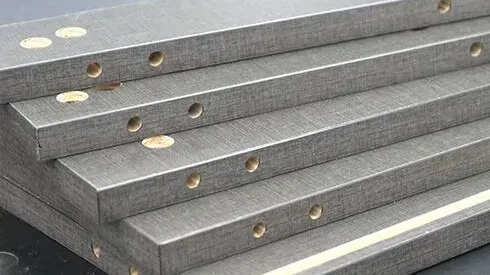

The six-sided CNC drilling machine is an advanced CNC equipment for drilling wooden boards. It is equipped with six-direction drills. Therefore, it can complete 6-sided drilling at one time without turning the sheet over. The six-sided wood drilling machine are widely used in the production of wooden furniture, such as cabinets, doors, office furniture, etc.
Six Sided CNC Drilling Machine FAQ

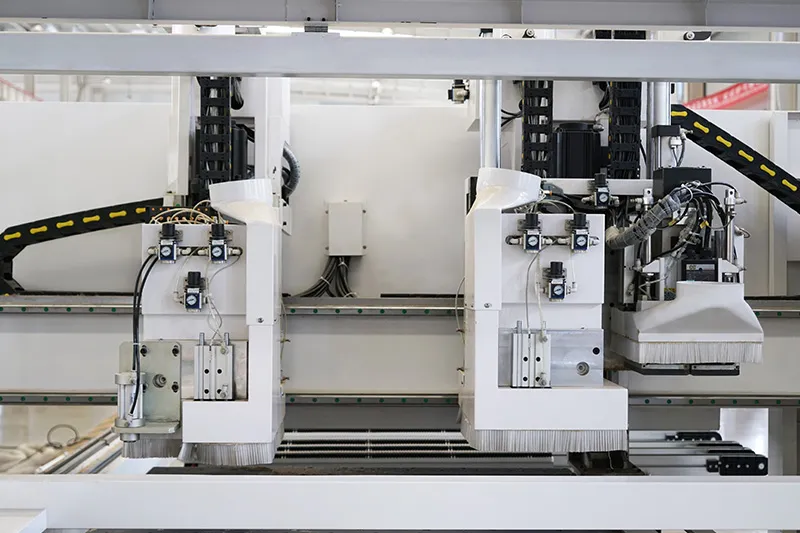

2 drilling units in total, including 12 vertical top drill bits, 8 horizontal drill bits, and 9 bottom vertical drill bits.
Click on the lower right corner “we are here” to send us a message, our sales staff will introduce this product to you in detail and provide you with relevant quotes.
Blue elephant custom system, and it is easy to operate.
