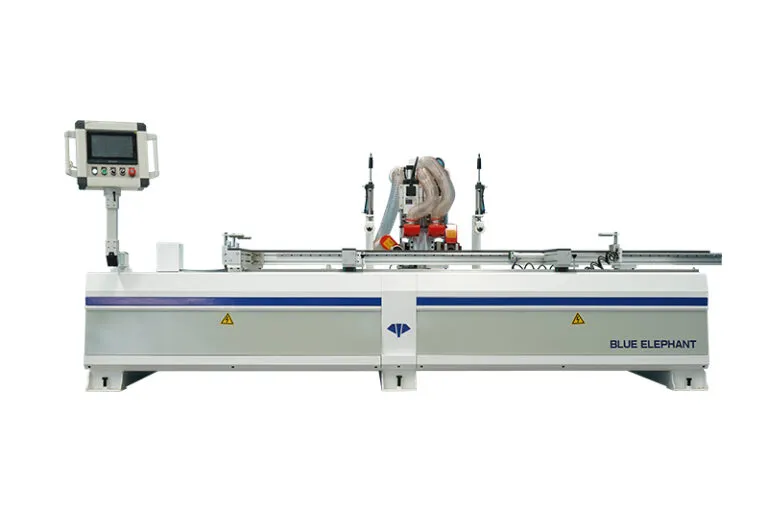

EM2-1028E CNC Door Lock Hole Drilling and Hinge Boring Machine
- Brand : Blue Elephant
- Model : EM2-1028E
- Size : 3600mm×1300mm×1450mm
- Power：15.2kw
- Category : Door Lock Machine
- Supply Ability : 400+ Units in Stock
- Customized ：Size can be customized
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
EM2-1028E CNC door lock hole drilling and hinge boring machine is mainly used for making door lock holes, hinge holes, and hinge slots for a variety of wooden doors, fireproof doors, windows, etc. It includes two vertical and two horizontal spindles to achieve different drilling, milling, and trimming functions.
Features
- The worktable adopts high-strength PVC to avoid errors caused by table wear. Besides, the thick-walled square steel machine bed can effectively avoid the vibration during operation.
- With four different spindles of different power, this machine can complete a variety of drilling work with high efficiency and excellent drilling precision.
- The machine is equipped with an oil injection system, which can lubricate the oil circuit to ensure smooth operation. In addition, the oil-water separator can effectively filter the water vapor in the air to guarantee the service life of internal components.
Parameters
- Dimension
- Dimension: 3600x1300x1450mm
- Worktable height: 750mm
- Power of 4 spindles: T1 vertical spindle for boring:3.5KW
- T2 vertical spindle for milling: 3.5KW
- T3 side spindle for milling: 6KW
- T4 side spindle for trimming: 2.2kW
- Max. travel of each spindle: T1: 2500x90x70mm
- T2: 2600x90x70mm
- T3: 2700x100x70mm
- T4: 2400x90x70mm
- Spindle rotating speed: 18000RP m/min
- Max. processing size: 2800x1000x70mm
- Idling speed: 10-100m/min
- Processing speed: 10-80m/min
- Motor: 750W servo motorx3
- Inverter: 7.5kw
- Lubrication: Automatic lubrication system
- Ball screw: #25 Taiwan high-precision ball screw
- Guide rail: #20 Taiwan Linear guide
- Bearing and bearing seat: Taiwan High precision bearing
- Cable: High flexible double shielded wire
- Reducer: Planetary Reducer
- Rack: high precision rack gear
Door Lock Machine Optional Parts

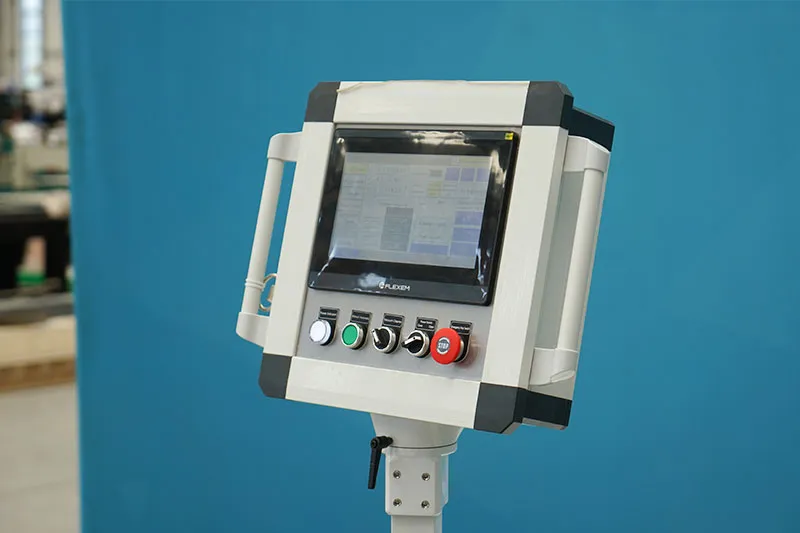

cnc-door-lock-hole-drilling-and-hinge-boring-machine-touchscreen

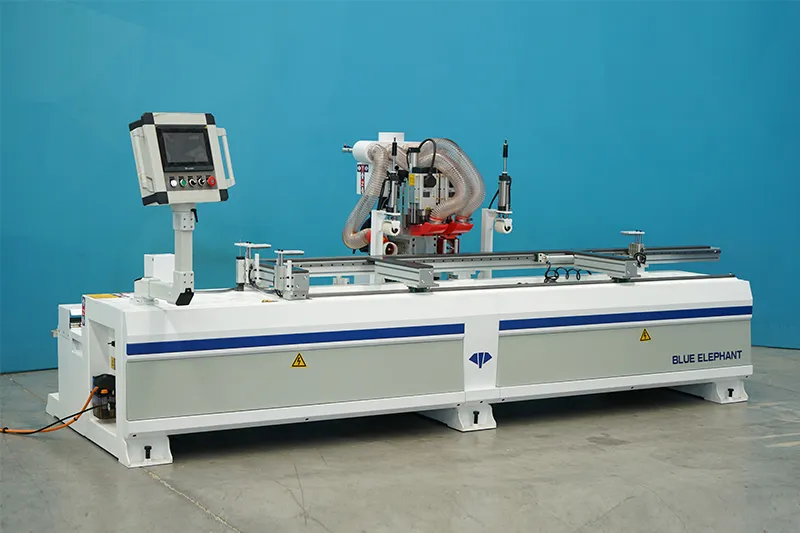

cnc-door-lock-hole-drilling-and-hinge-boring-machine

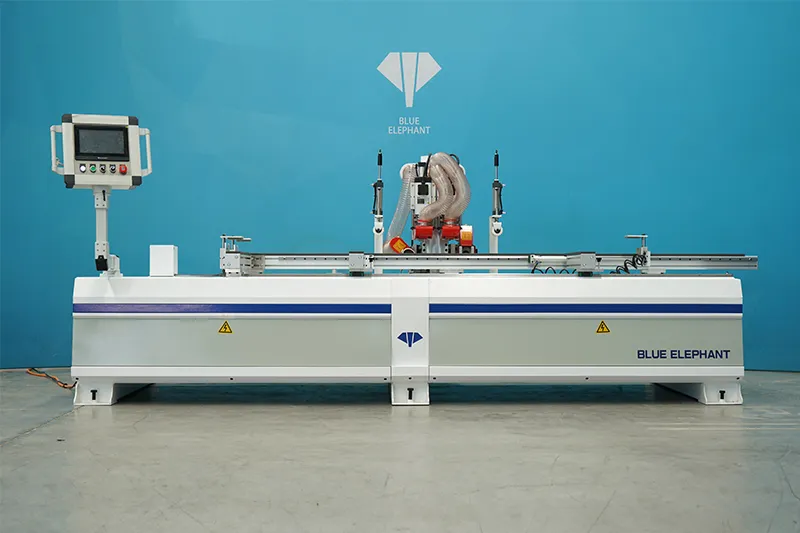

cnc-door-lock-hole-drilling-and-hinge-boring-machine1

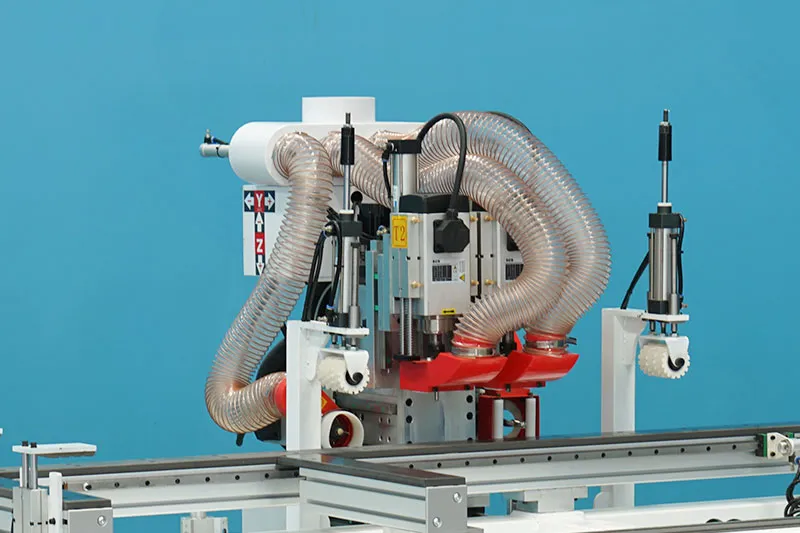

cnc-door-lock-hole-drilling-and-hinge-boring-machine-spindle
Application
As important equipment in wood furniture production, the CNC door lock machine is mainly used to process various holes and slots on wooden doors in one operation. For example, the door lock hole and hinge boring machine can drill and mill lock holes, side hinge holes and slots, door closer slots, holes and slots with fast speed.

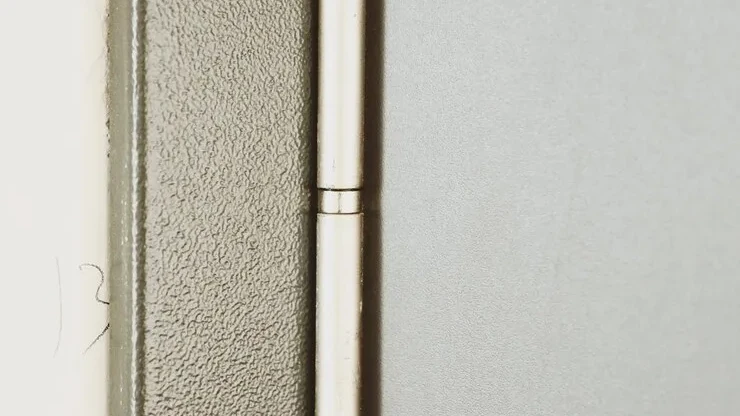

door-lock-hole-making-machine-for-door-hinge
door-lock-hole-making-machine-for-electronic-keyhole

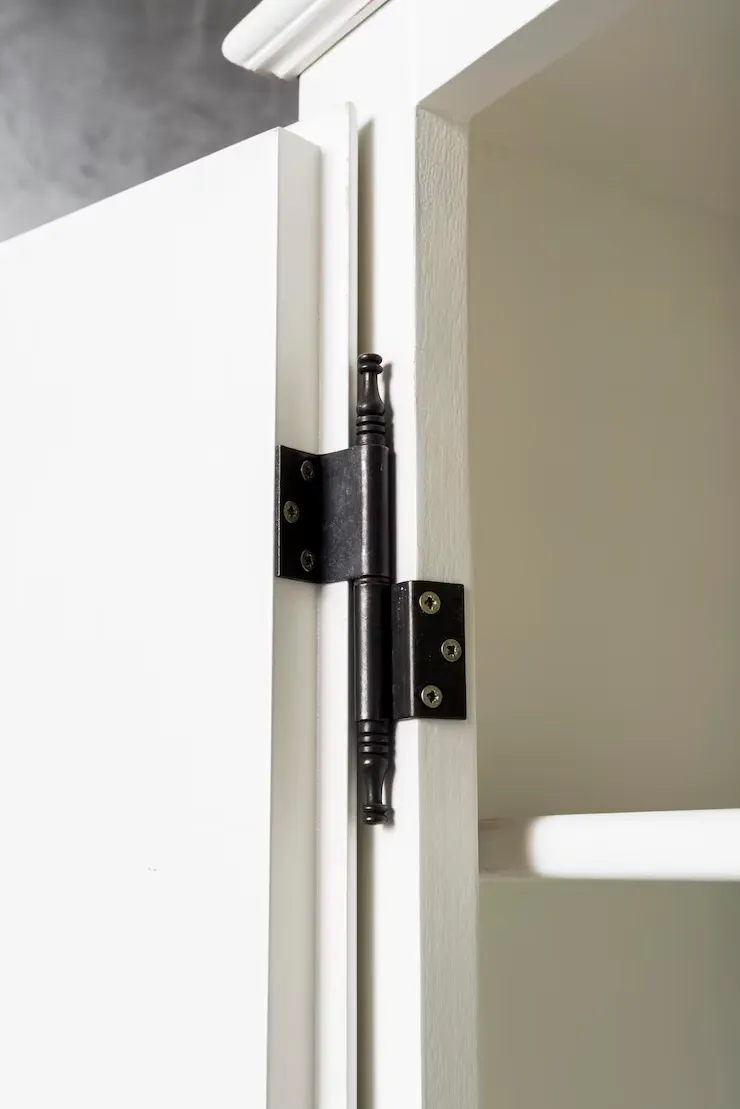

door-lock-hole-making-machine-for-hinge

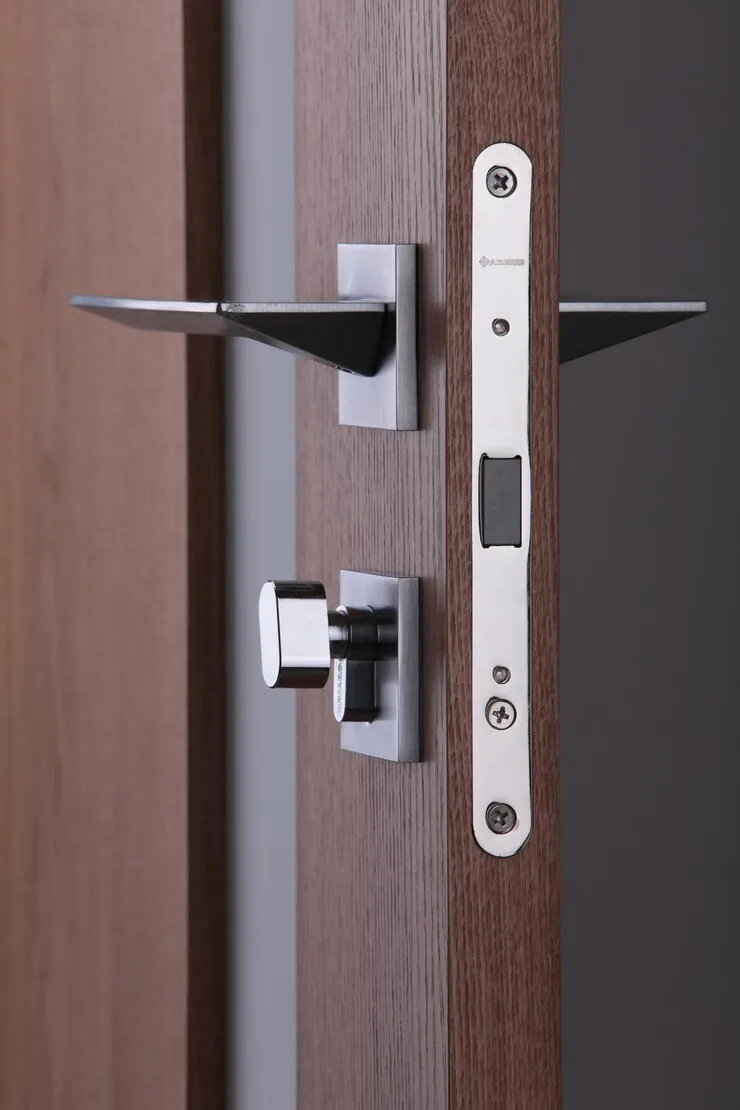

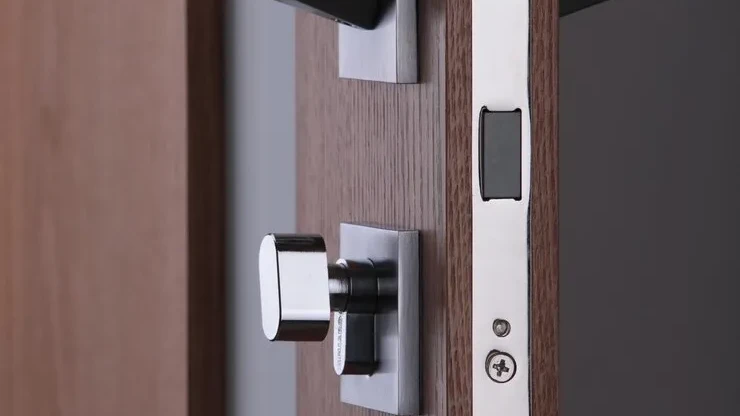

door-lock-hole-making-machine-for-interior-door-lock

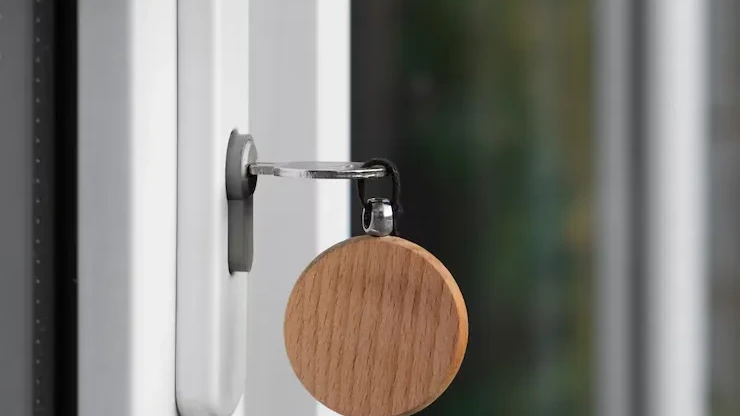

door-lock-hole-making-machine-for-key-operated-door-lock

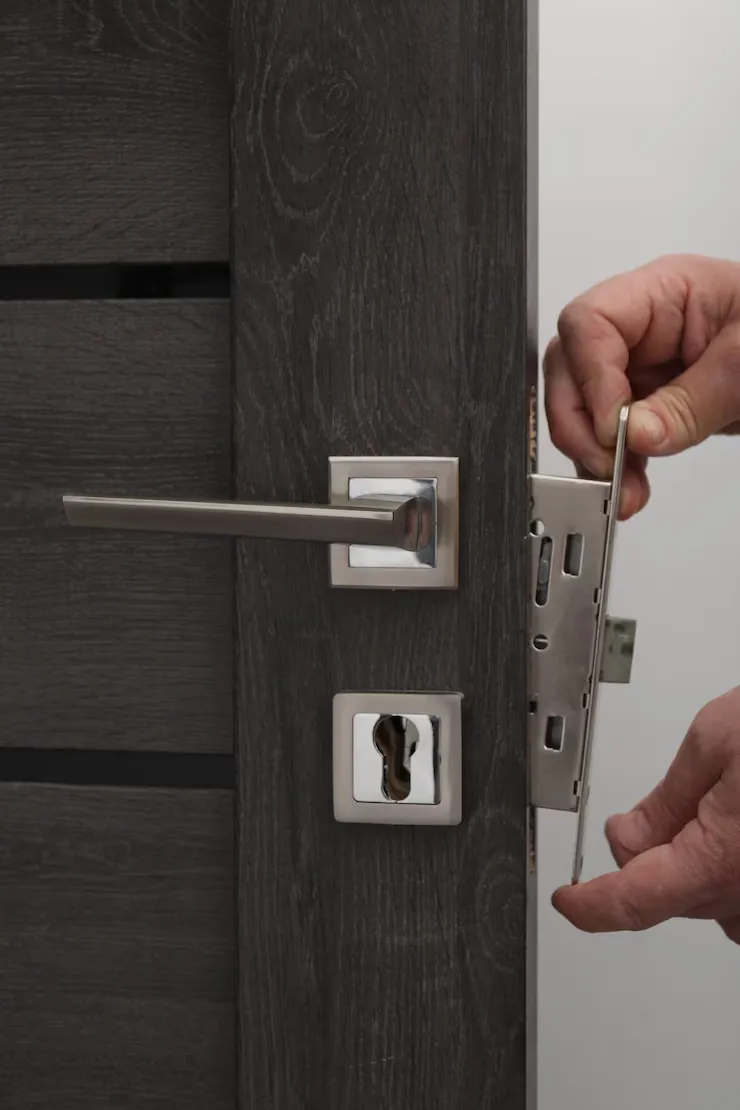

door-lock-hole-making-machine-for-mechanical-keyhole

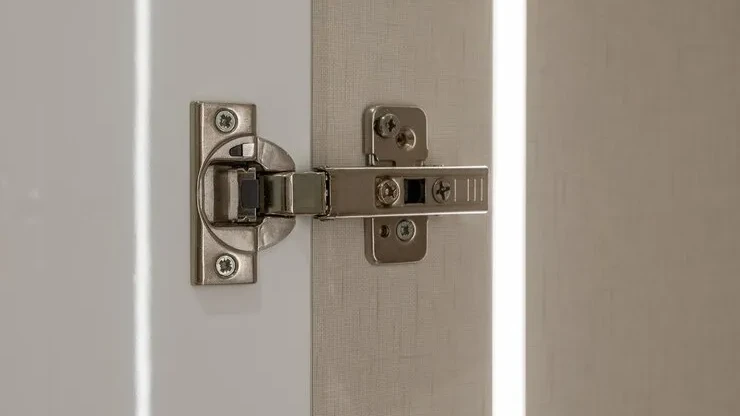

door-lock-hole-making-machine-for-concealed-cabinet-hinge

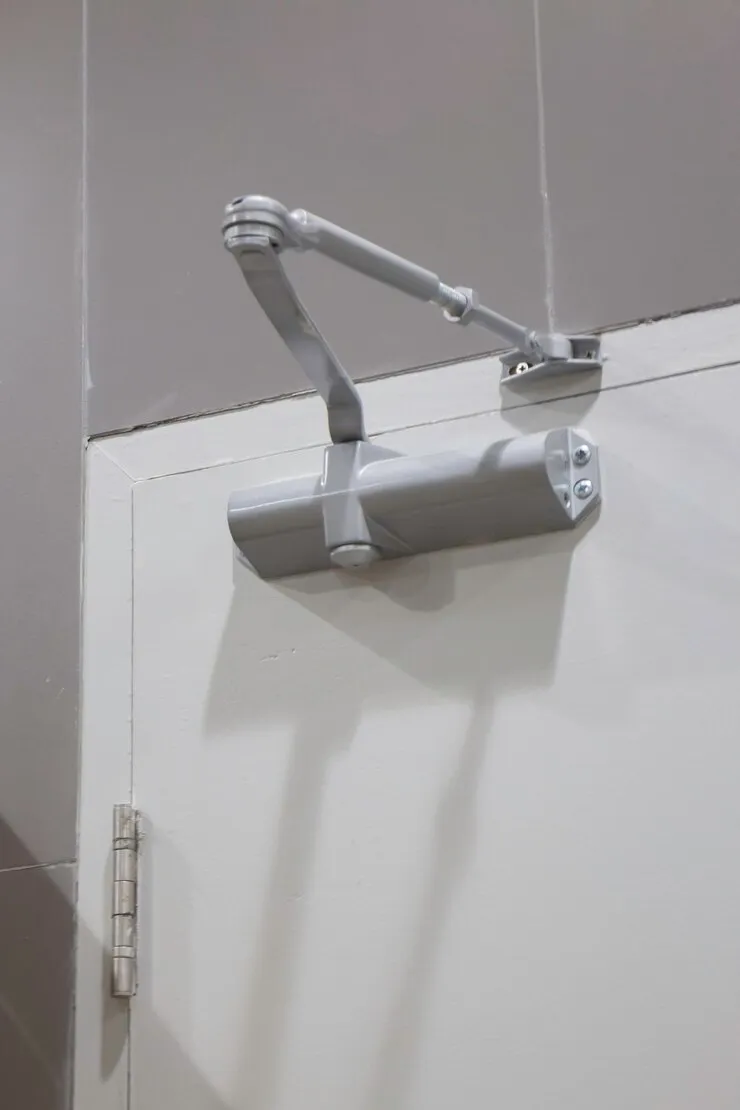

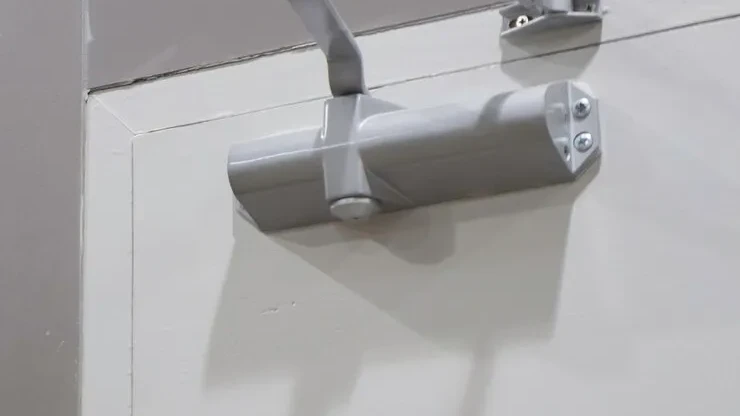

door-lock-hole-making-machine-for-door-closer
FAQ
It is mainly used to drill and mill a variety of holes and slots on the wood door panels, such as lock holes, hinge holes, hinge slots, door closer holes and slots, etc.
The maximum processing size of this door lock machine is 2800x1000x70mm. Any door panels with a size of less than this dimension can be processed by this machine.
The machine has a one-year warranty and free after-sales service for life.
