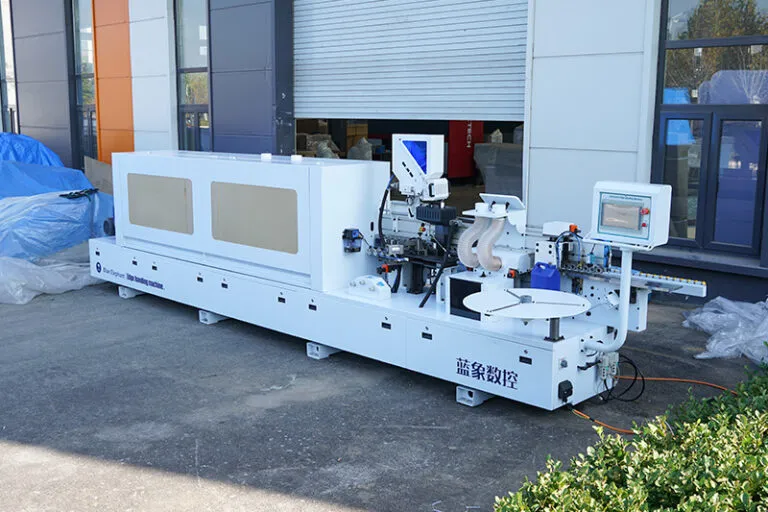

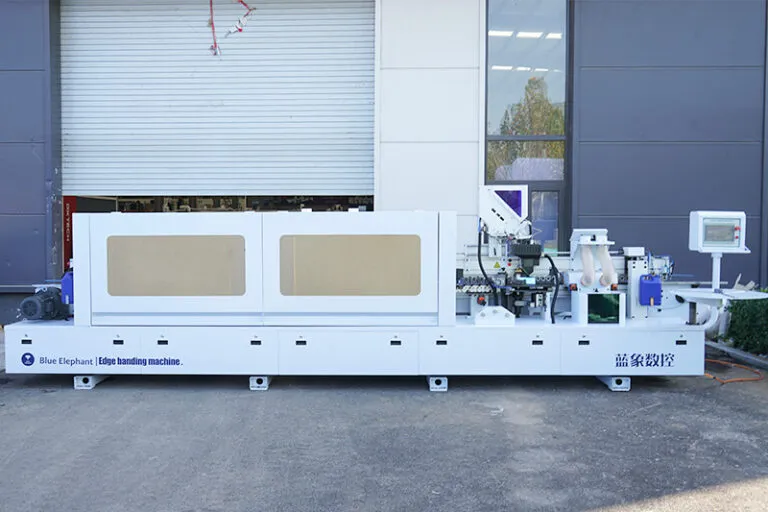

E-70JR Auto Edge Banding Machine for Sale
- Brand : Blue Elephant
- Model : E-70JR
- Panel Thickness : 10mm~60mm
- Category : Edge Banding Machine
- Supply Ability : 330+ Units in Stock
- Function : Pre-milling, six-wheels pressing, end cutting, rough trimming, fine trimming, chamfering, scraping, buffing, cleaning and separation
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description

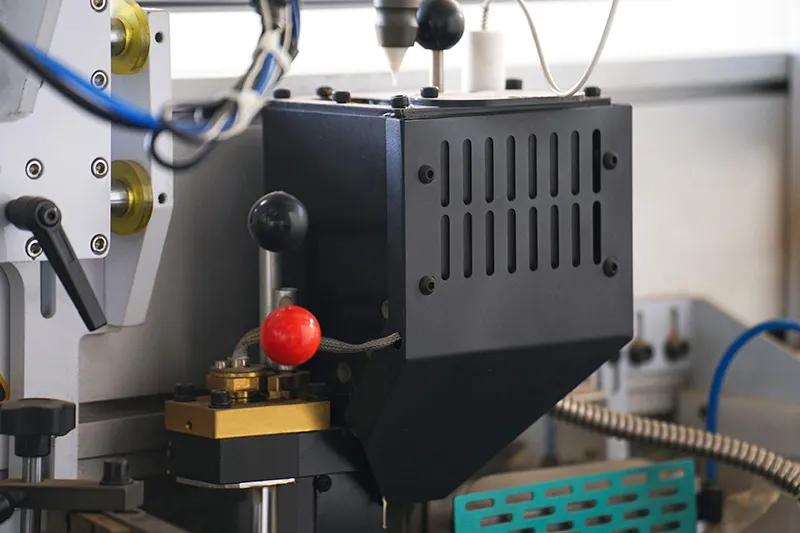

E-70JR auto edge banding machine has the functions like pre-milling, six-wheels pressing, end cutting, rough trimming, fine trimming, chamfering, scraping, buffing. In addition, it adds the functions of cleaning and separation, is equipped with rapid-sol unit, detachable glue pot, and a baking lamp device. It is widely used in the wood furniture industry, including panel furniture, custom furniture, cabinets, wardrobes, and office furniture.
Features
- The bander machine doesn’t use a manual adjustment, and pneumatic knife adjustment is used to automatically adjust the thickness of the edge banding, which is convenient and fast.
- This edge banding machine can adjust 4 board thicknesses through the screen, 15mm, 18mm, 25mm, 36mm.
- The pre-milling function can mill the edges and residues of the board surface to make the glue coating more even and the glue line thinner.

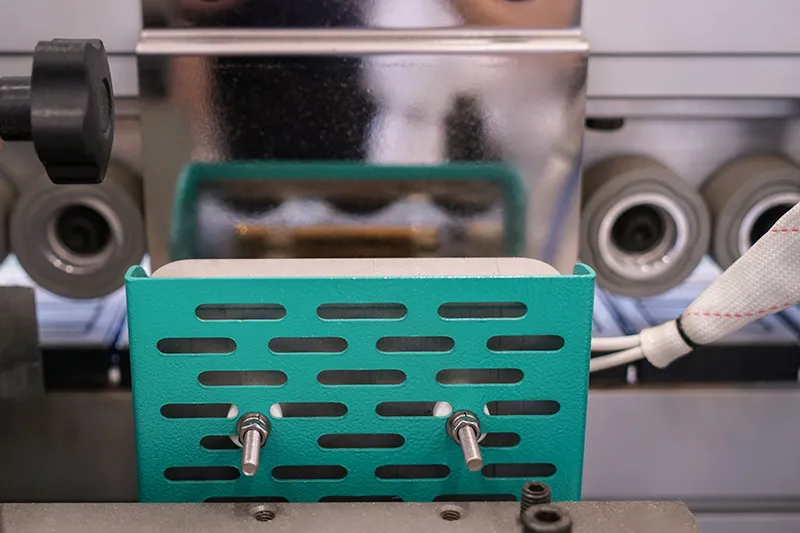

- Edge bander uses a baking lamp to heat the glued edge of the board. The glued edge is more tightly sealed, the edge band is more firmly attached, and the debonding problem is effectively solved.
- This edge banding machine uses rough trimming and fine trimming, the excess edge band is cut off from the top and bottom sides of the plate so that it is parallel to the plate height.
Parameters
| Model | E70JR |
| Machine Overall Size | 6800x970x1800mm |
| Panel Thickness | 10-60mm |
| Edge Banding Thickness | 0.4-3mm |
| Panel Width | ≧60mm |
| Panel Length | ≧120mm |
| Feeding Speed | 15-23m/min |
| Total Power | 16.5kw |
| Working Pressure | 0.6Mpa |
| Voltage | 380V, 50HZ, 3PH Optional:220V, 3PH;220V,1PH |
| Electric Lifting | 0.37KW |

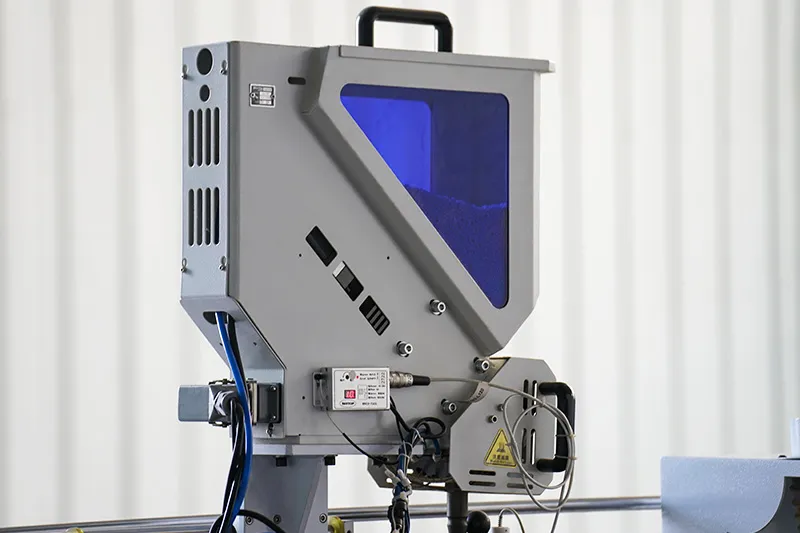

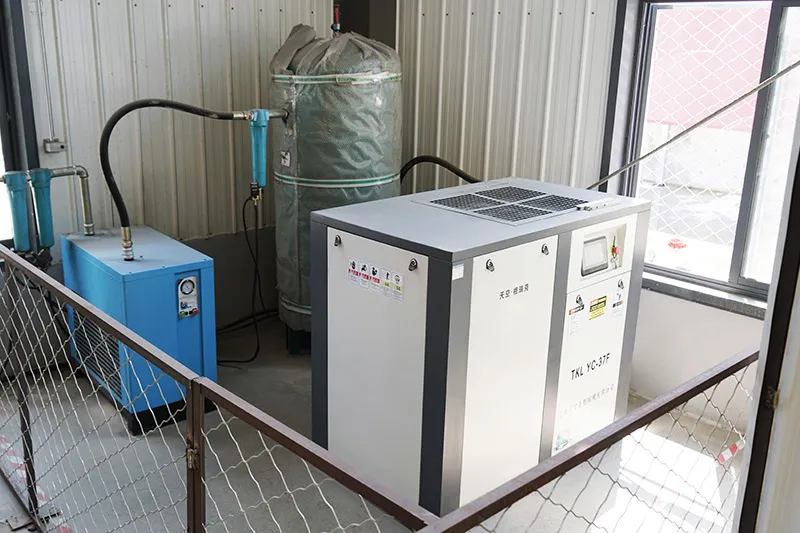

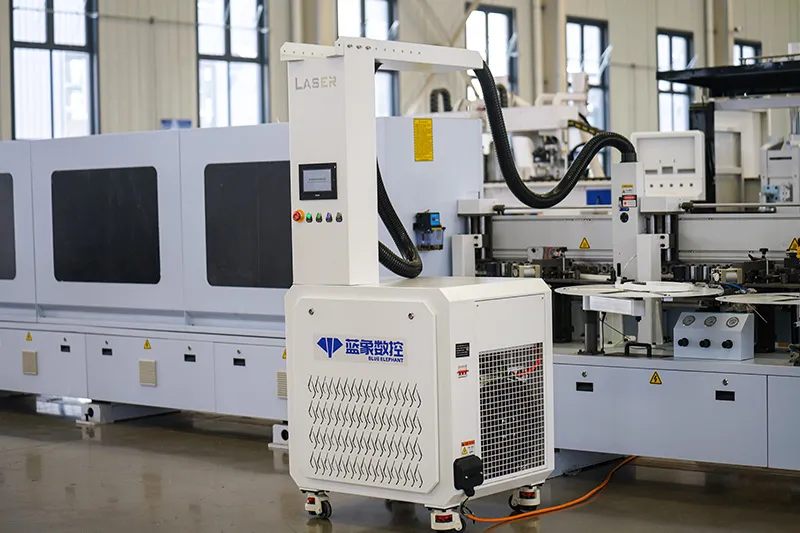

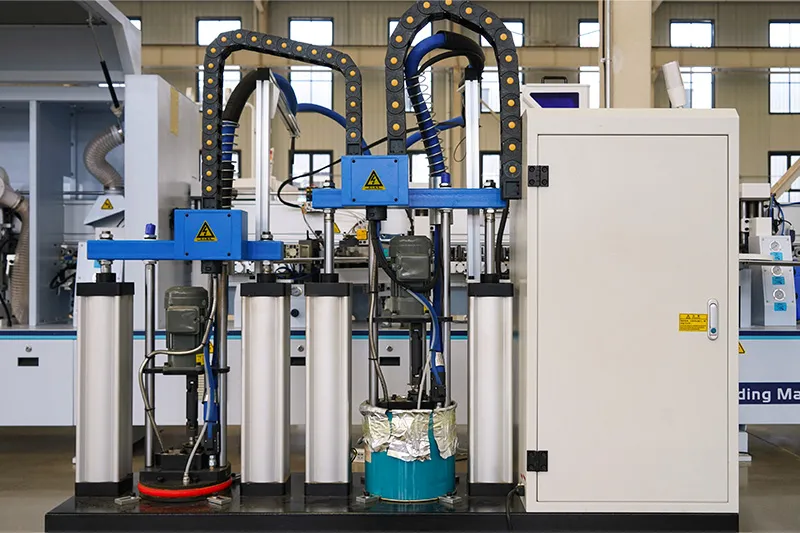

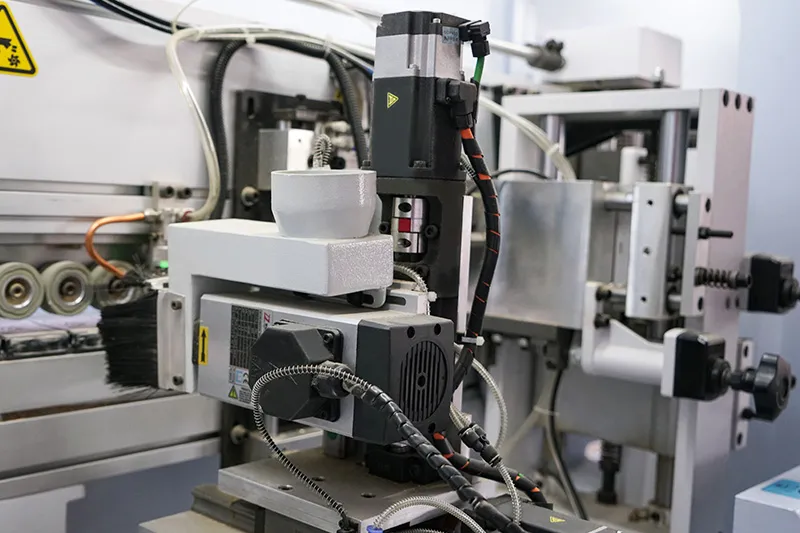

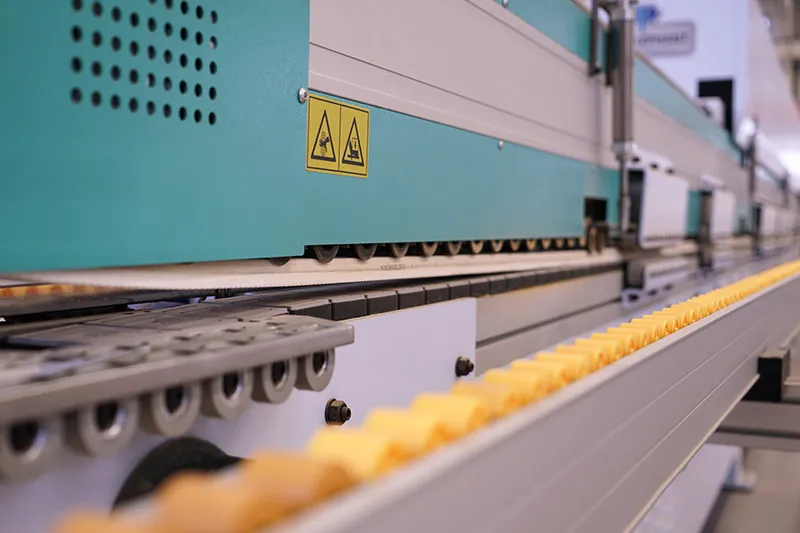

Edge Banding Machine Optional Parts
Application
Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.
FAQ
This machine can process materials such as Medium density fiberboard, blockboard, solid wood board, particle board, polymer wood board, plywood, etc.
At Blue Elephant, we understand that many of our clients are new to edge banding machine. That’s why we’re dedicated to providing lifetime technical assistance. With us, you’ll always have someone to speak with whenever you need help. Plus, we offer access to Blue Elephant University Training Videos, providing hands-on experience without the cost of paid training.
Yes.Its processing range is 10-60mm.
