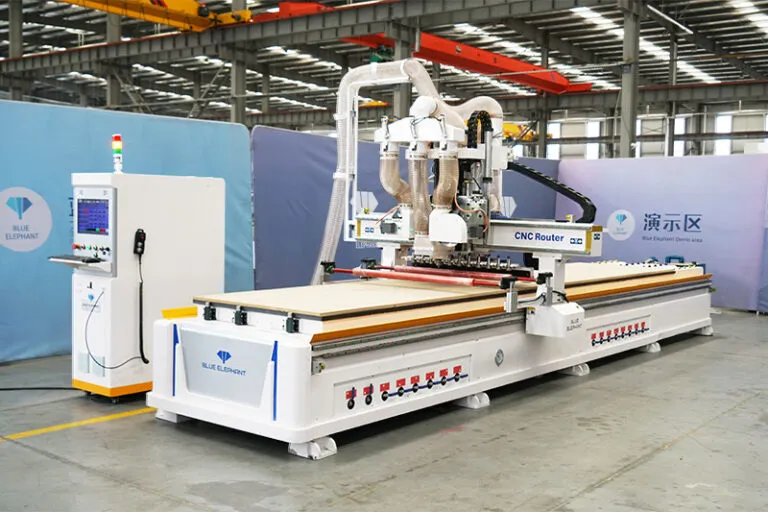

Aluminum and Wood Cutting Machine
- Brand : Blue Elephant
- Model : Universal Aluminum and Wood Cutting Machine
- Standard : CE, ISO9001
- Table size : 1300mm*6000mm
- Category : Nesting CNC Machine
- Supply Ability : 350+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
Universal aluminum and wood cutting machine can process all kinds of wood plates in the traditional panel furniture industry, but also can process aluminum honeycomb aluminum plate, welding large plate and other aluminum plates in the aluminum furniture industry, can be double-station switching, time-saving and efficient.
Features
- It can process wood panels, as well as aluminum honeycomb panels, welding panels and other aluminum panels.
- Double station table structure. The material can be processed alternately by the front and back station, or the whole table can work at the same time.
- It is equipped with double pressure wheels to avoid board running.

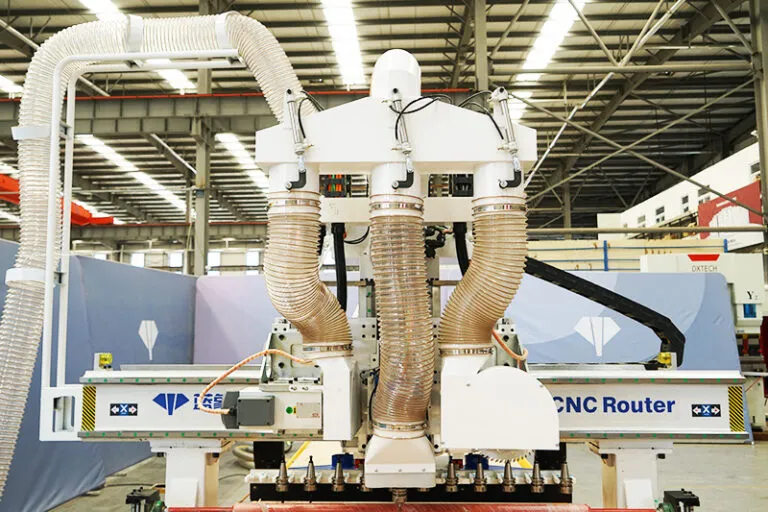

- The machine also equipped with tabletop dust scraping function. When the plate processing is completed and the plate is removed, the tabletop residue can be vacuumed through the dust scraping structure.
Parameters
| Universal Aluminum and Wood Cutting Machine | |
| Travel | 1300x6000x200mm |
| Control system | Taiwan SYNTEC controller |
| Tool change spindle type | 9KW air cooling tool change spindle |
| Transverse saw blade spindle | 5.5KW saw blade spindle |
| Longitudinal saw blade spindle | 5.5KW saw blade spindle |
| Servo | Servo motor |
| Reducer | Japan SHIMPO reducer |
| Guide rail | Taiwan guide rail |
| Rack spline | Taiwan rack spline M2 |
| Tool magazine | 12pcs linear tool magazine, under the gantry |
| Lubrication system | 1.5L electric gear pump |
| Work table | Vacuum adsorption work table |
| Vacuum pump | 7.5KW water circulation vacuum pump x2 |
| Vacuum cleaner | 5.5KW double bag vacuum cleaner |
| Working voltage/frequency | 380V/50HZ/3P |
| Total power | About 16KW |
| Machine overall size | Length 7360mmxwidth 2480mmx height 2500mm |

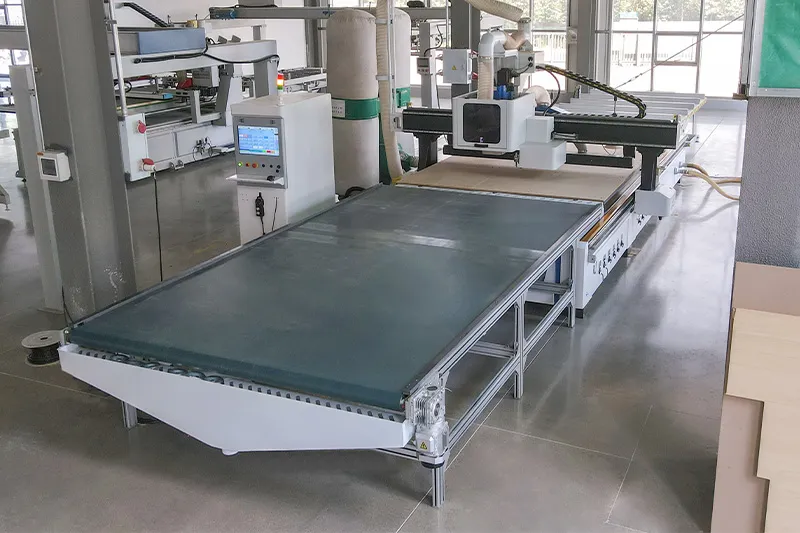

Nesting CNC Machine Optional Parts
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations
Other wood products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers
FAQ
For the machine, we have online teaching videos of machine operations and controller. And our engineer is good at English, so he can teach you online.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you. After we have got your payment. We will send the machine to you.
