6160T Metal Tube Fiber Laser Cutting Machine

(4.9 based on 156 ratings and reviews)

$12,000 – $30,000
  • Brand : Blue Elephant
  • Model : ELECNC-6160T
  • Standard : CE, ISO9001
  • Laser Power : 1kW – 4kW
  • Category : Fiber Laser Cutting Machine
  • Supply Ability : 400+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

6160T Metal Tube Fiber Laser Cutting Machine is specially designed for cutting metal tubes and pipes. Except for regular round pipes and square tubes, it can also cut H-shaped, L-shaped, T-shaped, and U-shaped steel materials. The pneumatic rotating chucks can fix and rotate the pipes and tubes to make the cutting faster and more convenient.

Features

  • Heavy-duty high-strength mechanical structure
    It adopts high-strength machine bed which has gone through stress relief annealing treatment under 600℃. The strong rigidity of the machine structure maintains small deformation, low vibration, and high precision of the laser cutting machine.
  • TubePro pipe cutting software
    It uses a professional pipe cutting system, which supports high-speed and high-efficiency cutting of various pipes and tubes. It has automatic pipe centering and eccentric compensation functions, ensuring the cutting accuracy. The software helps increase the utilization rate of materials, reduces residual material, and saves production costs.
  • Automatic focusing laser head
    Automatic focusing mode of the laser head reduces human interference with a focusing speed of 10m/min and repeated positioning accuracy of 50um.
  • Automatic support device.
    Adopting the intelligent pipe holder design, this machine solves the deformation problem in the process of long pipe cutting.
  • Automatic double pneumatic chucks, stable and efficient
    The chuck device is controlled by one key and can realize automatic centering, reducing the waiting time for loading and unloading. The constant and large clamping force guarantees heavy pipes no loose or sliding, thus ensuring the cutting precision. It is also equipped with special support frame to avoid pipe sagging deformation.
  • Enclosed processing area
    The cutting area is protected by a fully enclosed cover, protecting operator’s safety and working environment.

Parameters

Model ELECNC-T6160/T9160 ELECNC-T6220/T9220 ELECNC-T6350/T9350
Max. tube length 6.5/9.2m 6.5/9.2m 6.5/9.2m
Tube shape Round/square/rectangular Round/square/rectangular Round/square/rectangular
Max. tube weight 100kg  16kg/m 200kg  30kg/m 500kg  83kg/m
Positioning accuracy ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy ±0.02mm ±0.02mm ±0.02mm
Chuck Two pneumatic chucks Two pneumatic chucks Two pneumatic chucks
Max. chuck rotating speed 130r/min 130r/min 140r/min
Laser power 1kW – 4kW 1kW – 4kW 1kW – 4kW
Laser Multiple options Multiple options Multiple options
Clamping range Φ10-Φ160mm Φ20-Φ220mm Φ20-Φ350mm

Application

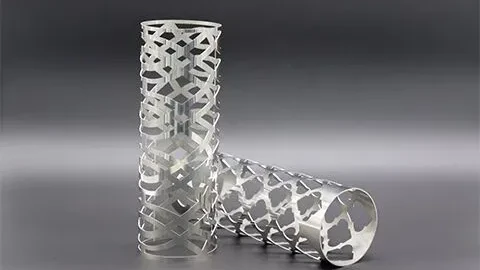

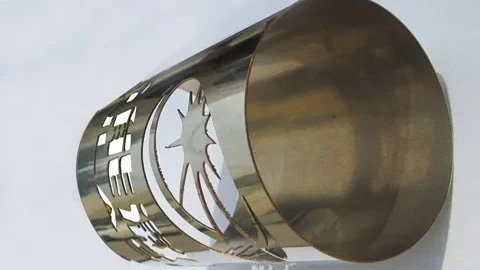

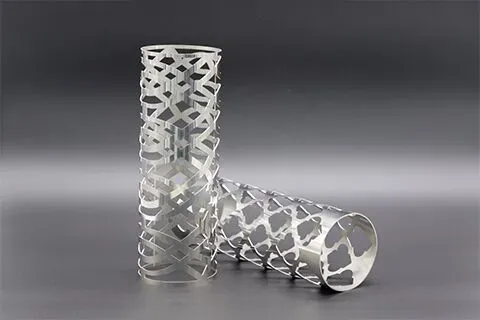

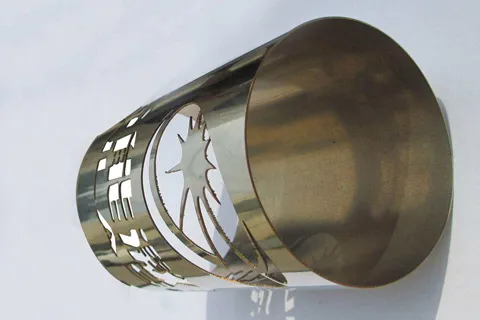

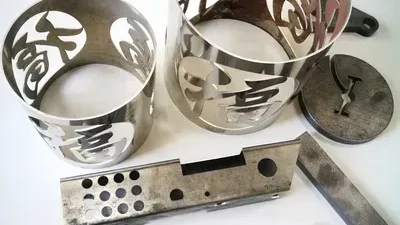

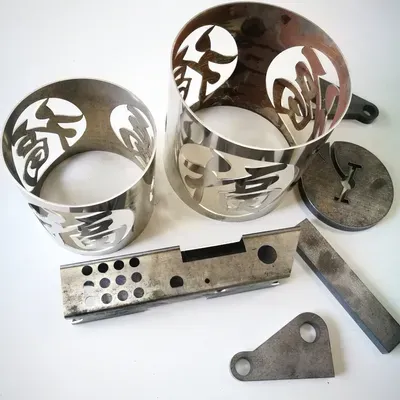

Fiber laser cutting machines provide large and small companies with economical and affordable laser cutting capabilities for metals. For example, stainless steel, carbon steel, galvanized, aluminum, etc. Therefore, the company has a good opportunity to laser cut highly complex metal parts, prototypes and custom parts in a cost-effective manner internally. This metal tube fiber laser cutting machine is widely used to cut various pipes and tubes.
