420 Computer Beam Saw Machine for Sale

(4.9 based on 165 ratings and reviews)

$35,000 – $40,000
  • Brand : Blue Elephant
  • Model : ELECNC-420
  • Machine size : 7300*6530*1900mm
  • Max.cutting length : 4200mm
  • Saw car moving speed : 100m/min
  • Category : Panel Saw Machine
  • Supply Ability : 400+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

420 computer beam saw machine is completely upgraded. This advanced horizontal panel saw machine adopts international famous electrical appliances and key components to ensure the high precision and reliability. And with its fast cutting speed and good performance, it can cut plate with length 4200mm and thickness 100mm.

Features

  • The latest computerized beam saw has the advanced features of intelligent data import, wireless remote control and remote monitoring.
  • The ELECNC420 computer beam saw has various practical functions, including order design, order optimization, remnants management, layout optimization, and barcode printing.
  • The high-efficiency horizontal panel saw machine also has powerful optimization and layout programming functions, as well as the ability to simulate real-world scenarios.

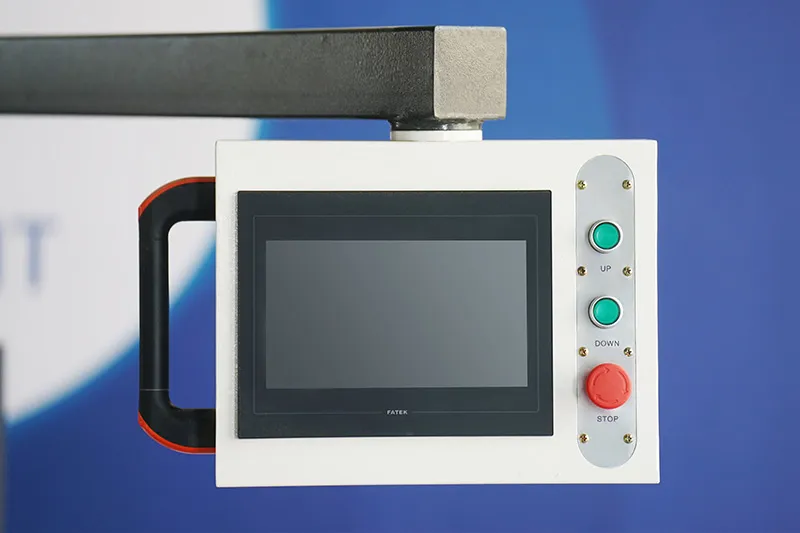

  • The panel display interface is clear and easy to understand. We can use it to edit desired cutting plans and simulate the cutting process. It is compatible with various optimization software, barcode management software, and automation software.
  • Material dimensions are scanned and inputted intelligently by the computer, enabling one-click operation. Only 2 hours of training are required for on-the-job readiness.

Parameters

Model ELECNC-420
Overall dimension 7300x6530x1900mm
Cutting length 4200mm
Cutting thickness 100mm
Main saw blade diameter 400mm
Main saw blade revolving speed 4800rpm
Groove saw blade diameter 180mm
Groove saw blade revolving speed 6900rpm
Forward speed of carriage 100m/min
Backward speed of carriage 150m/min
Main saw motor 16.5KW
Groove saw motor 2.2KW
Auto feeding motor 2KW
High-press ventilating motor 4KW
Total power 31KW
Auto feeding speed 100m/min
Air pressure 5-7kg/cm²
Platform height 950mm
Control switch Schneider
PLC Delta
Converter Invt
Screen Jikowi
Contactor Schneider
Pneumatic elements Hengtong
Solenoid valve AirTac
Motor Igarashi
Servo control system Invt
Linear guide rail SLM

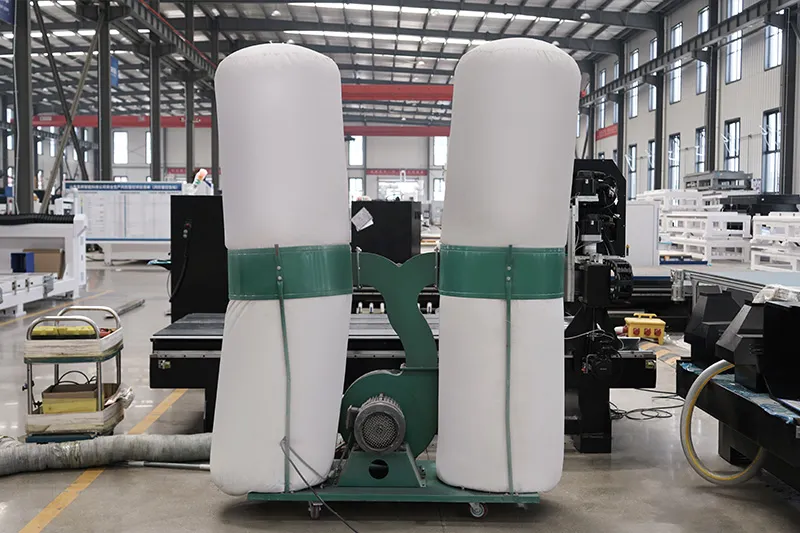

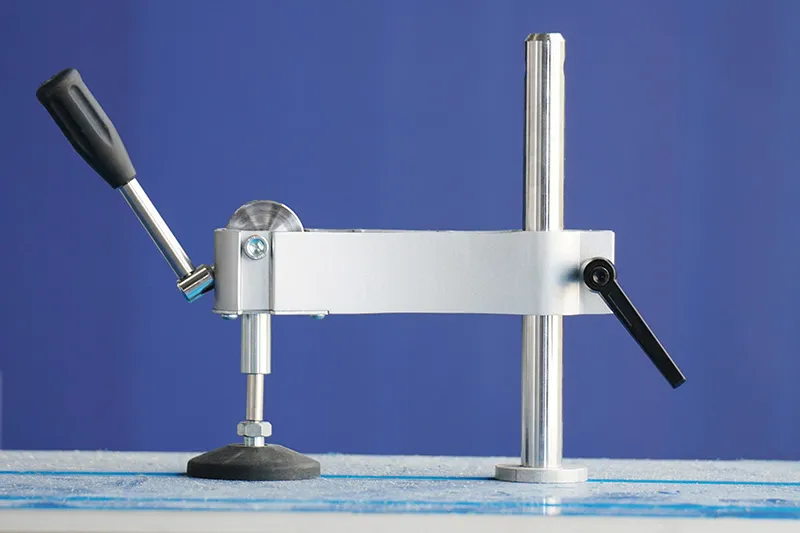

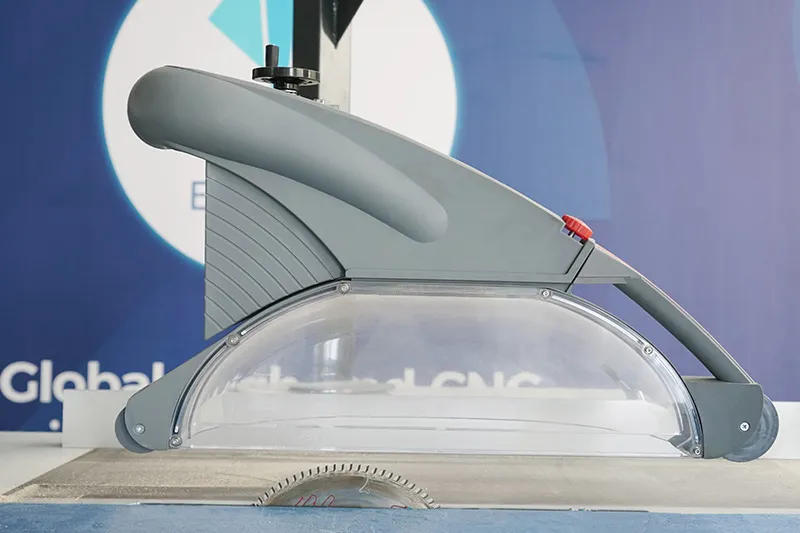

Panel Saw Machine Optional Parts

Application

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels for office furniture and engineering furniture production. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.
